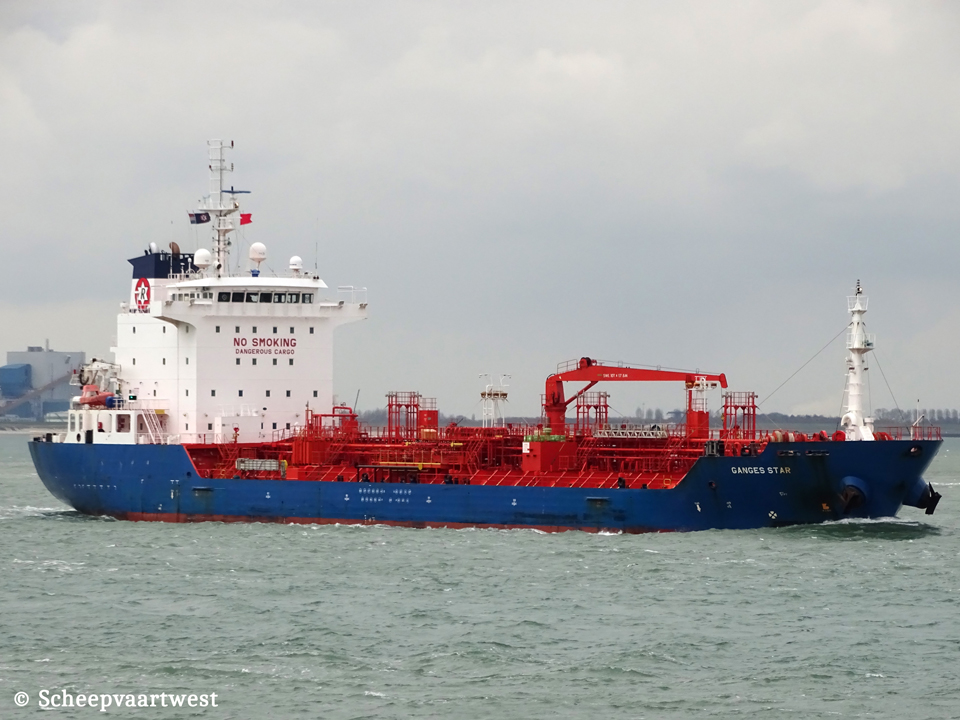

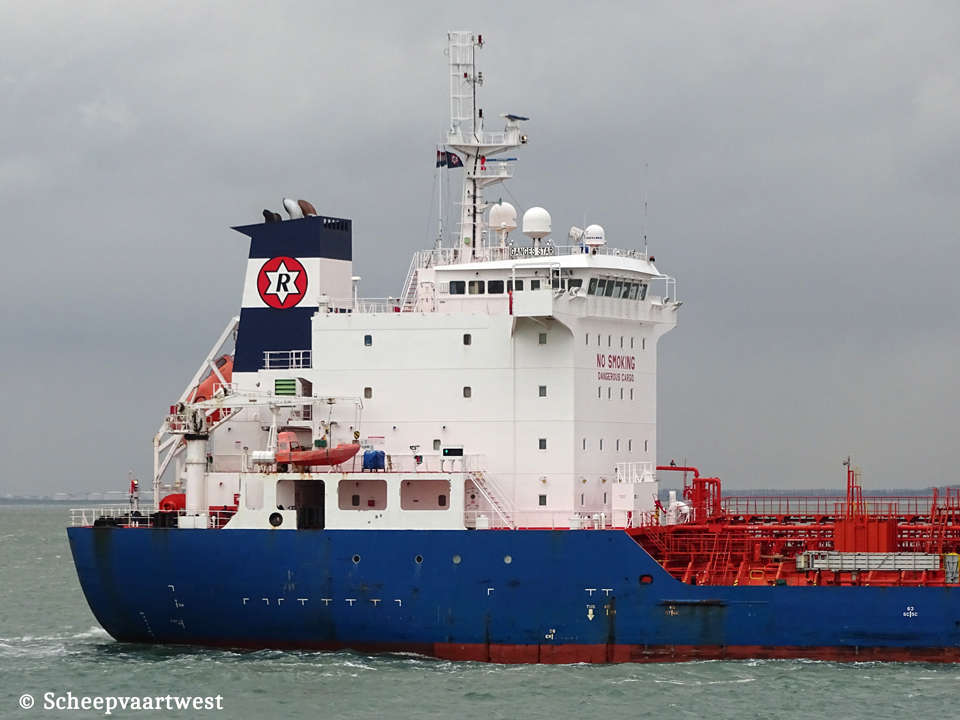

Westerschelde 19 November 2018 |
 |
 |
 |
 |
|||

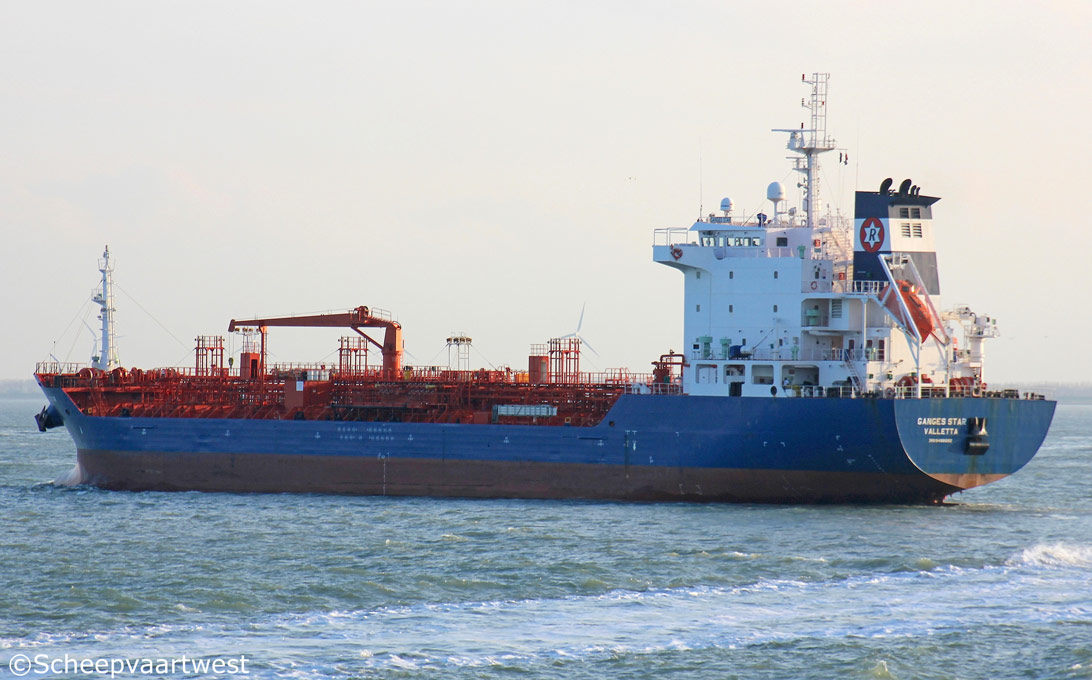

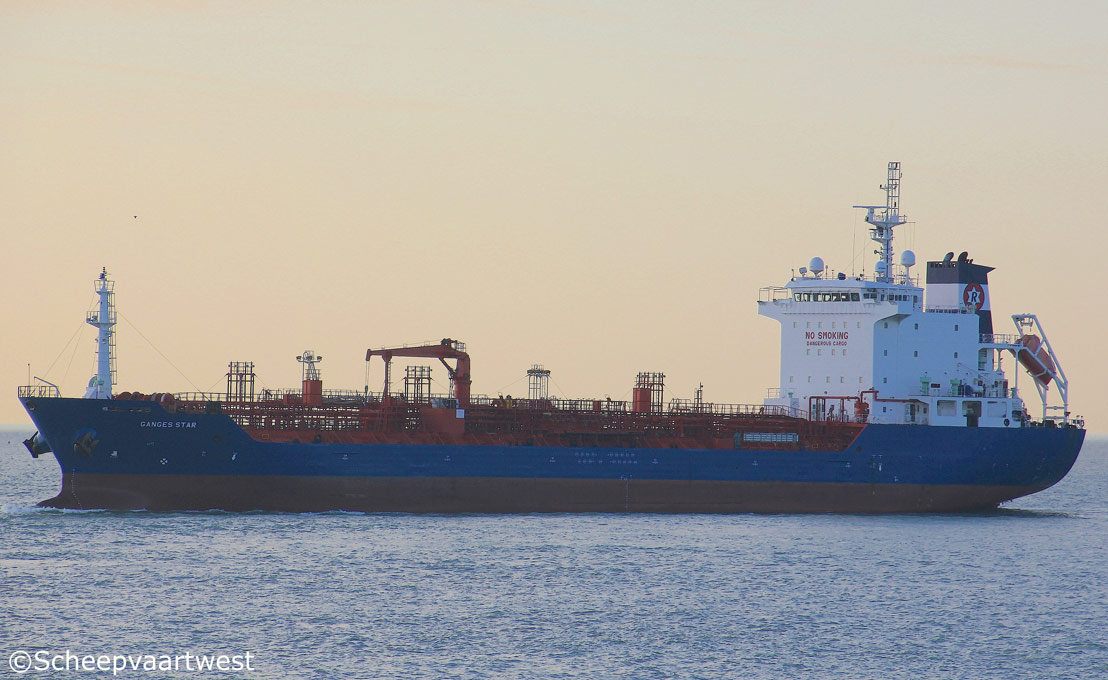

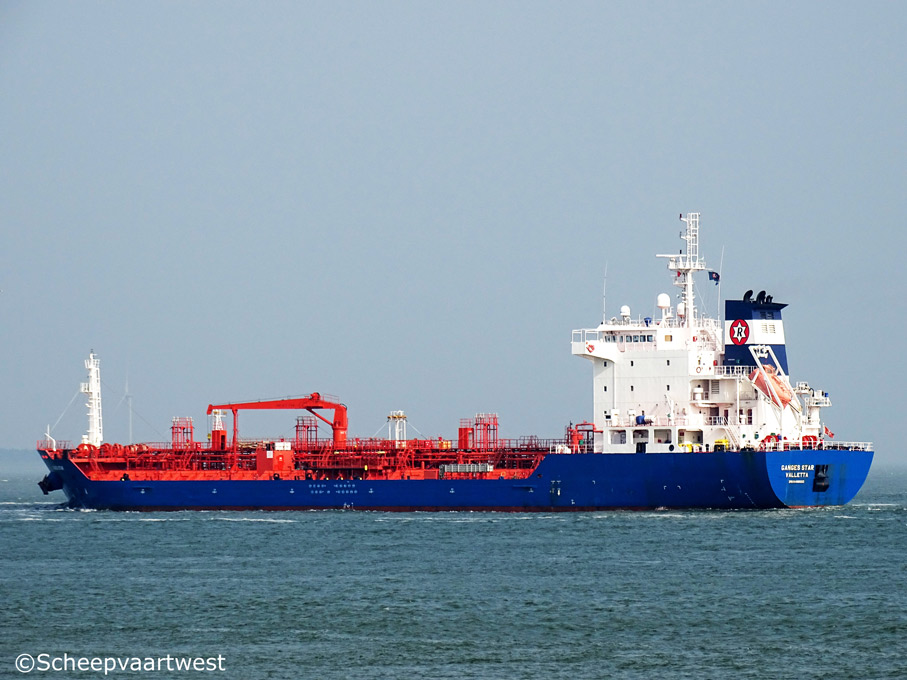

| Westerschelde 19/11/18 | Westerschelde 12/11/15 | Westerschelde 12/11/15 | Westerschelde 27/05/16 | |||
|
Name |
GANGES STAR |
|
Type |
Oil and chemical tanker |
|
IMO-number |
9496692 |
|
Call sign |
9HA2339 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
8.986 t Suez: 8.986,73 t |
|
DWT |
Summer: 13.012,64 t |
|
NT |
4.117 t Panama: 7.216 t Suez: 6.845 t |
|
Length |
128,60 m overall 120,40 m between perpendiculars |
|
Breadth |
20,40 m moulded |
|
Draught |
8,71 m |
|
Keel to top mast |
40,80 m |
|
Freeboard |
2.812 mm |
|
Depth |
11,50 m moulded |
|
Speed |
Service: 13,4 knots |
|
Built |
2010 |
|
Keel laid |
28/04/2009 |
|
Launch date |
20/11/2009 |
|
Date of completion |
29/04/2010 |
|
Builder |
21st Century Shipbuilding Tongyoung South Korea |
|
Yard number |
CSN263 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 11 Oil tight: 8 |
|
Number of decks |
1 |
|
Main engine |
1x MAN-B&W/STX-6S35MC-MK7 - 6 cylinder 350 x 1.400 mm combustion engine output 5.920 kW at 173,0 rpm Manufacturer: STX Engine Co.,Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co.,Ltd. |
|
Boilers |
Fired boiler - 9,0 bar Heating surface: 78 m² Unfired exhaust gas boiler - 12,0 bar Manufacturer: Aalborg Ind. Co., Ltd |
|
Generators |
3x Main diesel generatorset each 600 kW Manufacturer: Taiyo Electric Co.,Ltd. |
|
Bow thruster |
1x 450 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Total cargo capacity 98% |
Tank 1 P-SB: 948 m³ Tank 2 P: 1.123 m³ - SB: 1.124 m³ Tank 3 P-SB: 1.232 m³ Tank 4 P-SB: 1.233 m³ Tank 5 P: 1/233 m³ - SB: 1.232 m³ Tank 6 P-SB: 1.070 m³ Slop tanks P 352 m³ - SB: 351 m³ 13.916 m³ incl. Slop tanks |
|
Number of slop tanks |
2 |
|
Tank coating |
Phenolic epoxy |
|
Number of segregations |
12 + 1 |
|
Heating capacity |
Max.: 70°C |
|
Number of pumps |
12x Framo Deepwell pumps - 300 m³/h each 2x Framo Deepwell pumps - 100 m³/h each |
|
Manifolds |
Bow to centre of manifold: 61,20 m |
|
Number of tanks |
Ballast: 15 Lubricating oil: 9 Fuel oil: 9 Fresh water: 5 Diesel oil: 4 Waste water: 2 Chain: 2 Sludge: 2 Organic compound1 Chemical: 1 Hydraulic oil: 1 |
|
Tank capacities |
Diesel Oil: 76,82 m³ Freshwater: 429,90 m³ Fuel Oil: 645,13 m³ Hydraulic Oil: 5,78 m³ Lube Oil: 88,37 m³ Tank Ballast: 5.457,84 m³ |
|
Lifting equipment |
1x Hosehandling crane - SWL 10,0 t |
|
ISM & commercial manager |
Care of CST Schifffahrts GmbH & Co KG Mattentwiete 1 20457 Hamburg Germany |
|
Owner |
Valloeby Ganges Star Ltd. Care of CST Schifffahrts GmbH & Co KG Mattentwiete 1 20457 Hamburg Germany |
|
Latest data adjustment |
01 January 2023 |
