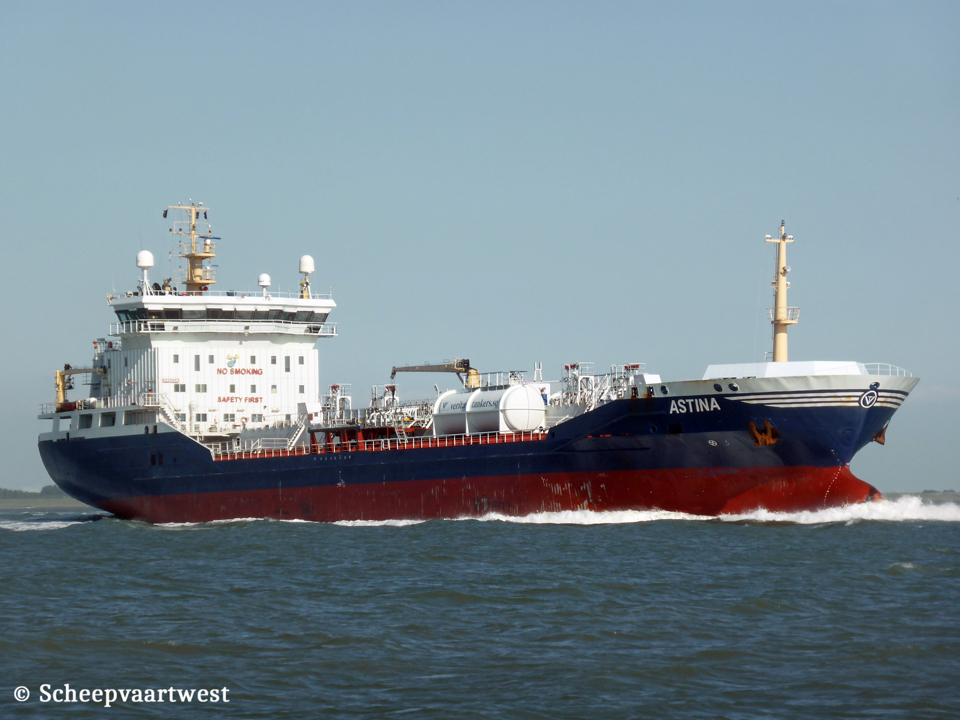

Westerschelde 21 May 2015 |
 |
 |
 |
 |
 |
||||

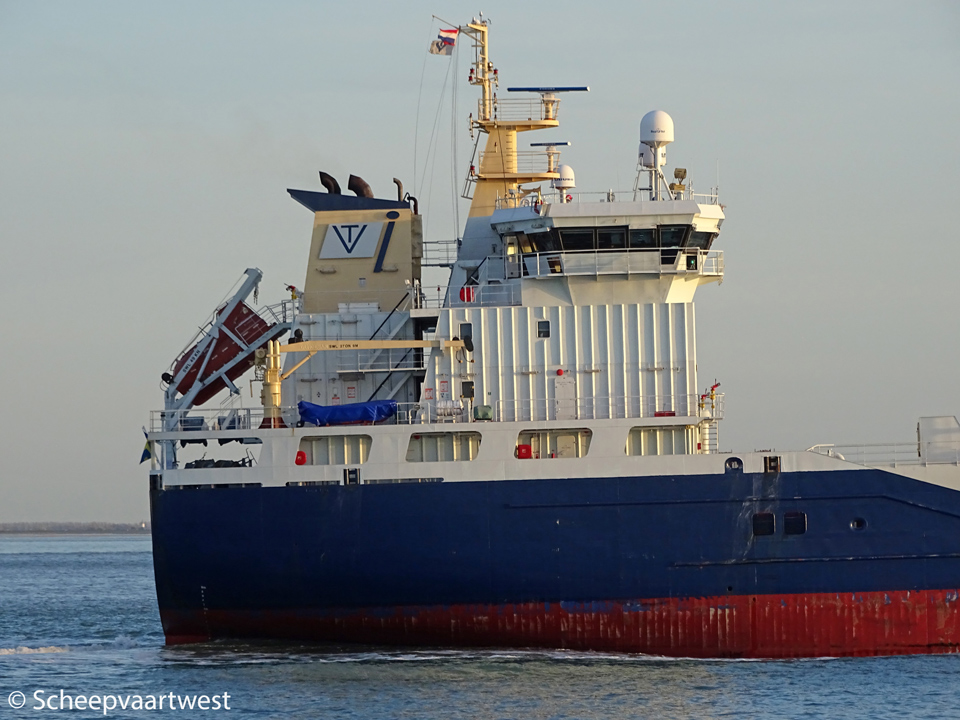

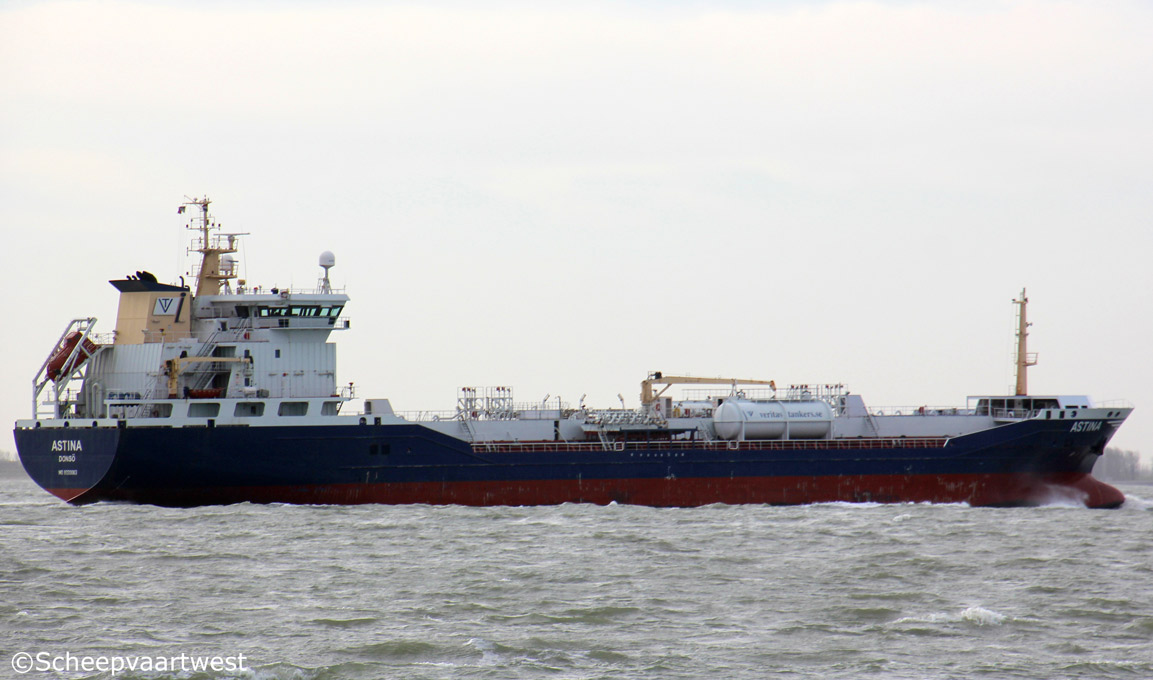

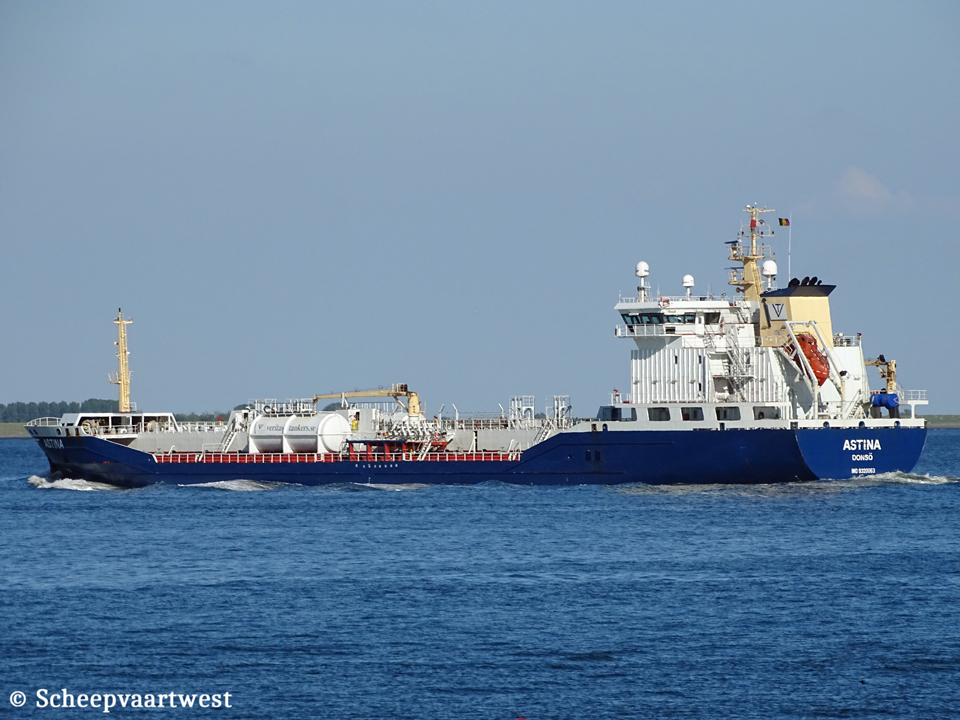

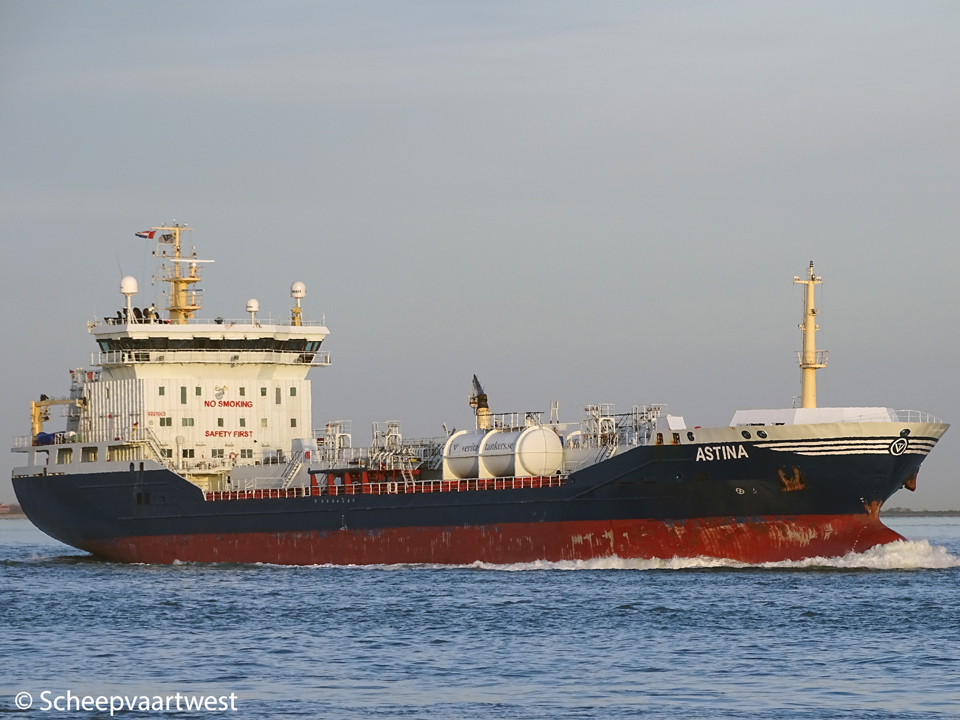

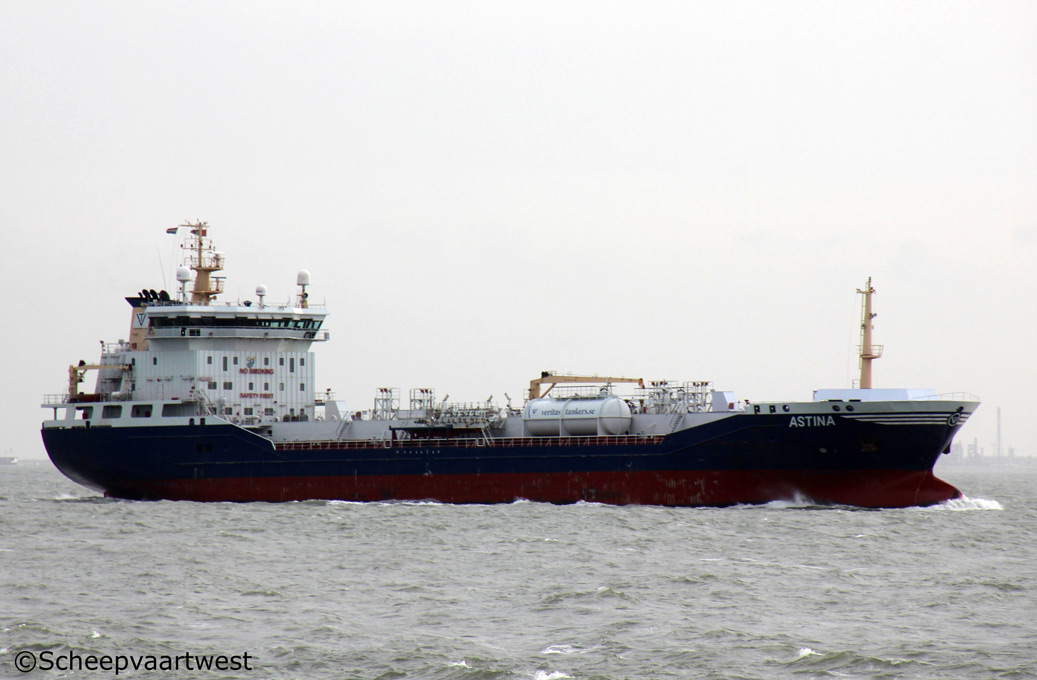

| Westerschelde 21/06/19 | Westerschelde 09/11/15 | Westerschelde 09/11/15 | Westerschelde 30/03/17 | Westerschelde 30/03/17 | ||||
|
Name |
ASTINA |
|
Previous names |
2006 Launch as: Besiktas Iceland |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9320063 |
|
Call sign |
SHZA |
|
Flag |
Sweden |
|
Port of registry |
Donsö |
|
GT |
7.636 t |
|
DWT |
Summer: 11.283 t |
|
NT |
3.644 t |
|
Length |
129,75 m overall 123,40 m between perpendiculars |
|
Breadth |
19,60 m moulded |
|
Draught |
8,01 m |
|
Keel to masthead |
36,00 m |
|
Freeboard |
2.411 mm |
|
Depth |
10,40 m moulded |
|
Speed |
13,5 knots |
|
Built |
2006 |
|
Date of completion |
02/03/2006 |
|
Builder |
Torlak Denizcilik San. Ve Tic A.S Turkey |
|
Yard number |
44 |
|
Hull material |
Steel |
|
Hull type |
Double sides Double bottom |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M32 - 4 stroke 9 cylinder 320 x 480 mm combustion engine 4.320 kW / 5.870 hp at 600 rpm Built: 2005 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 600 rpm |
|
Boilers |
1x CHR Aalborg 60,30 m² - 10,0 bar 1x CHS Aalborg 11,00 m² - 10,0 bar 2x CHO Aalborg 65,00 m² - 13,0 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x 1.400 kVA - 1.120 kW |
|
Generators |
3x MAN Lindenberg V 12 main diesel generatorsets each 725 kVA - 580 kW - 723 hp at 1.800 kW |
|
Emergency generator |
1x Diesel generatorsets 188 kVA - 150 kW - 257 hp |
|
Bow thruster |
Electric driven bow thrusters 612 hp, type Schottel |
|
Number of cargo tanks |
12x Wing tanks epoxy-coated |
|
Segregation |
6x Grades completely segregated by separate lines and pumps |
|
Total cap. of tanks 98% |
12.394 m³ |
|
Slop tanks |
2x Deck tanks each 127 m³ |
|
Cargo pumps |
12x Svanhöj DL 132d separate electric driven deep-well pumps each 150 m³/h |
|
Loading rate |
1.800 m³/h each segregation |
|
Discharging rate |
1.800 m³/h (Inert gas Operation) |
|
Heating capacity |
All cargo tanks are equipped with stainless steel heating coils. The heating system is a primary/secondary system, served by two oil-fired thermal oil heaters and one exhaust-gas thermal oil heater |
|
Manifolds |
Manifold to deck: 2.800 mm Manifold to stern: 62,00 m Manifold to bow: 67,00 m Manifold to rail: 4,28 m |
|
Tank capacities |
Fuel oil: 539 m³ Diesel oil: 113 m³ Water ballast: 4.736 m³ |
|
Lifting equipment |
1x Provision crane - SWL 2,1 t |
|
Manager |
Veritas Tankers Tjärebergsvägen 10 430 82 Donsö Sweden |
|
Operator |
Rederi AB Veritas Tankers |
|
Owner |
Rederi AB Veritas Tankers |
|
Latest data adjustment |
11 July 2021 |
