| Westerschelde 28 August 2017 |
 |
|
| Antwerpen 27/04/15 | |
|
Name |

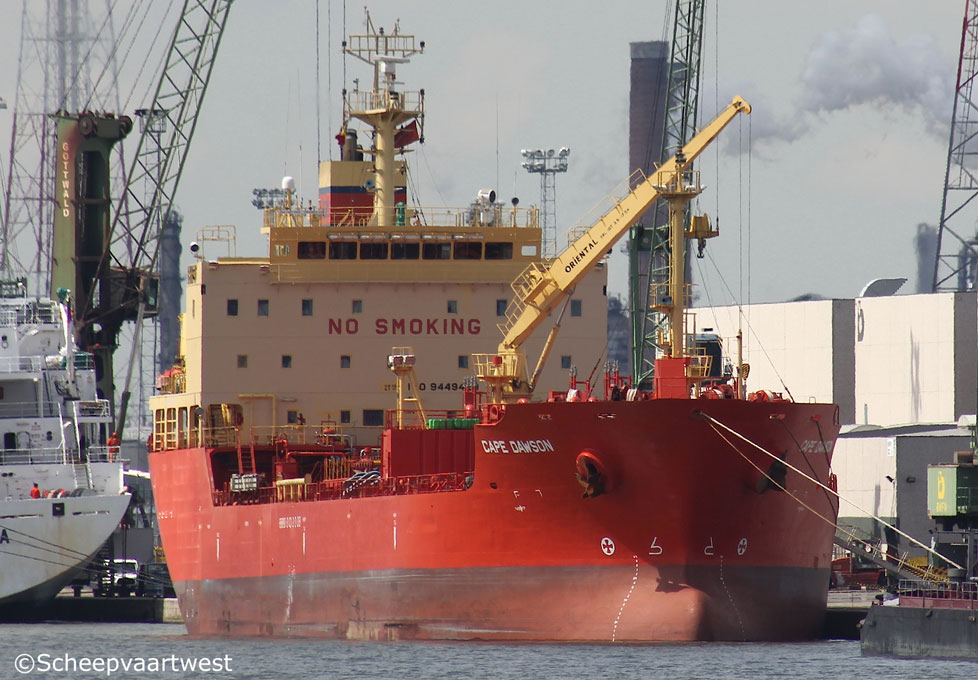

CAPE DAWSON |
|
Previous names |
2009 Built as: Rio Dawson |
|
Location |
Westerschelde 28 August 2017 |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9449429 |
|
Classification |
American Bureau Of Shipping DNV GL |
|
Call sign |
V7SU5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
8.278 t registered Suez: 9.053,04 t |
|
DWT |
Summer: 12.789,27 t |
|
NT |
3.725 t registered Panama: 7.000 t Suez: 6.790,19 t |
|
Displacement |
Summer: 16.662,9 t Winter: 17.056,03 t |
|
Light ship |
3.874 t |
|
Length |
121,80 m overall 113,00 m between perpendiculars |
|
Breadth |
20,40 m moulded |
|
Air draft |
Light ship: 33,87 m Normal ballast: 31,42 m At loaded summer deadweight: 27,55 m |
|
Keel to mast end |
36,20 m |
|
Freeboard |
Summer: 3.261 mm Winter: 3.441 mm |
|
Depth |
11,90 m moulded |
|
Speed |
13,6 knots |
|
Built |
2009 |
|
Keel laid |
13/08/2009 |
|
Launch date |
12/09/2009 |
|
Delivery date |
20/11/2009 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. Jinhae South Korea |
|
Yard number |
S7002 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 12 Oil tight: 9 |
|
Main engine |
1x STX/Man-B&W 6S35MC-MK7 - 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 6.060 kW / 8.239 hp kW at 173,0 rpm Manufacturer: STX Engine Co, Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Kamome Propeller Co., Ltd. |
|
Boilers |
1x Exhaust gas economizer - 8,8 bar 1x Auxiliary boiler - 8,8 bar Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 600 kW Manufacturer: HHI Electro Electric System |
|
Bow thruster |
1x 405,51 kW / 543,8 bhp |
|
Number of cargo tanks |
10 |
|
Cargo tank capacity 98% |
Tank 1 P: 1.018,05 m³ Tank 1 S: 1.018,63 m³ Tank 2 P: 1.294,86 m³ Tank 2 S: 1.295,26 m³ Tank 3 P: 1.295,44 m³ Tank 3 S: 1.295,43 m³ Tank 4 P: 1.394,26 m³ Tank 4 S: 1.393,87 m³ Tank 5 P: 1.388,13 m³ Tank 5 S: 1.388,02 m³ Total: 13.685,40 m³ 12.982,0 m³ excluding slop tanks |
|
Number of slop tanks |
2 |
|
Slop tanks capacity 98% |
Tank P: 348,05 m³ Tank S: 355,40 m³ 705,45 m³ |
|
Segregations |
6x Double valve segregations
|
|
Residual tank |
18,2 m³ |
|
Pumps |
10x Submerged centrifugal cargo pumps 300 m³/h each 2x Submerged centrifugal cargo pumps 100 m³/h each 2x Framo ballast pumps 250 m³/h each |
|
Manifolds |
Bow to centre manifold: 61,40 m Stern to centre manifold: 60,40 m Distance bridge front to centre of manifold: 36,95 m Distance between cargo manifold centres: 900 mm Distance ships rail to manifold: 3.470 mm Distance manifold to ships side: 3.470 mm Top of rail to centre of manifold: 750 mm Distance main deck to centre of manifold: 2.100 mm |
|
Number of tanks |
Ballast: 13 Lubricating oil: 7 Fuel oil: 6 Fresh water: 6 Sludge: 5 Diesel oil: 4 Chain: 2 Waste water: 1 |
|
Tank capacities |
Diesel oil: 70,4 m³ Freshwater: 420,1 m³ Fuel oil: 542,3 m³ Lube oil: 54,9 m³ Tank ballast: 5.051,4 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 0,8 t Manufacture: Dongnam Marine Crane Co., Ltd. 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 0,9 t Manufacture: Oriental Prec & Eng'g Co. |
|
Manager |
Rio Dawson Schifffahrtsgesellschaft mbH & Co. KG c/o Columbia Shipmanagement (Deutschland) GmbH Grosse Elbstrasse 275 D-22767 Hamburg Germany |
|
Technical operator |
Columbia Shipmanagement (Deutschland) GmbH Grosse Elbstrasse 275 D-22767 Hamburg Germany |
|
Commercial operator |
Navig8 Chemicals Asia Pte. Ltd. Three Temasek Avenue #25-01 Centennial Towe Singapore 039190 Republic of Singapore |
|
Registered owner |
Rio Dawson Schifffahrtsgesellschaft mbH & Co. KG. Palmaille 67 22767 Hamburg Germany |
|
Renamed |
10/2019 Dawson Marshall Islands, Majuro 01/2020 Sinar Skikandi Indonesia, Batam - Call sign: YCXP2 Manager: Raffles Shipmanagement Services Pte Ltd.- Republic of Singapore Registered owner: Mitra Sinar Maritim PT - Republic of Singapore |
|
Latest data adjustment |
29 July 2024 |
