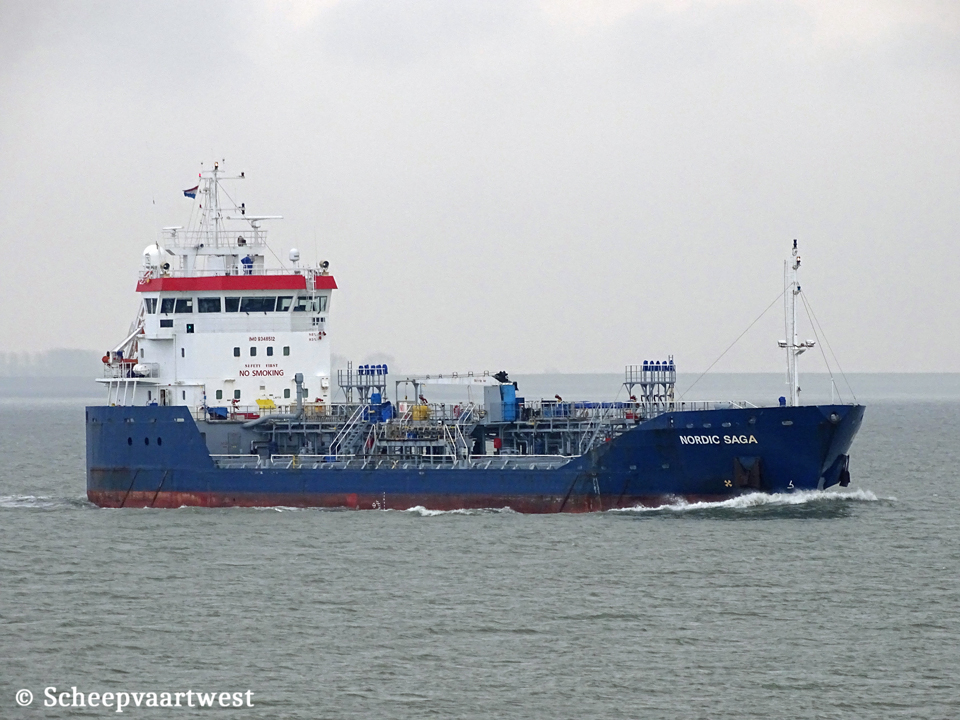

Westerschelde 22 January 2016 |
 |
 |
 |
 |
|||

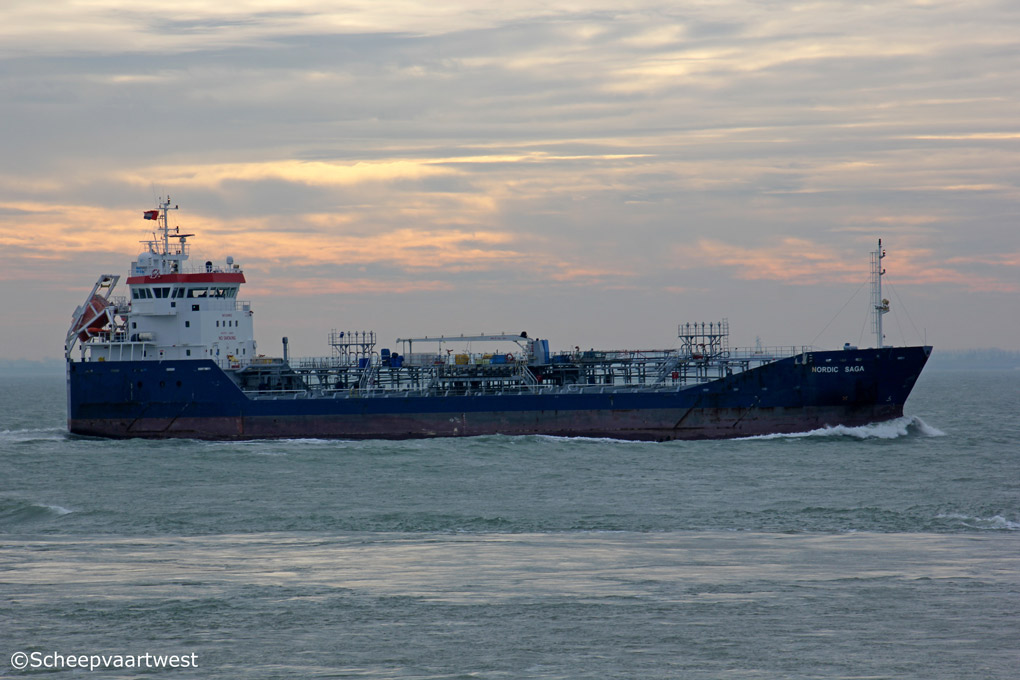

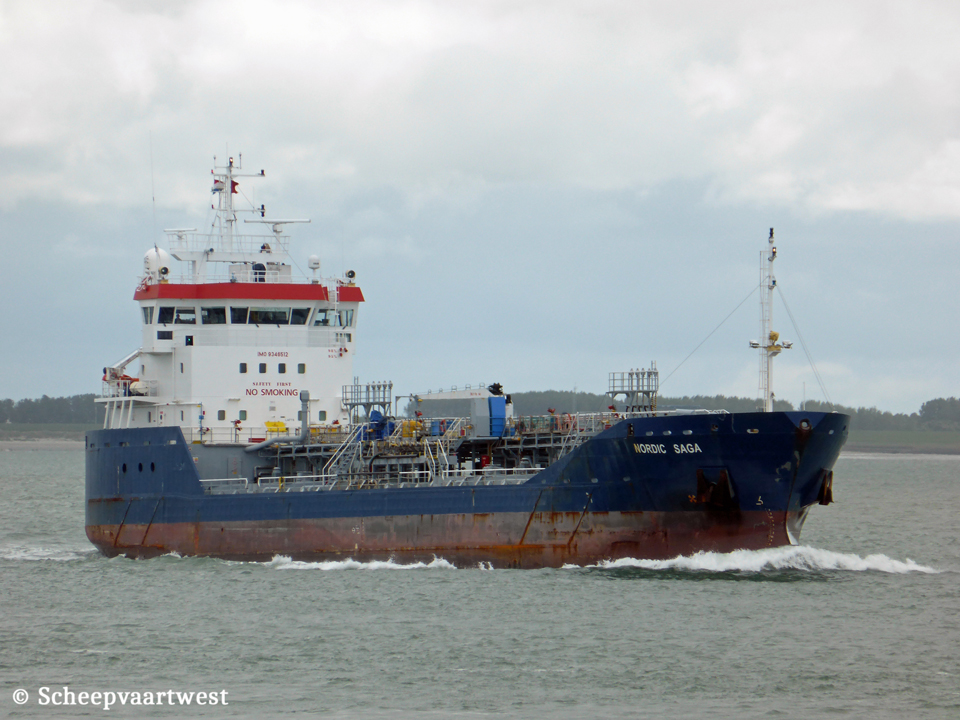

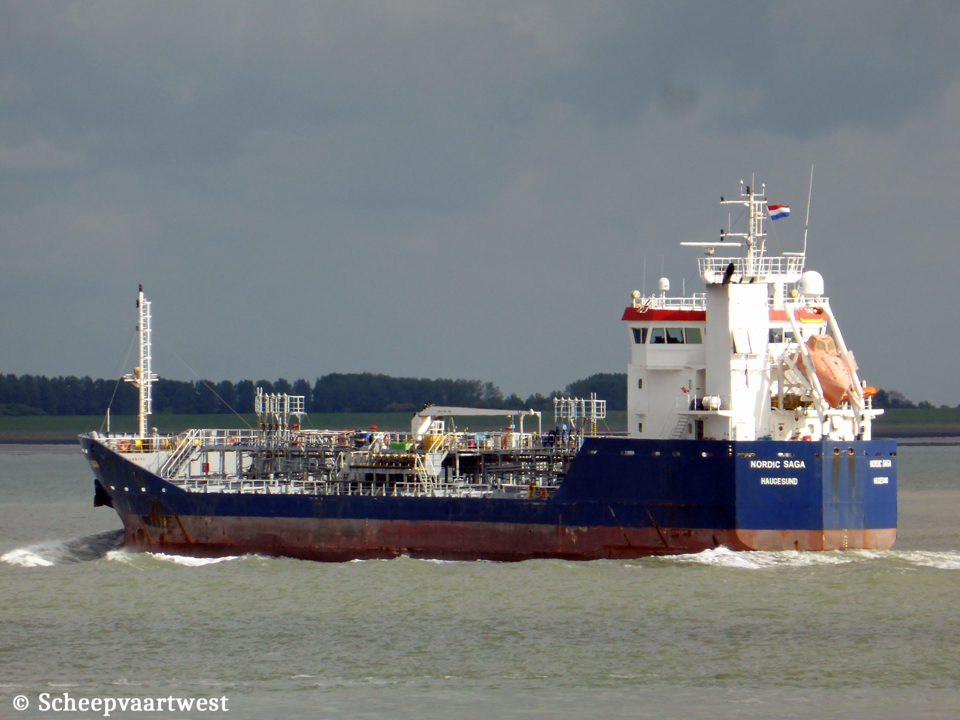

| Westerschelde 29/11/17 | Westerschelde 24/01/19 | Westerschelde 08/09/15 | Westerschelde 07/09/15 |
|||
|
Name |
NORDIC SAGA |
|
Previous names |
2007 - 09/2013 Clipper Saga |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9346512 |
|
Call sign |
LAFY6 |
|
Flag |
Norway |
|
Port of registry |
Haugesund |
|
GT |
2.613 t |
|
DWT |
Summer: 4.076 t |
|
NT |
1.237 t |
|
Length |
89,00 m overall 84,90 m between perpendiculars |
|
Breadth |
13,33 m extreme |
|
Draught |
5,65 m |
|
Depth to main deck |
7,70 m |
|
Speed |
12,0 knots loaded 12,5 knots ballast |
|
Built |
2007 |
|
Keel laid |
23/01/2006 |
|
Launch date |
09/02/2007 |
|
Date of completion |
19/04/2007 |
|
Builder |
Volharding Shipyards Newbuilding BV Lange Lijnbaan 1 8661 NW Harlingen The Netherlands |
|
Yard number |
601 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder combustion engine 1.980 kW at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Heatmaster thermal oil heater, oil fired TH1750 - 1.600 kW |
|
Generators |
2x MAN D2876 diesel generatorsets each 390 kW at 1.800 rpm Builder: MAN Truck & Bus AG - GE Motoren-Nürnberg - Germany |
|
Emergency generator |
1x Cummins 6BT 5.9 diesel generatorset 107 kW at 1.800 rpm |
|
Bow thruster |
1x Verhaar Omega 3100/120 - 299 kW |
|
Number of cargo tanks |
10x Duplex 316L stainless steel |
|
Segregations |
5 |
|
Tank capacity |
100%: 4.687,79 m³ 98%: 4.591 m³ |
|
Cargo pumps |
9x Hamworthy Svanehøy DL100/100 |
|
Slop pump |
1x Hamworthy Svanehøy DL80/100 |
|
Tank capacities |
Ballast: 1.696,01 m³ Gas oil: 135,15 m |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
ISM & commercial manager |
John T. Essberger GmbH & Co. KG Palmaille 45 22767 Hamburg Germany |
|
Owner |
BKR Tankers KS Smedasundet 97b 5525 Haugesund Norway |
|
Latest data adjustment |
23 April 2022 |
