Vlissingen, The Netherlands 10 February 2016 |
|
Name |

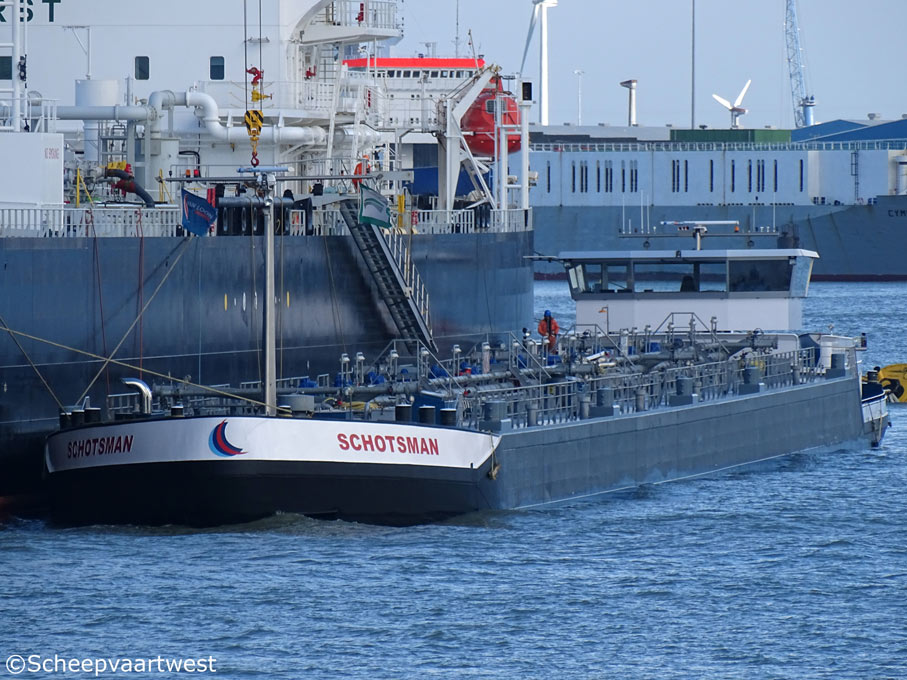

SCHOTSMAN |
|
Type |
Inland tanker |
|
ENI-number |
02333484 |
|
Call sign |
PH5169 |
|
Flag |
The Netherlands |
|
Port of registry |
Hendrik-Ido-Ambacht |
|
Tonnage |
4.580 t |
|
Length |
135,00 m |
|
Breadth |
11,45 m |
|
Draught |
4,16 m |
|
Air draft |
6,35 m |
|
Depth |
6,31 m |
|
Built |
2012 |
|
Builder casco |
Run Jiang Shipyard |
|
Builder completion |
TeamCo Shipyard |
|
Hull material |
Steel |
|
Main engine |
2x Caterpillar C32 Ditta Acert electronic diesel engines each 895 kW / 1.217 hp at 1.800 rpm |
|
Gearbox |
2x Reintjes type WAF 562L - reduction: 5,421 |
|
Propellers |
2x propellers - Diameter 1.700 mm |
|
Generators |
1x Caterpillar type C18 diesel engine coupled with Stamford HCM534 generator 531 kVA 1x John Deere type 6068 diesel engine coupled with Stamford UCM274 generator 215 kVA 1x John Deere type 4045 diesel engine coupled with Stamford UCM274 generator 80 kVA |
|
Bow thruster |
Veth-Jet type 4-K-1400B |
|
Number of tanks |
14 |
|
Pumps |
14x MarFlex electric driven pumps type MDPD-80 each 100 m³/h |
|
Cargo tank capacity 100% |
5.162 m³ |
|
Charterer |
Interstream Barging B.V. Centraleweg 9 |
|
Owner |
Schotsman BV |
|
Latest data adjustment |
28 February 2016 |
