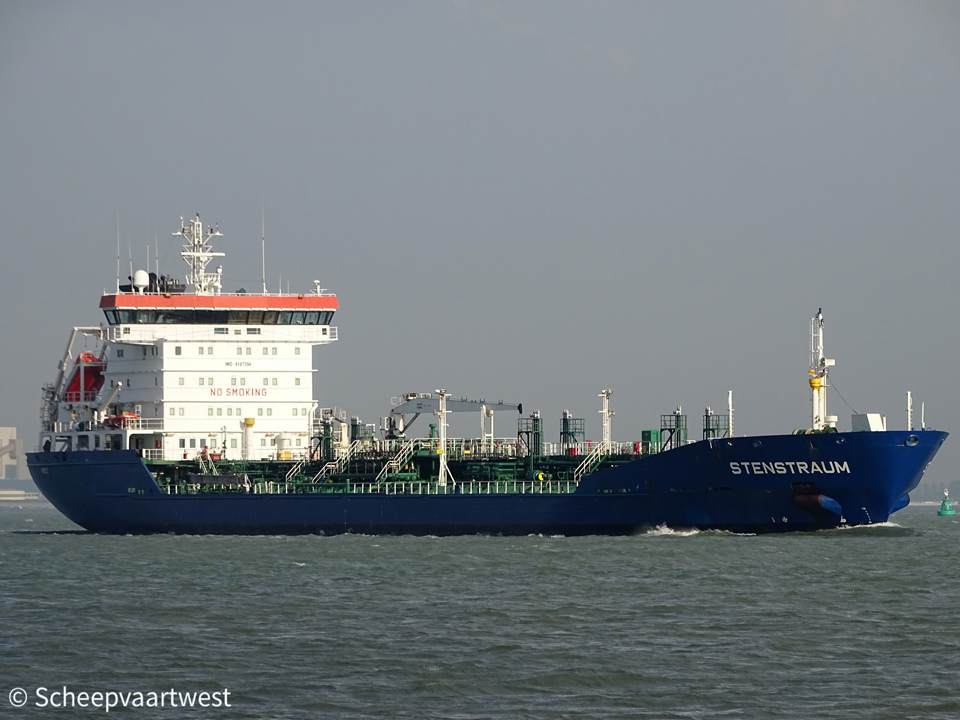

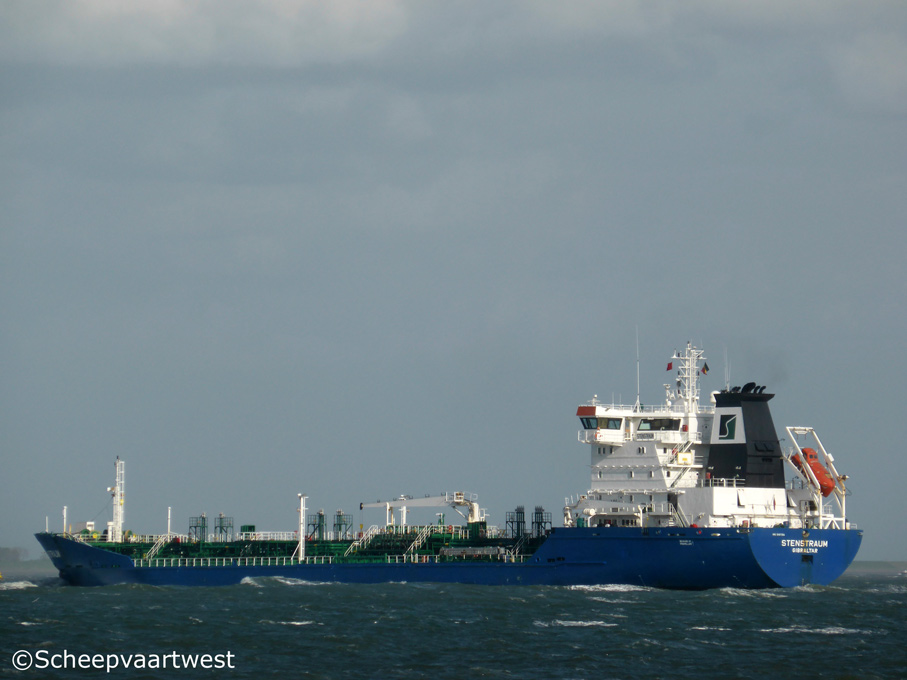

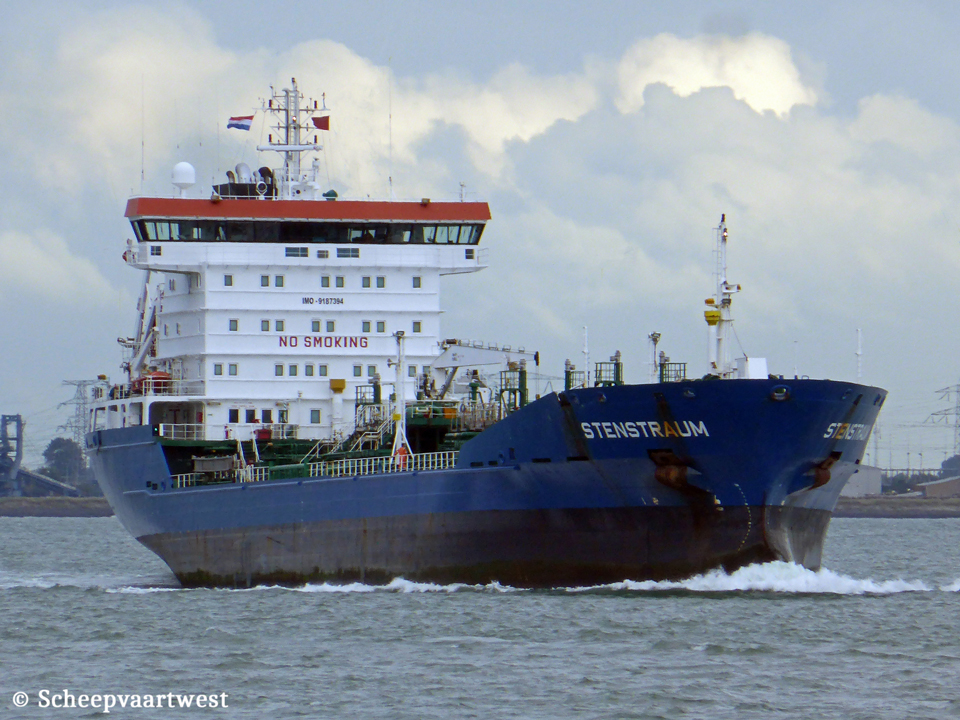

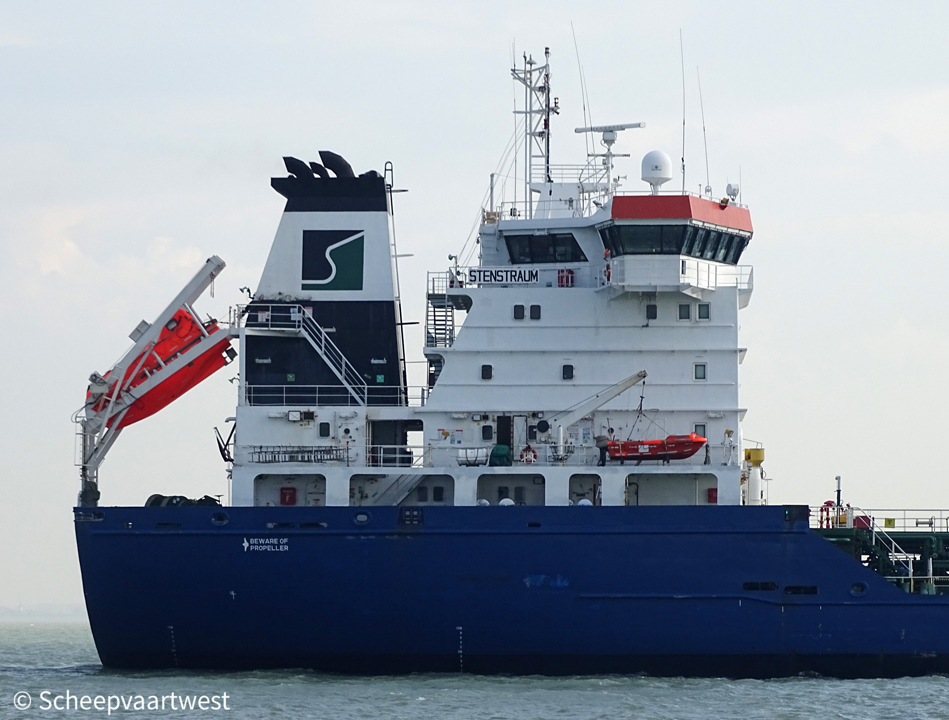

Westerschelde 28 March 2017 |
 |
 |
 |
||
| Westerschelde 28/03/17 | Westerschelde 07/05/14 | Westerschelde 16/09/15 | ||
|
Name |
STENSTRAUM |
|
Previous names |
2001 Launch as: Milan |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9187394 |
|
Call sign |
D5YF5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
11/2001 - 08/2020 Gibraltar - Call sign: ZDEN8 |
|
GT |
8.882 t |
|
DWT |
Summer: 13.677 t |
|
NT |
4.593 t |
|
Length |
145,20 m overall 133,60 m between perpendiculars |
|
Breadth |
20,90 m extreme 20,80 m moulded |
|
Draught |
Summer: 8,45 m |
|
Keel to mast |
37,55 m |
|
Depth |
11,20 m |
|
Speed |
Service: 14,5 knots |
|
Built |
2001 |
|
Keel laid |
21/12/1998 |
|
Date of completion |
01/10/2001 |
|
Builder |
Dayang Shipbuilding Co., Ltd. Yangzhou China |
|
Yard number |
JY97125 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 6S42MC - 2 stroke 6 cylinder 420 x 1.764 mm diesel combustion 5.490 kW / 7.459 hp ay 120,0 rpm Build: 07/1999 Manufacturer: Hudong Heavy Machinery Co., Ltd - China |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
Auxiliary boiler, composite - 10,0 bar Heating surface: 140,0 m² Auxiliary boiler, oil/gas fired - 10 bar Heating surface: 100,0 m² Manufacturer: Dalian Shipyard |
|
Shaft generator |
1x AvK DSU 74 L1-4 generator |
|
Generators |
3x MAN 5L23/30H diesel generatorset each 625 kVA - 500 kW - 731 hp |
|
Emergency generator |
1x Sisu/Valmet 312 DSB/G diesel generatorset 100 kW |
|
Bow thruster |
1x 750 kW |
|
Number of tanks |
14 |
|
Cargo tank capacity 98% |
15.305 m³ |
|
Slop tank capacity 98% |
611,90 m³ |
|
Segregations |
9 |
|
Pumps |
14x Centrifugal cargo pumps each 330 m³/h 2x Centrifugal cargo pumps each 120 m³/h |
|
Manifolds |
Bow to centre manifolds: 78,40 m |
|
Tank capacities |
Ballast: 5.784,4 m³ Fuel: 742,7 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 52 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Manager |
Focus Shipping Company Limited China |
|
Owner |
Stenstraum AS, Shanghai - Chin c/o Rederiet Stenersen AS Bergen Norway |
|
Previous owners |
2001 - 2009 Milan Shipping Ltd. 2009 - 2009 Utstein KS 2009 - 2013 Milan Shipping Ltd. 2013 - 2015 Utsten KS 2015 Stenoil KS- c/o Rederiet Stenersen AS - Norway |
|
Latest data adjustment |
29 August 2024 |
