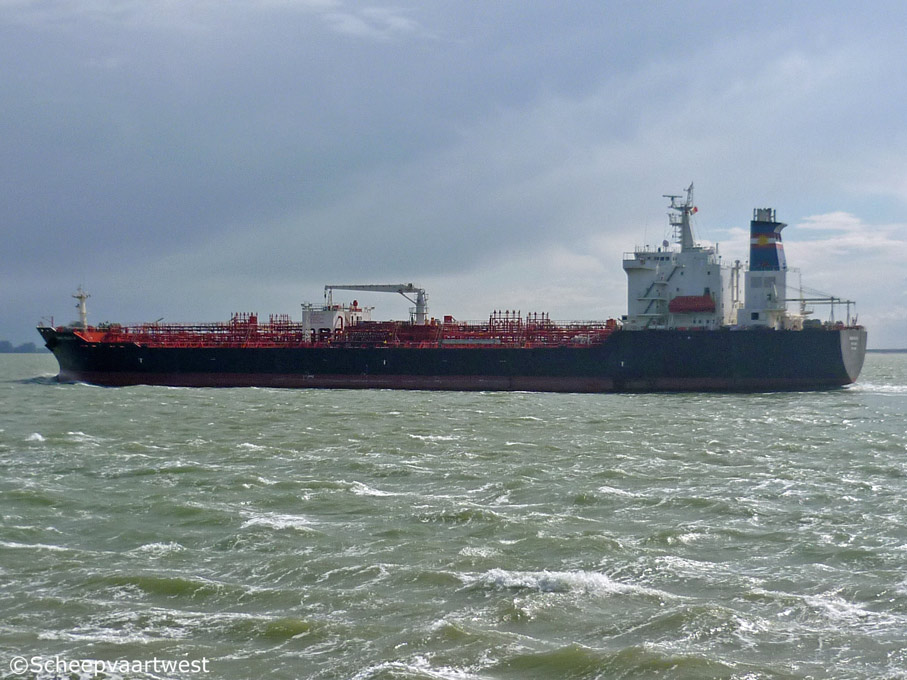

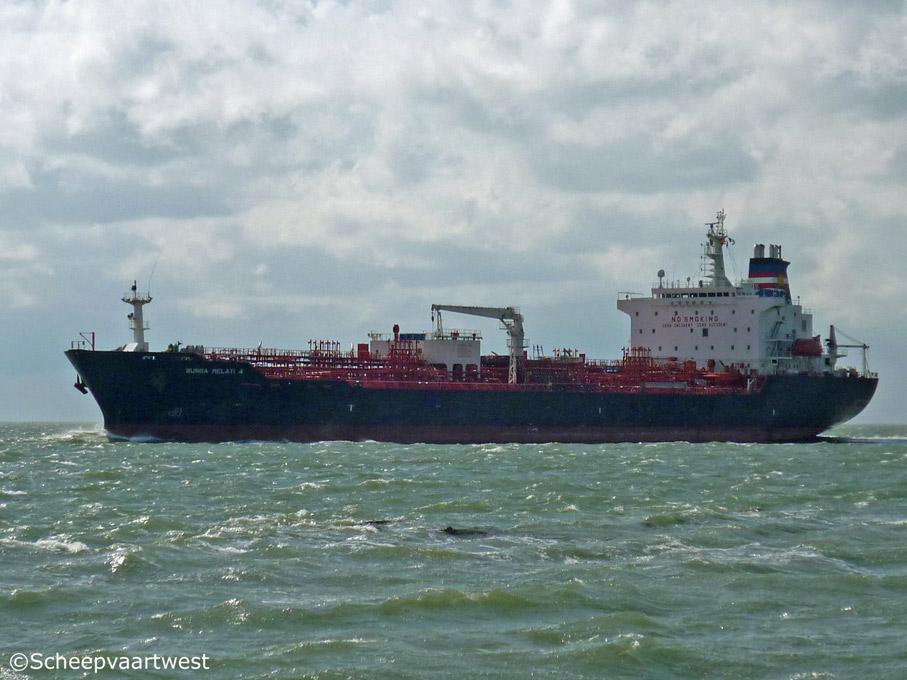

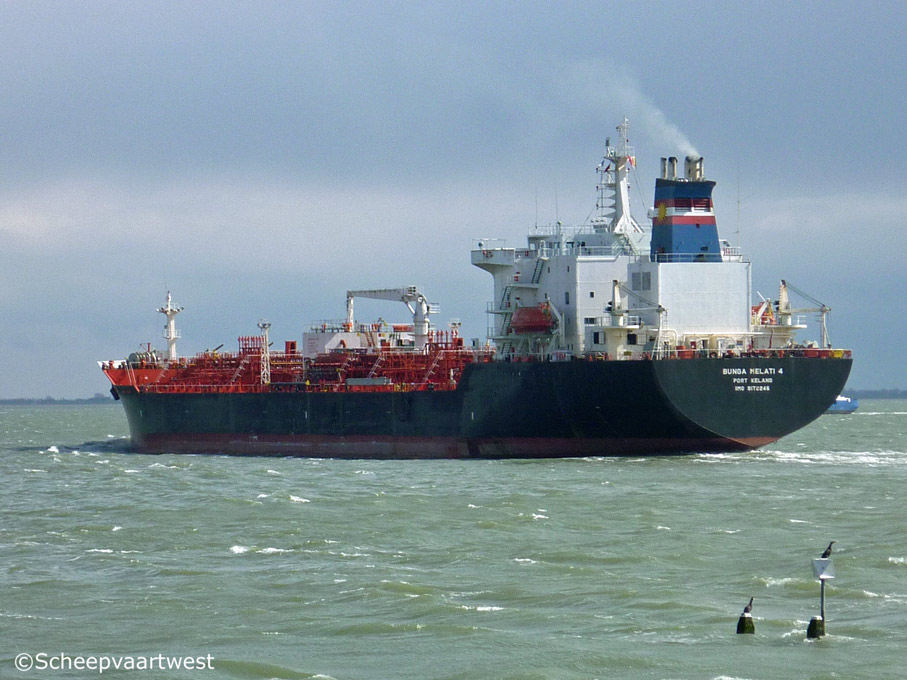

Westerschelde 19 April 2012 |
 |
 |
 |
||
| Westerschelde 19/04/12 | Westerschelde 19/04/12 | Westerschelde 19/04/12 | ||
|
Name |
BUNGA MELATI 4 |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9172246 |
|
Call sign |
9MCZ4 |
|
Flag |
Malaysia |
|
Port of registry |
Port Kelang |
|
GT |
22.116 t |
|
DWT |
Summer: 31.967 t |
|
NT |
8.878 t |
|
Length |
177,00 m overall 168,98 m between perpendiculars |
|
Breadth |
30,00 m |
|
Draught |
10,39 m |
|
Freeboard |
4.815 mm |
|
Depth |
15,20 m |
|
Speed |
14,5 knots |
|
Built |
1999 |
|
Date of completion |
30.06.1999 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1136 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
32 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai MAN B&W 6550 - 2 stroke 6 cylinder 500 x 1910 mm diesel engine 7.059 kW / 9.591 hp at 119,0 rpm Builder: Hyundai Heavy Industries - South Korea |
|
Propellers |
1x Screw propeller solid - aft at 119 rpm |
|
Boilers |
1x CHR Kang Rim Ind. Co.,Ltd. 480.00 m² - 12,0 bar |
|
Generators |
3x Main diesel generatorsets each 1.250 kVA - 1.000 kW - 1.499 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 154 hp |
|
Number of cargo tanks |
32 |
|
Total capacity of tanks |
35.642,9 m³ |
|
Number of slop tanks |
2 |
|
Tank capacities |
Fuel oil: 1.999,1 m³ |
|
Manager |
MISC - Malaysian International Shipping Corporation Berhad |
|
Owner |
MISC - Malaysian International Shipping Corporation Berhad |
|
Renamed |
12.2013 Melati 4 - Hong Kong - Call sing: VRND3 |
|
Latest data adjustment |
13 April 2016 |
