Westerschelde 28 April 2017 |
 |
 |
 |
 |
 |
 |
|||||

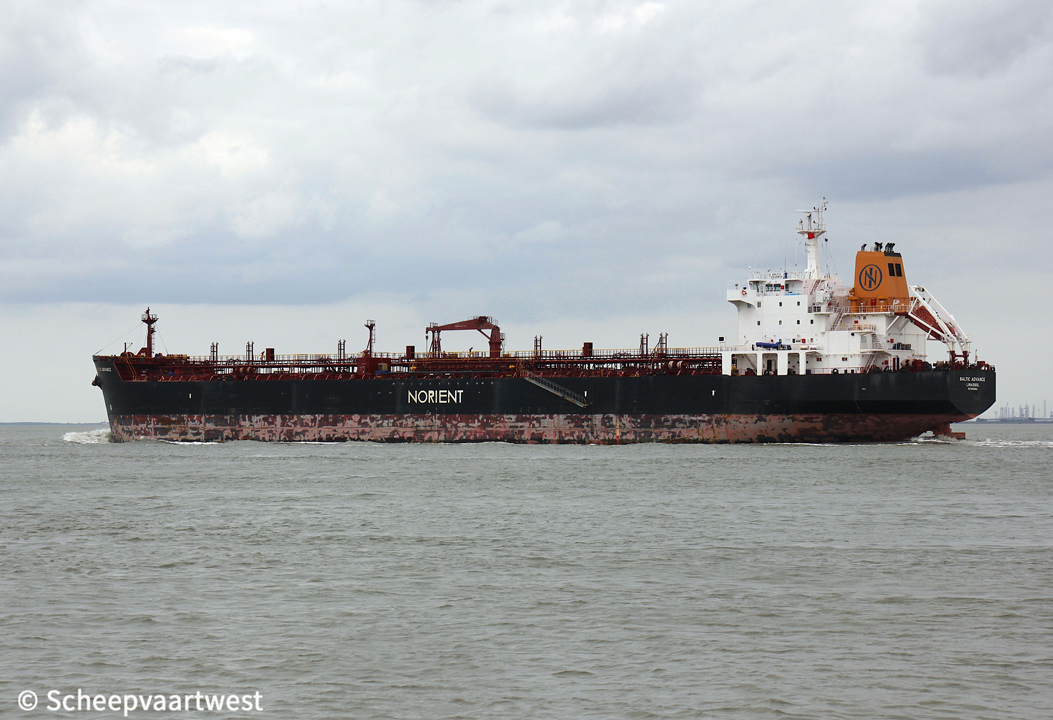

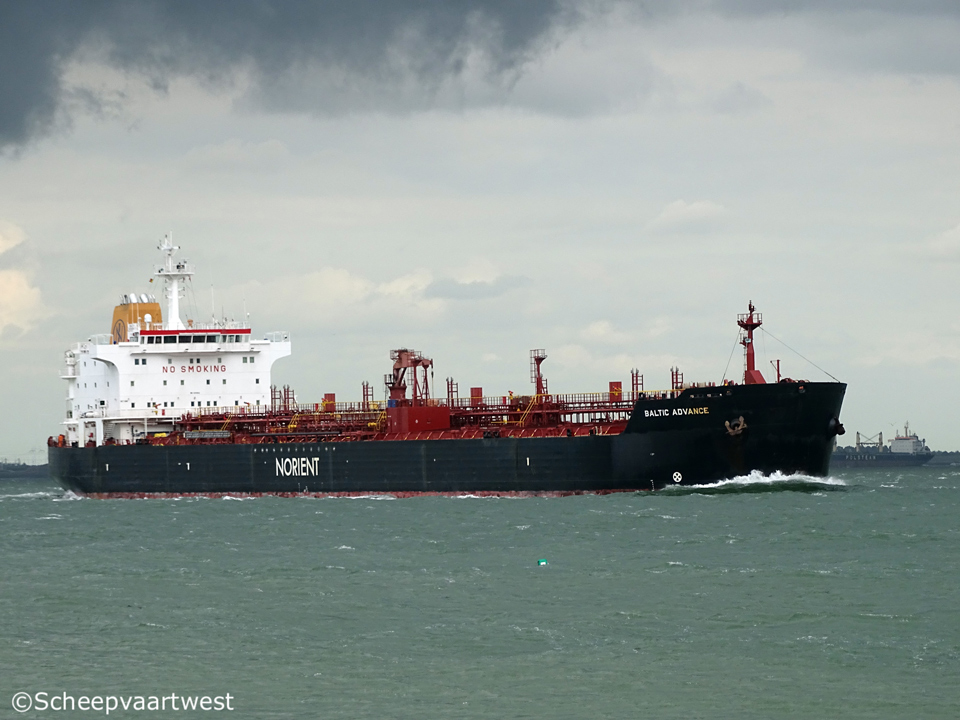

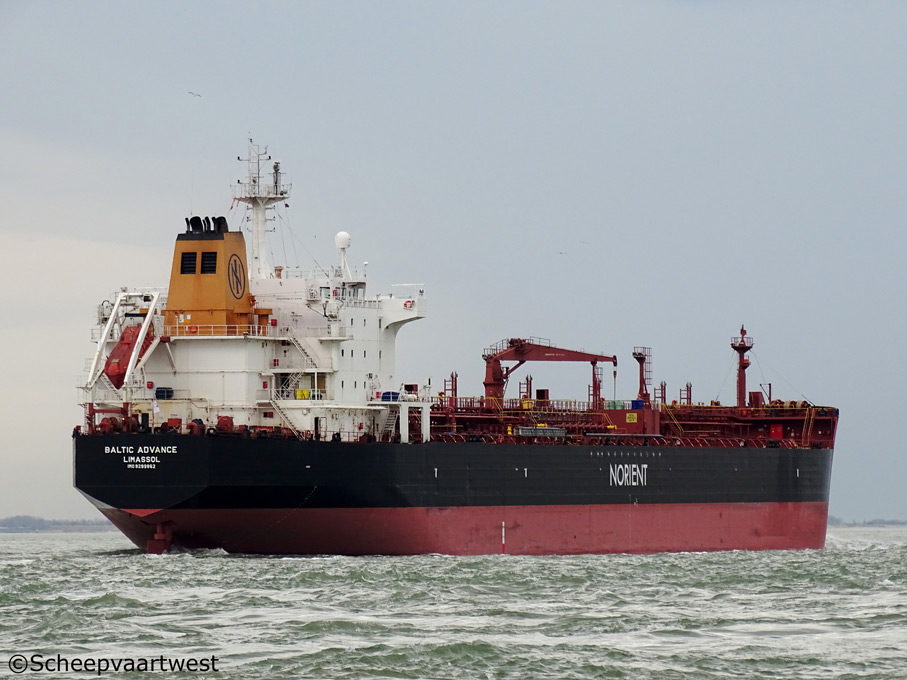

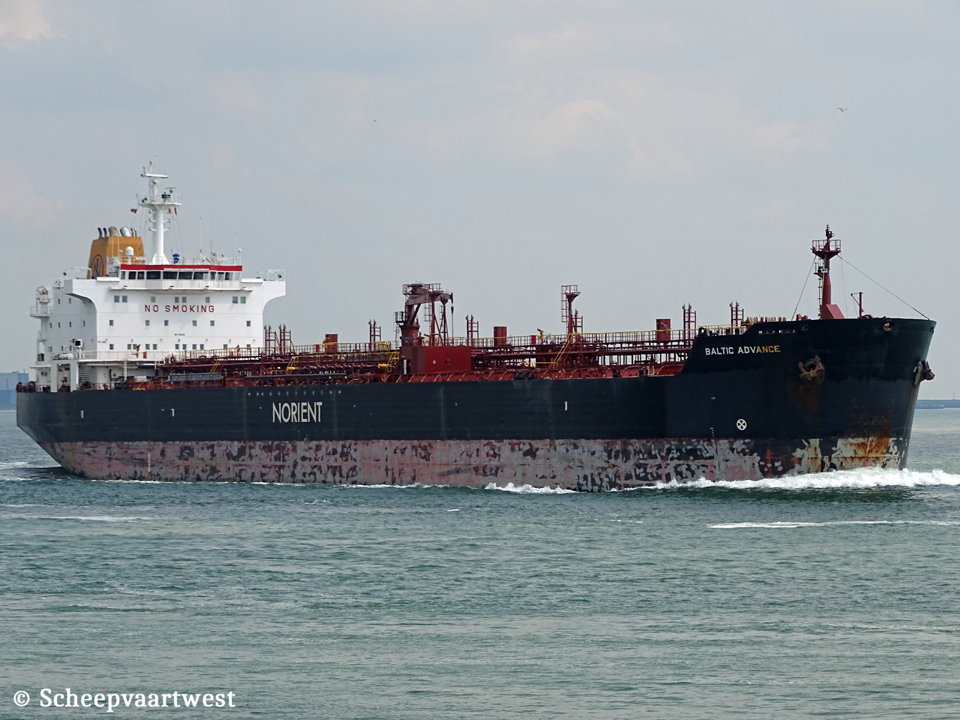

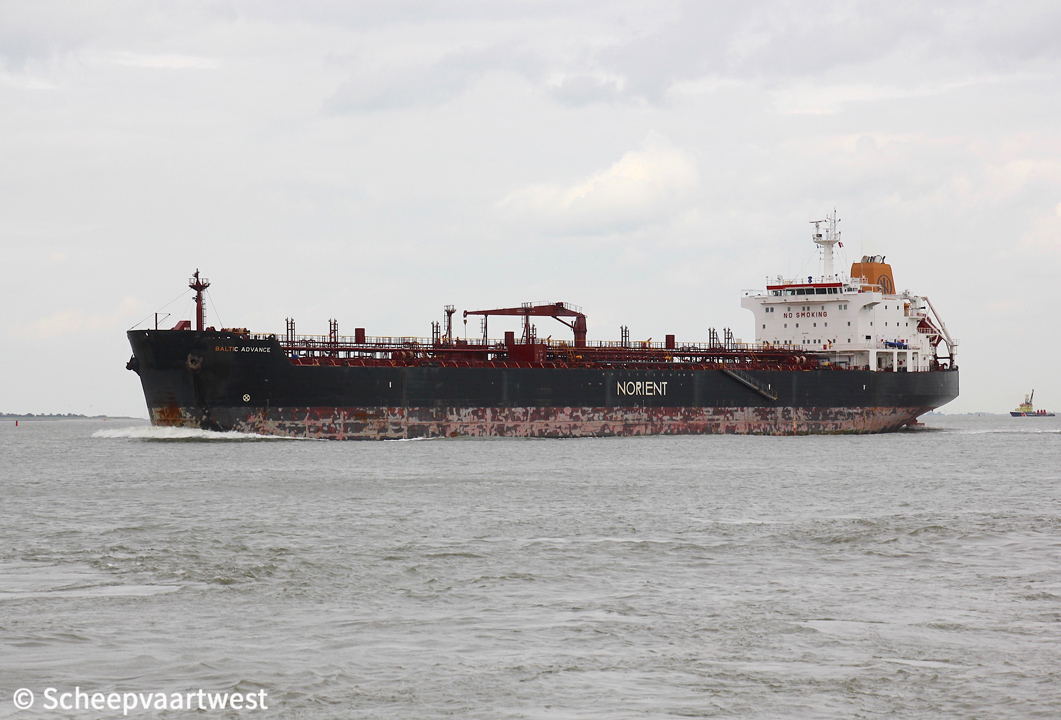

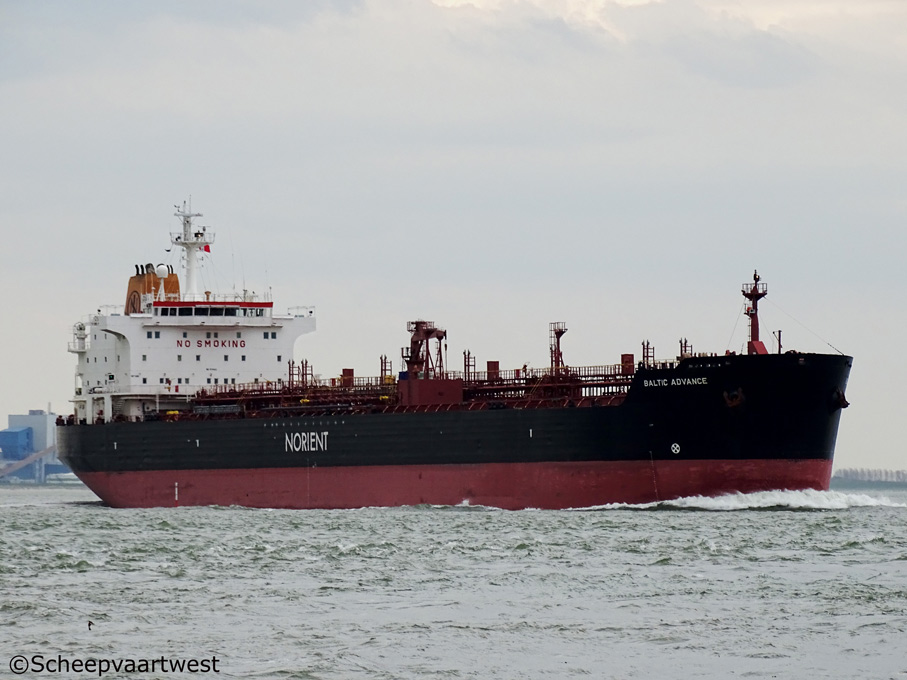

| Westerschelde 11/04/16 | Westerschelde 11/04/16 | Westerschelde 23/08/18 | Terneuzen 16/08/19 | Terneuzen 16/08/19 | Westerschelde 29/05/19 | |||||
|
Name |
BALTIC ADVANCE |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9299862 |
|
Call sign |
C4FU2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
23.240 t Suez: 24.333,69 t |
|
DWT |
Summer: 37.332 t |
|
NT |
10.110 t Suez: 20.821,66 t Panama: 19.362 t |
|
Displacement |
Summer: 45.974 t Winter: 44.901,40 t |
|
Light ship |
8.642 t |
|
Length |
182,55 m overall 106,08 m between perpendiculars |
|
Breadth |
27,34 m extreme |
|
Draught |
11.22 m |
|
Keel to masthead |
46,55 m |
|
Air draft |
Lightship: 44,16 m Normal ballast: 39,40 m At loaded summer deadweight: 35,33 m |
|
Freeboard |
Summer: 5,51 m Winter: 5,75 m Lightship: 14,24 m |
|
Depth |
16,70 m moulded |
|
Speed |
Max.: 15,9 knots ballast Max.: 15,0 knots laden |
|
Built |
2006 |
|
Keel laid |
04/09/2005 |
|
Launch date |
02/12/2005 |
|
Date of completion |
03/02/2006 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
0366 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 9 Longitudinal: 3 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S50MC-C Mk7 - 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm Manufacturer: Hyundai Heavy Ind. Co. Ltd. Build: 07/2005 |
|
Propellers |
1x Fixed pitch mono-block propeller Manufacturer: Hyundai Heavy Ind. Co. Ltd. |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated Manufacturer: KangRim Industries. Co., Ltd. 1x Auxiliary boiler, oil/gas fired Manufacturer: Aalborg Industries A/S |
|
Generators |
3x HIMSEN 6H21/32 diesel generatorsets each 787 kW Manufacturer: Hyundai Heavy Ind. Co. Ltd. |
|
Emergency generator |
1x Sisu 645DSBIMG diesel generatorset |
|
Bow thruster |
1.088 hp |
|
Number of cargo tanks |
12 |
|
Cargo tanks capacity 98% |
Seg#1: 6.016,80 m³ (1P+1S) Seg#2: 7.185,94 m³ (2P+2S) Seg#3: 7.194,76 m³ (3P+3S) Seg#4: 7.194,76 m³ (4P+4S) Seg#5: 7.194,76 m³ (5P+5S) Seg#6: 6.605,20 m³ (6P+6S) |
|
Number of pumps |
10x Centrifugal cargo pumps each 450 m³/h 2x Centrifugal cargo pumps each 300 m³/h 2x Centrifugal cargo pumps each 150 m³/h 2x Centrifugal ballast pumps each 750 m³/h |
|
Slop tank capacity 98% |
864,6 m³ |
|
Manifolds |
Bow to centre manifold: 92,21 m Stern to centre manifold: 90,34 m Distance bridge front to centre of manifold: 56,71 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.400 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 850 mm Distance main deck to centre of manifold: 2.100 mm |
|
Tank capacities |
Ballast: 18.915,8 m³ Fuel oil: 1.885,2 m³ Diesel oil: 268 m³ |
|
Anchor equipment |
Length: 954,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
ISM Manager |
Interorient Marine Services Ltd. 142, Fragklinou Rousvelt Street 3011 Limassol Cyprus |
|
Commercial manager |
Norient Product Pool ApS Strandvejen 52 DK-2900 Hellerup Denmark |
|
Registered owner |
B. Advance Shipping Co., Ltd., 3504 Limassol - Cyprus Care of Norient Product Pool ApS Strandvejen 52 2900 Hellerup Denmark |
|
Renamed |
2022 Irbis 2022 - 2023 Saint Kitts & Nevis - Call sign: V4WE4 2023 - 2023 Mongolia - Call sign: JVGF8 2023 Gabon, Libreville - Call sign: TRAX7 Owner: Leopard Shipping Inc., Ajeltake Road, Ajeltake Island, Majuro - Marshall Islands Operator: Plutos Ship Management |
|
Latest data adjustment |
26 February 2024 |
