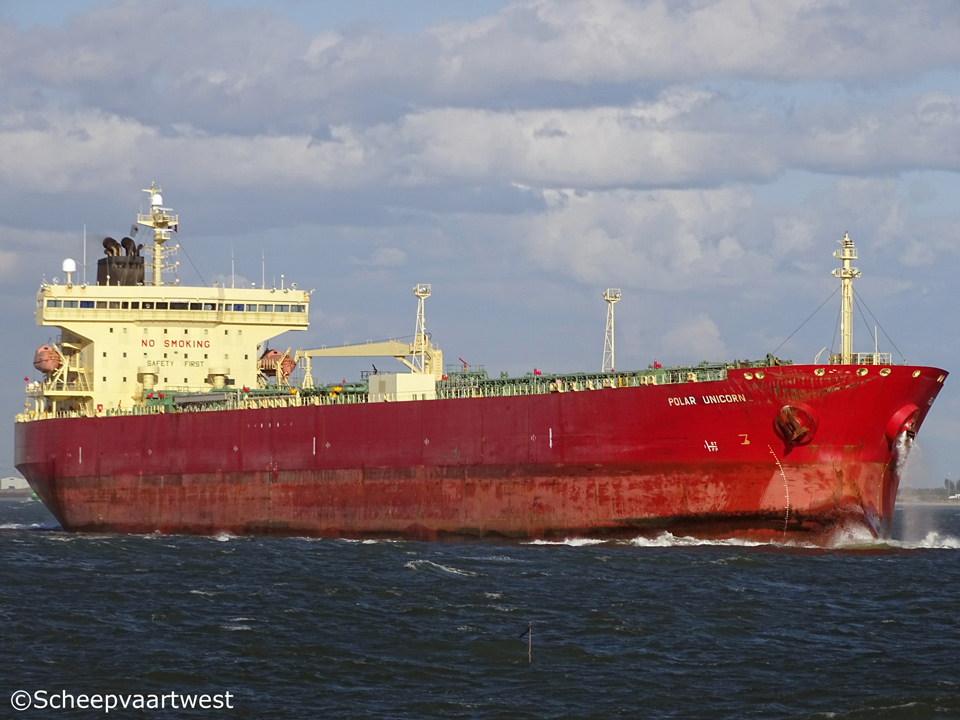

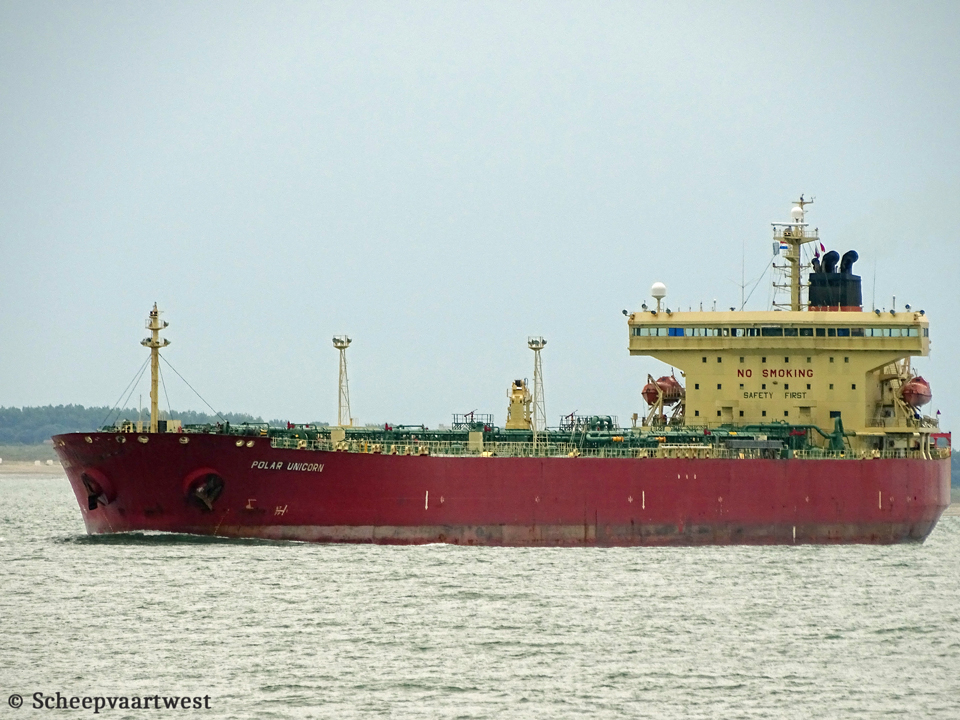

Polar Unicorn - IMO 9334569

Westerschelde 04 August 2017

Name

POLAR UNICORN

Previous names

01.2008 - 06.2010 Sanko Heritage

06.2010 - 04.2015 STI Neritage

Type

Oil carrier

IMO-number

9334569

Call sign

V7VU5

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

01.2008 - 03.2011 Liberia, Monrovia

GT

40.865 t registered

Suez: 42.822,94 t

DWT

Summer: 73.956 m³

NT

22.274 t registered

Panama: 33.772,24 t

Suez: 39.699,44 t

Length

228,49 m overall

218,00 m between perpendiculars

Breadth

32,20 m moulded

Freeboard

6.315 mm

Depth

20,65 m moulded

Speed

14,1 knots

Built

2008

Keel laid

02.11.2004

Launch date

19.07.2007

Delivery date

08.01.2008

Builder

Onomichi Dockyard Co., Ltd.
Japan

Yard number

527

Hull material

High strength steel

Hull type

Double hull

Bulkheads

Non tight: 1

Water tight: 7

Oil tight: 10

Main engine

1x 6S60MC-C - 6 cylinder 600 x 2.400 mm diesel engine 13.560 kW at 105,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co. Ltd.

Propellers

1

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Composite boiler - 6,0 bar

Heating Ssurer: Osaka Boiler Mfg. Co., Ltd.

1x Auxiliary water tube boiler - 16,0 bar

Heating surface: 363 m²

Manufacturer: MHI Nagasaki

Generators

3x Main diesel generatorsets each 980 kW

Manufacturer: Nishishiba Electric Co., Ltd.

Number of cargo tanks

15

Cargo tanks capacity

86.474,8 m³

Number of tanks

Ballast: 18

Fuel oil: 8

Lubricating oil: 6

Waste water: 5

Diesel oil: 4

Fresh water: 4

Chain: 2

Tank capacities

Diesel Oil: 159,9 m³ / 143,91 t

Freshwater: 520,1 m³

Fuel Oil: 2.569,9 m³ / 2.445,03 t

Lube Oil: 136,5 m³ / 122,85 t

Tank Ballast: 27.229,7 m³ / 27.910,44 t

Lifting equipment

1x Hose handling crane - WSL 15,0 t

Manufacture: MHI Shimonoseki

1x Provision crane - SWL 3,0 t

Manufacture: Mansei Ind. Co., Ltd.

Operator

Prime Tanker Management Inc.
4 Possidonos Avenue
Kallithea, 176 74
Greece

Registered owner

Polar Unicorn Shipping LLC

Latest data adjustment

27 May 2016
