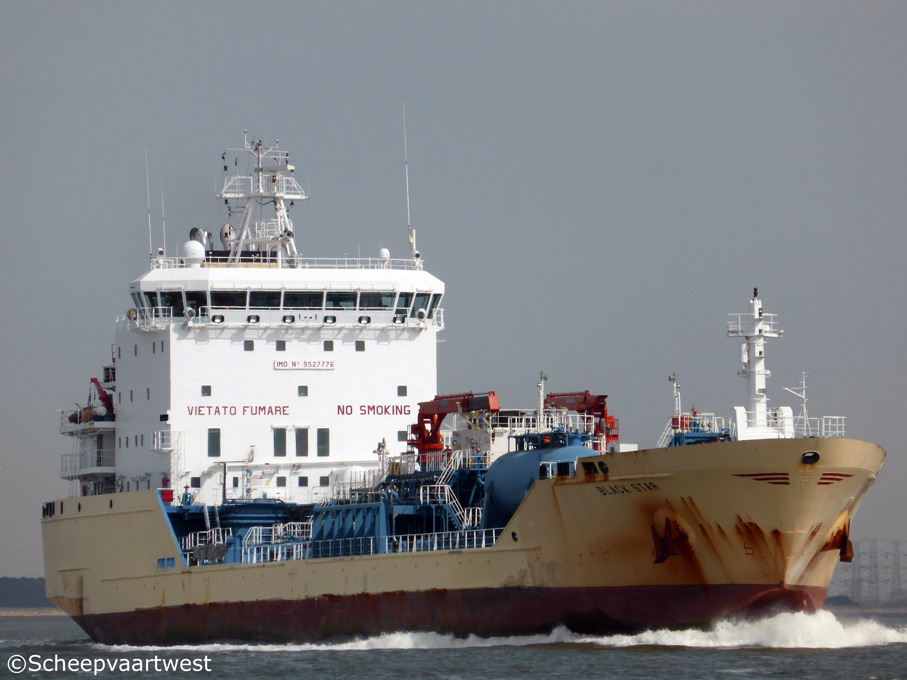

Westerschelde 23 July 2017 |
 |
 |
 |
 |
||||

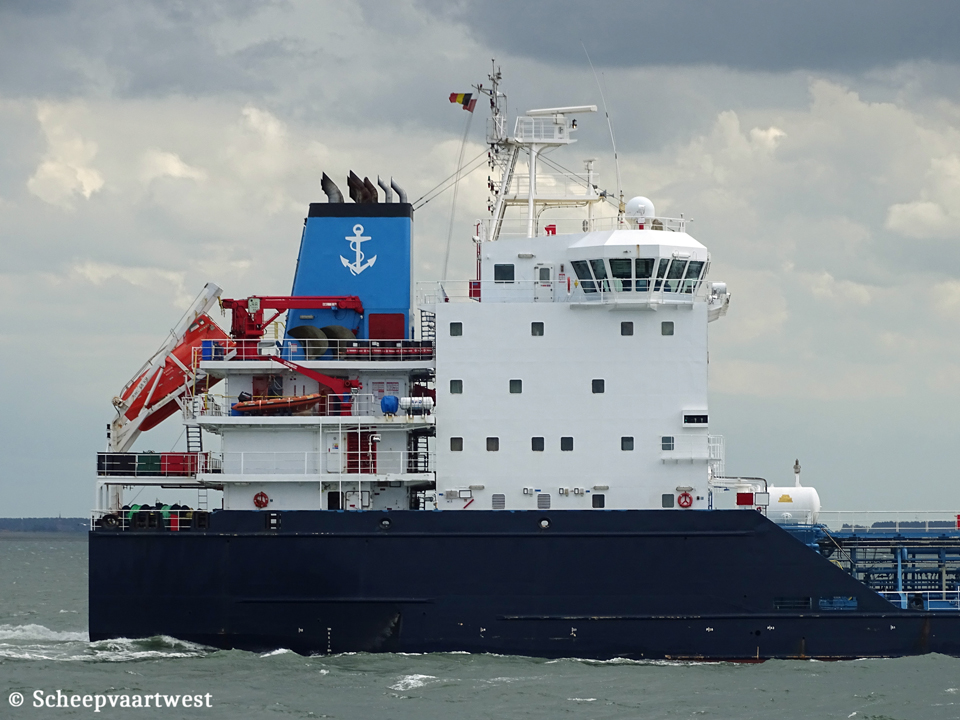

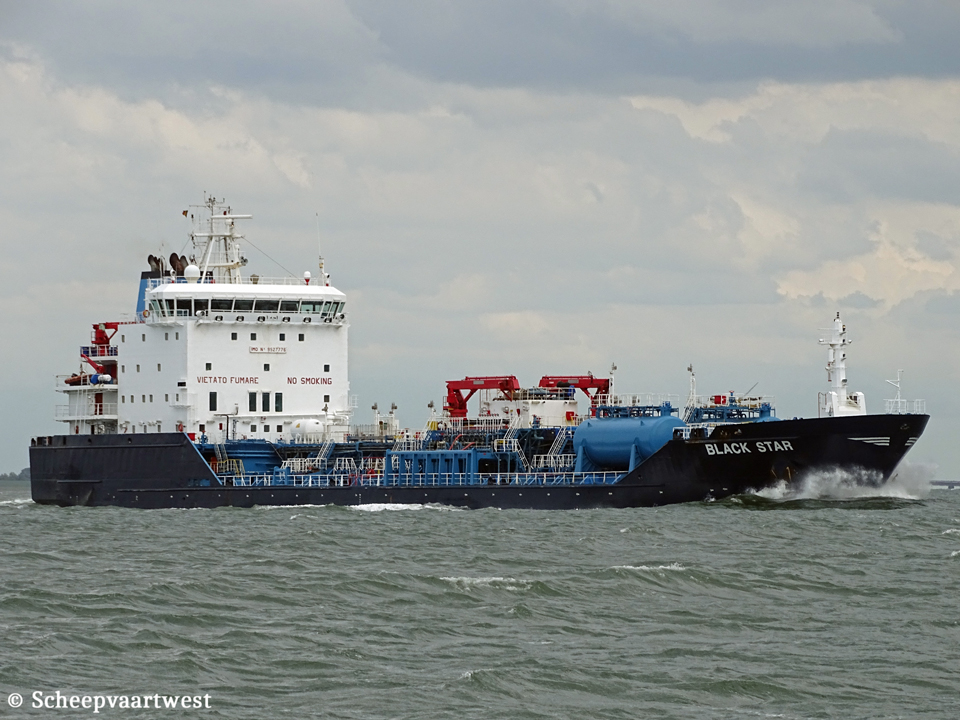

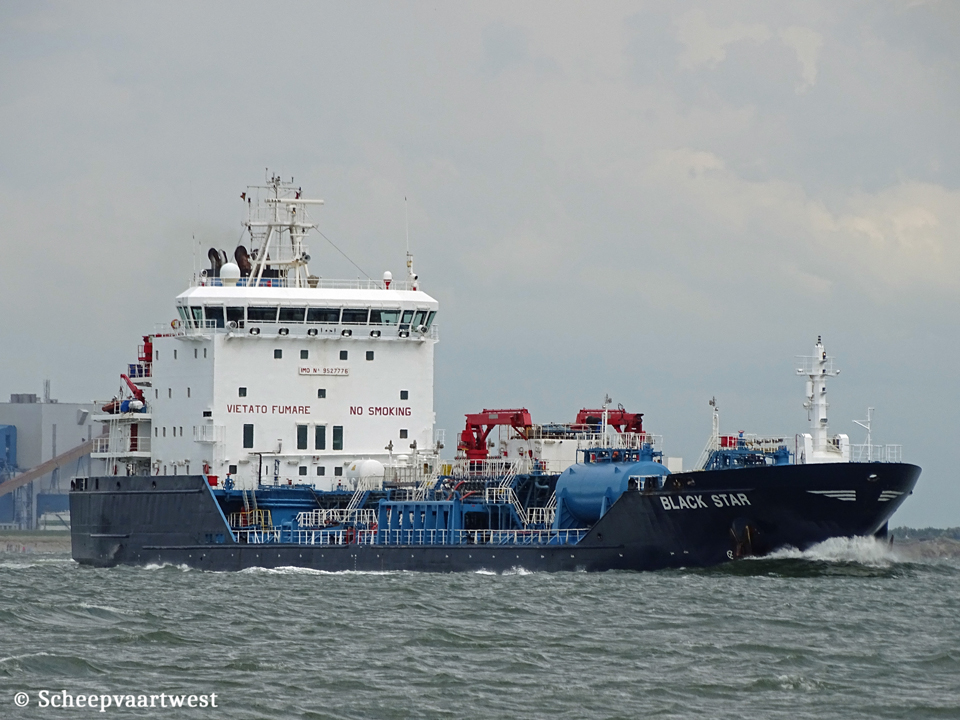

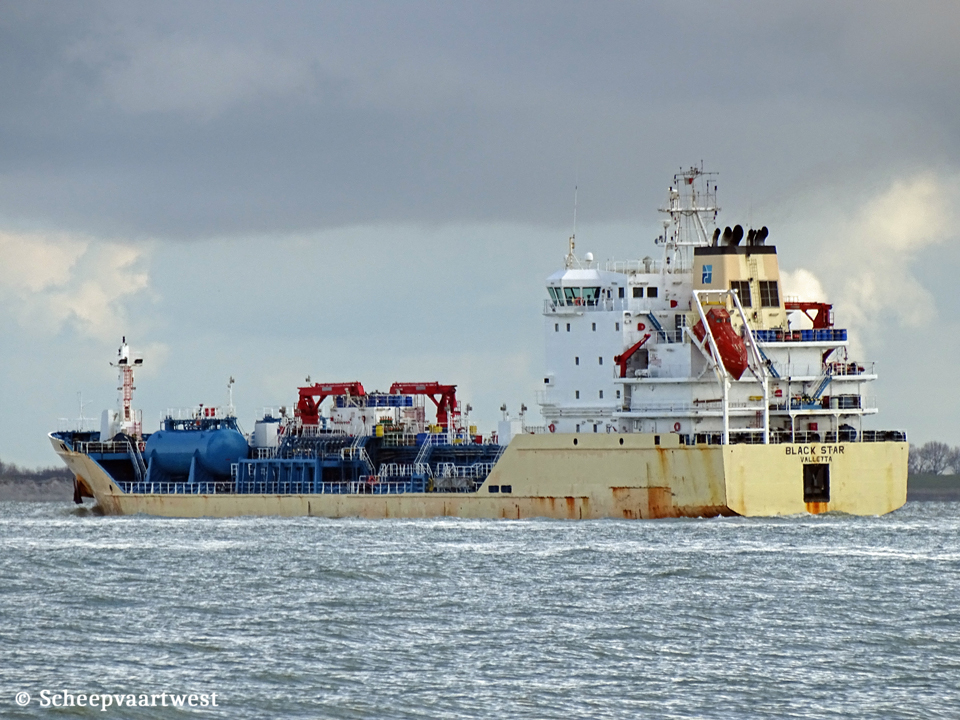

| Westerschelde 23/07/17 | Westerschelde 23/07/17 | Westerschelde 17/04/14 | Westerschelde 07/03/16 | ||||
|
Name |
BLACK STAR |
|
Previous names |
2011 Launched as: Ambra 11/2011 Black Star |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9527776 |
|
Call sign |
9HA2911 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
7.386 t |
|
DWT |
Summer: 9.438 t Winter: 9.909,70 t |
|
NT |
3.176 t |
|
Length |
128,09 m overall 119,68 m between perpendiculars |
|
Breadth |
19,50 m extreme |
|
Draught |
Summer: 7,49 m |
|
Air draft |
30,50 m ballast |
|
Freeboard |
2.300 mm |
|
Depth |
9,60 m |
|
Speed |
Max.: 16,0 knots service: 13,00 knots Eco: 12,5 knots |
|
Built |
2011 |
|
Keel laid |
13/08/2009 |
|
Date of completion |
30/11/2011 |
|
Builder |
TVK Shipyard Izmit Turkey |
|
Yard number |
NB 008 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 12V32 - 4 stroke single acting 12 cylinder 320 x 400 mm combustion engine 6.000 kW / 8.157 hp at 750 rpm Builder: Wärtsilä Finland Oy |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHR HTI Gesab GmbH 100,00 m² - 10,0 bar 1x CHO HTI Gesab GmbH 200,00 m² - 10,0 bar |
|
Generators |
3x Main diesel generatorsets each 1.125 kVA - 900 kW - 1.318 hp |
|
Bow thruster |
1x Tunnel thruster 515 kW / 700 bhp, forward |
|
Number of tanks |
18 + 2 slop tanks |
|
Total cap. of tanks 98% |
10.940,13 m³ |
|
Slop tank capacity |
294 m³ |
|
Number of segregation |
20 |
|
Pumps |
18x Framo cargo pumps each 200 m³/h |
|
Manifolds |
Distance bow to centre manifold: 56,00 m Distance deck to centre manifold: 72,00 m |
|
Tank capacities |
Fuel oil: 695,22 m³ Ballast: 3.777 m³ |
|
Crew size |
16 |
|
Operator |
Atlantik Denizcilik Ticaret ve Sanayii A.S Hakkı Yeten Cad., Selenium Plaza, No:10/C Beşiktaş 34349 Istanbul Turkey |
|
Registered owner |
Black Star Chemical Carries Ltd. Malta |
|
Sister ships |
Blue star - IMO 9527764 |
|
Renamed |
2022 Ned Nordic Malta, Valletta - Call sign: 9HA2911 Owner: Sea Tankers 1 Ltd. |
|
Latest data adjustment |
22 August 2023 |
