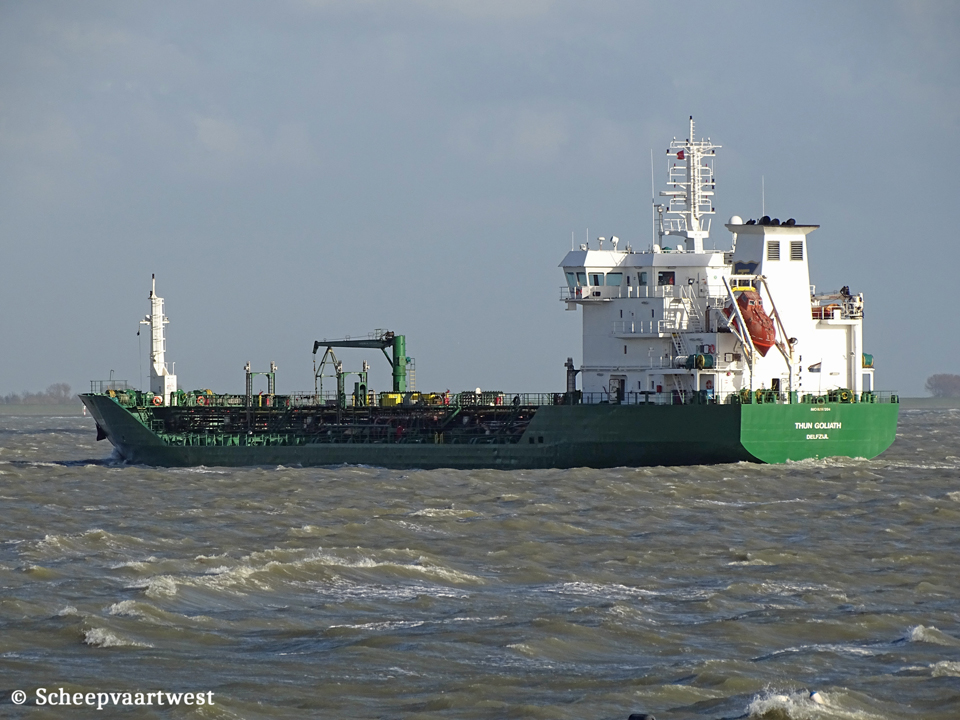

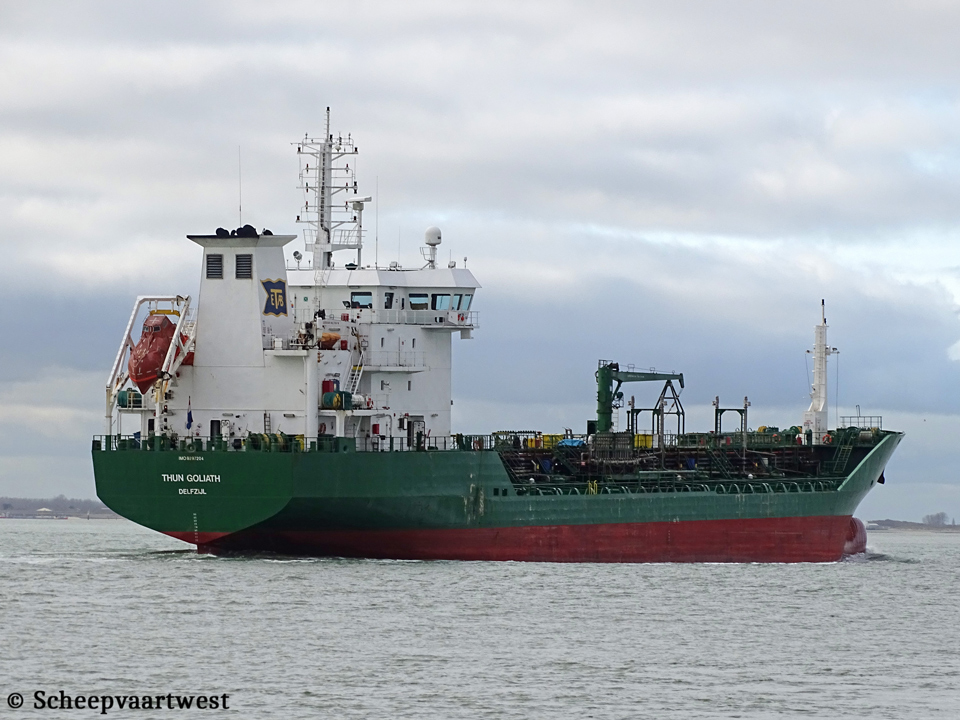

Westerschelde 31 July 2019 |
 |
 |
 |
 |
 |
 |
|||||

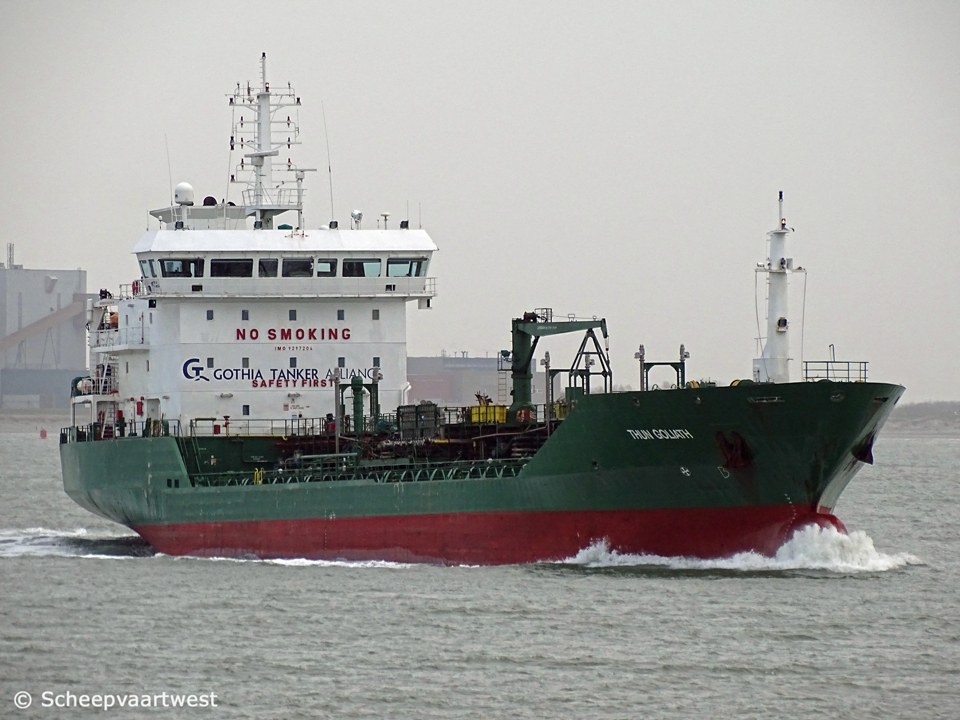

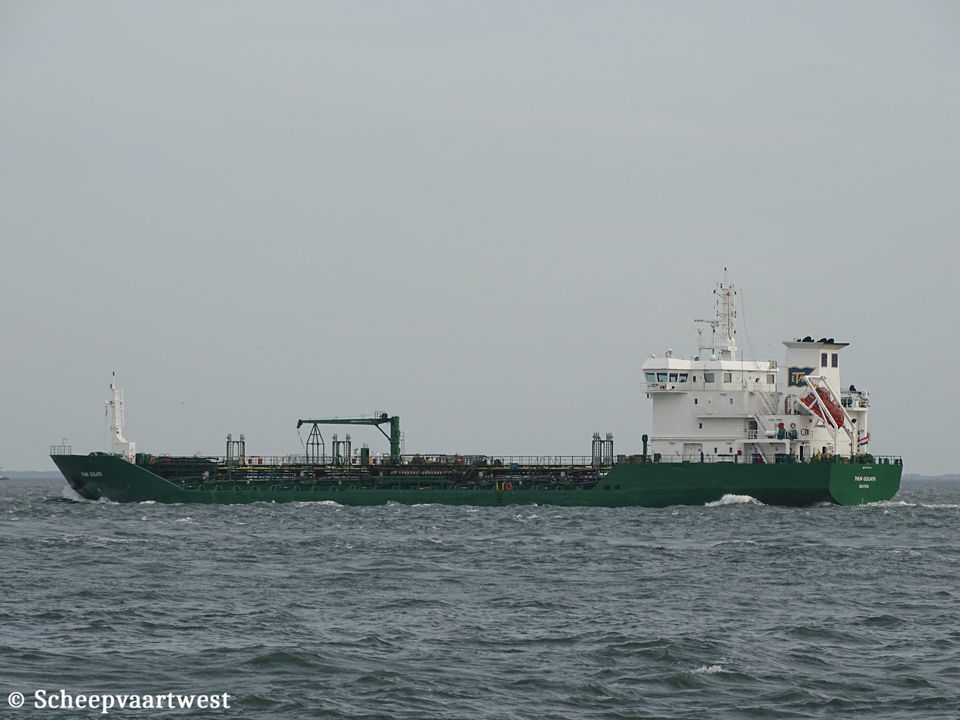

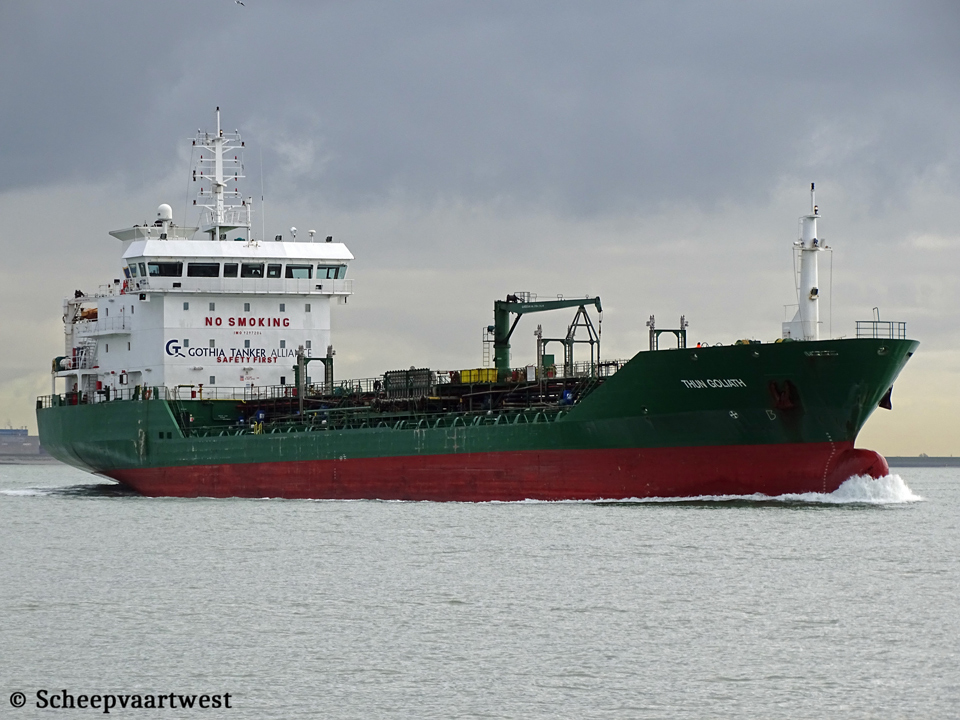

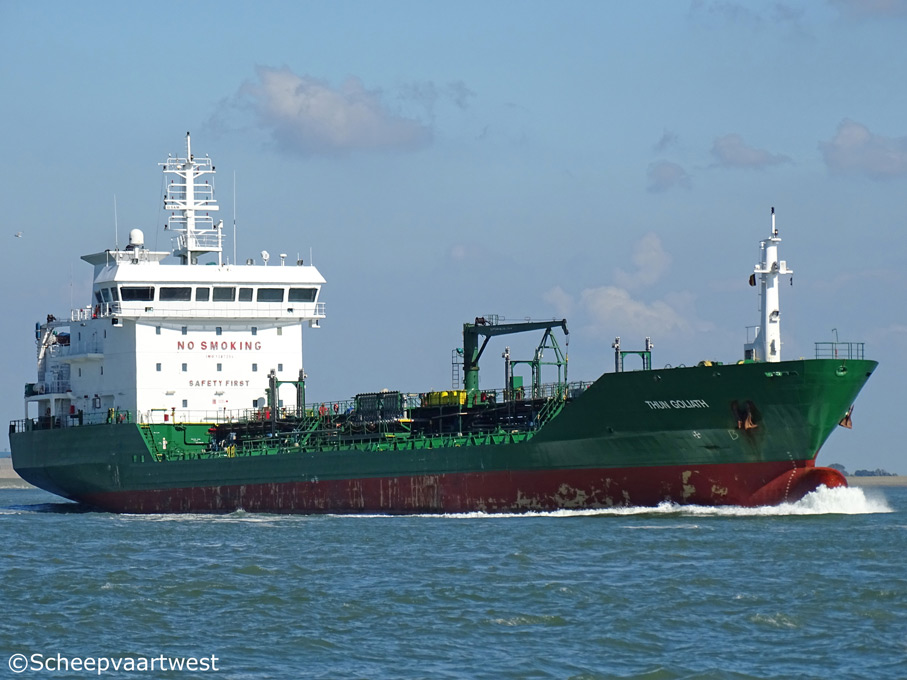

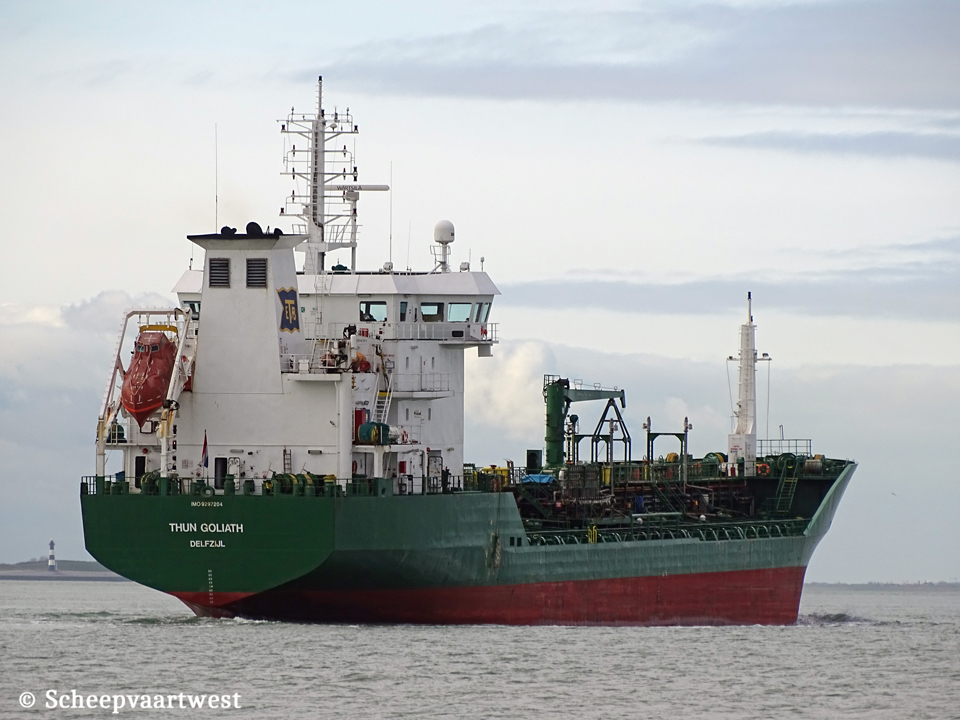

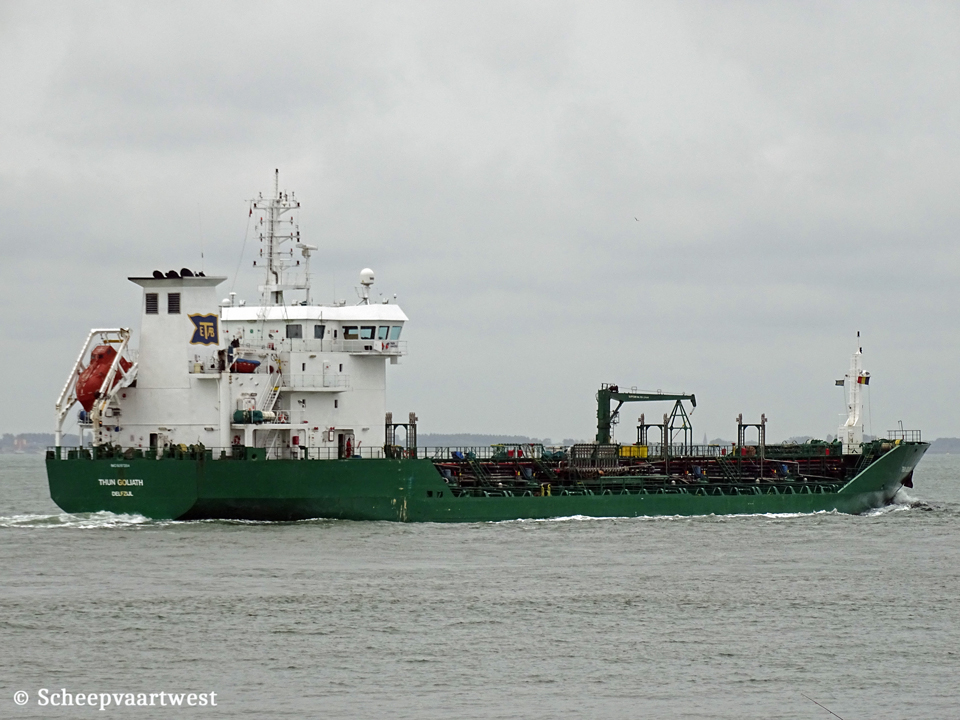

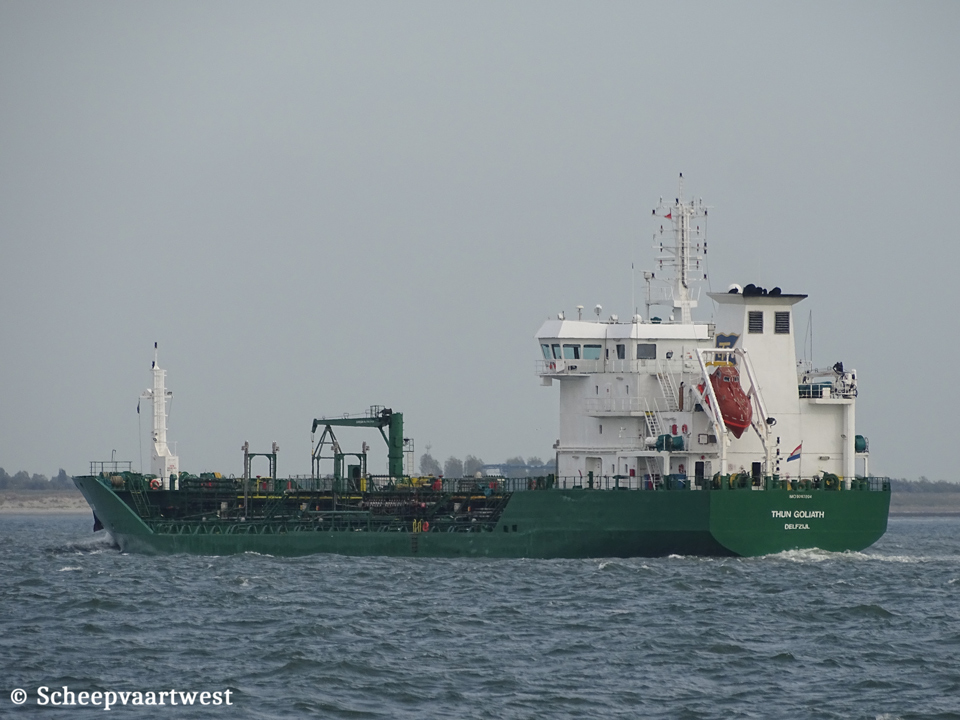

| Westerschelde 05/02/20 | Westerschelde 05/02/20 | Westerschelde 05/02/20 | Westerschelde 05/02/20 | Westerschelde 06/08/16 | Westerschelde 20/09/18 | |||||
 |
 |
 |
 |
|||||||

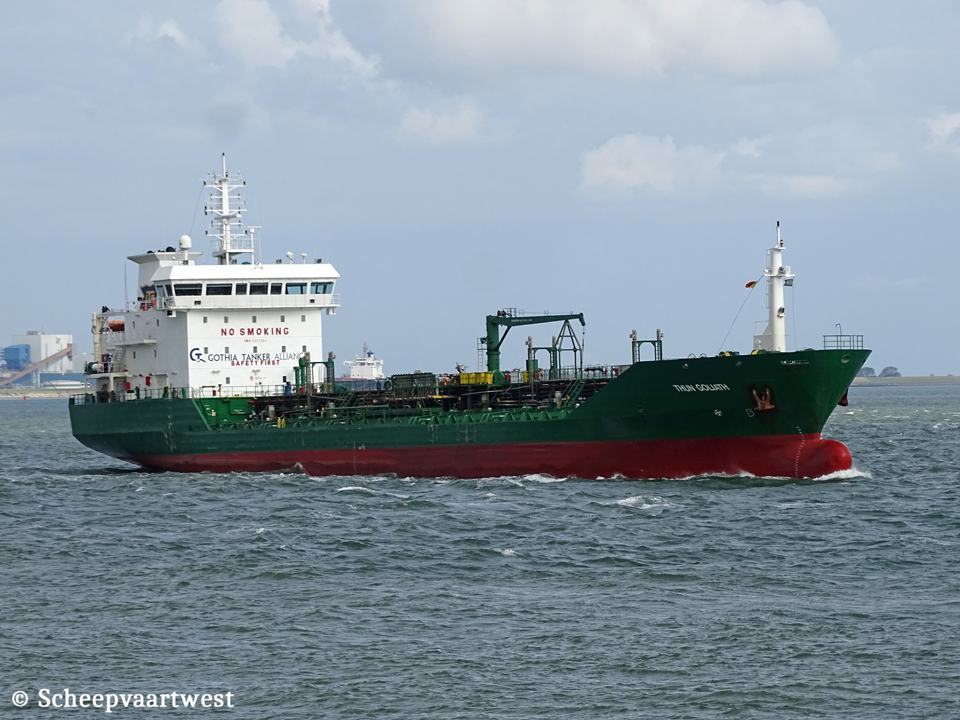

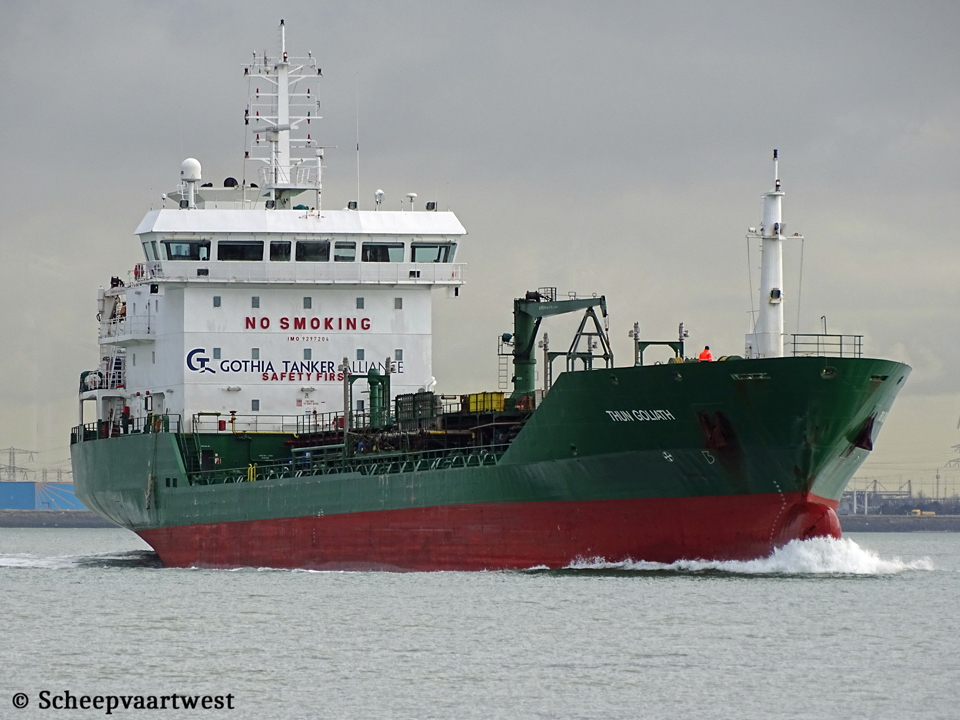

| Westerschelde 20/09/18 | Westerschelde 14/12/19 | Westerschelde 12/03/20 | Westerschelde 23/05/16 | |||||||
|
Name |
THUN GOLIATH |
|
Previous names |
2004 - 08/2007 Mareld 08/2007 - 12/2012 Bro Goliath |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9297204 |
|
Call sign |
PBLV |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
2004 - 2007 Norway, Oslo - Call sign: LADI6 |
|
6GT |
4.814 t |
|
DWT |
Summer: 7.108,4 t |
|
NT |
2.238 t |
|
Length |
119,01 m overall 110,97 m between perpendiculars 112,43 m registered |
|
Breadth |
16,90 m registered |
|
Draught |
6,77 m |
|
Freeboard |
1.659 mm |
|
Depth |
8,40 m moulded |
|
Speed |
15,0 knots 12,0 knots loaded |
|
Built |
2004 |
|
Date of completion |
01/11/2004 |
|
Builder |
Selah Makina Sanayi ve Ticaret Shipyard Tuzla Turkey |
|
Yard number |
038 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight compartments |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L32/40 - 4 stroke 8 cylinder 320 x 400 mm combustion engine 3.840 kW / 5.221 hp at 750 rpm Built: 2004 Builder: MAN-B&W Diesel AG, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 141 rpm |
|
Boilers |
2x CHO 63,00 m² - 10,0 bar 1x CHR 54,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 400 V Frequency: 50 Hz |
|
Shaft generator |
1x 1.500 kVA - 1.200 kW |
|
Generators |
3x Main diesel generatorsets each 625 kVA - 500 kW - 723 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 150 hp |
|
Bow thruster |
1x 450 kW |
|
Number of cargo tanks |
14 |
|
Segregation |
14 |
|
Total capacity of tanks |
8.071,91 m³ |
|
Number of slop tanks |
2 |
|
Tank coating |
Epoxy |
|
Number of pumps |
12x Cargo pumps 200 m³/h each 2x Pumps 60 m³/h each |
|
Loading/ Discharge rate |
1.200 m³/h |
|
Tank capacities |
HFO: 420,2 m³ MDO: 64,3 m³ |
|
Commerical manager |
Erik Thun AB Ostra Hamnen 7 SE-531 32 Lidkoping Sweden |
|
ISM manager |
Marin Ship Management B.V. Hogelandsterweg 14 9936 BH Farmsum The Netherlands |
|
Previous managers |
12/2004 - 08/2007 PB Linnea Shipping AS - Norway 08/2007 - 03/2010 Marin Ship Management B.V., Farmsum - The Netherlands 03/2010 - 12/ 2012 Maersk Tankers, Copenhagen - Denmark |
|
Registered Owner |
Thun Tankers B.V. Hogelandsterweg 14 9936 BH Farmsum The Netherlands |
|
Previous names & owners |
12/2004 - 08/2007 Mareld - Vadero Shipping Limited -Broström Tankers AB - Sweden 08/2007 - 12/2012 Bro Goliath - 2012 Bro Go B.V., Farmsum - The Netherlands |
|
Group |
MF Shipping Group Hogelandsterweg 14 9930 AB Delfzijl The Netherlands |
|
Renamed |
03/2022 Mensa Define Malta, Valletta - Call sign: 9HA5639 Owner: Densa Tanker Ship Management, Istanbul - Turkey Manager: Densa Tanker Ship Management, Istanbul - Turkey |
|
Latest data adjustment |
09 October 2024 |
