Westerschelde 01 April 2015 |
 |
 |
 |
 |
 |
||||

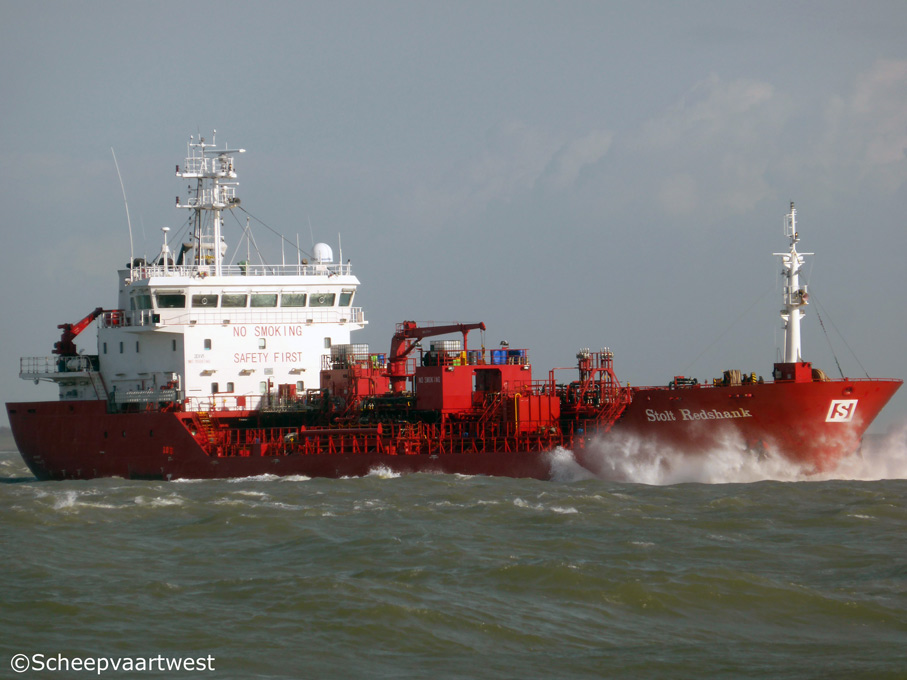

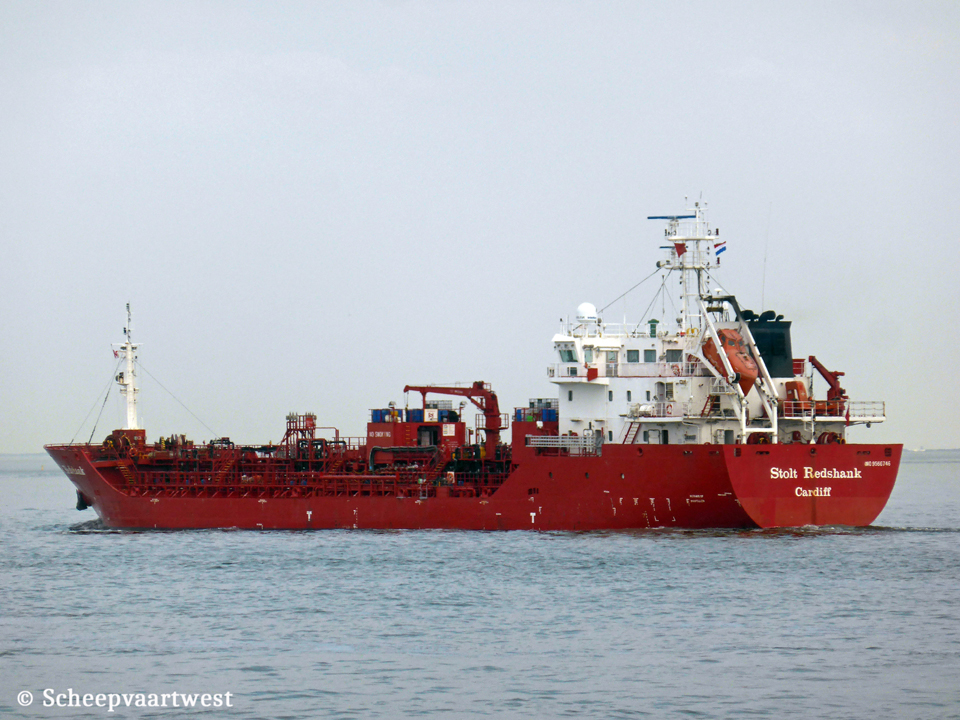

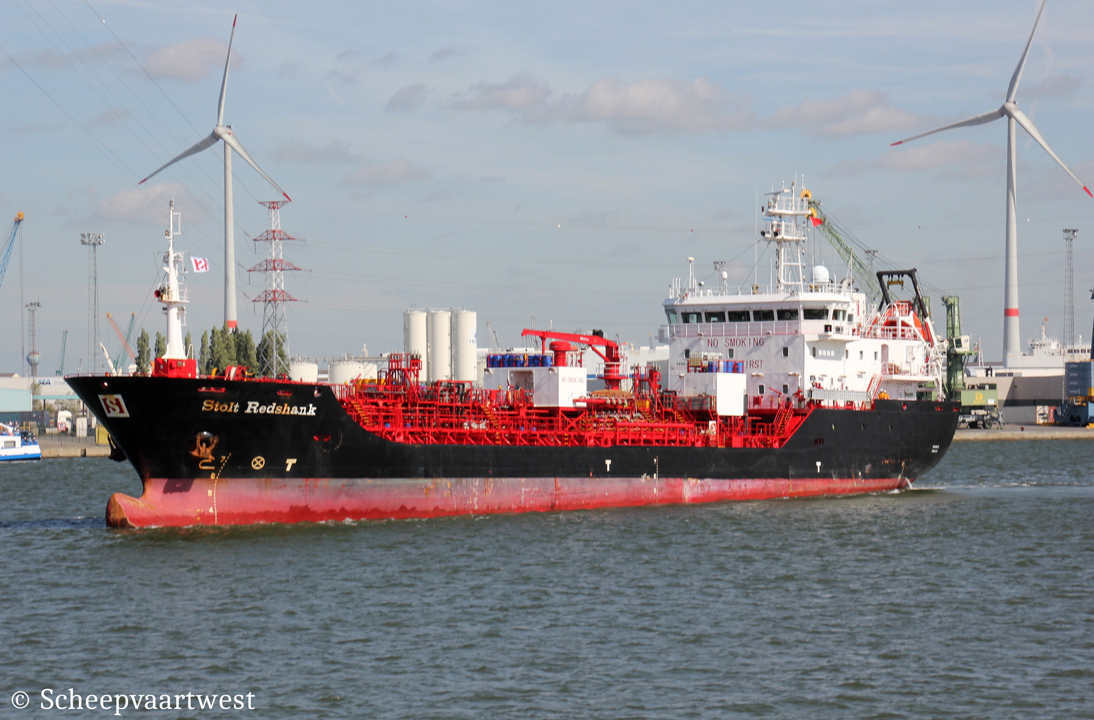

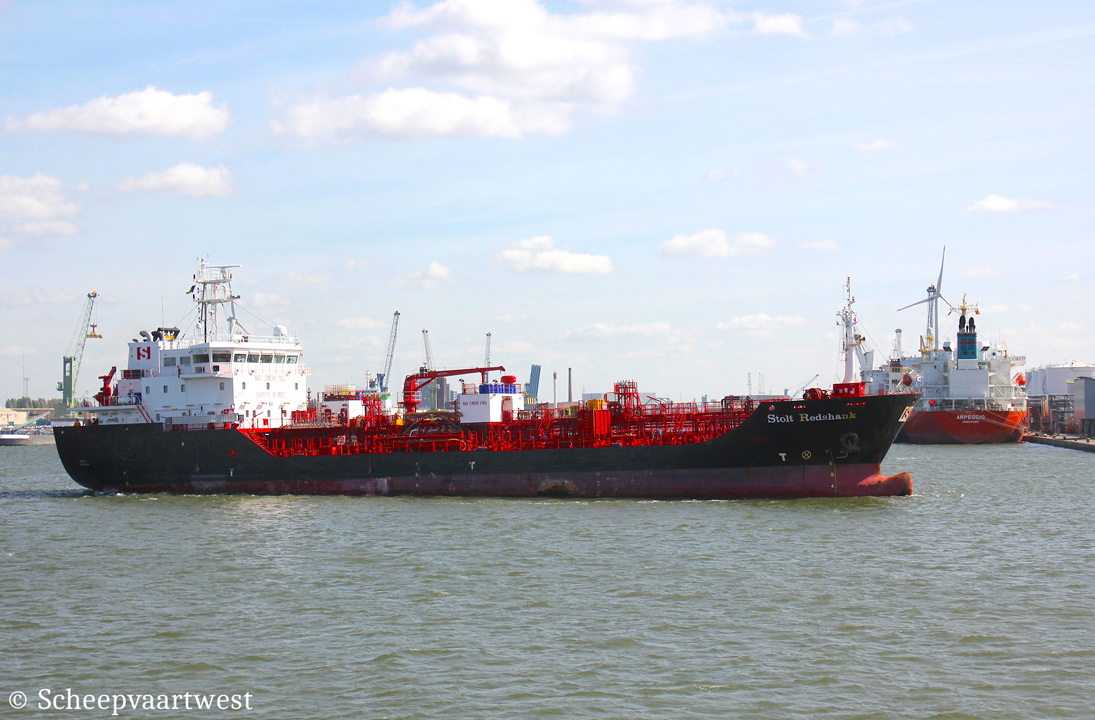

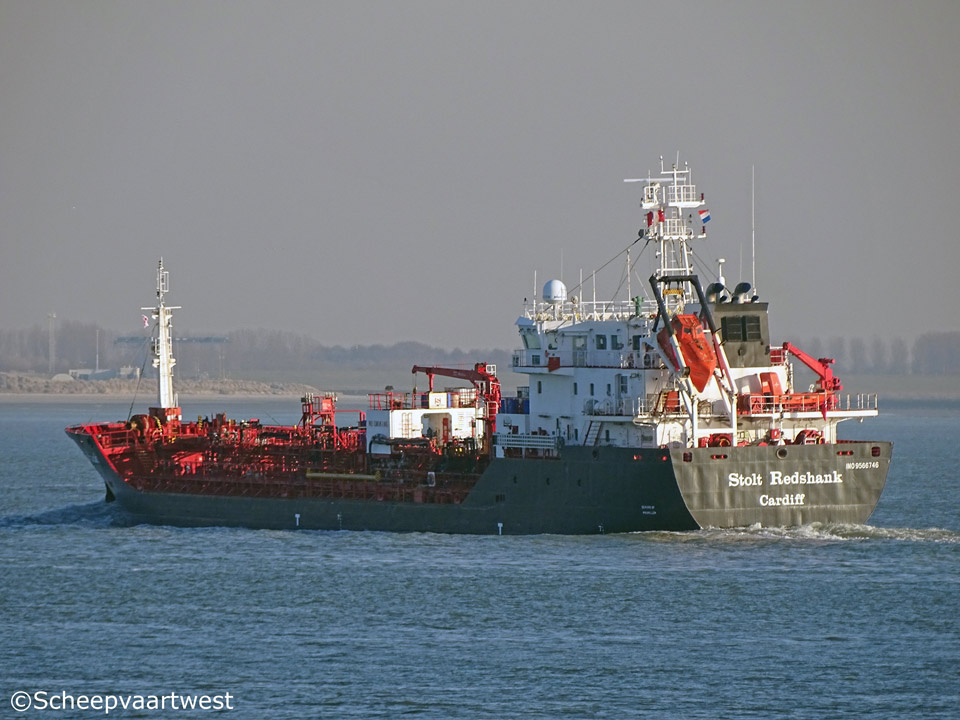

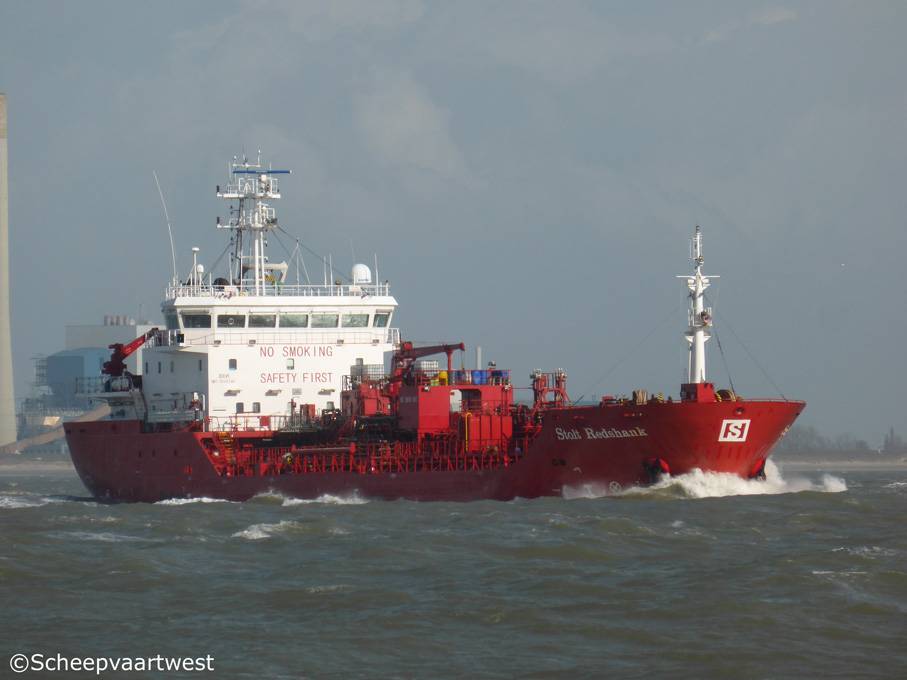

| Westerschelde 01/04/15 | Westerschelde 21/01/17 | Antwerpen 11/09/18 | Antwerpen 11/09/18 | Westerschelde 08/05/15 | ||||
|
Name |
STOLT REDSHANK |
|
Previous names |
2011 - 09/2011 Brovig Levanto |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9566746 |
|
Call sign |
2EXV5 |
|
Flag |
United Kingdom |
|
Port of registry |
Cardiff |
|
Previous flag |
2011 - 09/2011 Marshall Islands, Majuro |
|
GT |
3.327 t |
|
DWT |
Summer: 4.449 t |
|
NT |
1.357 t |
|
Light ship |
2.038 t |
|
Length |
90,90 m overall 85,00 m between perpendiculars |
|
Breadth |
15,60 m extreme |
|
Draught |
6,01 m |
|
Keel to mast end |
29,13 m |
|
Freeboard |
2.010 mm |
|
Depth |
8,00 m |
|
Speed |
12,8 knots |
|
Built |
2011 |
|
Keel laid |
07/03/2010 |
|
Launch date |
18/07/2010 |
|
Date of completion |
18/07/2011 |
|
Builder |
CSIC - Chongqing Chuandong Shipbuilding Industry Co., Ltd. Fuling China |
|
Yard number |
HT0121 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M25C - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller- aft at 202 rpm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired - 7,0 bar Heating surface: 100,00 m² 1x Auxiliary boiler, exhaust gas heated - 7,0 bar Heating surface: 80,00 m² |
|
Shaft generator |
1x 500 kVA - 400 kW |
|
Generators |
3x Deutz TBD604BL6 main diesel generatorsets each 400 kVA - 320 kW - 489 hp |
|
Emergency generator |
1x Diesel generatorset 109 kVA - 87 kW - 188 hp |
|
Bow thruster |
1x 250 kW |
|
Number of cargo tanks |
8 + 2 slop tanks |
|
Cargo tank capacity |
4.385,1 m³ |
|
Number of pumps |
8x Cargo pumps each 200 m³/h 2x Cargo pumps each 120 m³/h |
|
Tank capacities |
Fuel oil: 382,9 m³ Ballast: 2.014,9 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 38 mm |
|
Crew |
14 |
|
ISM & commercial manager |
Stolt Tankers BV Westerlaan 5 3016 CK Rotterdam The Netherlands |
|
Registered owner |
Brovig Stainless A/S, Farsund - Norway Care of Stolt Tankers BV Westerlaan 5 3016 CK Rotterdam, The Netherlands |
|
Pervious names & owners |
2011 - 09/2011 Brovig Levanto - Brøvig Stainless A/S, Farsund - Norway |
|
Latest data adjustment |
15 August 2024 |
