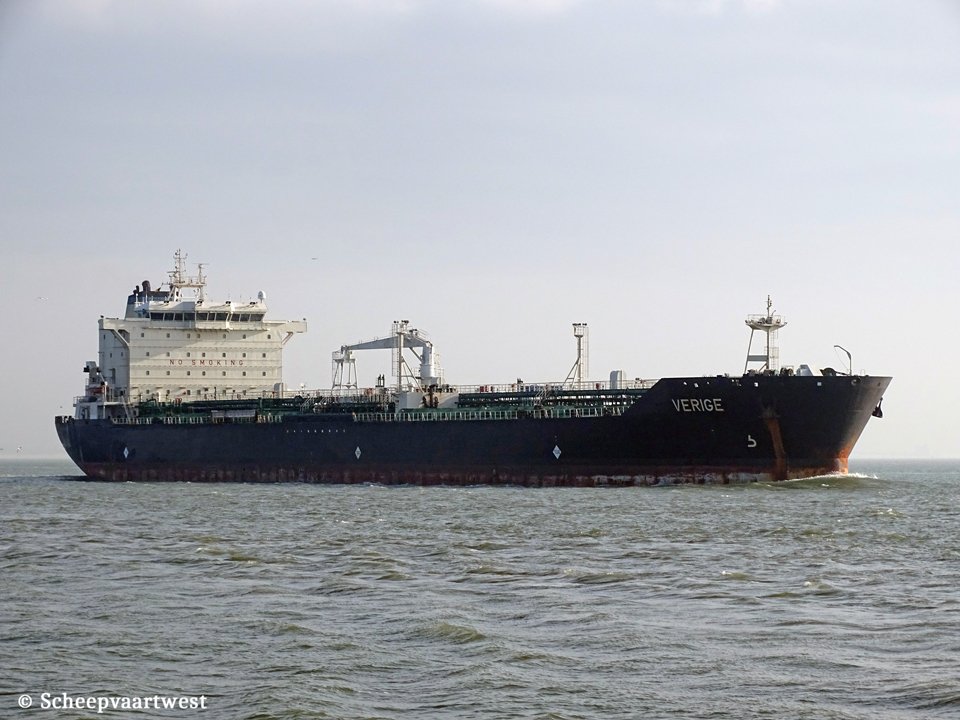

Verige IMO 9401128 02

Westerschelde 26 January 2020

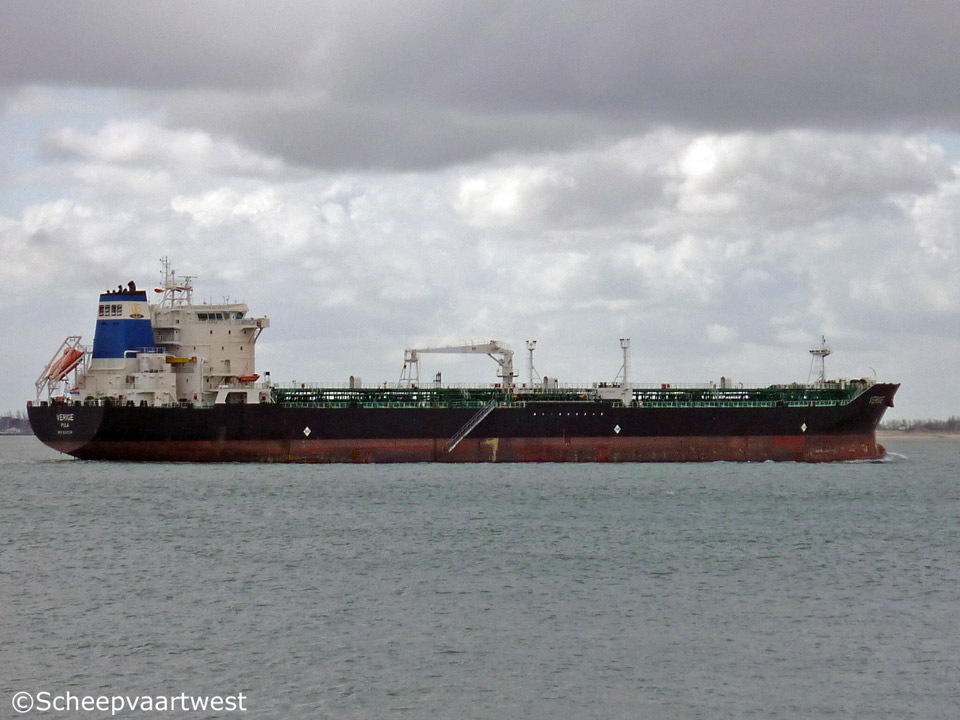

Verige 01
Westerschelde 16/04/12


Name

VERIGE

Type

Oil / Chemical tanker

IMO-number

9401128

Call sign

9AA6988

Flag

Croatia (Republika Hrvatska)

Port of registry

Pula

GT

30.638 t

DWT

52.725 t

NT

15.319 t

Length

195,09 m overall

187,30 m between perpendiculars

Breadth

32,20 m

Draught

12,50 m

Keel to mast end

47,00 m

Freeboard

5.317 mm

Depth

17,80 m

Speed

14,5 knots

Built

2010

Keel laid

14/02/2009

Date of completion

09/03/2010

Builder

3.Maj Brodogradiliste d.d.

Rijeka

Croatia

Yard number

709

Hull material

Steel

Hull type

Double hull

Watertight compartments

8

Continuous decks

1

Main engine

1x Wärtsilä 7RTA48T-B - 2 stroke 7 cylinder 480 x 2.000 mm combustion engine 9.650 kW / 13.111 hp at 123 rpm

Built: 2009

Builder: 3.MAJ Motori i Dizalice d.d., Rijeka - Croatia

Propellers

1x Screw propeller solid - aft at 123 rpm

Boilers

2x CHO Saacke 107,00 m² - 8,,0 bar

1x CHR Saacke 355,00 m² - 8,0 bar

Generators

3x Main diesel generatorsets each 1.490 kVA - 1.192 kW - 1.739 hp

Emergency generator

1x Diesel generatorset 160 kVA - 128 kW - 270 hp

Number of cargo tanks

12 + 2 slop tanks

Cargo tank capacity

57.336,89 m³

Number of pumps

12x cargo pumps each 550 m³/h

Tank capacities

Fuel oil: 1.591,02 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Commercial manager

Uljanik Shipmanagement Inc.

ul Carrarina 6

HR-52100 Pula

Croatia

ISM manager

ASP Ship Management Singapore Pte Ltd.

05-01, Gateway East, 152, Beach Road

Singapore 189721

Republic of Singapore

Registered owner

United Shipping Services Eleven Inc.

Care of Uljanik Shipmanagement Inc.

ul Carrarina 6

HR-52100 Pula

Croatia

Latest data adjustment

21 June 2022
