Westerschelde 13 September 2019 |
 |
 |
 |
||
| Vlissingen 15/12/16 | Vlissingen 15/12/16 | Vlissingen 15/12/16 | ||
|
Name |

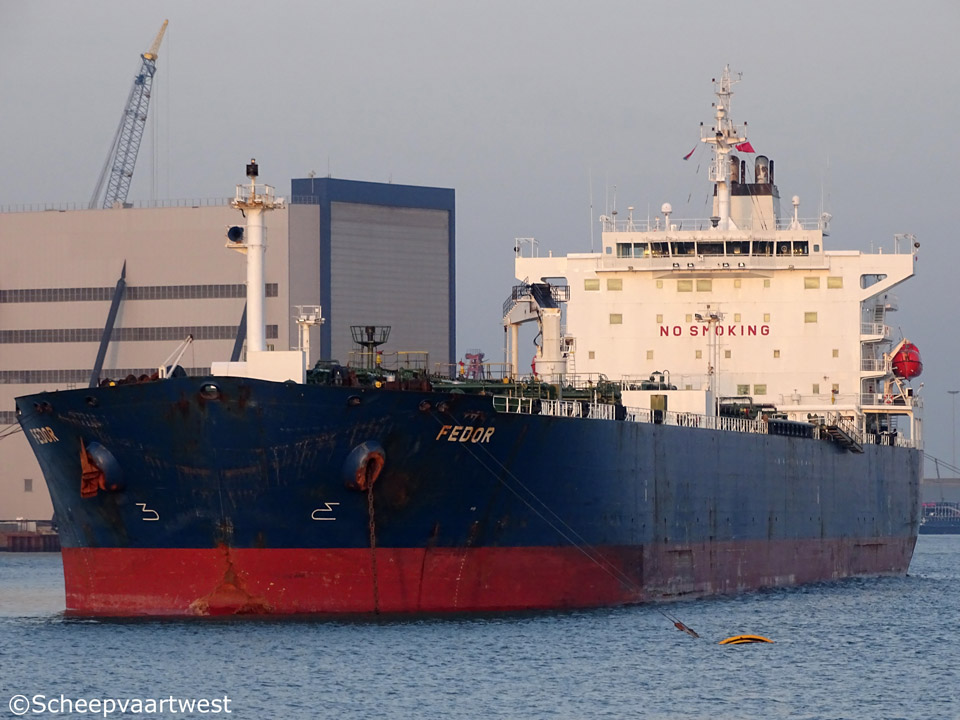

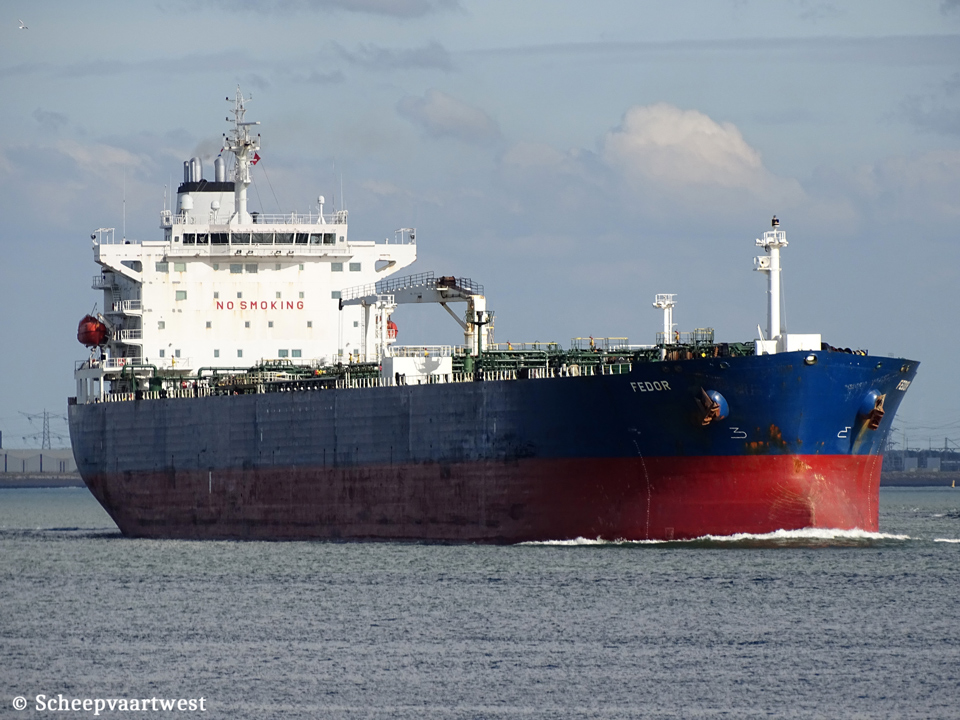

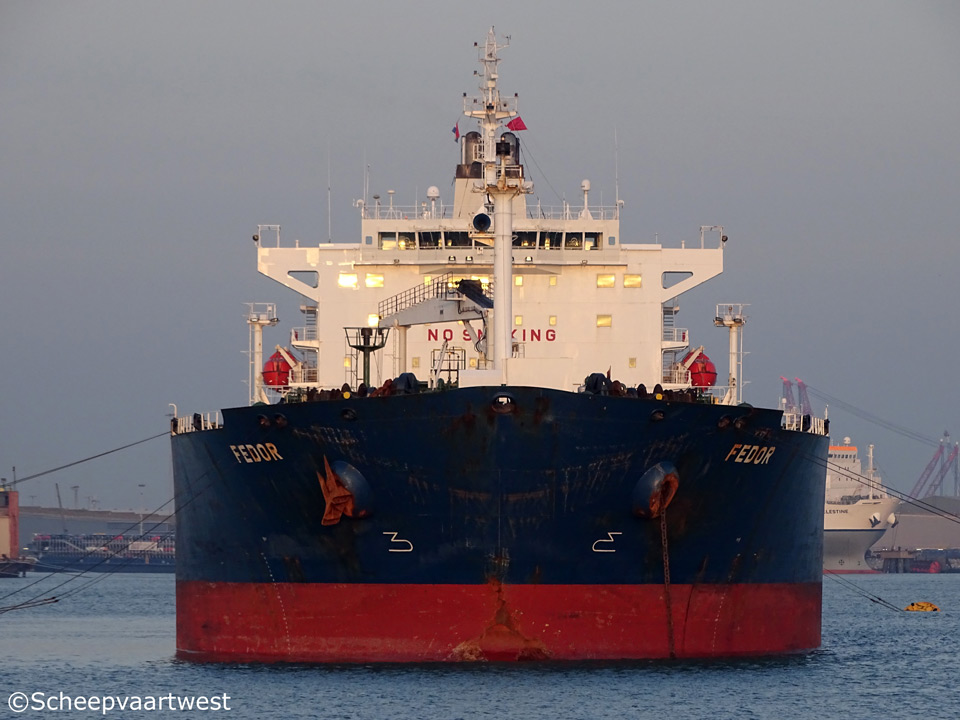

FEDOR |
|
Previous names |
2003 - 01/2004 Nidia |
|
Type |
Oil products tanker - Panamax |
|
IMO-number |
9259317 |
|
Call sign |
V7EV9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
41.397 t |
|
DWT |
Summer: 70.156 t |
|
NT |
19.597 t |
|
Length |
228,08 m overall 219,10 between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
13,72 m |
|
Air draft |
45,00 m light ship |
|
Keel to mast end |
52,23 m |
|
Depth |
20,40 m moulded |
|
Speed |
15,7 knots |
|
Built |
2003 |
|
Keel laid |
23/01/2003 |
|
Launch date |
10/05/2003 |
|
Date of completion |
19/08/2003 |
|
Builder |
Hyundai Heavy Ind. Co. Ltd. Ulsan South Korea |
|
Yard number |
1462 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 Longitudinal: 3 |
|
Main engine |
1x MAN-B&W 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 13.548 / 18.420 hp kW at 105 rpm |
|
Propellers |
1x Fixed pitch propeller - aft at 105 rpm Builder: Hyundai Heavy Ind. Co. Ltd. |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Inert Gas) 1x Auxiliary boiler, composite Builder: KangRim Industries. Co., Ltd. |
|
Generators |
4x Yanmar 6N21(A)L-V diesel generatorsets Builder: Yanmar Co., Ltd. Tsukaguchi Works |
|
Emergency generator |
1x MAN D2866TE diesel generatorset |
|
Number of cargo tanks |
12x wing tanks |
|
Cargo tank capacity |
77.910 m³ |
|
Slop tanks |
2 |
|
Pumps |
12x Cargo pumps each 830 m³/h |
|
Manifolds |
Manifold height above deck: 2,10 m Distance from bow to centre manifold: 111,03 m |
|
Tank capacities |
Ballast: 29.326,6 m³ Bunker capacity: 2.028 t |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
ISM & commercial manager |
Columbia Shipmanagement (Deutschland) GmbH Grosse Elbstrasse 275 22767 Hamburg Germany |
|
Operator |
Salamon AG Ruhrallee 9 44139 Dortmund Germany |
|
Registered owner |
SAG Unternehmensbeteiligungsges. MT "FEDOR" mbH & Co. Tankschiff KG Care of Columbia Shipmanagement (Deutschland) GmbH Grosse Elbstrasse 275 22767 Hamburg Germany |
|
Latest data adjustment |
29 December 2021 |
