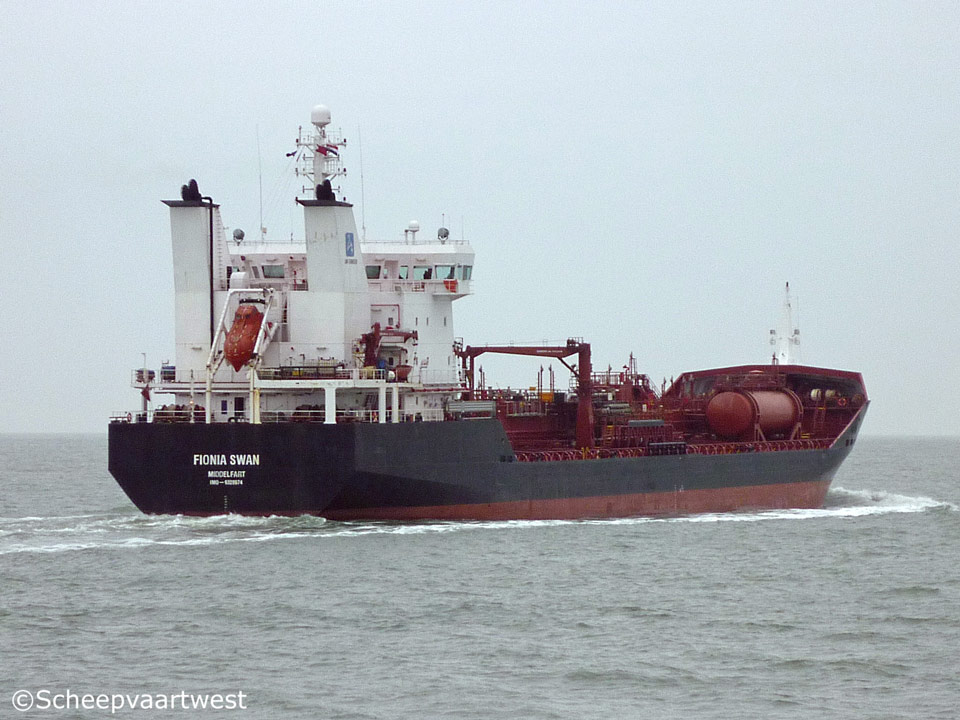

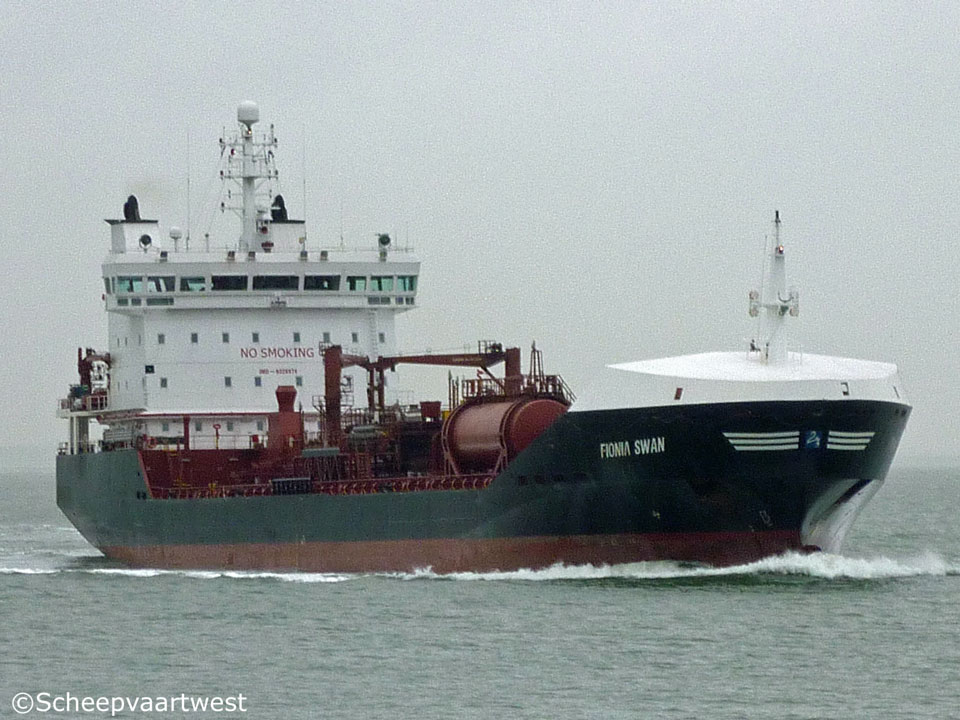

Westerschelde 31 March 2012 |
 |
| Westerschelde 31/03/12 |
|
Name |
FIONIA SWAN |
|
Previous names |
2005 - 11.2007 Fiona swan 11.2007 - 07.2008 Puli |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9328974 |
|
Call sign |
OVJG2 |
|
Flag |
Denmark |
|
Port of registry |
Middelfart |
|
GT |
10.810 t |
|
DWT |
Summer: 15.601,6 t |
|
NT |
5.223 t |
|
Length |
148,00 m overall 139,53 m between perpendiculars |
|
Breadth |
21,63 m extreme |
|
Draught |
Summer: 8,60 m 6,00 m ballast |
|
Height from keel to mast |
39,19 m |
|
Air draft |
32,15 m in ballast 30,59 m loaded |
|
Depth |
11,30 m moulded |
|
Speed |
Service: 13,8 knots |
|
Built |
2005 |
|
Keel laid |
28.07.2003 |
|
Launch date |
11.12.2004 |
|
Date of completion |
30.11.2005 |
|
Builder |
Deniz Industry Co. Cicek Shipyard |
|
Yard number |
34 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
2x Bergens-Rolls-Royce Marine B32:40L8P - 4 stroke 8 cylinder diesel engines each 3.600 kW / total: 9.790 bhp / 7.200 kW at 720 rpm Builder: Rolls-Royce Marine Engines AS, Bergen - Norway |
|
Propellers |
2 |
|
Rudder |
2x Z-Drive Aquamaster 360° |
|
Boilers |
2x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Generators |
1x Scania diesel generatorset 469 kW |
|
Emergency generator |
1x Scania 634 DSBIG diesel generatorset 165 kW |
|
Bow thruster |
1x 600 kW |
|
Number of cargo tanks |
18 |
|
Cargo tank capacity 98% |
17.581 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
358 m³ |
|
Number of segregations |
18 + 2 grades cargo, separate lines/pumps |
|
Cargo pumps |
18x Centrifugal cargo pumps each 335 m³/h 2x Centrifugal cargo pumps each 100 m³/h 1x Centrifugal cargo pumps 70 m³/h 2x Ballast pumps each 500 m³/h |
|
Manifolds |
Distance from bow to centre manifold: 76.00 m Distance from stern to centre manifold: 72,00 m Distance between manifolds: 0,508 m Distance from ship side to manifold: 4,23 m Distance from deck: 2,98 m |
|
Tank capacities |
Ballast: 6.261 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 56 mm |
|
Lifting equipment |
2x Hose crane - SWL 5,0 t each 1x MOB Crane - SWL 2,0 t |
|
Manager |
Uni-Tankers A/S |
|
Owner |
Uni-Tankers M/T "Fionia Swan" ApS Copenhagen Denmark |
|
Latest data adjustment |
10 February 2017 |
