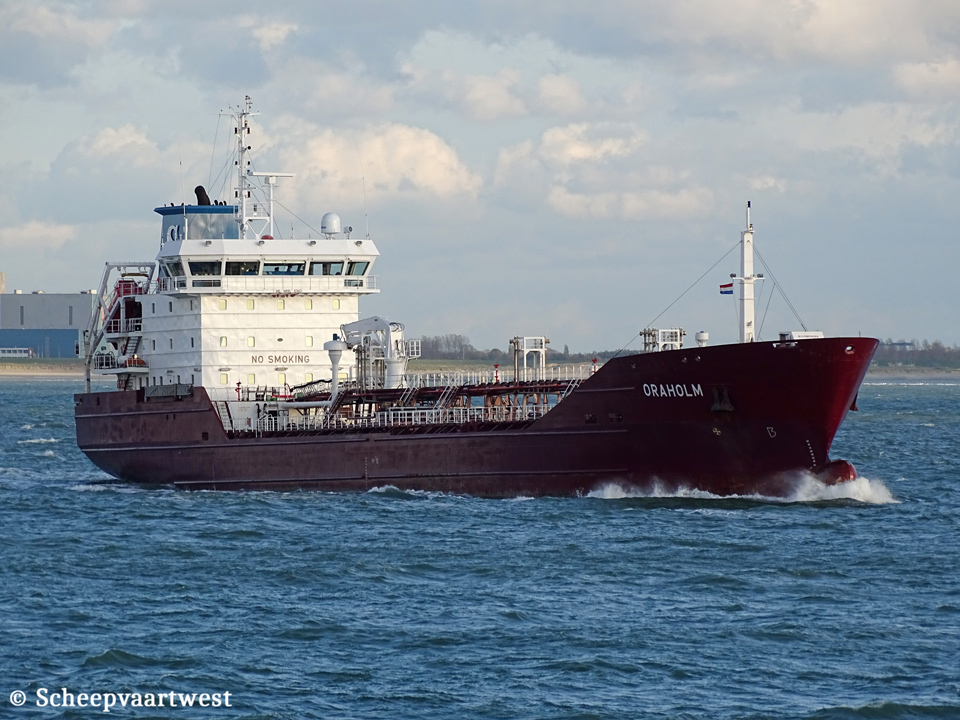

Westerschelde 08 March 2016 |
 |
 |
 |
 |
 |
 |
|||||

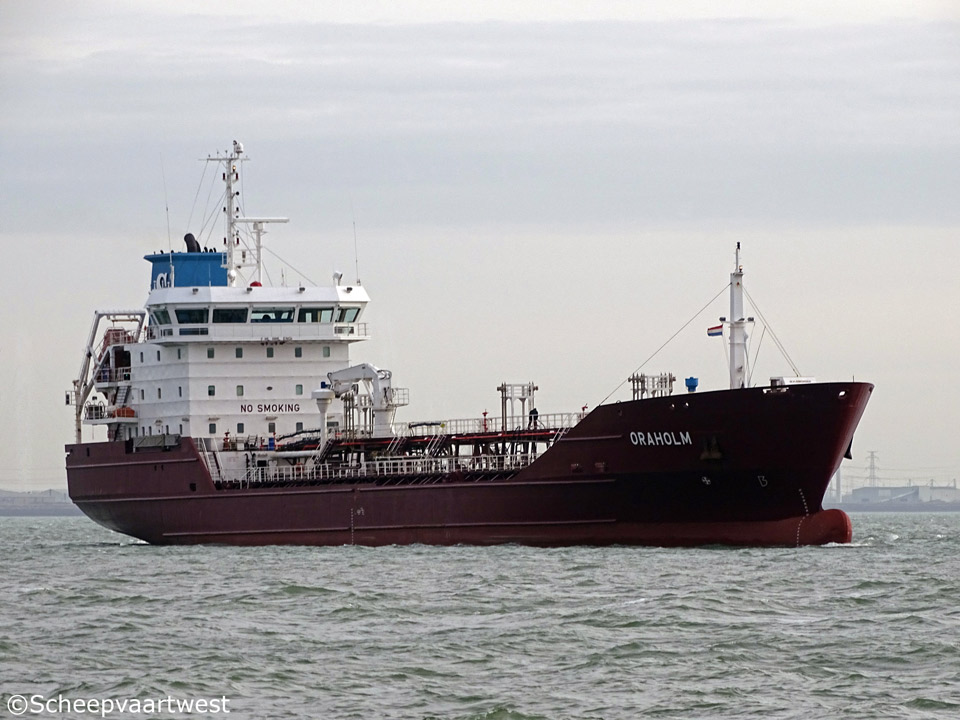

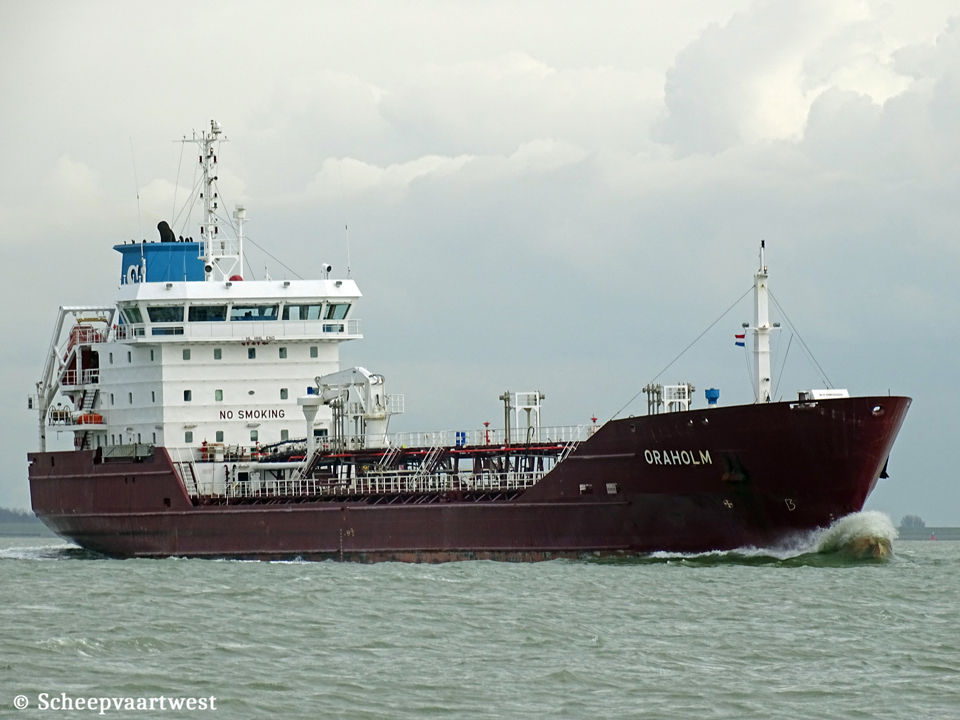

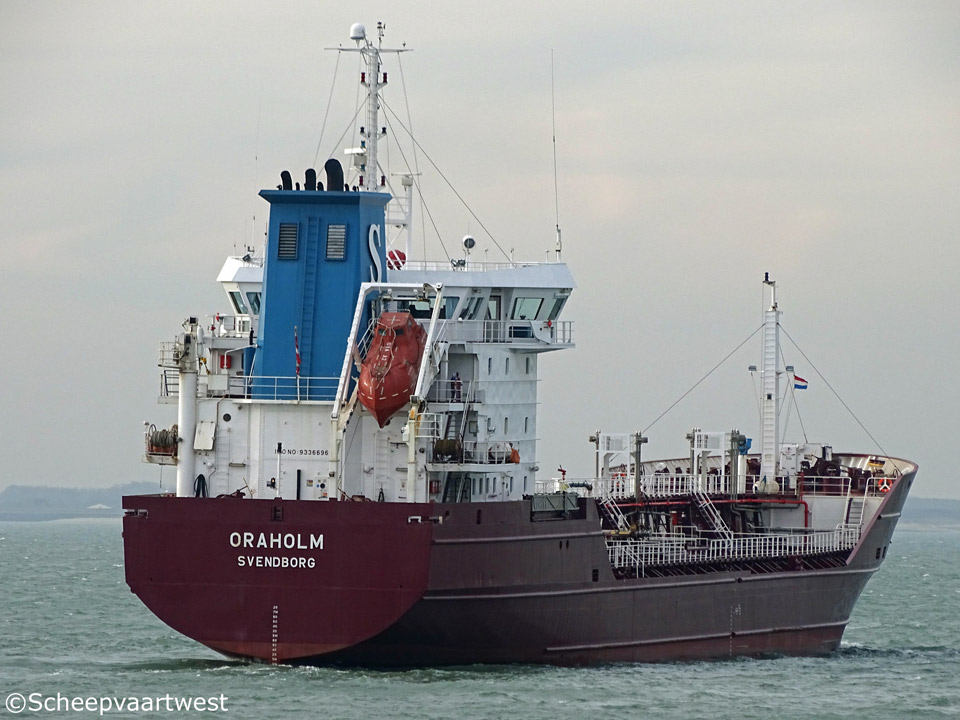

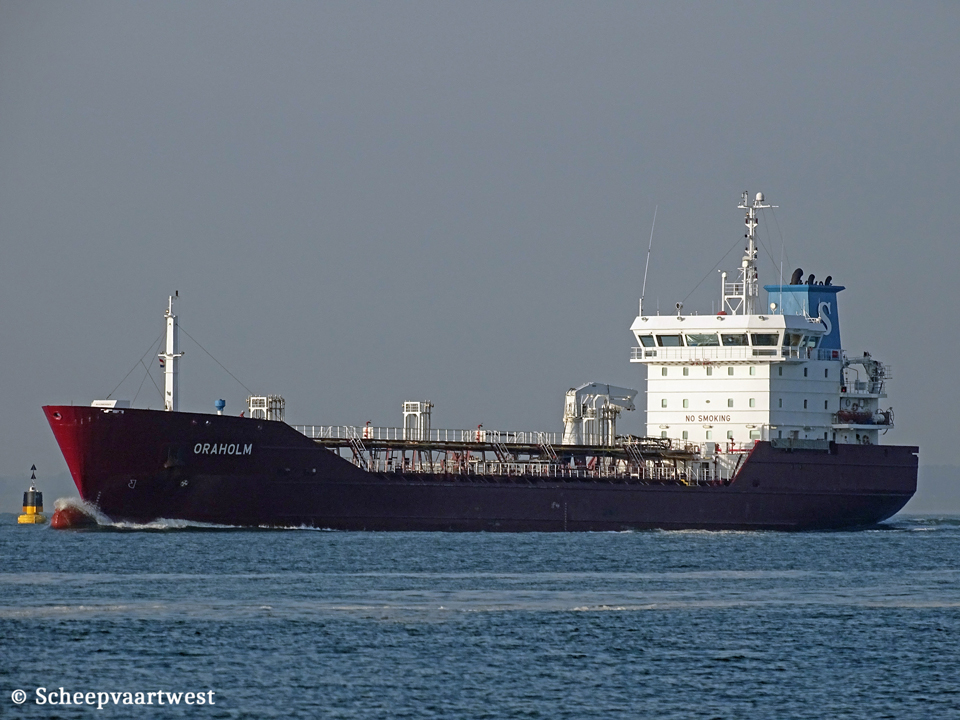

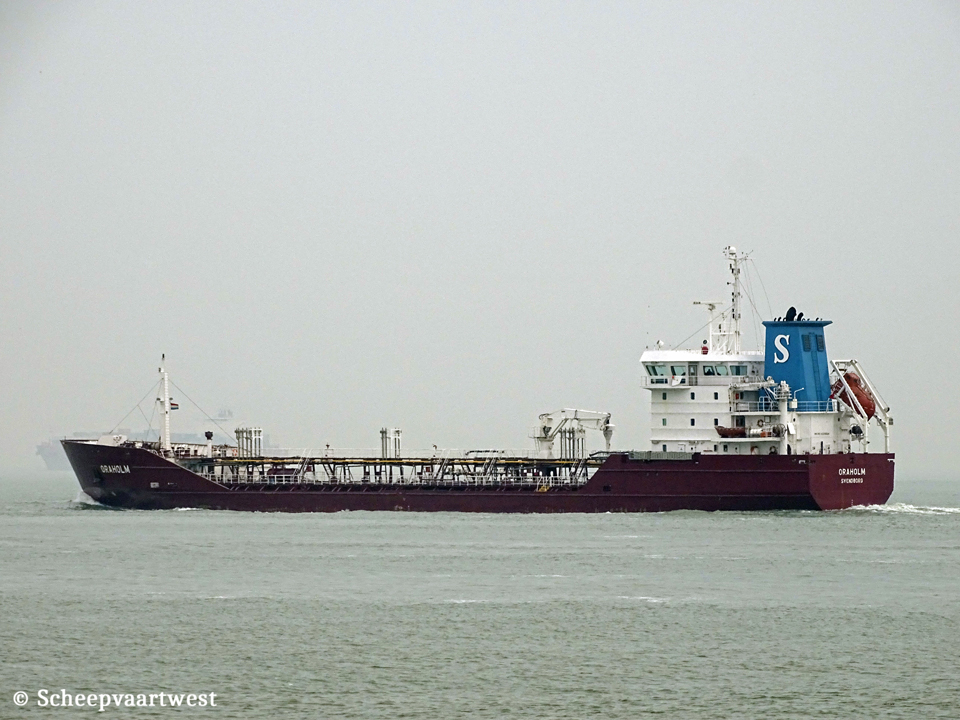

| Westerschelde 08/02/16 | Westerschelde 23/12/16 | Westerschelde 23/12/16 | Westerschelde 23/12/16 | Westerschelde 07/11/19 | Westerschelde 09/04/17 | |||||
 |
||||||||||

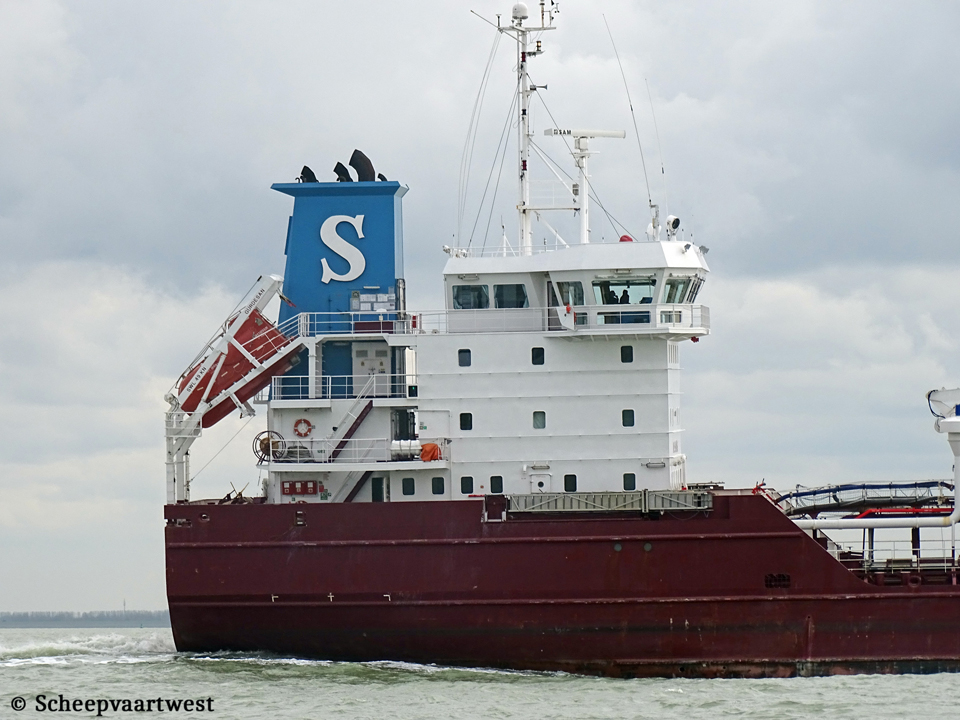

| Westerschelde 28/08/17 | ||||||||||
|
Name |
ORAHOLM |
|
Type |
Tanker for chemicals & Oil products |
|
IMO-number |
9336696 |
|
Call sign |
OYAA2 |
|
Flag |
Denmark |
|
Port of registry |
Svendborg |
|
GT |
3.709 t |
|
DWT |
Summer: 4.987,80 t Winter: 4.802,67 t t |
|
NT |
1.495 t |
|
Displacement |
Summer: 7.409,30 t Winter: 7.224,17 t |
|
Length |
106,20 m overall 100,70 m between perpendiculars |
|
Breadth |
15,80 m extreme 15,50 m moulded |
|
Draught |
Summer: 6,28 m Winter: 6,15 m |
|
Keel to mast end |
33,20 m |
|
Air draft |
Light ship: 30,85 m Normal ballast: 27,70 m At loaded summer deadweight: 26,92 m |
|
Freeboard |
Summer: 1.534 mm Winter: 1.670 mm |
|
Depth |
7,80 m moulded |
|
Speed |
Ballast: Max: 15,0 knots / Economic: 12,5 knots Laden: 14,0 knots / Economic: 11,8 knots |
|
Built |
2006 |
|
Keel laid |
17/05/2004 |
|
Launch date |
02/11/2005 |
|
Date of completion |
07/04/2006 |
|
Builder |
Desan Deniz Insaat San. A.S. Tuzla-Istanbul Turkey |
|
Yard number |
12 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
12 |
|
Number of decks |
1 |
|
Main engine |
1x MAN-B&W Alpha 5L35MC - 2 stroke 5 cylinder 350 x 1.050 mm combustion engine 3.248 kW / 4.416 bhp at 210 rpm Build: 2005 Builder: MAN-B&W Diesel, Frederikshavn - Denmark |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1 CHM Aalborg industries 188,00 m² - 9,0 bar 1 CHS Regiomat PSS Kessel 54,80 m² - 13,0 bar |
|
Shaft generator |
440 kW |
|
Generators |
3x Volvo Penta TAMD165A main diesel generatorsets each 341 kVA - 273 kW - 516 hp |
|
Emergency generator |
1x Volvo Penta TAMD165A diesel generatorset 166 kVA - 133 kW - 204 hp |
|
Bow thruster |
1x 250 kW / 340 bhp, forward |
|
Number of cargo tanks |
14 + 1 slop tank |
|
Cargo tanks capacity 98% |
2p/s: 2x 319,05 m³ 3p/s: 2x 592,38 m³ 4p/s: 2x 373,10 m³ 5p/s: 2x 590,65 m³ 6p/s: 2x 307,75 m³ 7p/s: 2x 331,90 m³ Total: 5.282,86 m³ |
|
Number of slop tanks |
1 |
|
Slop tank capacity 98% |
150,77 m³ |
|
Cargo tank coating |
Marine Line |
|
Number of pumps |
3x Cargo pumps each 250 m³/h 2x Centrifugal ballast pumps each 350 m³/h |
|
Loading rate |
900 m³/h |
|
Discharge rate |
750 m³/h |
|
Manifolds |
Bow to centre manifold: 54,00 m Stern to centre manifold: 52,00 m Distance bridge front to centre of manifold: 30,00 m Distance between cargo manifold centres: 1.000 mm Distance ships rail to manifold: 2.500 mm Distance manifold to ships side: 3,700 mm Top of rail to centre of manifold: 1.200 mm Distance main deck to centre of manifold: 1,800 mm pill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Ballast: 2.266,32 m³ Bunker: 230 m³ IFO: 50,50 m³ Marine gas oil: 76,00 m³ Fresh water: 153,36 m³ - 98% |
|
Anchor equipment |
Length: 233,50 m Diameter: 40 mm |
|
Lifting equipment |
1x Deck crane - SWL 5,0 t Outreach: 12,00 m |
|
Manager |
Rederiet M.H. Simonsen ApS Christiansmindevej 76 5700 Svendborg Denmark |
|
Operator |
M.H. Simonsen ApS |
|
Registered owner |
Partrederiet Oraholm C/o M. H. Simonsen ApS Christiansmindevej 76 5700 Svendborg Denmark |
|
Latest data adjustment |
27 July 2024 |
