Westerschelde 08 January 2017 |
|
Name |

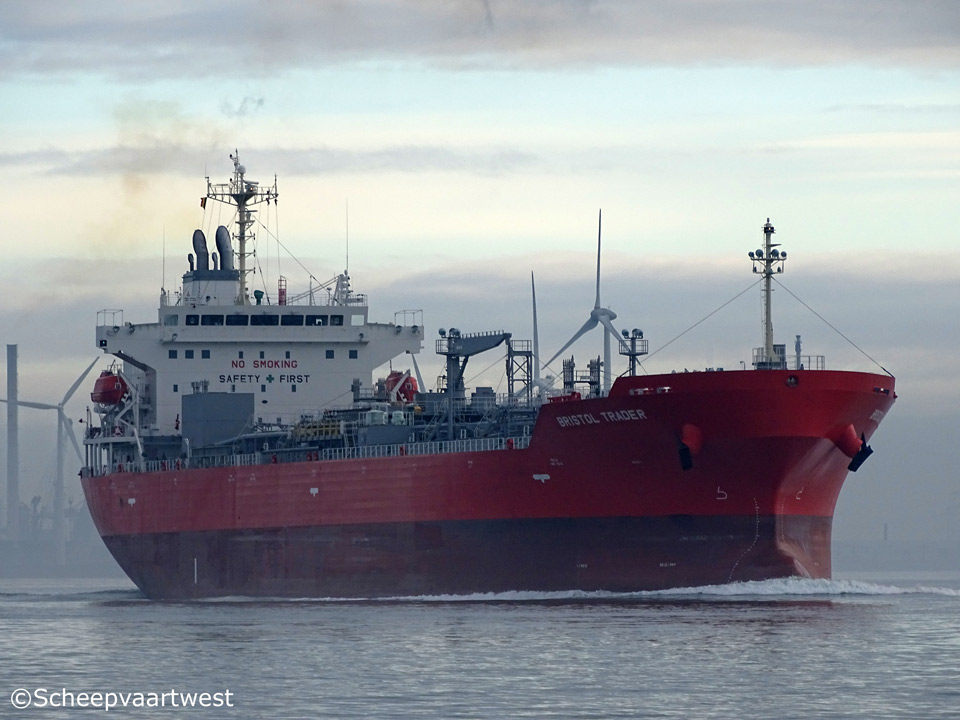

BRISTOL TRADER |
|
Type |
Oil/Chemical tanker |
|
Main products |
Chemicals |
|
IMO-number |
9737101 |
|
Call sign |
DUIJ |
|
Flag |
Philippines |
|
Port of registry |
Manila |
|
GT |
21.151 t |
|
DWT |
Summer: 35.863 t |
|
NT |
10.024 t |
|
Length |
179,50 m overall 172,00 m between perpendiculars |
|
Breadth |
27,40 m |
|
Draught |
11,55 m |
|
Freeboard |
4.765 mm |
|
Depth |
16,32 m |
|
Speed |
15,0 knots |
|
Built |
2016 |
|
Date of completion |
12.07.2016 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Onishi Shipyard |
|
Yard number |
5861 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
15 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui B&W - 2 stroke 6 cylinder 500 x 2.214 mm diesel engine 7.260 kW / 9.864 hp at 99,0 rpm Built: 16.12.2015 Builder: Mitsui Engineering & Shipbuilding Co., Ltd., Tamano - Japan |
|
Propellers |
1x Screw propeller solid - aft at 99 rpm |
|
Boilers |
1x CHO Tortoise 217,95 m² - 9,8 bar |
|
Generators |
3x Main diesel generatorsets each 937 kVA - 750 kW - 1087 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 175 hp |
|
Number of cargo tanks |
16 |
|
Total capacity of tanks |
37.553,25 m³ |
|
Tank capacities |
Fuel oil: 1.777,74 m³ |
|
Operator |
Victoria Ship Management Inc. |
|
Owner |
Sea Queen Shipping Corp. |
|
Latest data adjustment |
01 April 2017 |
