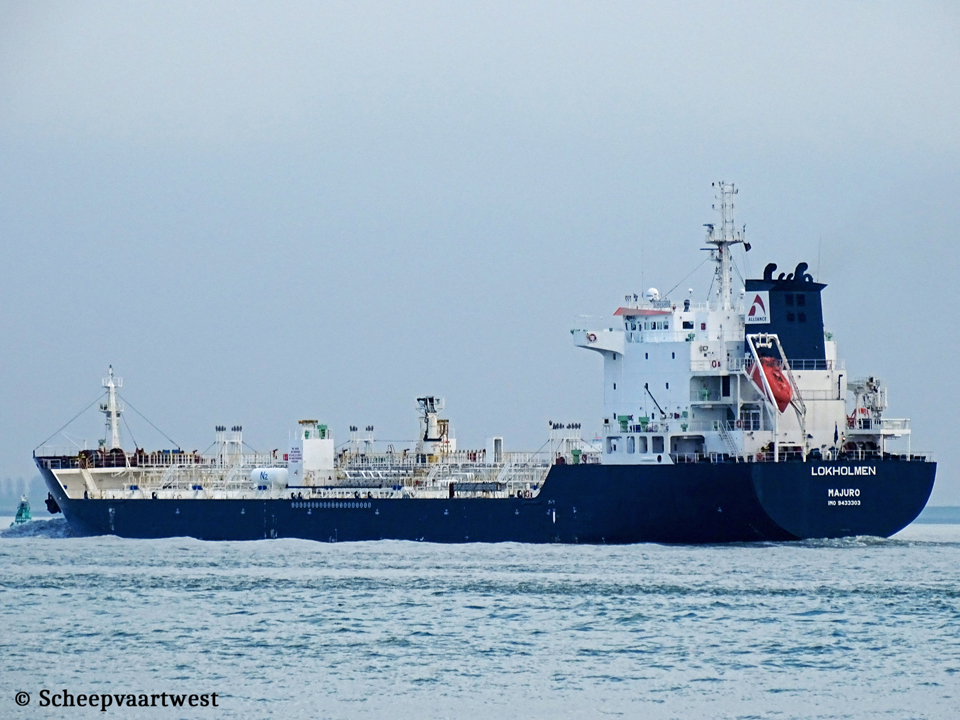

Westerschelde 05 february 2016 |
 |
 |
 |
 |
|||

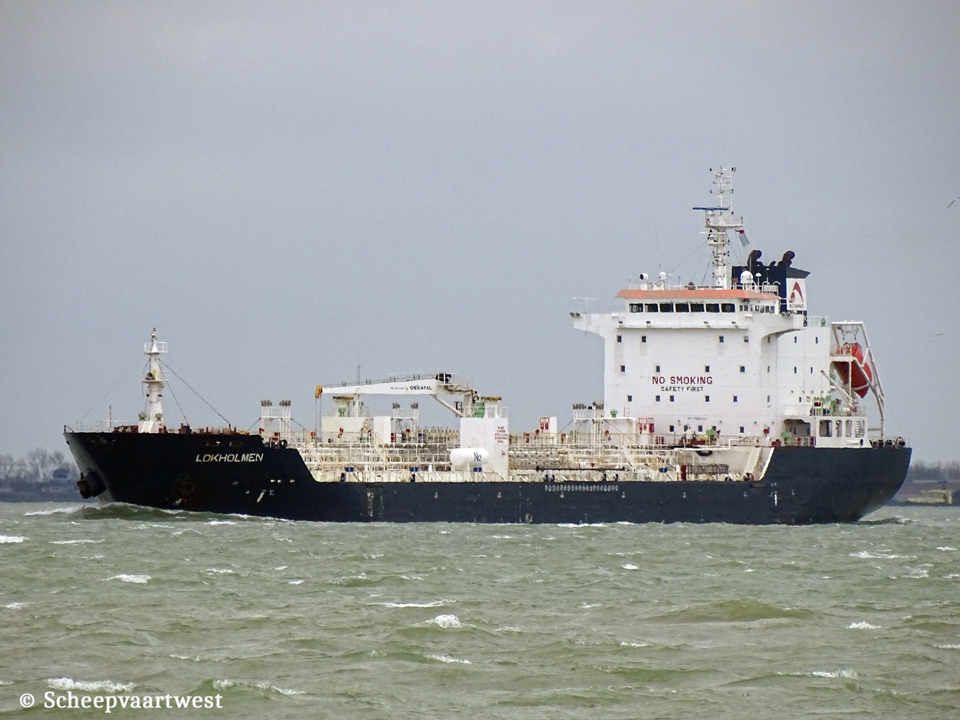

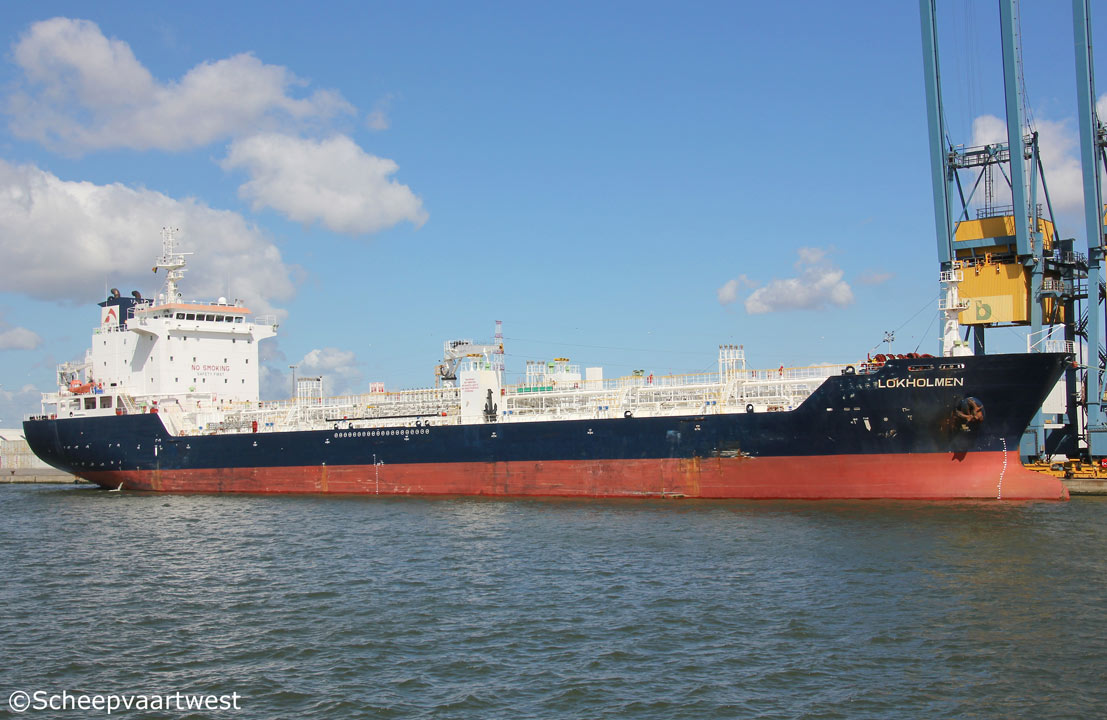

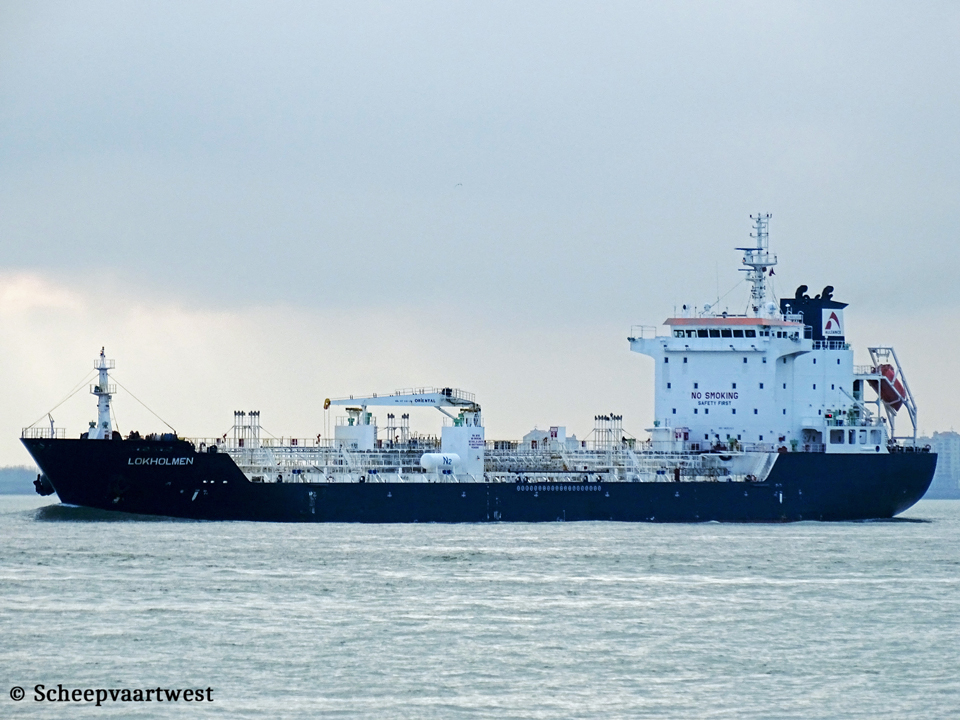

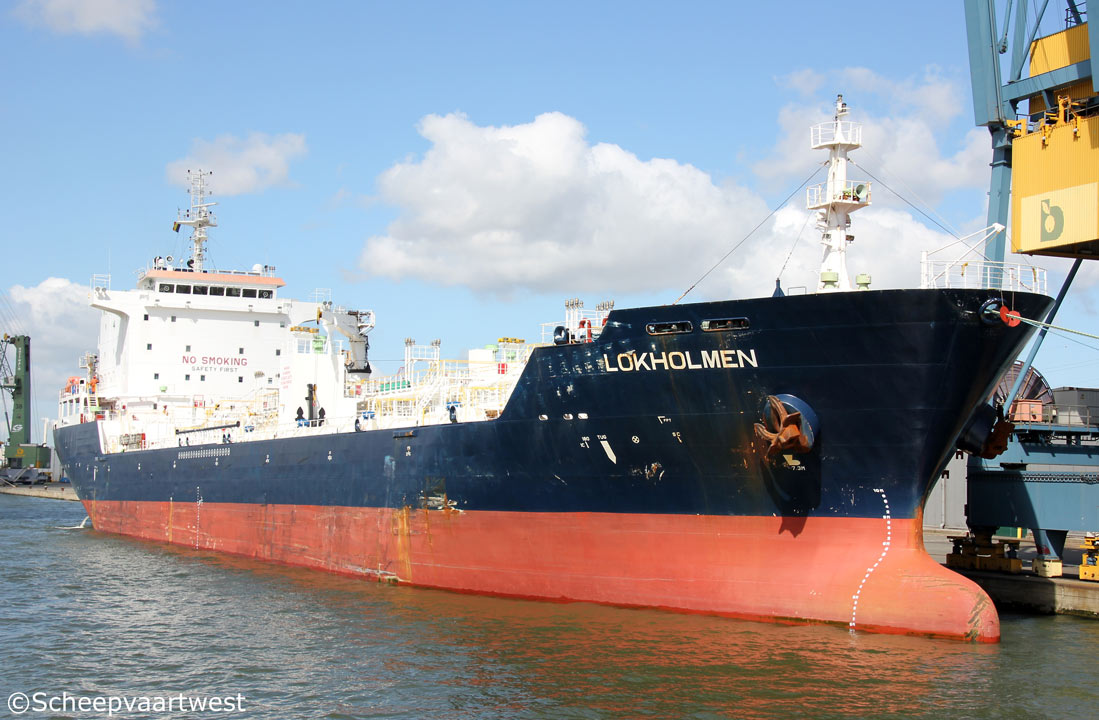

| Antwerpen 03/05/16 | Antwerpen 03/05/16 | Westerschelde 06/01/16 | Westerschelde 06/01/16 | |||
|
Name |
LOKHOLMEN |
|
Previous names |
08/2009 - 07/2014 Hellepont Centurion |
|
Type |
Oil and chemical carrier |
|
Classification |
9433303 |
|
Call sign |
V7RN2 |
|
Flag |
Republic of the Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
11.551 t registered Suez: 12.414,19 t |
|
DWT |
Summer: 16.866,34 t |
|
NT |
4.965 t registered Panama: 9.719 Suez: 10.015,2 |
|
Length |
144,00 m |
|
Breadth |
22,00 m |
|
Freeboard |
3.812 mm |
|
Speed |
Max: 15,0 knots Service: 14,2 knots |
|
Built |
2009 |
|
Keel laid |
13/11/2008 |
|
Launch date |
14/04/2009 |
|
Date of completion |
06/08/2009 |
|
Builder |
Sekwang Heavy Industries Co., Ltd. Mokpo South Korea |
|
Yard number |
SK-114 |
|
Hull material |
Ordinary steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 6 Oil tight: 11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8S35MC - 2 stroke single acting 8 cylinder 350 x 1.400 mm combustion engine Mcr 5.920 kW / 8.048 hp at 173 rpm Manufacturer: STX Engine Co., Ltd. (B&W), Changwon - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 173,0 rpm Manufacturer: Hae Yang Metal Co., Ltd. |
|
Boilers |
1x Auxiliary boiler - 6,86 bar 1x Exhaust gas economizer Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 730 kW Manufacturer: HHI Electro Electric System |
|
Bow thruster |
1x Tunnel thruster 493 kW / 670 bhp, forward |
|
Number of cargo tanks |
14 + 2 slop tanks |
|
Cargo tank capacity |
19.581,93 m³ - 100% 19.190 m³ - 98% |
|
Slop tank capacity |
992 m³ |
|
Number of pumps |
14x Cargo pumps each 300 m³/h |
|
Number of tanks |
Ballast: 15 Fuel oil: 9 Lubricating oil: 9 Diesel oil: 7 Fresh water: 7 Waste water: 3 Chain: 2 Sludge: 1 |
|
Tank capacities |
Diesel Oil: 115,04 m³ Freshwater: 621,60 m³ Fuel Oil: 1.078,08 m³ Lube Oil: 110,35 m³ Tank Ballast: 7.527,39 m³ |
|
Lifting equipment |
1x Electric engine room over head crane - SWL 2,0 t Manufacture: Dae kyung Co., Ltd. 1x Hose handling crane - SWL 10,0 t 1x Rescue boat, life raft and combinded stern hose handling crane - SWL 2,1 t Manufacture: Oriental Prec & Eng'g Co. |
|
Crew size |
20 |
|
Manager |
Norbulk Shipping UK Ltd. Norbulk House, 68 Glassford Street Glasgow G1 1UP United Kingdom |
|
Registered owner |
OCM - Oaktree Capital Management Tuna Lokholmen LLC |
|
Previous names & owners |
08/2009 - 07/2014 Hellepont Centurion - Hellespont Hammonia |
|
Latest data adjustment |
14 September 2023 |
