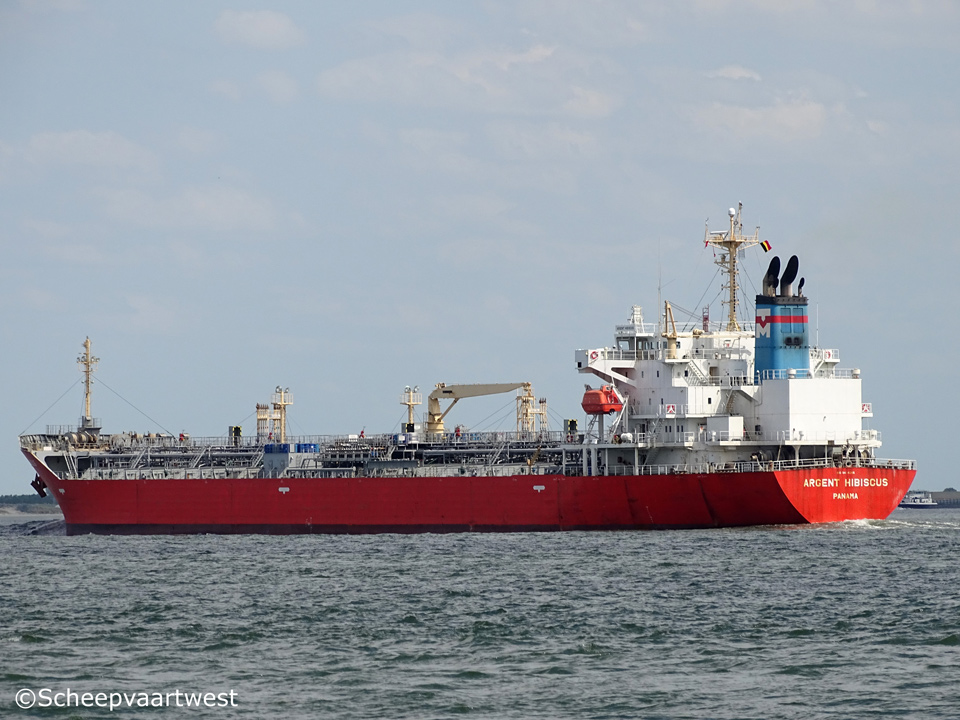

Westerschelde 21 July 2017 |
|
Name |
ARGENT HIBISCUS |
|
Type |
Oil/Molasses/Chemical tanker |
|
IMO-number |
9414266 |
|
Call sign |
3FQO3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
20.283 t registered |
|
DWT |
Summer: 35.429 t |
|
NT |
9.898 t registered Panama: 16.928 t Suez: 19.128,81 t |
|
Length |
174,44 m overall |
|
Breadth |
27,70 m moulded |
|
Draught |
11,40 m |
|
Moulded L x B x D |
167,00 x 27,70 x 16,00 m |
|
Registered L x B x D |
167,38 x 27,70 x 16,00 m |
|
Freeboard |
Summer: 4.632 mm |
|
Depth |
16,00 m moulded |
|
Speed |
Max.: 16,71 knots Service: 15,35 knots |
|
Built |
2010 |
|
Keel laid |
22.12.2009 |
|
Launch date |
27.05.2010 |
|
Date of completion |
17.09.2010 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5538 |
|
Hull material |
Steel |
|
Main engine |
1x MAN B&W/ Mitsui 6S50M CMARK6 - 4 stroke single acting 6 cylinder 500 x 1.910 mm diesel engine 8.580 kW / 11.666 hp at 127 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 490 mm |
|
Propellers |
1 |
|
Boilers |
1x Vertical cylindrical water tube type - 9,8 bar Evaporation: 16,38 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 800 kVA |
|
Cargo tank capacity |
Liqued: 37.741 m³ |
|
Pumps |
14x Cargo pumps each 330 m³/h 2x Cargo pumps each 200 m³/h 2x Hydraulic motor driven, vertical centrifugal type ballast pump each 650 m³/h |
|
Tank cleaning pump |
2x Hydraulic motor driven, vertical centrifugal type each 150 m³/h |
|
Tank capacities |
Fuel oil: 1.697 m³ Diesel oil: 109 m³ Fresh water: 307 m³ Ballast water: 13.573 m³ |
|
Accommodation |
Offiicier: 8 Crew: 14 Other: 3 Total: 25 |
|
Manager |
Unix Line Pte. Ltd. |
|
Registered owner |
MOL Chemical Tankers Pte. Ltd. |
|
Latest data adjustment |
25 September 2017 |
