San Bacco 02

Westerschelde 18 March 2018

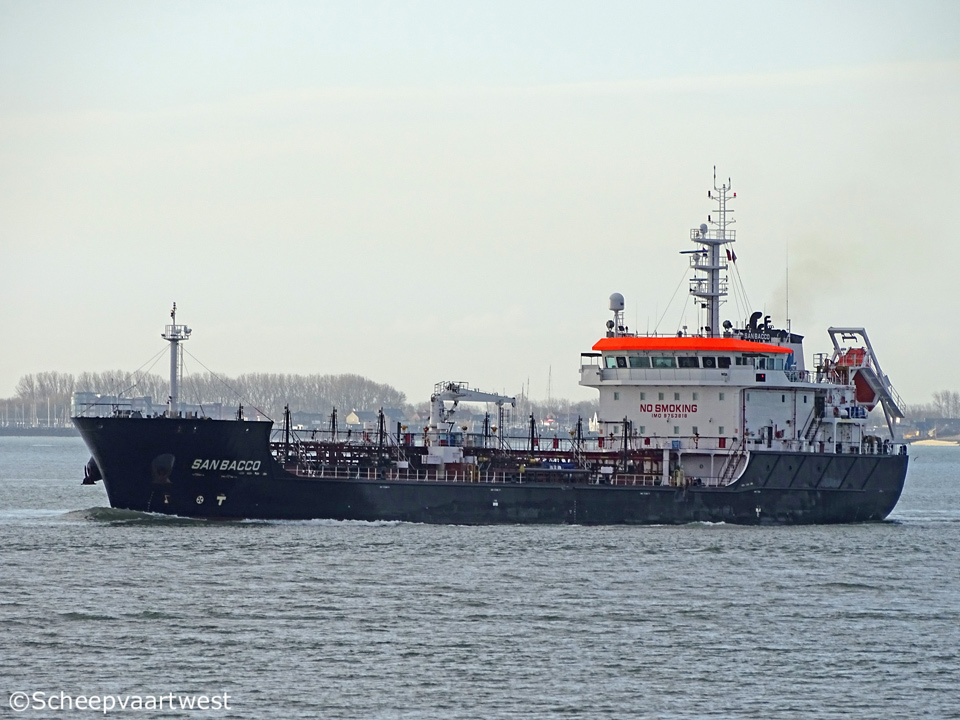

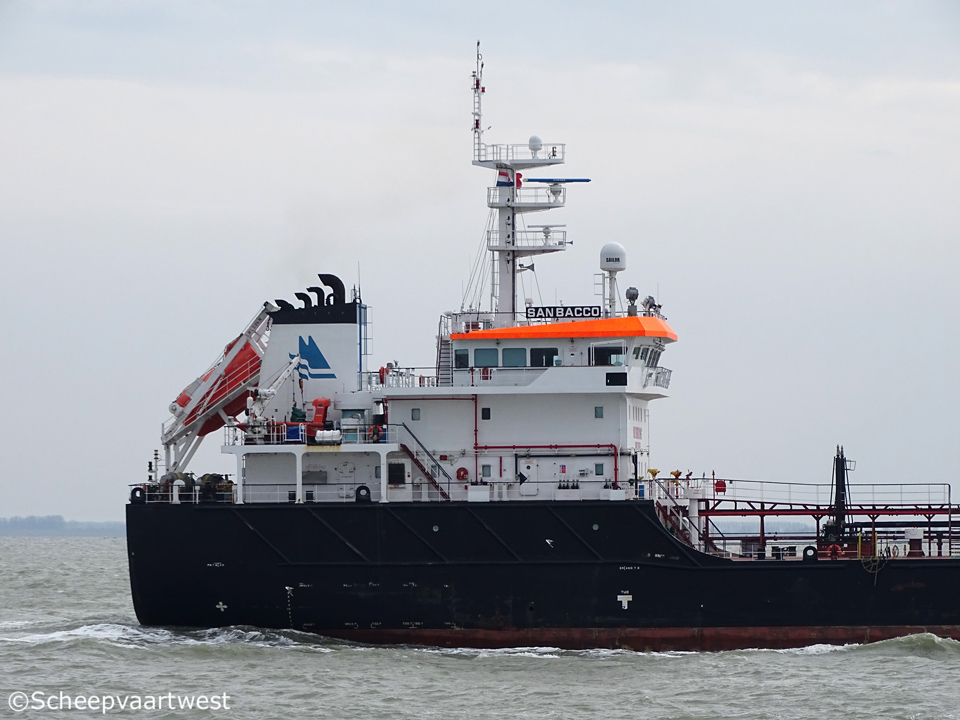

San Bacco 03   San Bacco 01
Westerschelde 18/03/18 Westerschelde 17/12/17


Name

SAN BACCO

Type

Oil tanker - Asphalt carrier

IMO-number

9753818

Call sign

9HA4021

Flag

Malta

Port of registry

Valletta

GT

4.707 t

DWT

Summer: 4.915,5 t

Winter: 4.715,8 t

NT

1.412 t

Displacement

Summer: 8.219,5 t

Winter: 8.015,8 t

Length

108,00 m overall

103,50 m between perpendiculars

Breadth

17,20 m moulded

Draught

Summer: 6,00 m

Winter: 5,87 m

Keel to mast end

35,60 m

Air draft

Summer: 29,60 m

Winter: 29,72 m

Forecastle

Summer: 3.010 mm

Winter: 3.135 mm

Depth

9,00 m moulded

Speed

13,0 knots

Built

2016

Keel laid

20-05-2015

Launch date

05-10-2005

Date of completion

23-03-2016

Builder

AVIC Dingheng Shipbuilding Co., Ltd.
China

Yard number

AD0022

Hull material

Steel

Continuous decks

1

Main engine

1x Wärtsilä 6L32 - 4 stroke 6 cylinder diesel engine 3.000 kW / 4.076 hp at 750 rpm

Built: 27-05-2015

Builder: Wärtsilä Yuchai Engine Co., Ltd., Zhuhai, Guangdong - P. R. China

Propellers

1x Controllable pitch propeller

Boilers

2x Thermal oil heater Heatmaster - 7,0 bar - 1.160 kW each

1x Exhaust gas boiler Heatmaster - 7,0 bar - 600 kW

Shaft generator

1x 100 kVA - 800 kW

Generators

3x Cummins K19-DM main diesel generatorsets each 500 kVA - 400 kW - 659 hp at 1.800 rpm

Emergency generator

1x Cummins 6BT5.9-GM100 diesel generatorset 100 kVA - 80 kW - 136 hp at 1.800 rpm

Bow thruster

1x NCT110 - 300 kW at 1.750 rpm

Number of tanks

4

Cargo tank capacity 98%

Tank 1: 840,84 m³

Tank 2: 1.215 m³

Tank 3: 1.340,44 m³

Tank 4: 1.209 m³

Total: 4.845,39 m³

Number of segregation

2

Cargo pumps

2x Pumps 450 m³/h each

Max. Rate loading

900 m³/h

Max. rate discharging

900 m³/h

Cargo manifolds

2

Tank capacities

Ballast: 2.318,52 - 100%

Fuel oil: 399 m³ - 98%

Diesel oil: 45 m³ - 98%

Fresh water: 89,6 m³ - 100 %

Lub oil: 38,3 m³ - 98%

Manager

ABC Maritime AG

Rue Perdtemps 1
1260 Nyon
Switzerland

Registered owner

San Bacco Shipping Ltd.

Latest data adjustment

16 January 2018
