Name |

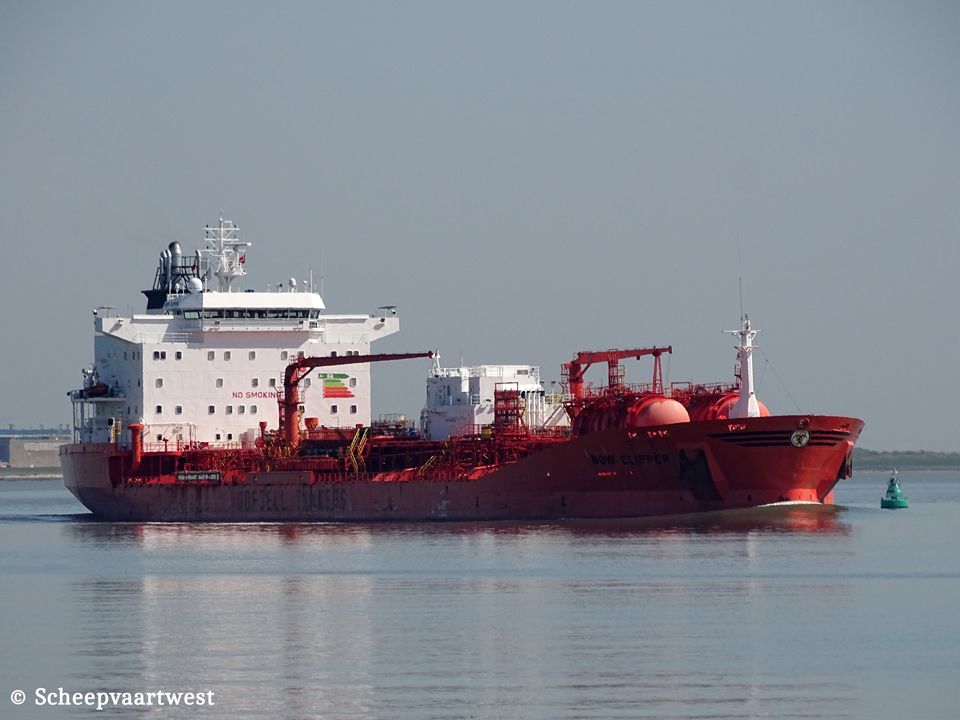

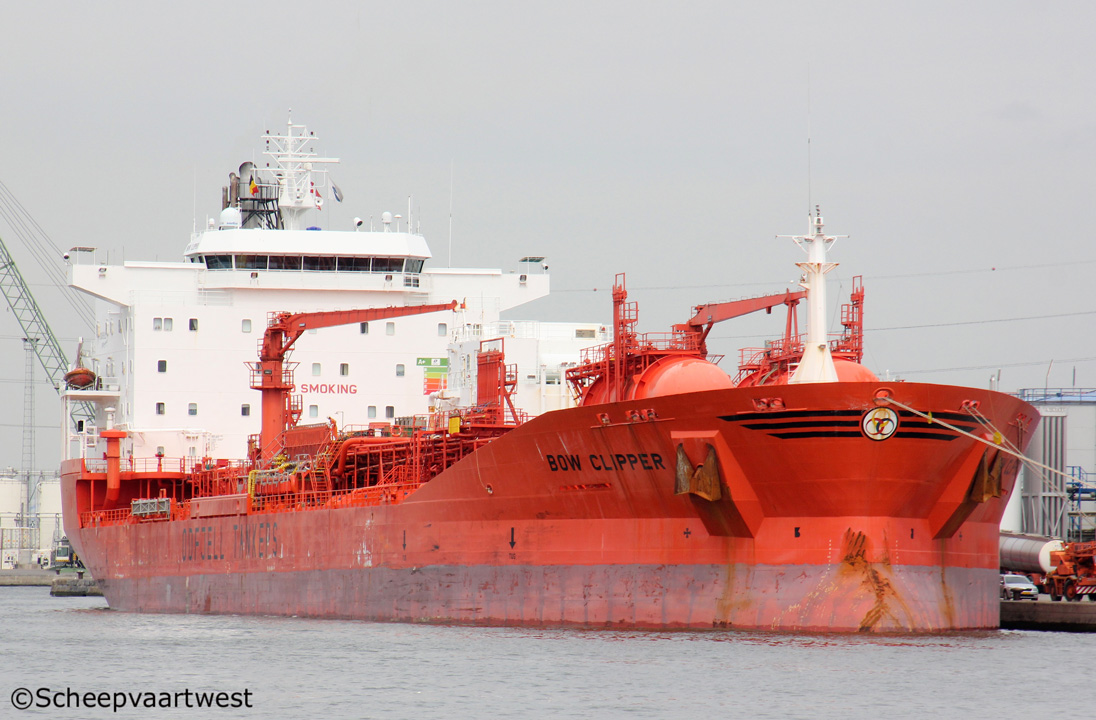

BOW CLIPPER |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9047518 |
|
Call sign |
V7A5039 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flag |
Norway, Bergen - Call sign: LAUU4 |
|
GT |
23.197 t Suez: 23.389 t Panama: 23.481 t |
|
DWT |
Summer: 37.221 t |
|
NT |
12.176 t Suez: 20.607 t Panama: 19.325 t |
|
Light ship |
11.319 t |
|
Length |
183,10 m overall 176,90 m between perpendiculars |
|
Breadth |
32,25 m extreme |
|
Draught |
Summer: 10,72 m |
|
Keel to mast end |
43,36 m |
|
Depth |
14,00 m |
|
Speed |
Service: 14,8 knots Max: 16,0 knots |
|
Built |
1995 |
|
Keel laid |
22/03/1994 |
|
Launch date |
22/03/1995 |
|
Date of completion |
13/07/1995 |
|
Builder |
Bae Systems Surface Ships Govan (Kvaerner Govan Ltd.) Glasgow United Kingdom |
|
Yard number |
308 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side with top wing |
|
Bulkheads |
Transverse: 8 |
|
Number of decks |
1 |
|
Main engine |
1x Hyundai/B&W 6L60MC - 2 stroke single acting 6 cylinder 600 x 1.944 mm combustion engine Mcr 10.416 kW / 14.162 hp at 117,0 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 117,0 rpm |
|
Boilers |
2x Auxiliary boiler, oil/gas fired AQ9 1 x Auxiliary boiler, exhaust gas heated AV6N Builder: Aalborg |
|
Shaft generator |
2x 1.343 kW each - 230/450 Volt 60 Hz |
|
Generators |
2x MAN-B&W 6L28/324 main diesel engine each Mcr Mcr 1.260 kW connected with generators each 1.100 kW - 230/450 Volt 60 Hz |
|
Emergency generator |
1x Volvo TMD122A diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 883 kW / 1.200 bhp, forward |
|
Number of cargo tanks |
52 |
|
Number of segregations |
52 |
|
Cargo tank capacity 98% |
Centre ranks: 22.049 m³ Wing tanks: 18.126 m³ Total: 40.775 m³ |
|
Number of pumps |
5x Cargo pumps each 500 m³/h 13x cargo pumps each 300 m³/h 30x Cargo pumps each 200 m³/h 4x Cargo pumps each 100 m³/h |
|
Manifolds |
Summer draft to manifolds: 5,60 m Rail to manifolds: 4,50 m Bow to centre manifolds: 95,77 m Normal Ballast Waterline to Manifold: 9,80 m |
|
Tank capacities |
Ballast: 15.438,2 m³ |
|
Crew size |
24 |
|
Manager |
Odfjell Management AS Conrad Mohrsv. 29 Bergen Norway |
|
Registered owner |
Odfjell Chemical Tankers AS |
|
Previous owners |
1995 - 1999 West Coast Maritime Ltd. 1999 - 2001 Bow Flower & Clipper AS |
|
Latest data adjustment |
07 March 2023 |
