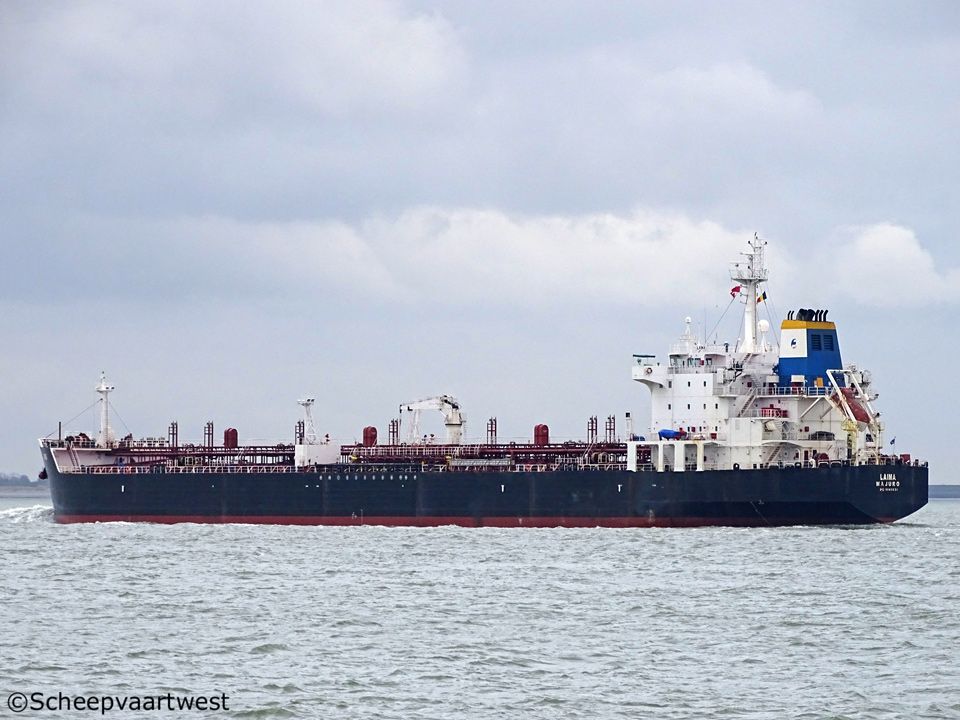

Liama 01

Westerschelde 27 December 2017



Name

LAIMA

Previous names

2003 - 10/2005 Baltic Challenger

10/2005 - 04/2008 British Excellence

04/2008 - 07/2012 Hiona

Type

Handysize crude oil tanker

IMO-number

9260031

Call sign

V7BL2

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

2003 - 2008 Isle of Man

2008 - 2013 Greece, Chios - Call sign: SYNJ

GT

23.240 t

DWT

Summer: 37.337,4 t

NT

10.110 t

Length

182,55 m overall

175,11 m between perpendiculars

Breadth

27,37 m extreme

Draught

10,85 m

Lightship air draft

39,28 m

Keel to mast air draft

45,81 m

Freeboard

5.514 mm

Depth

16,70 m moulded

Speed

14,0 knots

Built

2003

Keel laid

02/06/2003

Launch date

23/08/2003

Date of completion

29/10/2003

Builder

Hyundai Mipo Dockyard Co., Ltd.
1381 Bangeo-Dong Dong-Ku
682-712 Ulsan
Republic of Korea

Yard number

0137

Hull material

Steel

Watertight bulkheads

Transverse: 9

Longitudinal: 3

Continuous decks

1

Main engine

1x Hyundai/MAN B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW /12.870 bhp at 127,0 rpm

Built: 23/06/2003

Builder: Hyundai Heavy Industries, Ulsan - South Korea

Propellers

1x Fixed pitch propeller - aft at 127,0 rpm

Boilers

Auxiliary boiler, vertical shell type - 9,0 bar

Heating surface: 110,0 m²

Builder: Aalborg Industries A/S

Auxiliary boiler, exhaust gas water - 12,0 bar

Heating surface: 383,0 m²
Builder: KangRim Industries. Co., Ltd.

Generators

3x 6H21/32 diesel generatorsets each 925 kVA - 740 kW - 1069 hp

Builder: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x AGCO Power Inc type 645 DSBIM diesel generatorset 225 kVA - 180 kW - 272 hp

Bow thruster

1x Wärtsilä FT 200-H - 900 kW

Number of tanks

12

Cargo tank capacity

41.392 m³

Number of slop tanks

2

Slop tank capacity

882 m³

Cargo separation

7x Double valves

Pumps

10x Cargo pumps each 450 m³/h

2x Cargo pumps each 300 m³/h

2x Cargo pumps each 150 m³/h

Maximum heating capacity

66°C

Number of cargo manifolds

7

Manifolds

Manifold height above deck: 2,10 m

Distance bow to centre manifold: 91,80 m

Tank capacities

Bunker: 1.132 t

Ballast: 18.916 m³

Anchor equipment

3x Anchors weight each 7.350 kg

Length: 594,00 m

Diameter: 66 mm

Lifting equipment

1x Deck crane - SWL 10,0 t

1x Provision crane - SWL 2,0 t

Manager

Product & Trading SA

40, Ag. Konstantinou Str.
Maroussi, Athens
Greece

Registered owner

Bingle Marine S.A.
c/o The Trust Company of the Marshall Islands Inc.,
Trust Company Complex, Ajeltake Road, Ajeltake Island
Majuro, MH 96960
Republic of the Marshall Islands

Latest data adjustment

14 March 2018
