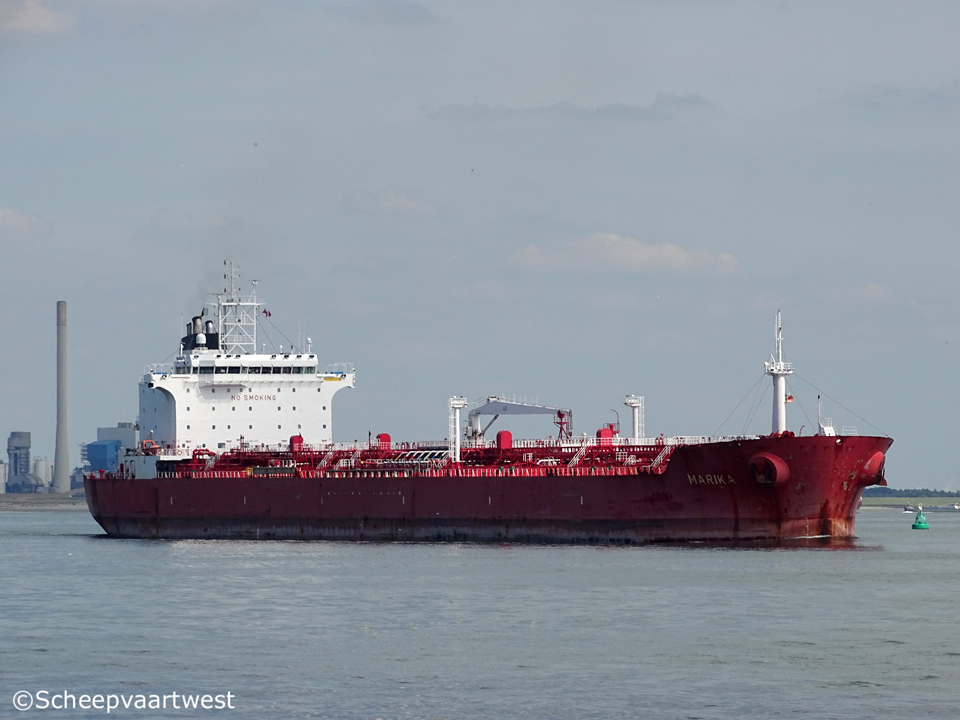

Marika - IMO 9332614

Westerschelde 07 July 2017

Name

MARIKA

Type

Oil products tanker

IMO-number

9332614

Call sign

LAFS7

Flag

Norway

Port of registry

Narvik

GT

42.893 t

Suez: 44.506,08 t

DWT

Summer: 74.996 t

Winter: 72.941 t

NT

22.043 t

Suez: 39.003,29 t

Displacement

Summer: 90.230 t

Winter: 88.175 t

Length

228,50 m overall

220,00 m between perpendiculars

Breadth

32,26 m extreme

Draught

Summer: 14,18 m

Winter: 13,90 m

Keel to masthead

53,70 m

50,10 m collapsed mast

Air draft

Lightship: 51,00 m / 47,40 m collapsed mast

Normal ballast: 4520 m / 41,60 collapsed mast

At loaded summer deadweight: 39,50 m / 35,90 m collapsed mast

Freeboard

Summer: 6,29 m

Winter: 6,56 m

Depth

20,45 m moulded

Speed

Ballast:

Max:17,0 knots / Economic: 10,0 knots

Laden:

Max: 16,0 knots / Economic: 14,5 knots

Built

2008

Keel laid

01/09/2007

Launch date

26/01/2008

Date of completion

01/07/2008

Builder

Brodosplit Shipyard Ltd.
Croatia

Yard number

456

Hull material

Steel

Hull type

Double hull

Main engine

MAN B&W 6S60MC Mk. VI - 6 cylinder combustion engine 13.560 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, composite
manufacturer: TPK Nova, Zagreb

Generators

4x MAN 8L23/30H main diesel generatorsets each 1.080 kW

Emergency generator

1x Caterpillar 3406 diesel generatorset

Number of cargo tanks

14

Cargo tanks capacity 98 %

Seg#1: 10.962,4 m³(1 P/S)
Seg#2: 14.160,9 m³ (2 P/S)
Seg#3: 14.193,0 m³ (3 P/S)
Seg#4: 14.193,0 m³ (4 P/S)
Seg#5: 14.193,0 m³ (5 P/S)
Seg#6: 14.005,3 m³ (6 P/S)
Seg#7: 2.250,9 m³ (Slop P/S)

Total: 81.707,6 m³

Number of slop tanks

2

Slop tank capacity

2.250,9 m³

Pumps

12x Framo cargo pumps each 1.000 m³/h

2x Framo cargo pumps each 300 m³/h

1x Framo cargo pump each 80 m³/h

2x Submerged hydraulically driven centrifugal ballast pump each 1.500 m³/h

Manifolds

Bow to centre manifold: 112,98 m

Stern to centre manifold: 115,52 m

Distance bridge front to centre of manifold: 82,08 m

Distance between cargo manifold centres: 2.500 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 5.100 mm

Top of rail to centre of manifold: 900 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.616,93 m³

Diesel oil: 736,39 m³

Ballast: 46.300,7 m³

Anchor equipment

Length: 687,50 m

Diameter: 81 mm

Lifting equipment

1x Deck crane - SWL 15,0 t

Outreach: 8,00 m

Manager

Thome Ship Management Pte. Ltd.

Technical operator

Thome Ship Management Pte Ltd
16 Raffles Quay
#43-01 Hong Leong Building
Singapore 048581
Republic of Singapore

Commercial operator

Strait Tankers Pte Ltd as agent to disponent owner
20 ANSON ROAD #19-03, Twenty Anson
Singapore 079912
Republic of Singapore

Disponent owner

Marinvest AB
Viktor Rydbergsgatan 10 S
411 32 Gothenburg
Sweden

Registered owner

LR Ice Shipping Ten Ltd
Trust Company Complex Aljetake Island
Majuro
Marshall Islands

Latest data adjustment

27 March 2018
