Name |

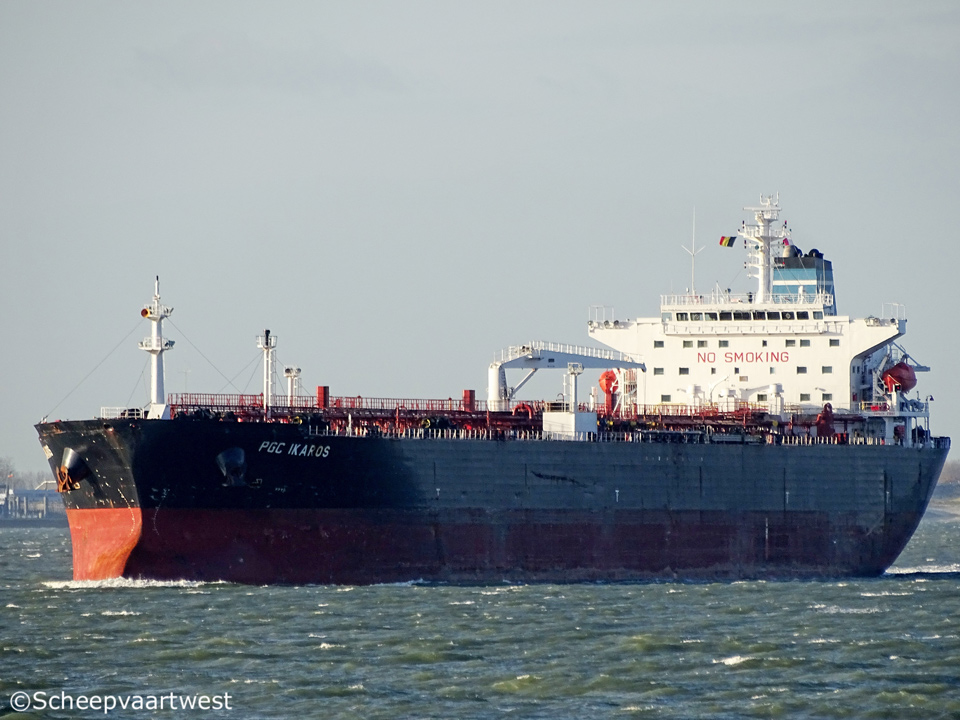

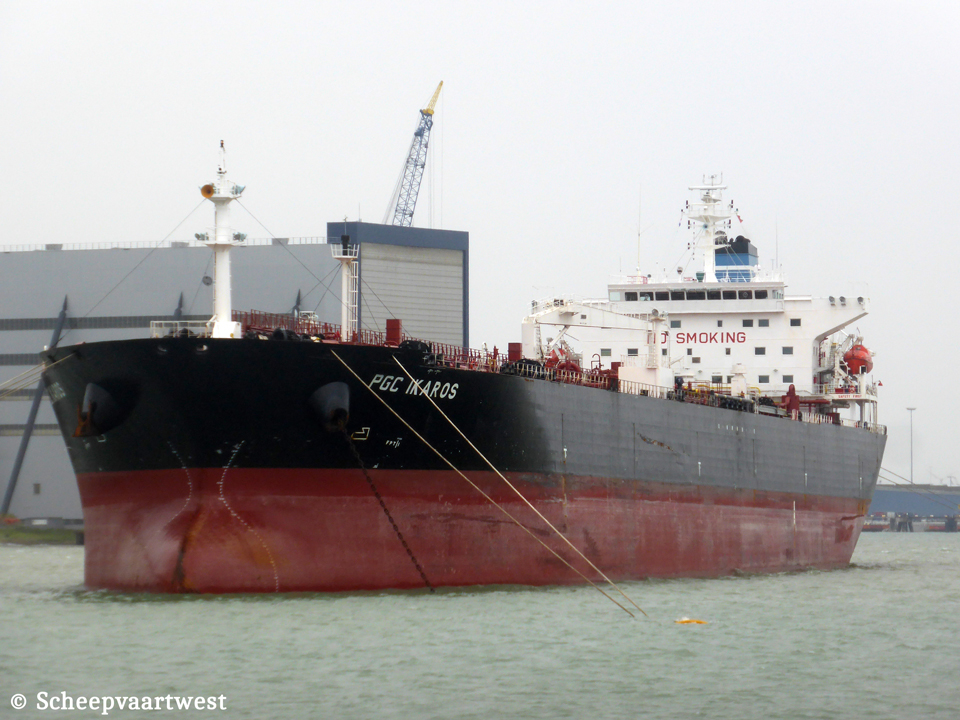

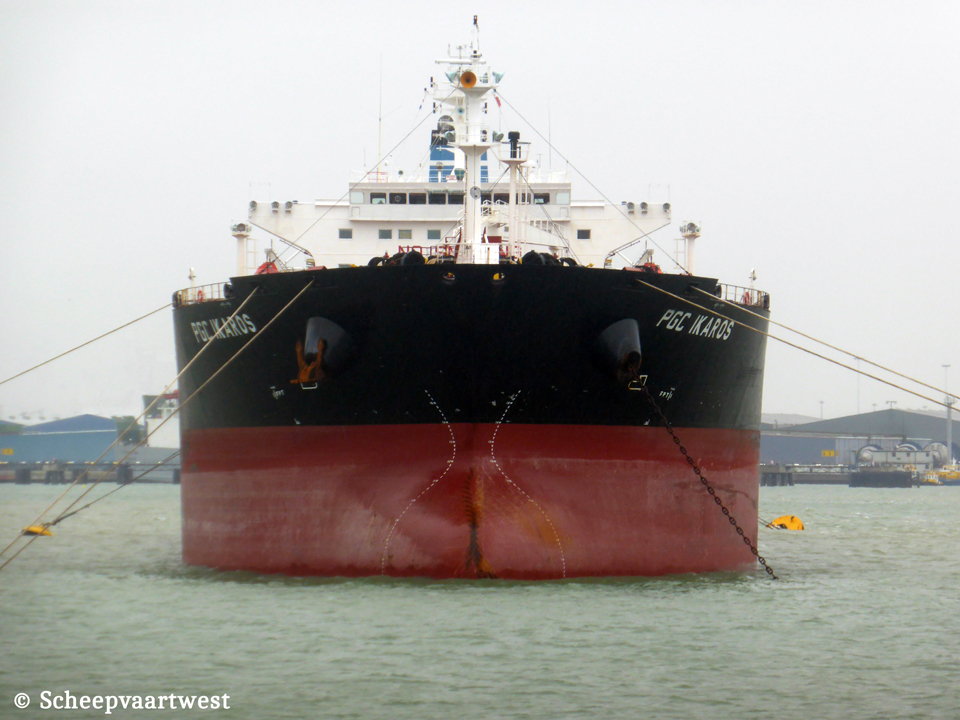

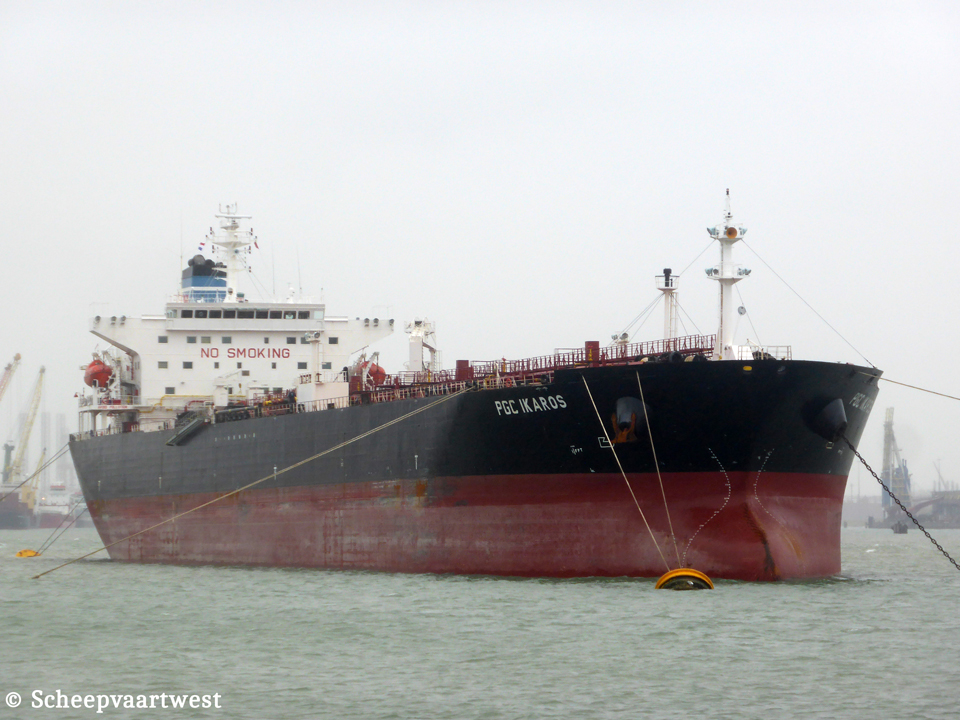

PGC IKAROS |
|
Previous names |
2004 - 08/2009 Ikaros 08/2009 - 01/2015 Stena Chronos |
|
Type |
Crude oil tanker |
|
IMO-number |
9283617 |
|
Call sign |
C6TN6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
40.690 t registered Suez: 42.542,13 t |
|
DWT |
Summer: 72.829 t Winter: 70.867,14 t |
|
NT |
21.245 t registered Suez: 37.840,80 t Panama: 33.630 t |
|
Length |
228,60 m overall |
|
Breadth |
32,26 m extreme |
|
Draught |
Summer: 14,02 m Winter: 13,72 m |
|
Moulded L x B x D |
218,60 x 32,26 x 20,20 m |
|
Registered L x B x D |
221,03 x 32,25 x 20,19 m |
|
Keel to masthead |
45,52 m |
|
Air draft |
Light ship: 42,91 m Normal ballast: 37,57 m At loaded summer deadweight: 31,50 m |
|
Freeboard |
Summer: 6.180 mm Winter: 6.480 mm |
|
Depth |
20,20 m moulded |
|
Speed |
14,0 knots laden Max: 16,6 knots |
|
Built |
2004 |
|
Keel laid |
19/03/2004 |
|
Launch date |
06/06/2004 |
|
Date of completion |
26/11/2004 |
|
Builder |
Hudong-Zhonghua Shipbuilding (Group) Co., Ltd. Shanghai China |
|
Yard number |
H1301A |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S60MC - 2 stroke single acting 6 cylinder 600 x 2.292 mm combustion engine 11.500 kW / 15.635 hp at 105,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 552 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
2x Auxiliary vertical boiler- 18,0 bar Evaporation: 23,00 t/h 1x Auxiliary vertical boiler - 9,0 bar Evaporation: 2,70 t/h Manufacturer: Aalborg Industries Limited |
|
Generators |
3x Yanmar 6N18AL-EV diesel generatorsets each 600 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
Seg#1: 27.685,90 m³ (3+6 wings) Seg#2: 28.036,90 m³ (2+5 wings) Seg#3: 23.990,00 (1+4 wings) Liquid: 78.636,39 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
2.722,14 m³ |
|
Pumps |
3x Centrifugal cargo pumps 2.000 m³/h each 2x Centrifugal ballast pumps 1.200 m³/h each |
|
Tank capacities |
Fuel oil: 1.267,70 m³ Diesel oil: 207,20 m³ Fresh water: 428 m³ |
|
Manifolds |
Bow to centre manifolds: 116,00 m Stern to centre manifolds: 113,60 m Distance bridge front to centre manifold: 74,00 m Distance between cargo manifold centres: 2.500 mm Distance ships tail to manifold: 4.400 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 800 mm Distance main deck to centre of manifold: 2.020 mm Spill tank grating to centre of manifold: 900 mm |
|
Lifting equipment |
1x Crane - SWL 15,0 t |
|
Technical operator |
Paradise Navigation S.A. 4-6 Solomou Str. 15451 N. Psychiko Athens Greece |
|
Commercial operator |
Penfield Marine LLC 65 Station Street Southport USA |
|
Registered owner |
Crude Tankers I AS c/o Pareto Private Equity AS Dronning Mauds Gate 3 0250 Oslo Norway |
|
Disponent owner |
Penfield Marine (Panamax) LLC Trust Company Complex Ajeltake Island Majuro Marshall Islands |
|
Latest data adjustment |
22 April 2018 |
