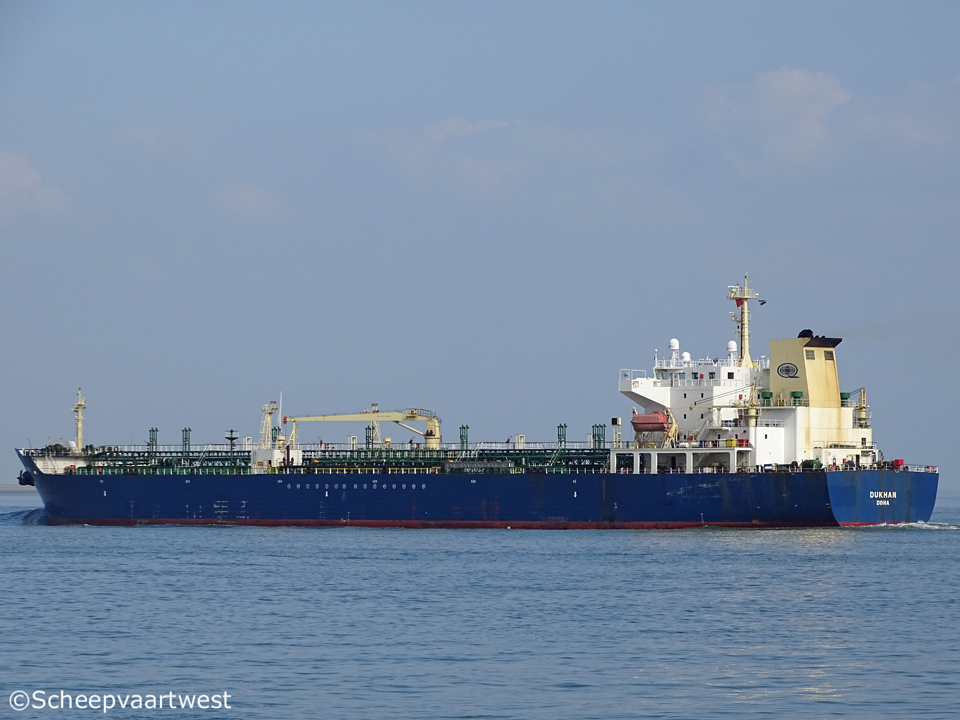

Westerschelde 20 July 2017 |
 |
 |
 |
||

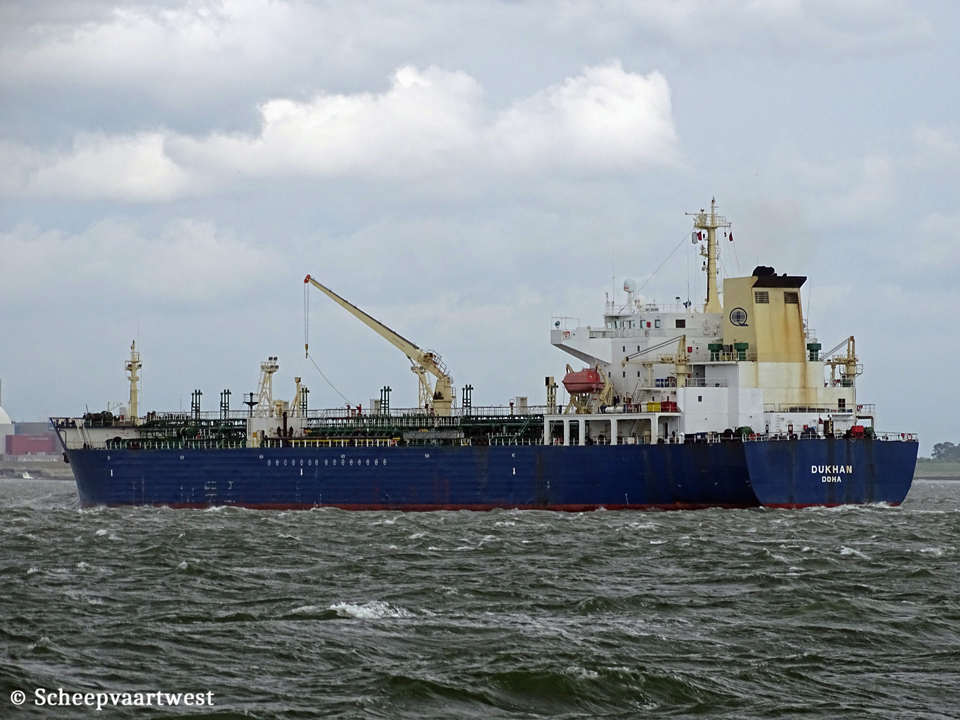

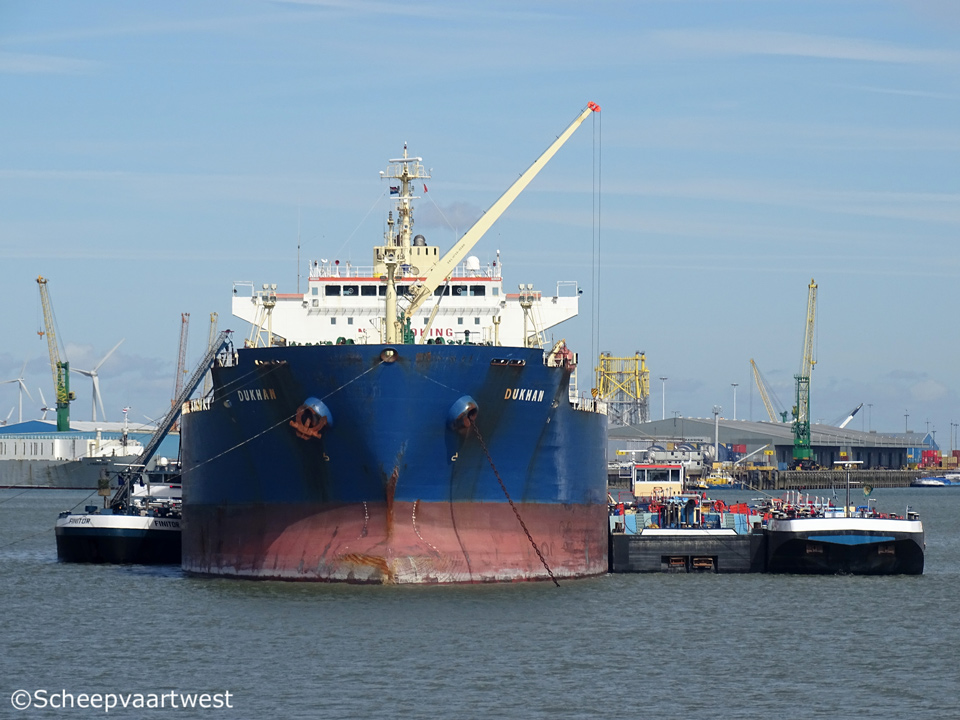

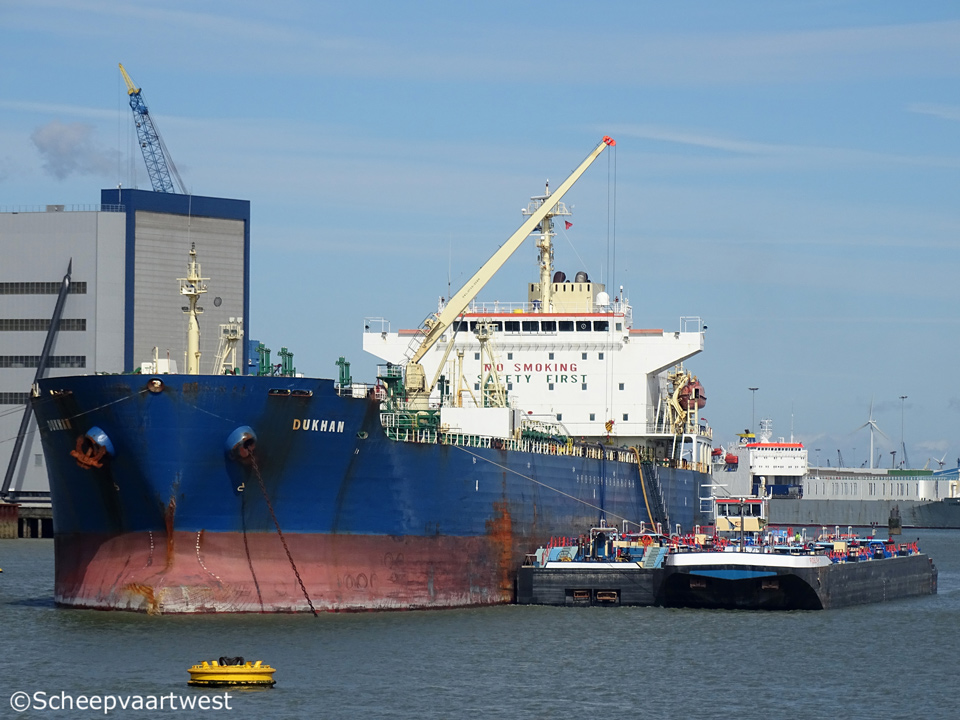

| Westerschelde 04/07/17 | Vlissingen 30/03/16 | Vlissingen 30/03/16 | ||
|
Name |
DUKHAN |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9251286 |
|
Call sign |
A7LL |
|
Flag |
State of Qatar |
|
Port of registry |
Doha |
|
GT |
25.408 t registered Suez: 26.777 t |
|
DWT |
Summer: 40.231,18 t |
|
NT |
8.908 t registered Panama: 21.138 t Suez: 22.682 t |
|
Length |
175,90 m overall 168,00 m between perpendiculars |
|
Breadth |
31,00 m moulded |
|
Freeboard |
6.114 mm |
|
Depth |
17,20 m moulded |
|
Built |
2003 |
|
Keel laid |
17/01/2003 |
|
Launch date |
13/04/2003 |
|
Delivery data |
16/06/2003 |
|
Builder |
Shinasb Shipbuilding Co Ltd. Tongyeong South Korea |
|
Yard number |
SAS 422 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 4 Oil tight: 10 |
|
Main engine |
1x HSD/MAN-B&W 6S50MC MK6 - 2 stroke 6 cylinder 500 x 1.910 mm combustion engine 8.680 kW / 11.805 bhp at 127,0 rpm Manufacturer: HSD Engine Co., Ltd. |
|
Propellers |
1 Manufacturer: Sil La Metal Co., Ltd. |
|
Boilers |
1x Waste heat boiler AV-6N - 9,0 bar 1x Auxiliary water tube boiler MISSION TM OL - 9,0 bar Manufacturer: Aalborg Industries., Inc. |
|
Generators |
3x Main diesel generatorsets each 810 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Bow thruster |
1x 950 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 100% |
45.638,63 m³ |
|
Number of slop tanks |
2 |
|
Number of tanks |
Ballast: 14 Fuel oil: 7 Lubricating oil: 7 Diesel oil: 4 Fresh water: 4 Chain: 3 Waste water: 2 Sludge: 2 Hydraulic oil :1 |
|
Tank capacities 100% |
Diesel Oil: 245,1 m³ Freshwater: 268,03 m³ Fuel Oil: 1.509,74 m³ Hydraulic Oil: 19,96 m³ Lube Oil: 90,2 m³ Tank Ballast: 21.159,28 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 2x Provision jib crane - SWL 3,0 t each Manufacturer: Dong Nam Enterprise Co.,Ltd. |
|
Crew size |
32 |
|
Operator |
Qatar Shipping Company W.L.L. Milaha Building 523 East Industrial Street Doha Qatar |
|
Registered owner |
Qatar Shipping Company W.L.L. |
|
Sister ships |
Jinan - IMO 9239654 Petrolimex 10 - IMO 9239642 |
|
Renamed |
07/2019 Matrix Triumph Nigeria, Lagos - Call sign: 5NUY6 Owner: Matrix Shipping Ltd.,Lagos - Nigeria Manager: Matrix Energy Ltd.,Lagos - Nigeria |
|
Latest data adjustment |
08 August 2024 |
