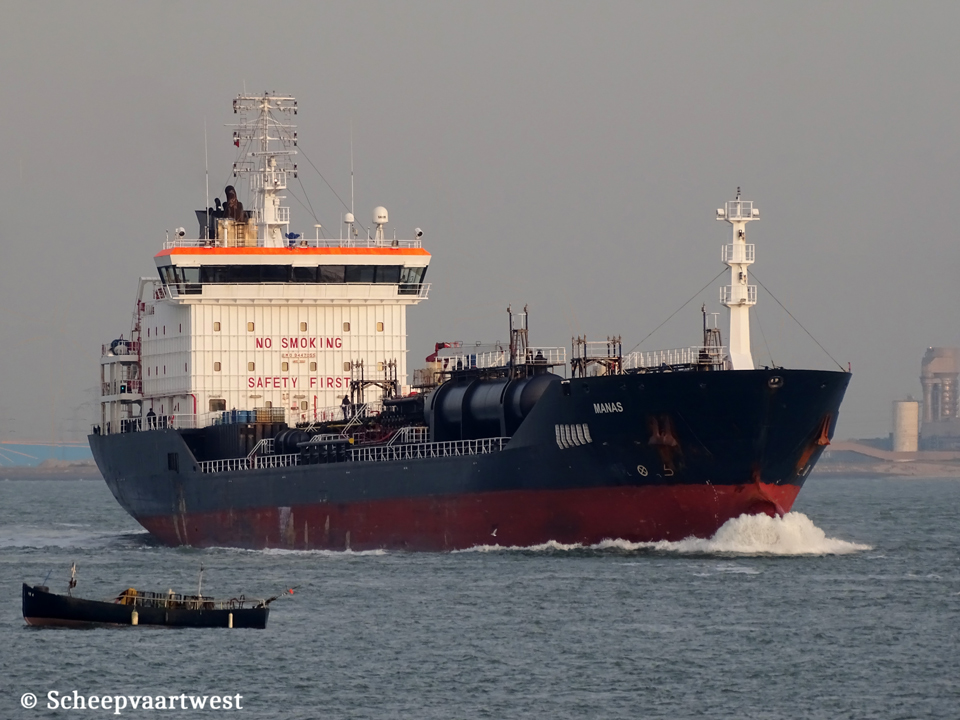

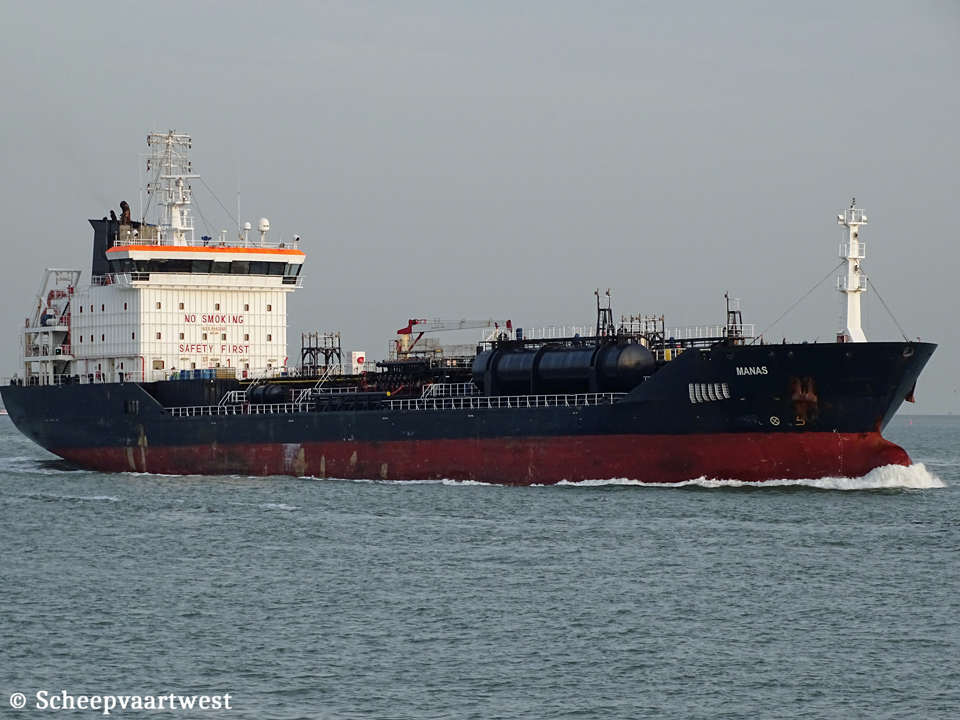

Westerschelde 31 October 2019 |
 |
 |
|
| Westerschelde 31/10/19 | Westerschelde 12/12/17 | |
|
Name |
MANAS |
|
Type |
Oil/chemical tanker |
|
Transport type |
Pressure |
|
Main products |
Chemicals |
|
IMO-number |
9447055 |
|
Call sign |
9HTU9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
7.260 t |
|
DWT |
Summer: 10.745 t |
|
NT |
3.652 t |
|
Length |
128,85 m overall 123,70 m between perpendiculars |
|
Breadth |
18,90 m |
|
Draught |
7,98 m |
|
Freeboard |
2.226 mm |
|
Depth |
10,20 m |
|
Speed |
14,5 knots |
|
Built |
2008 |
|
Date of completion |
25/11/2008 |
|
Builder |
Tersan Tersanecilik Tasimacilik San. Ve Tic. A.S. Istanbul Turkey |
|
Yard number |
23 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9L32/40 - 4 stroke 9 cylinder 320 x400 mm combustion engine 4.500 kW / 6.114 hp at 750 rpm Built: 30/01/2008 Manufacturer: MAN B&W DIesel AG, Augsburg - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 133 rpm |
|
Boilers |
2x CHO Heatmaster 58,90 m² - 10,0 bar 1x CHR Heatmaster 94,00 m² - 10,0 bar |
|
Shaft generator |
1x 1.800 kVA - 1.440 kW |
|
Generators |
2x Main diesel generatorsets each 1.100 kVA - 880 kW - 1.196 hp |
|
Emergency generator |
1x Diesel generatorset 165 kVA - 132 kW - 224 hp |
|
Bow thruster |
1x 500 kW |
|
Number of cargo tanks |
12 |
|
Total capacity of tanks |
12.522,11 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Tank capacities |
Fuel: 696,15 m³ |
|
Crew size |
19 |
|
Manager |
Pakoil Denizcilik Ticaret Ve Sanayi Limited Sirketi Cevizli Mahallesi Zuhal Caddesi 7 Parsel No. 46F A-6 Blok Daire 6 Ritim İstanbul Konut Blokları 34846 Maltepe / İstanbul Turkey |
|
Operator |
TCT - Tune Chemicals Tankers Burgemeester van der Jagtkade 10 3221 CB Hellevoetsluis The Netherlands |
|
Registered owner |
Manas Shipping Ltd. Burgemeester van der Jagtkade 10 3221 CB Hellevoetsluis The Netherlands |
|
Latest data adjustment |
12 June 2020 |
