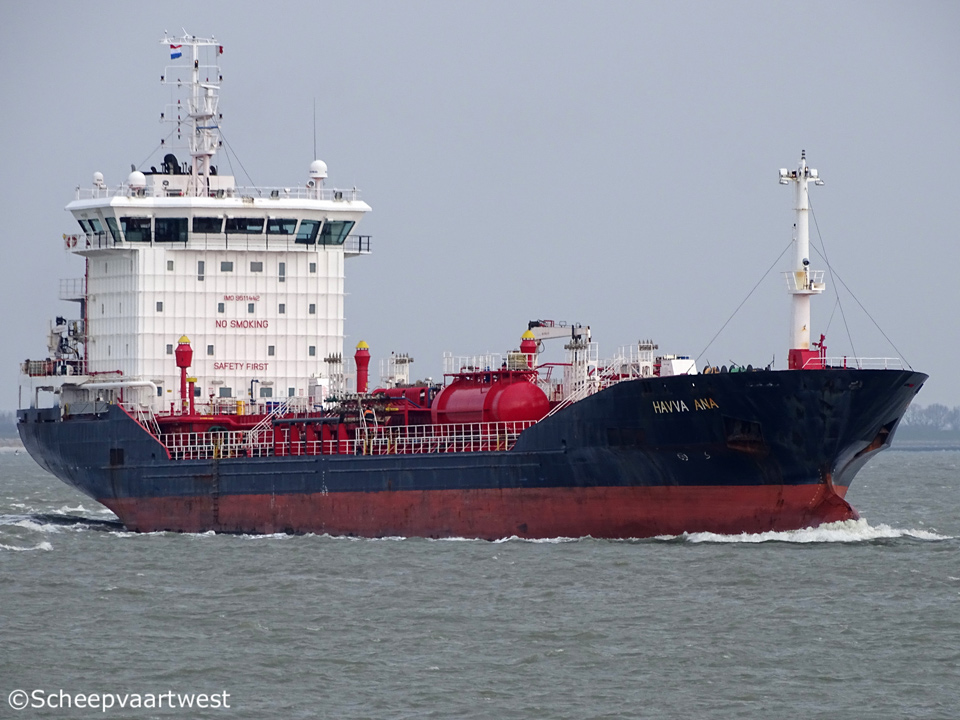

Westerschelde 18 March 2018 |
 |

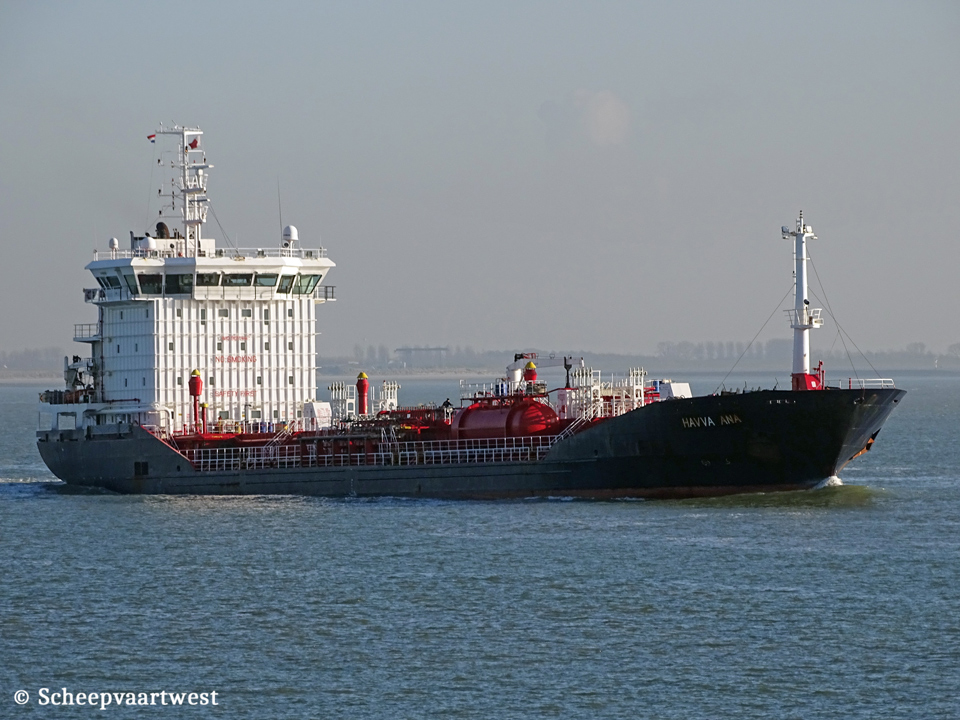

| Westerschelde 12/12/18 |
|
Name |
HAVVA ANA |
|
Type |
Oil/chemical tanker - Single deck |
|
IMO-number |
9511442 |
|
Call sign |
V7RE3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flag |
2009 - 2009 Turkey |
|
GT |
5.578 t |
|
DWT |
Summer: 7.667,57 t Winter: 7.150,73 t |
|
NT |
2.456 t |
|
Displacement |
Summer: 10.964,2 t Winter: 10.447,2 t |
|
Length |
123,50 m overall 116,38 m between perpendiculars |
|
Breadth |
17,20 m moulded |
|
Draught |
Summer: 6,86 m Winter: 6,71 m |
|
Keel to top of mast |
35,90 m |
|
Air draft |
Normal ballast: 31,33 m At loaded summer deadweight: 29,04 m |
|
Freeboard |
Summer: 1.952 mm Winter: 2.095 mm |
|
Depth |
8,80 m moulded |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Date of completion |
16/02/2009 |
|
Builder |
Torlak Denizcilik San. Ve Tic. A.S Istanbul Turkey |
|
Yard number |
53 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double skin |
|
Main engine |
1x STX/MAN-B&W 8L32/40 - 4 stroke 8 cylinder 320 x 400 mm combustion engine 4.000 kW / 5.435 hp at 750 rpm |
|
Propellers |
1x Screw propeller controllable pitch Diameter 4.000 mm |
|
Boilers |
1x CHR 47,20 m² - 10,0 bar 2x CHO 68,00 m² - 10,0 bar 1x CHS 19,17 m² - 10,0 bar |
|
Shaft generator |
1x AVK 1.016 kW |
|
Generators |
3x Caterpillar C18 main diesel generatorsets each 751 kVA - 601 kW - 817 hp |
|
Emergency generator |
1x Caterpillar C19 diesel generatorset 160 kW |
|
Compressed air receivers |
2x Sperre screw compressor 155 m³/h at 10,0 bar 2x Sauer main air compressors 38 m³/hr at 30,0 bar 2x 250 litres at 30,0 bar air bottles |
|
Bow thruster |
1x Controllable pitch Berg 500 kW |
|
Number of cargo tanks |
15 + 2 slop tanks |
|
Total cap. of tanks 98% |
8.391,88 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
181,38 m³ |
|
Total tank capacity 98% |
8.577 m³ |
|
Cargo discharge capacity |
1.400 m³/h |
|
Pumps |
15x Centrifugal deepwell cargo pumps 350 m³/h each 2x Centrifugal deepwell cargo pumps 100 m³/h each 2x Centrifugal ballast pumps 250 m³/h each |
|
Manifolds |
Bow to centre of manifold: 65,89 m Stern to centre Manifold: 57,60 m Distance bridge front to centre of manifold: 36,23 m Deck to centre of manifold: 2,78 m Distance ships rail to manifold: 3.160 mm Distance between cargo manifold centres: 750 mm Distance manifold to ships side: 3.370 mm Top of rail to centre of manifold: 1.100 mm Distance main deck to centre of manifold: 2.950 mm |
|
Tank capacities |
Heavy fuel oil (IFO 180): 383 m³ Marine diesel oil: 67 m³ Fresh water: 238 m³ Water ballast: 3.571 m³ |
|
Lifting equipment |
1x Deck crane - SWL 5,0 t 1x Gurdesan combi poop deck crane - SWL 2,0 t |
|
Accommodation |
17 persons + 1 hoisting with separate shower and toilet Provided with full electronic equipments |
|
Manager |
Torlak Shipping (Torlak Gemi İşletme Sanayi Ve Tic. Ltd. Şti.) Tersaneler Caddesi Guzin Sokak No.5/A Tuzla 34940 - Istanbul Turkey |
|
Operator |
Torlak Gemi Isletmecilik Sanayi Ve Ticaret Limited Sirket |
|
Registered owner |
TR Havva Ana Maritime Corporation Trust Company Complex, Ajeltake Road, Ajeltake Island MH96960, Majuro - Marshall Islands Care of Torlak Gemi Isletmecilik Sanayi ve Ticaret Ltd Sti, Billur Sokak 5, Aydintepe Mah, Tuzla 34940 Istanbul Turkey |
|
Latest data adjustment |
18 December 2021 |
