Westerschelde 16 august 2015 |
 |
|
| Westerschelde 07/05/16 | |
|
Name |

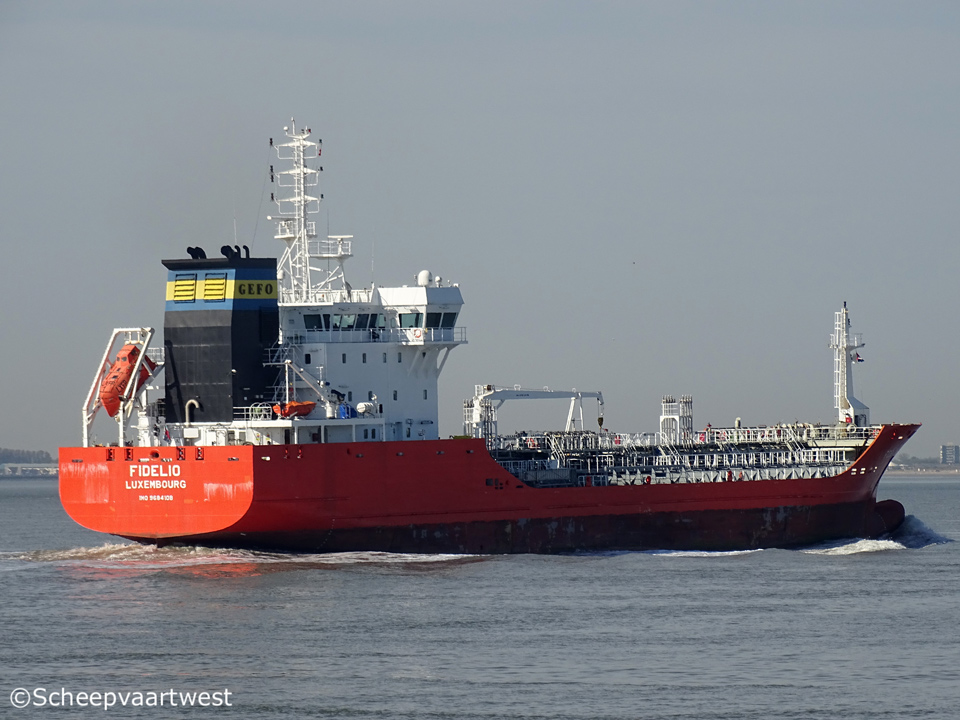

FIDELIO |
|
Type |
Chemical tanker |
|
IMO-number |
9684108 |
|
Call sign |
5BXN4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2014 - 2018 G.D. Luxembourg, Luxembourg City- Call sign: LXFP |
|
GT |
4.696 t |
|
DWT |
Summer: 6.346,23 t |
|
NT |
1.879 t |
|
Length |
104,92 m overall 99,00 m between perpendiculars |
|
Breadth |
17,22 m extreme 17,00 m moulded |
|
Draught |
7,45 m |
|
Keel to mast end |
36,99 m |
|
Depth |
9,35 m |
|
Speed |
Max: 14,0 knots Service: 12,8 knots |
|
Built |
2014 |
|
Keel laid |
03/08/2012 |
|
Launch date |
19/12/2013 |
|
Date of completion |
14/05/2014 |
|
Builder |
Tersan Tersanecilik Sanayi ve Ticaret A.S. Istanbul Turkey |
|
Yard number |
1053 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 7L32/44CR - 4 stroke 7 cylinder 320 x 440 mm combustion engine 3.932 kW / 4.530 hp at 750 rpm Manufacturer: MAN Diesel & Turbo SE, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated - EXV626-47-63.5-1000DD 1x Thermal oil heater, steam heated - MX30 T12/2t/h 2x Thermal oil heater, oil fired - Aalborg FTO/H4-TFO-02D |
|
Shaft generator |
1x 1.750 kVA |
|
Generators |
3x MAN D2842 LE301 main diesel generatorsets each 737 kVA |
|
Emergency generator |
1x MAN D2866 LXE diesel generatorset |
|
Bow thruster |
1x 428 kW |
|
Number of tanks |
14 |
|
Cargo tank capacity |
6.800 m³ |
|
Number of pumps |
12x Cargo pumps each 200 m³/h 2x Cargo pumps each 125 m³/h |
|
Tank capacities |
Ballast: 2.465 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
ISM & commercial manager |
GEFO Gesellschaft für Oeltransporte mbH Raboisen 5 20095 Hamburg Germany |
|
Registered owner |
Fidelio Tanker GmbH & Co. KG Care off GEFO Gesellschaft für Oeltransporte mbH Raboisen 5 20095 Hamburg Germany |
|
Latest data adjustment |
17 February 2023 |
