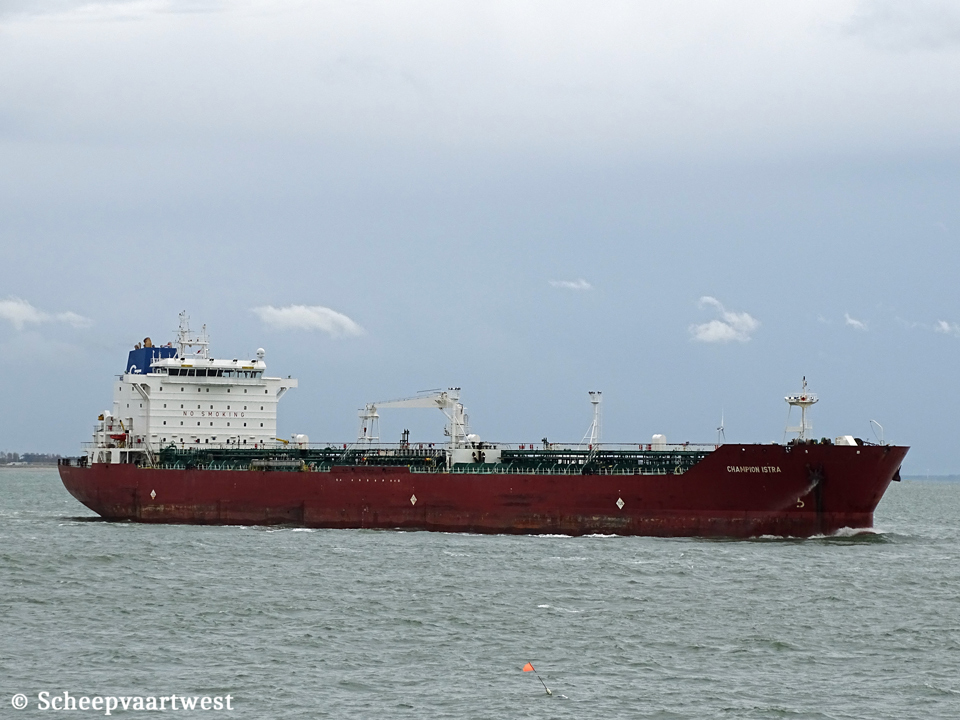

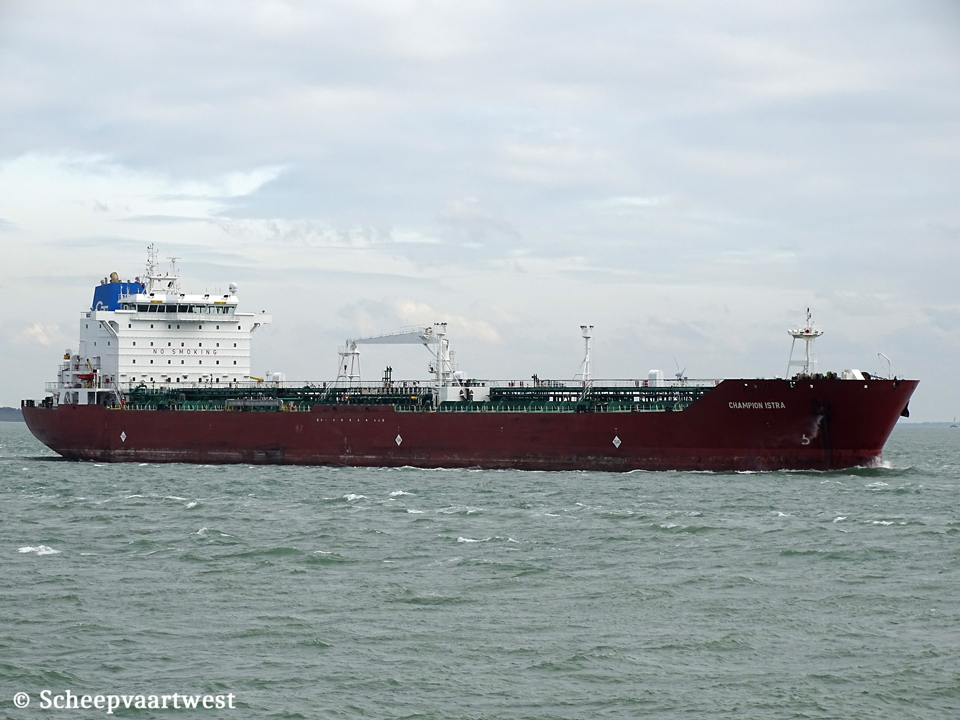

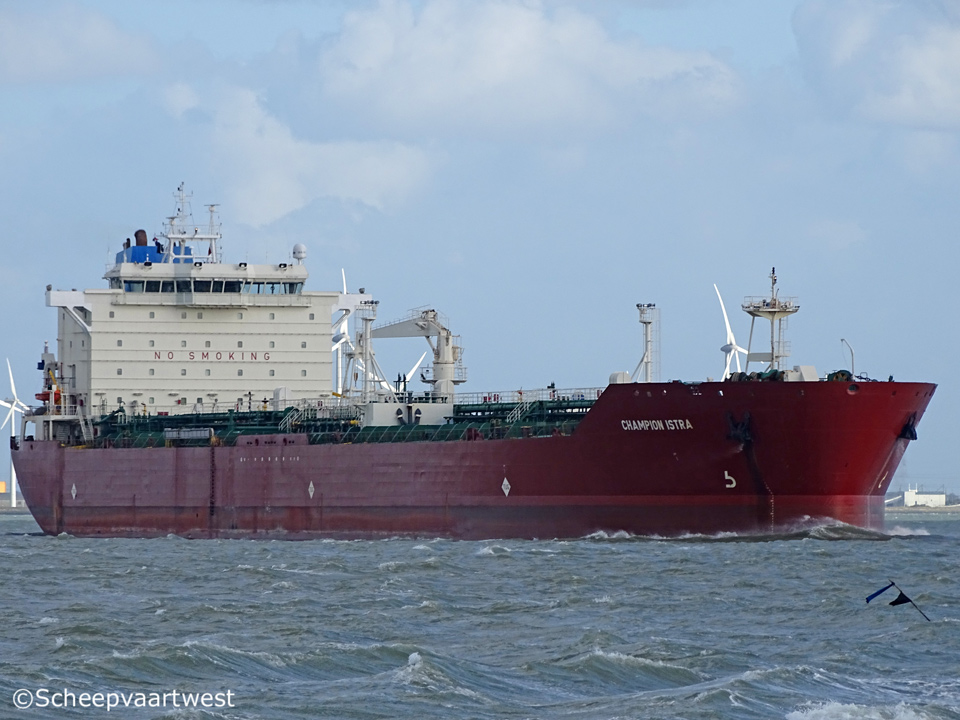

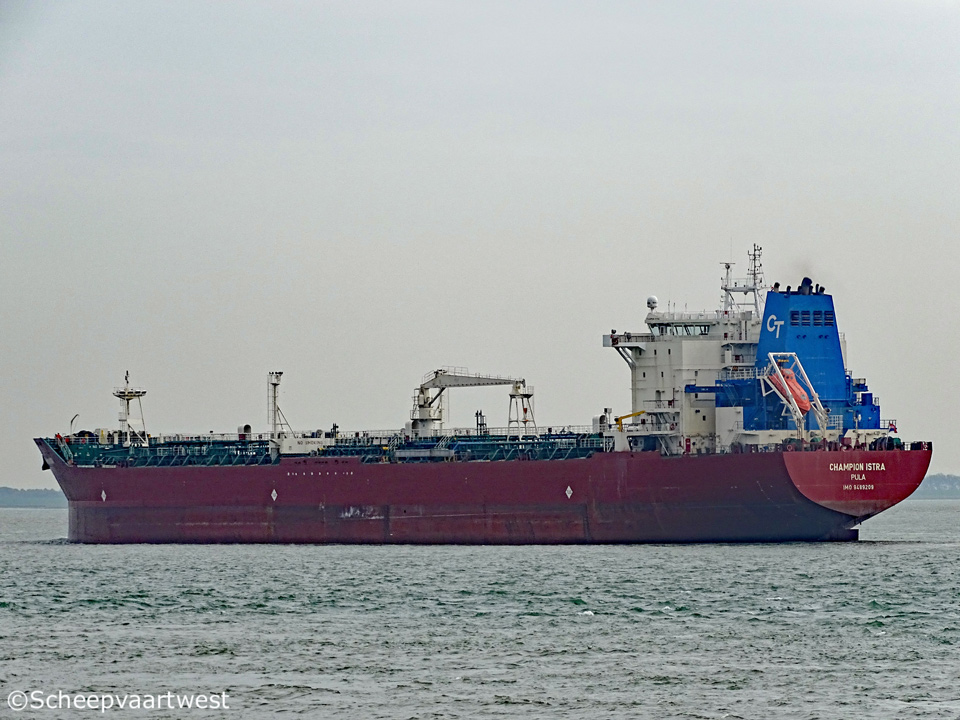

Westerschelde 21 October 2017 |
 |
 |
 |
||
| Westerschelde 19/10/17 | Westerschelde 24/09/20 | Westerschelde 25/10/19 | ||
|
Name |
CHAMPION ISTRA |
|
Previous names |
2012 - 2015 Istra |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9489209 |
|
Call sign |
LAMK8 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
2012 - 2021 Croatia (Republika Hrvatska), Pula - Call sign: 9AA8148 |
|
GT |
30.638 t |
|
DWT |
Summer: 51.824 t |
|
Length |
194,99 m overall 187,30 m between perpendiculars |
|
Breadth |
32,20 m |
|
Draught |
12,50 m |
|
Freeboard |
5.322 mm |
|
Depth |
17,80 m |
|
Speed |
14,5 knots |
|
Built |
2012 |
|
Keel laid |
22/12/2010 |
|
Date of completion |
07/08/2012 |
|
Builder |
3.Maj brodogradiliste d.d. Rijeka Croatia |
|
Yard number |
713 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 7RTA48T - 2 stroke single acting 7 cylinder 480 x 2.000 mm combustion engine 9.650 kW / 13.111 hp at 123,0 rpm Manufacturer: 3.MAJ Motori i Dizalice d.d., Rijeka - Croatia |
|
Propellers |
1x Screw propeller solid- aft at 123 rpm |
|
Boilers |
1x CHR Saacke Marine System 355;00 m² - 9,0 bar 2x CHO Saacke Marine System 107;00 m² - 9,0 bar |
|
Generators |
3x Main diesel generatorsets each 1.490 kVA - 1.192 kW - 1.739 hp |
|
Emergency generator |
1x Diesel generatorset 160 kVA - 128 kW - 270 hp |
|
Number of cargo tanks |
12 |
|
Total capacity of tanks |
52.327,16 m³ |
|
Number of slop tanks |
2 |
|
Number of pumps |
12x Cargo pumps each 550 m³/h |
|
Tank capacities |
Fuel: 1.591,35 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
|
Commerical manager |
Champion Tankers AS Tveiteråsvegen 12 5232 Paradis Norway |
|
ISM manager |
ASP Ship Management Singapore Pte Ltd. #05-01 Gateway East Singapore City Republic of Singapore |
|
Registered owner |
Champion Shipping AS Tveiteråsvegen 12 5232 Paradis Norway |
|
Latest data adjustment |
15 August 2021 |
