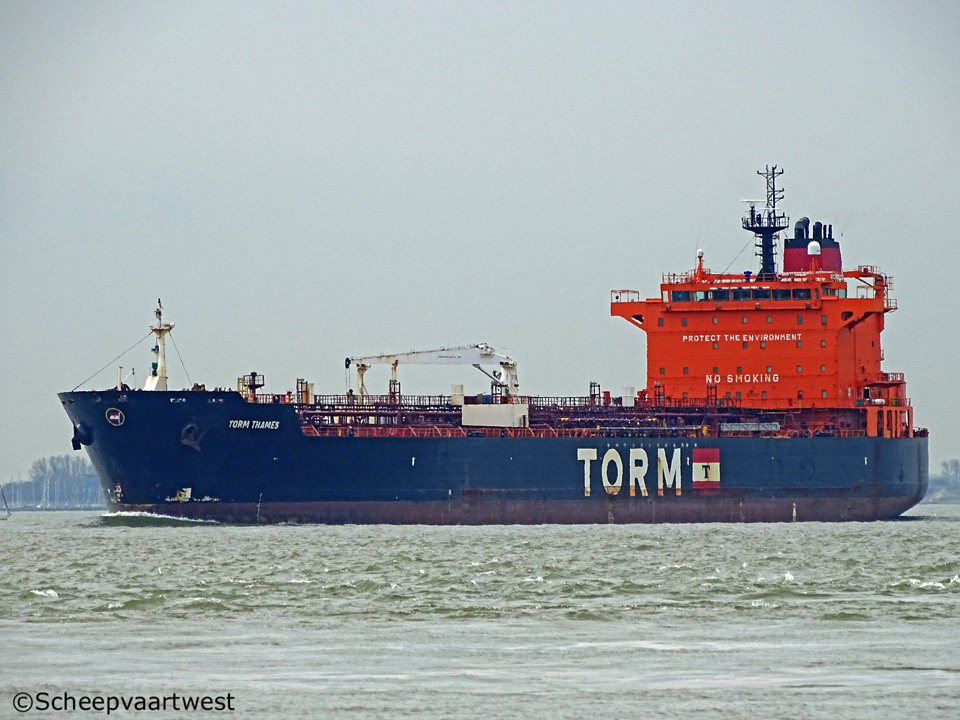

Torm Thames 01

Westerschelde 30 March 2018



Name

TORM THAMES

Previous names

07/2005 - 05/2008 Thames

Type

Chemical tanker

IMO-number

9318333

Call sign

OYNK2

Flag

Denmark

Port of registry

København

Previous flags

07/2005 - 05/2008 Republic of the Marshall Islands

GT

29.214 t registered

Suez: 30.615 t

DWT

Summer: 47.036 t

NT

12.307 t registered

Suez: 26.062 t

Length

183,80 m overall

174,00 m between perpendiculars

Breadth

32,00 m moulded

Draught

10,90 m

Freeboard

6.412 mm

Depth

18,80 m moulded

Speed

15,7 knots

Built

2005

Keel laid

04/04/2005

Launch date

11/06/2005

Delivery date

28/07/2005

Builder

Hyundai Mipo Dockyard Co. Ltd.
Ulsan
South Korea

Yard number

0430

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 6

Oil tight: 7

Continuous decks

1

Main engine

1x HHI-EMD 7S50MC-C - 2 stroke 7 cylinder 500 x 2.000 mm combustion engine 11.635 kW at 127,0 rpm

Manufacturer: Hyundai Heavy Industries Co.,Ltd.

Propellers

1x Wärtsilä controllable pitch propeller

Boilers

1x Auxiliary boiler - 7,0 bar

1x Exhaust Gas Boiler - 7,0 bar

Manufacturer: Kang Rim Ind.,Co., Ltd.

Generators

3x HHI-EES HFC6 508-14K main diesel generatorset each 840 kW

Number of cargo tanks

12

Cargo tank capacity 100%

53.689,6 m³

Number of slop tanks

2

Pumps

12x Cargo pumps each 600 m³/h

2x Cargo pumps each 300 m³/h

Number of tanks

Ballast: 14

Lubricating oil: 7

Fresh water: 6

Fuel oil: 5

Diesel oil: 3

Hydraulic oil: 2

Waste water: 2

Chain: 2

Slop: 2

Sludge: 1

Tank capacities 100%

Diesel oil: 226 m³ / 192 t

Freshwater: 695,8 m³

Fuel oil: 1.348,2 m³ / 1.334,71 t

Hydraulic oil: 35.7 m³

Lube oil: 112,5 m³ / 101,25 t

Tank ballast: 23.952,2 m³ / 24.551,0 t

Lifting equipment

1x Engine room overhead crane - SWL 2,0 t

1x Hose handling crane - SWL 10,0 t

1x Portside provision crane - 2,0 t

1x Starboard provision crane - 2,0 t

Manager

Torm A/S
Tuborg Havnevej 18
Hellerup, DK-2900
Denmark

Operator

Torm A/S
Tuborg Havnevej 18
Hellerup, DK-2900
Denmark

Registered owner

Vesselco 1 K/S

Latest data adjustment

25 July 2018
