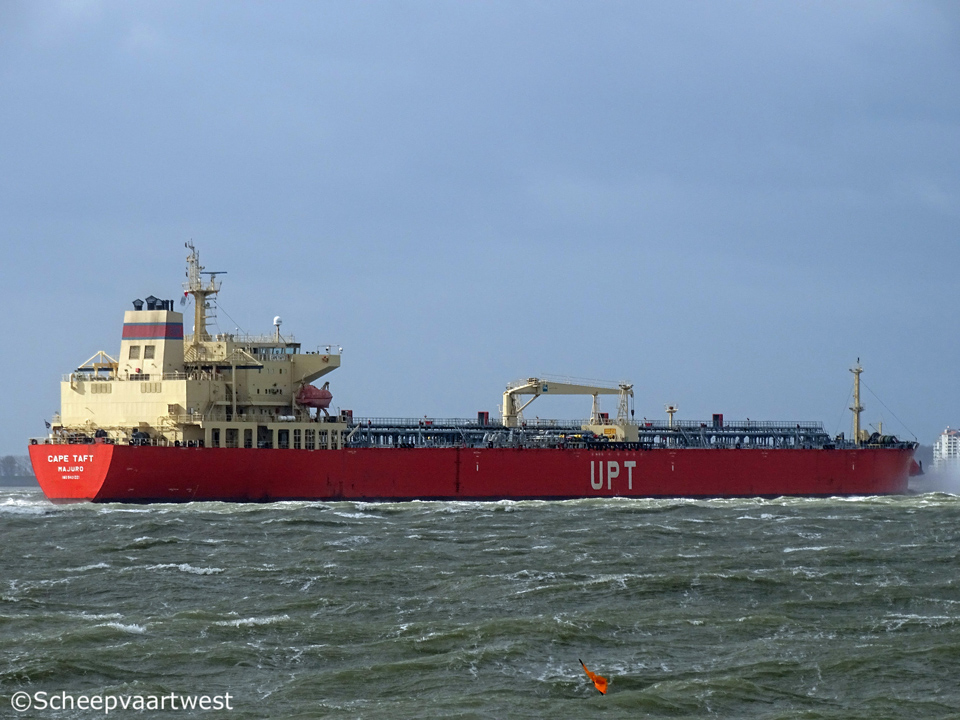

Westerschelde 28 March 2016 |
|
Name |
CAPE TAFT |
|
Type |
Crude oil tanker / Chemical tanker |
|
IMO-number |
9401221 |
|
Call sign |
V7PT9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
42.010 t |
|
DWT |
Summer: 73.711 t |
|
NT |
22.454 t Suez: 39.766 t Panama: 34.705 t |
|
Length |
228,60 m overall 219,70 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
14,52 m |
|
Keel to mast |
49,64 m |
|
Depth |
20,80 m |
|
Speed |
16,0 knots |
|
Built |
2008 |
|
Keel laid |
27/12/2006 |
|
Launch date |
31/05/2007 |
|
Date of completion |
14/10/2008 |
|
Builder |
NCS - New Times Shipbuilding Co., Ltd. China |
|
Yard number |
0307350 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull - double bottom, continuous from peak to peak bulkhead |
|
Bulkheads |
Water tight: 2 Oil tight: 10 |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 5S60MC-C - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 11.300 kW at 105 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller aft at 101 rpm |
|
Boilers |
2x Auxiliary boiler, oil/gas fired Mission TM OL 20T/H - 18,0 bar Heating surface: 110 mm² 1x Auxiliary boiler, exhaust gas heated AV - 4N - 10,0 bar Heating surface: 548 mm² |
|
Generators |
3x Yanmar 8N21L-EV main diesel engine coupled with 3 Taiyo model: FE553B-10 generators each 900 kW |
|
Emergency generator |
1x Volvo Penta D12DAMG diesel generatorset 375 kVA - 300 kW - 408 hp |
|
Compressed air receivers |
2x Receivers, each 5.000 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 2x Receivers, each 1.500 litres - 12,0 bar |
|
Number of yanks |
15 |
|
Cargo tanks 98% |
81.276 m³ |
|
Slop tanks 98% |
3.160 m³ |
|
Cargo tank capacity 98% |
Total: 84.436 m³ |
|
Segregations |
3 |
|
Pumps |
3x Steam centrifugal cargo pumps each 2.300 m³/h |
|
Tank coating |
Epoxy |
|
Manifolds |
Bow centre manifold: 114,10 m |
|
Tank capacities |
Ballast: 25.283 m³ Fuel: 2.154 t |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Length: 687,50 m Diameter: 81 mm |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,5 t 1x Hose handling crane - SWL 15,0 t 2x Hose handling davits each SWL 1,0 t 1x Provision crane - SWL: 5,0 t |
|
Manager |
COLUMBIA Shipmanagement (Deutschland) GmbH |
|
Operator |
UPT United Product Tankers GmbH & Co. KG |
|
Owner |
SAG Mt Cape Taft MbH and Co |
|
Registered owner |
SAG Unternehmensbeteiligungsges. MT "CAPE TAFT" mbH & Co. KG |
|
Latest data adjustment |
27 August 2018 |
