Westerschelde 28 March 2016 |
 |
| Westerschelde 28/03/16 |
|
Name |

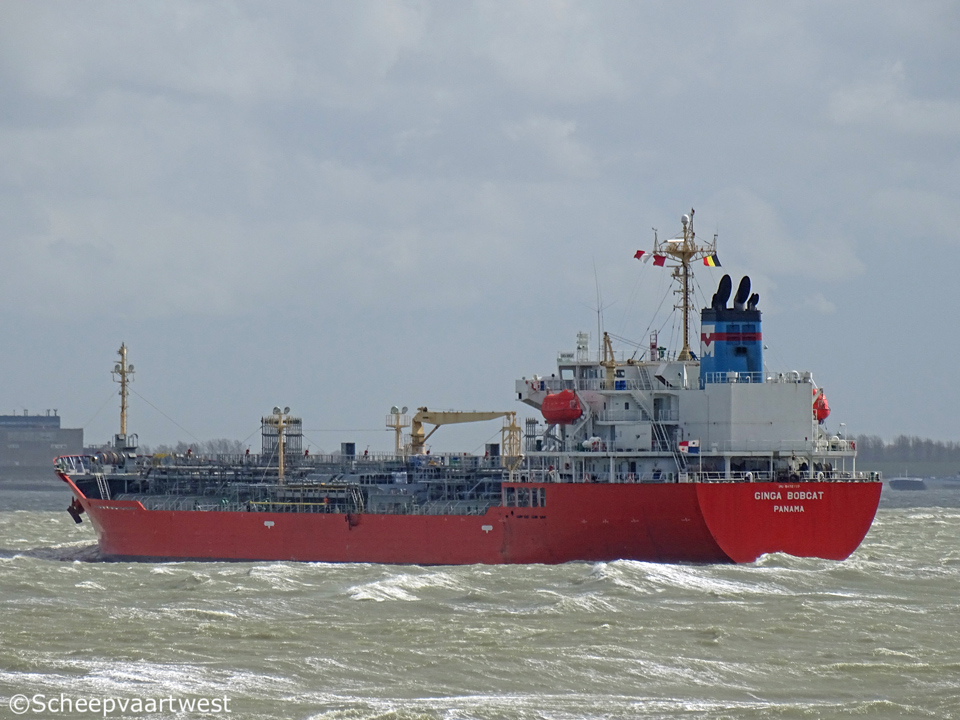

GINGA BOBCAT |
|
Type |
Oils, Chemicals and Molasses tanker |
|
IMO-number |
9472737 |
|
Call sign |
3FFZ8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
16.222 t registered |
|
DWT |
Summer: 26.073 t |
|
NT |
7.683 t registered Panama: 13.583,74 t Suez: 14/658,2 t |
|
Length |
159,98 m |
|
Breadth |
26,80 m moulded |
|
Draught |
10,08 m |
|
Moulded L x B x D |
154,00 x 26,80 x 14,20 m |
|
Registered L x B x D |
154,31 x 26,80 x 14,20 m |
|
Freeboard |
Summer: 4.165 mm |
|
Depth |
14,20 m moulded |
|
Speed |
Max: 16,82 knots Service: 15,5 knots |
|
Built |
2010 |
|
Keel laid |
14/05/2009 |
|
Launch date |
08/09/2009 |
|
Date of completion |
18/03/2010 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5562 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi-Kobe Hatsudoki 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine MCR: 7.080 kW at 133,0 rpm NSR: 6.372 kW at 128 rpm Manufacturer: Kobe Diesel Co., Ltd. - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 445 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary cylindrical water tube boiler - 9,8 bar Evaporation: 16,02 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets Taiyo each 850 kVA at 720 rpm |
|
Bow thruster |
1x Controllable pitch propeller electric motor driven 800 kW at 1.200 rpm |
|
Cargo tank capacity |
Liquid: 29.569 m³ |
|
Pumps |
10x Cargo pumps each 330 m³/h 6x Cargo pumps each 200 m³/h 2x Ballast pumps hydraulic motor driven, vertical centrifugal each 400 m³/h |
|
Tank capacities |
Fuel oil: 1.333 m³ Diesel oil: 84 m³ Fresh water: 531 m³ Ballast: 10.813 m³ |
|
Manager |
Unix Line Pte. Ltd. |
|
Accommodation |
Officer: 8 Crew: 17 Other: 5 Total: 30 |
|
Previous owners |
MOL Chemical Tankers Pte. Ltd. |
|
Latest data adjustment |
27 August 2018 |
