Gulf Crystal - IMO 9389863

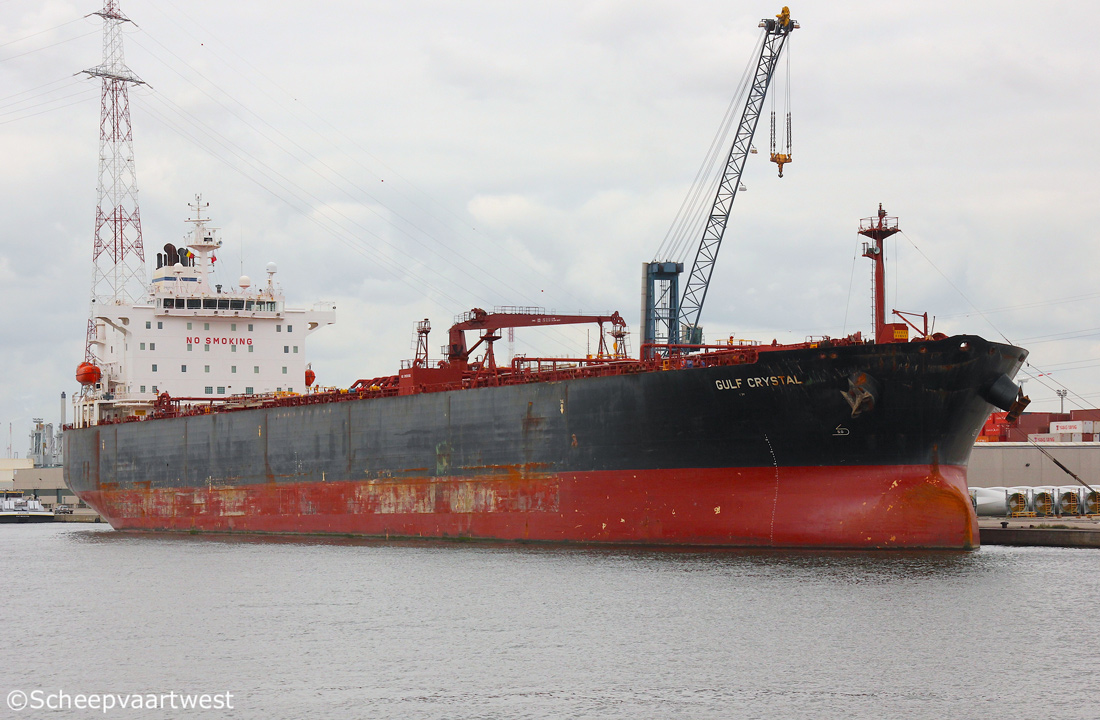

Antwerpen 28 August 2018

Name

GULF CRYSTAL

Type

Crude oil tanker - Panamax

IMO-number

9389863

Call sign

C6XQ8

Flag

Bahamas

Port of registry

Nassau

GT

42.443 t

Suez: 44.963,94 t

DWT

Summer: 74.999 t

Winter: 72.943 t

NT

21.863 t

Suez: 39.877,75 t

Panama: 35.058 t

Displacement

Summer: 88.913 t

Winter: 86.857 t

Length

228,19 m overall

219,00 m between perpendiculars

Breadth

32,24 m extreme

Draught

Summer: 14,45 m

Winter: 14,15 m

Keel to masthead

52,34 m

49,50 m in collapsed condition

Air draft full mast

37,79 m summer deadweight

44,34 m Normal ballast

49,76 m light ship

Freeboard

Summer: 6.490 mm

Winter: 6.790 mm

Depth

20,90 m moulded

Speed

16,0 knots ballast

15,0 knots laden

Built

2009

Keel laid

10/06/2009

Date of completion

17/11/2009

Builder

Hyundai Mipo Dockyard Co. Ltd.
Ulsan
South Korea

Yard number

2073

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W/HHI 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 13.548 kW / 18.420 bhp at 105,0 rpm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, composite

1x Auxiliary boiler, oil/gas fired

Generators

3x B&W 6L23/304 main diesel generatorsets each 907 kW

Emergency generator

1x Cummins 6CT83DM diesel generator

Number of cargo tanks

12

Cargo tank capacity 98%

Seg#1: 25.661,20 m³ (1 Wing & 5 Wing)
Seg#2: 27.954,40 m³ (2 Wing & 6 Wing)
Seg#3: 16.339,85 m³ (3 Wing & Slop P & Slop S)
Seg#4: 14.385,52 m³ (4 Wing)

Number of slop tanks

2

Slop tank capacity

2.215 m³

Pumps

Cargo:

12x Centrifugal capacity 900 m³/h each
2x Centrifugal capacity 300 m³/h each
1x Centrifugal capacity 100 m³/h

Ballast:

2x Framo centrifugal capacity 1.500 m³/h

Manifolds

Distance bridge front to centre of manifold: 79,87 m

Bow to centre manifold: 111,47 m

Stern to centre manifold: 116,72 m

Distance between cargo manifold centers: 2.500 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 700 mm

Distance main deck to centre of manifold: 1.800 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 2.026;10 m³
Gas oil: 497;60 m³

Lifting equipment

1x Hose crane - SWL 15,0 t

Crew size

30

Manager

Gulf Energy Maritime (GEM) PJSC

Technical operator

Gulf Energy Maritime (GEM) PJSC
U-Bora Tower, 30 th Floor Road No.8
Dubai
United Arab Emirates

Commercial operator

Mjolner Shipping LLC
15 Exchange Place Jersey City NJ 07302
United States

Registered owner

Gulf Crystal Shipping Ltd Ocean Centre
Montagu Foreshore
East Bay Street
Nassau, New Providence
The Bahamas

Disponent owner

Gulf Energy Maritime (GEM) PJSC
U-BORA Towers
30th Floor, Road #8
Dubai
UAE - United Arab Emirates

Latest data adjustment

01 October 2018
