Westerschelde 19 December 2017 |
|
Name |

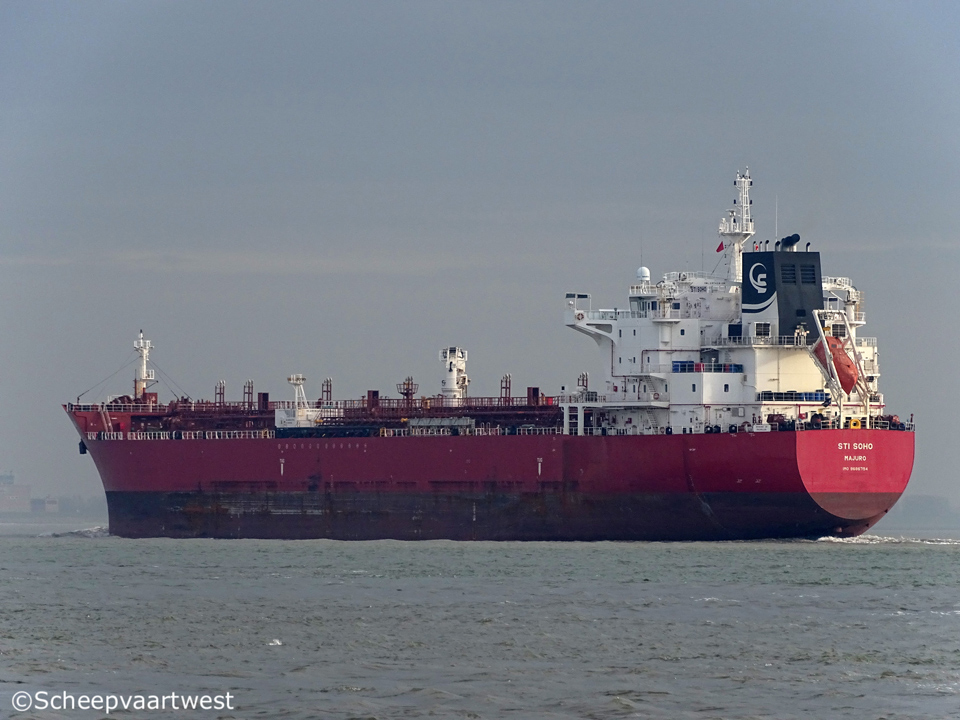

STI SOHO |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9686754 |
|
Call sign |
V7BN8 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
29.732 t Suez: 31.524 t |
|
DWT |
Summer: 49.990 t |
|
NT |
13.834 t |
|
Length |
183,07 m overall 174,03 m between perpendiculars |
|
Breadth |
32,22 m extreme |
|
Draught |
13,31 m |
|
Depth |
19,10 m |
|
Speed |
15,2 knots |
|
Built |
2014 |
|
Keel laid |
14/11/2013 |
|
Launch date |
05/09/2014 |
|
Date of completion |
08/12/2014 |
|
Builder |
SPP Shipbuilding Co., Ltd. - Tongyeong Shipyard South Korea |
|
Yard number |
S1144 |
|
Hull material |
Steel |
|
Hull type |
Double bottom with hopper Double side with top wing |
|
Main engine |
1x Hyundai/MAN B&W 6G50ME-B9.3 – 2 stroke 6 cylinder combustion engine 7.500 kX at 87,0 rpm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, composite Builder: SPP Shipbuilding Co., Ltd. 1x Auxiliary boiler, oil/gas fired Builder: Kangrim Heavy Ind. |
|
Generators |
3x MAN B&W 6L23/30H main diesel generatorsets each 900 kW |
|
Emergency generator |
1x Cummins diesel generatorset |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
54.190 m³ |
|
Number of slop tanks |
2 |
|
Pumps |
12x Framo SD 200 cargo pumps 2x Framo SD 150 cargo pumps |
|
Tank capacities |
Ballast: 22.279,9 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 73 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t 1x Crane - SWL 4,0 t 1x Crane - SWL 2,0 t |
|
Manager |
Zenith Gemi Isletmeciligi A.S. |
|
Registered owner |
STI Soho Shipping Company Limited |
|
Latest data adjustment |
07 October 2018 |
