Antwerpen 16 October 2018 |
|
Name |

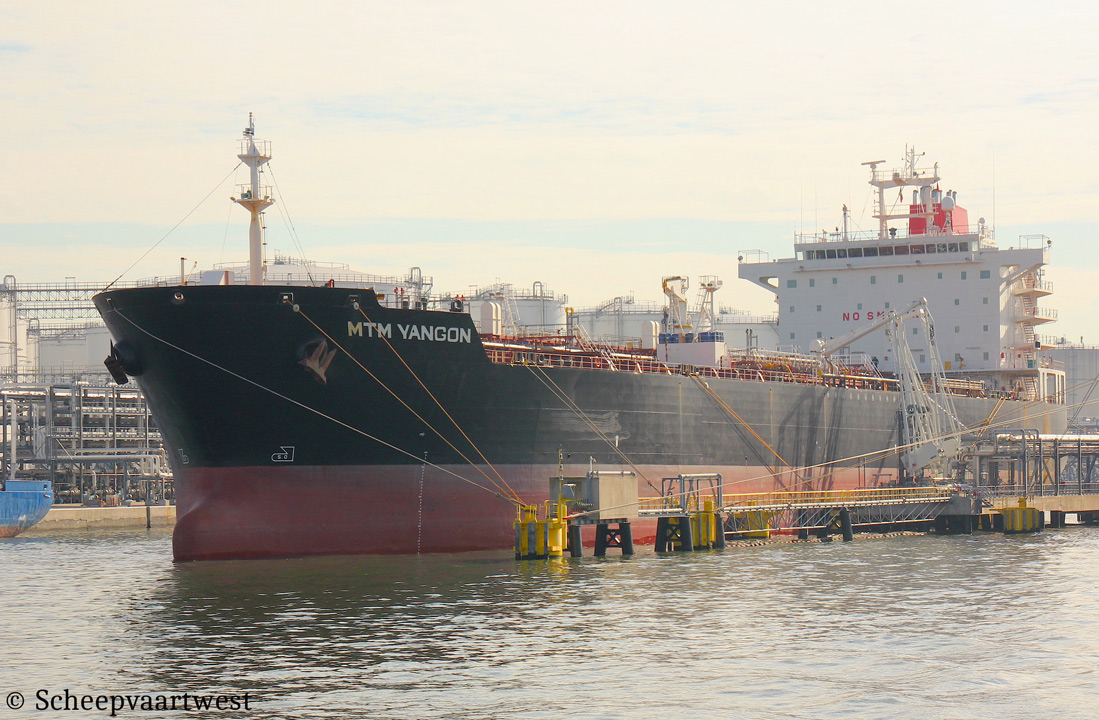

MTM YANGON |
|
Previous names |
08/2003 - 04/2013 Sinbad |
|
Type |
Chemical and product tanker |
|
IMO-number |
9250165 |
|
Call sign |
9V2087 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
08/2003 - 04/2013 Barbados, Bridgetown |
|
GT |
29.220 t registered Suez: 30.509,27 t |
|
DWT |
Summer: 46.818 t Winter: 45.408,10 t |
|
NT |
11.943 t registered Panama: 24.261 t Suez: 26.222,13 t |
|
Displacement |
Summer: 56.239,10 t Winter: 54.829,20 t |
|
Length |
183,02 m overall 174,00 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
Summer: 12,20 m Winter: 11,95 m |
|
Keel to masthead |
46,50 m |
|
Air draft |
Lightship: 44,12 m Normal ballast: 39,24 m At loaded summer deadweight: 34,30 m |
|
Freeboard |
Summer: 6.612 mm Winter: 6.866 m |
|
Depth |
18,80 m moulded |
|
Speed |
Max: 14,6 knots |
|
Built |
2003 |
|
Keel laid |
04/04/2003 |
|
Launch date |
17/06/2003 |
|
Delivery date |
29/08/2003 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. |
|
Yard number |
0111 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
bulkheads |
Non tight: 6 Water tight: 1 Oil tight: 33 |
|
Main engine |
1x Hyundai/MAN B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm combustion engine 8.602 kW / 11.698 bhp at 123,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1 Manufacturer: Hyundai Heavy Ind. Co., Ltd. |
|
Boilers |
1x Composite boiler - 9,0 bar 1x Auxiliary boiler - 9,0 bar Manufacturer: Kang Rim Ind. Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 740 kW |
|
Number of cargo tanks |
12 |
|
Total tank capacity 98% |
51.614,80 m³ excluding slop tanks |
|
Tank capacity 98% |
Seg#1: 6.356,8 m³ (1PS) Seg#2: 9.143,2 m³ (2PS) Seg#3: 9.354,6 m³ (3PS) Seg#4: 9.354,6 m³ (4PS) Seg#5: 9.339,4 m³ (5PS) Seg#6: 8.066,2 m³ (6PS) Seg#7: 1.221,47 m³ (Slop PS) |
|
Number of slop tanks |
3 |
|
Slop tank capacity 98% |
1.221,47 m³ |
|
Pumps |
12x Centrifugal cargo pumps each 600 m³/h 2x Centrifugal cargo pumps each 150 m³/h 2x Centrifugal ballast pumps each 1.000 m³/h |
|
Manifolds |
Bow to centre manifold: 90,00 m Stern to centre manifold: 93,00 m Distance bridge front to centre of manifold: 59,55 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 850 mm Distance main deck to centre of manifold: 2.100 mm |
|
Number of tanks |
Ballast: 10 Lubricating oil: 10 Fuel oil: 9 Fresh water: 8 Sludge: 5 Diesel oil: 4 Chain: 2 Chemical: 1 Gasoline: 1 Waste water: 1 |
|
Tank capacities |
Diesel Oil: 184;4 m³ Freshwater: 468,6 m³ Fuel Oil: 1.713,66 m³ Lube Oil: 155,3 m³ Tank Ballast: 24.781,9 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 2,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - 3,0 t Manufacture: Dong Nam Enterprise Co., Ltd. |
|
Crew size |
25 |
|
Manager |
MT Maritime Private Ltd. |
|
Technical operator |
MTM Ship Management Pte Ltd. |
|
Commercial operator |
MTM Ship Management Pte Ltd. |
|
Registered owner |
MTM Yangon Pte Ltd. |
|
Previous owners |
MTM Tanker Trading LLC Trust Company Complex |
|
Latest data adjustment |
03 November 2018 |
