Westerschelde 06 October 2016 |
 |
 |
|

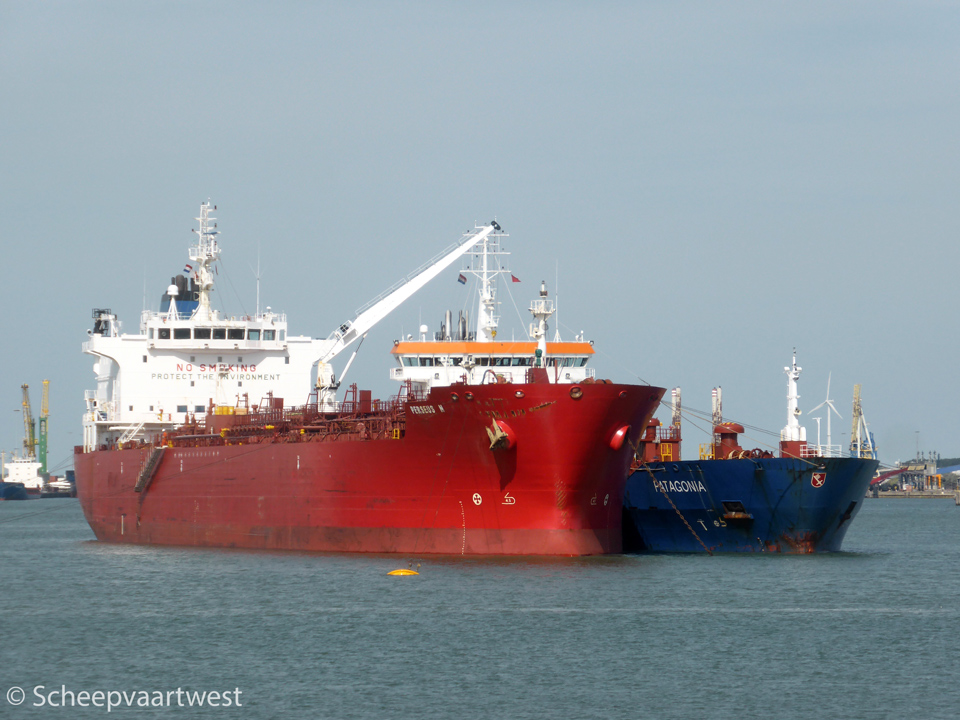

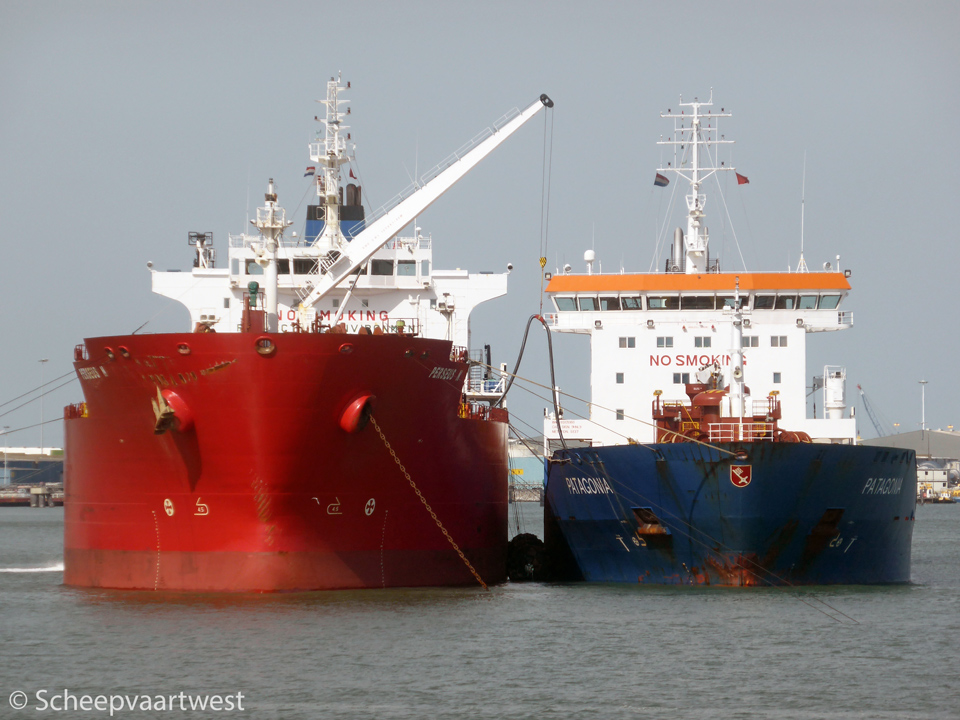

| Vlissingen 18/07/15 | Vlissingen 18/07/15 | |
|
Name |
PERSEUS N |
|
Previous names |
2009 - 12/2013 Elbtank France |
|
Type |
Crude oil tanker |
|
IMO-number |
9425497 |
|
Call sign |
A8PR8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
23.350 t registered Suez: 24.511,13 t |
|
DWT |
Summer: 36.264 t |
|
NT |
9.625 t registered Suez: 19.327,14 t |
|
Length |
184,32 m overall 176,00 m between perpendiculars |
|
Breadth |
27,40 m |
|
Draught |
Max: 11,32 m |
|
Keel to mast end |
45,83 m |
|
Freeboard |
5.914 mm |
|
Depth |
17,20 m moulded |
|
Speed |
Max: 15,7 knots |
|
Built |
2009 |
|
Keel laid |
28/08/2008 |
|
Delivery date |
02/01/2009 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2111 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Oil tight: 11 Water tight: 3 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.480 kW / 12.889 hp at 127,0 rpm Manufacturer: Hyundai Heavy Industries Co Ltd - South Korea |
|
Propellers |
1x Fixed pitch mono-block propeller Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Boilers |
1x Exhaust gas economizer - 11,0 bar 1x Auxiliary boiler - 9,0 bar Manufacturer: Aalborg Industries Ltd |
|
Generators |
3x Hyundai/Himsen 5H21/32 - 4 stroke 5 cylinder 210 x 320 mm diesel engine each Mcr 740 kW connected with generators each 740 kW |
|
Emergency generator |
1x Cummins diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 900 kW / 1.224 bhp, forward |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
42.663,4 m³ - 100/ 41.636,0 m³ - 98% |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.074 m³ |
|
Pumps |
2x Cargo pumps each 200 m³/h 2x Cargo pumps each 300 m³/h 10x Cargo pumps each 500 m³/h |
|
Number of tanks |
Ballast: 14 Fuel oil: 9 Sludge: 8 Lubricating oil: 8 Fresh water: :7 Diesel oil: 5 Chain: 2 Hydraulic oil: 1 Waste water: 1 Chemical :1 |
|
Tank capacities 100% |
Diesel oil: 168,5 m³ Freshwater: 584,2 m³ Hydraulic oil: 17,2 m³ Lube oil: 90,1 m³ Fuel oil: 1.151 m³ Tank Ballast: 17.925,2 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Engine room crane - SWL 2,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
22 |
|
ISM & commercial manager |
Navios Tankers Management Inc. 85, Akti Miaouli, 1 85 38 Piraeus Greece |
|
Registered owner |
Great Rhea Ltd. Care of Navios Tankers Management Inc. 85, Akti Miaouli 185 38 Piraeus Greece |
|
Previous name & owner |
2009 - 12/2013 Elbtank France - Elbtank France Schiffahrts GmbH & Co KG |
|
Renamed |
2022 Patrick P Liberia, Monrovia - Call sign: A8PR8 Owner: Partankers XXIII AS Manager: Interunity Management Corp SA, Athens - Greece |
|
Latest data adjustment |
24 October 2023 |
