Westerschelde 13 August 2018 |
 |
|
| Westerschelde 13/08/18 | |
|
Name |

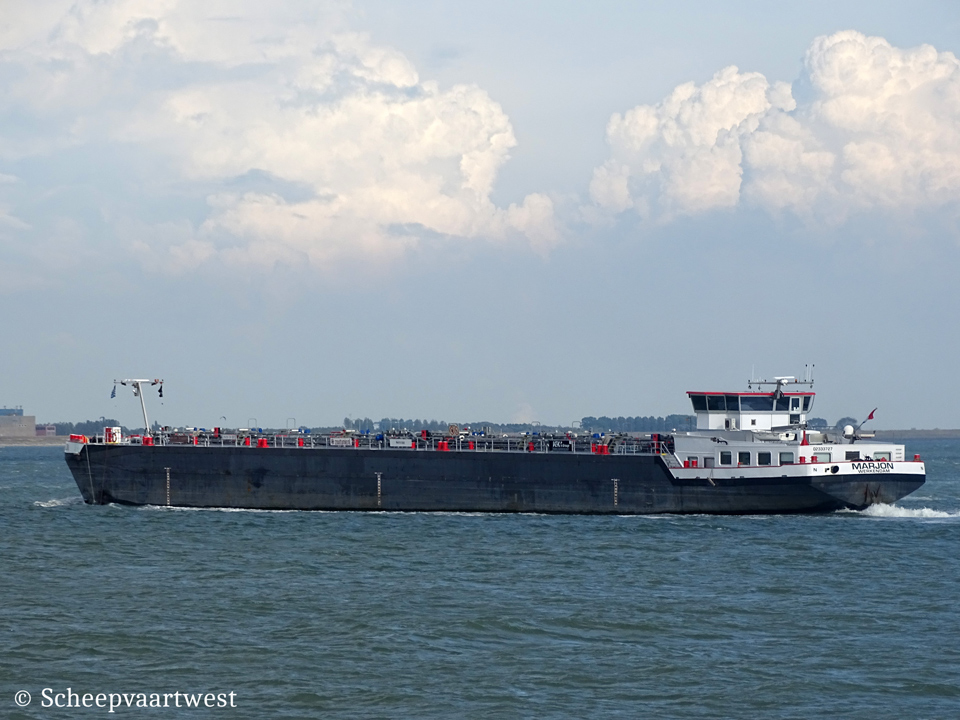

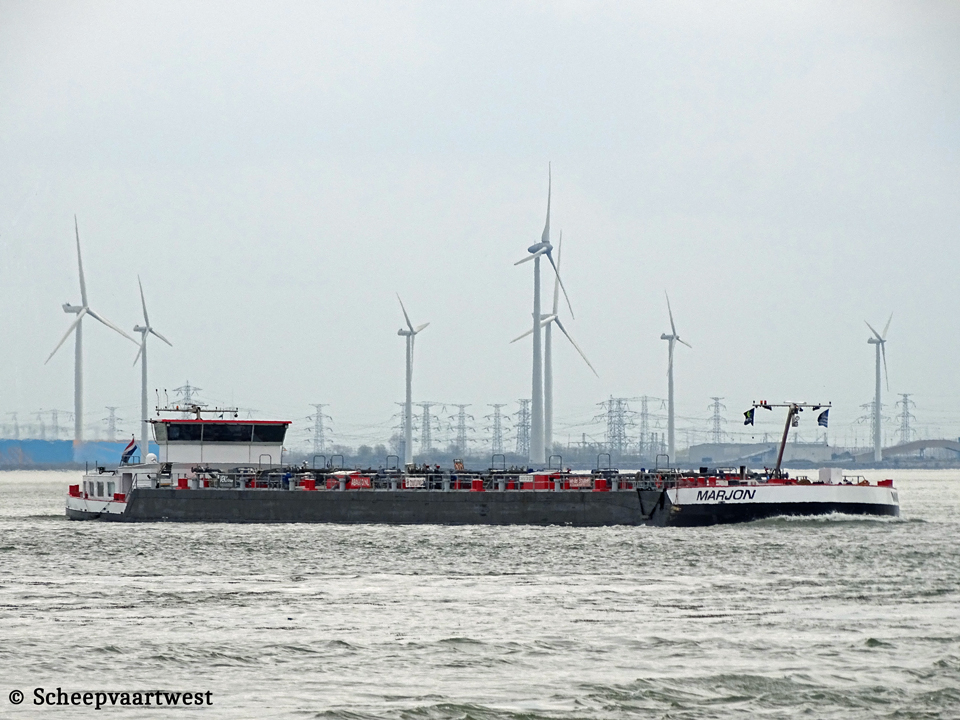

MARJON |
|
Type |
Inland Waterways Chemical tanker |
|
ENI-number |
02333727 |
|
Call sign |
PD9660 |
|
Flag |
The Netherlands |
|
Port of registry |
Werkendam |
|
Tonnage |
3.241 t |
|
Length |
110,00 m overall 106,46 m between perpendiculars |
|
Breadth |
11,45 m extreme |
|
Draught |
3,76 m |
|
Depth |
5,40 m |
|
Built |
2011 |
|
Keel laid |
16/11/2009 |
|
Date of completion |
07/10/2011 |
|
Builder casco |
Nine Sun Corp. Ltd. Shanghai China Yard number: 08NNE-152 |
|
Builder completion |
Veka Shipbuilding B.V. Werkendam The Netherlands |
|
Hull material |
Steel |
|
Number of decks |
1 |
|
Main engine |
1x Mitsubishi S 16 R-C2MPTK combustion engine 1.250 kW / 1.700 hp at 1.600 rpm |
|
Gearbox |
1x Masson Marine MM W7350 - reduction: 5,031:1 |
|
Propellers |
1x 5 blades - Diameter 1.750 mm |
|
Generators |
1x Caterpillar C18 ACERT engine connected with Marathon 572 RSL 4030 generator 525 kVA 1x Perkins 4.4 TW2GM engine connexted with Marathon 363 CSL 1607 generator 107 kVA 1x John Deere 4045 TFU70 engine connected with Marathon 362 CSL 160 generator 63 kVA |
|
Bow thruster |
1x Caterpillar 510 hp - Verhaar Omega-Jet 31130-4k - 375 kW at 1.780 rpm |
|
Cargo tank capacity |
3.800 m³ |
|
Pumps |
10x MarFlex MDPD-80 Electric driven cargo pumps each 100 m³/h |
|
Owner |
Rederij Marjon Tank Werkendam The Netherlands |
|
Latest data adjustment |
28 February 2023 |
