Antwerpen 06 November 2018 |
|
Name |

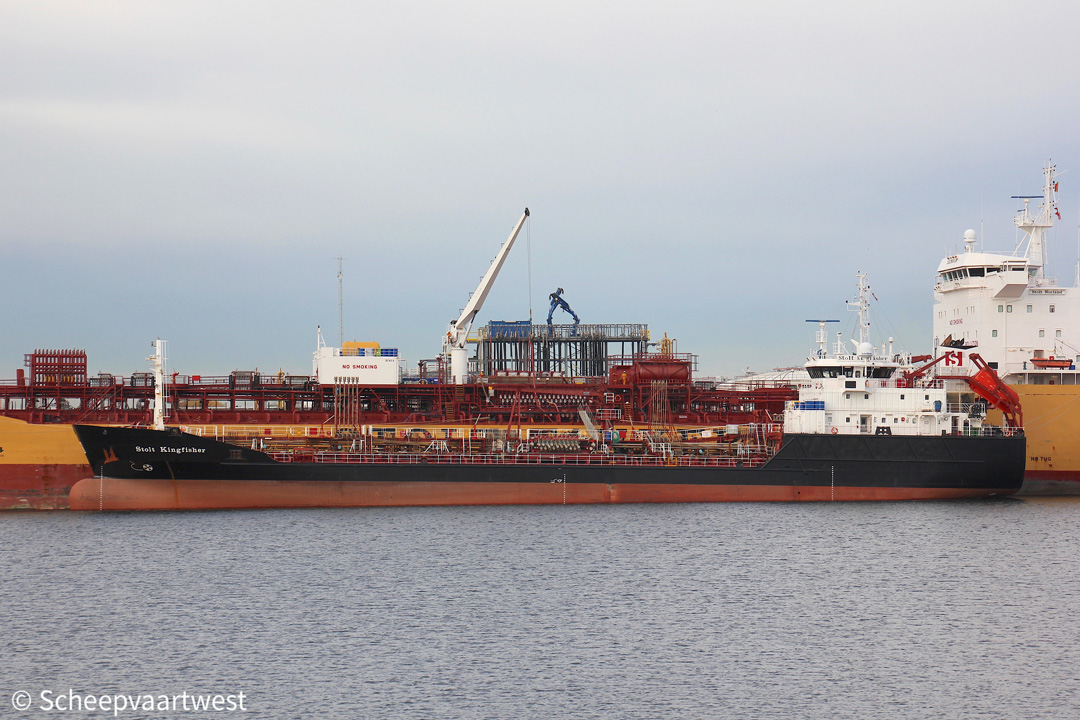

STOLT KINGFISHER |
|
Previous names |
1998 - 06/2011 Multitank Batavia |
|
Type |
Chemical & oil product carrier |
|
IMO-number |
9154323 |
|
Call sign |
2EQD7 |
|
Flag |
United Kingdom |
|
Port of registry |
Cardiff |
|
Previous flags |
Until 2011 Liberia, Monrovia |
|
GT |
3.726 t |
|
DWT |
Summer: 5.846 t |
|
NT |
1.673 t |
|
Light ship |
2.489 t |
|
Length |
99,99 m overall 94,90 m between perpendiculars 95,33 m registered |
|
Breadth |
16,53 m extreme |
|
Draught |
Max: 6,80 m |
|
Keel to mast |
35,60 m |
|
Forecastle |
7,80 m |
|
Poop |
24,05 m |
|
Depth |
8,30 m moulded |
|
Speed |
Max: 15,0 knots Service: 13,6 knots |
|
Built |
1998 |
|
Date of completion |
25/06/1998 |
|
Builder |
ENVC - Estaleiros Navais de Viana do Castelo |
|
Yard number |
195 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 7S35 MC - 2 stroke 7 cylinder 350 x 1.400 mm diesel engine 4.165 kW / 5.890 hp at 145 rpm Year of manufacture: 1996 Manufacturer: MAN B&W Diesel A/S Frederikshavn |
|
Propellers |
1x Controllable pitch propeller aft at 145 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 82,0 m² 2x Thermal oil heater, oil fired - 10,0 bar Heating surface: 61,62 m² Year of manufacture: 1995 Manufacturer: Keu Energie- und Umwelt- Technik GmbH Niederlassung Wiesloch |
|
Electric installations |
2x Plant each 380/220 V - 790 kVA 1x Plant 380 V - 688 kVA 1x Plant 380 V - 103 kVA |
|
Shaft generator |
1x 688 kVA |
|
Generators |
2x Caterpillar 3508 DITA diesel generatorsets each 790 kVA |
|
Emergency generator |
1x Caterpillar 3304 DIT diesel generatorset 103 kVA |
|
Compressed air receivers |
1x Receiver 500 litres - 40,0 bar 2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 80 litres - 30,0 bar 2x Receivers each 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Fixed pitch propeller 'Schottel' - 298 kW, forward |
|
Number of cargo tanks |
20 |
|
Cargo tank capacity 98% |
1CS: 162 m³ 1CP: 187 m³ 2CS: 304 m³ 2CP: 337 m³ 3CS: 379 m³ 3CP: 406 m³ 4CS: 103 m³ 4CP: 109 m³ 5CS: 385 m³ 5CP: 412 m³ 6CS: 538 m³ 6CP: 575 m³ 7CS: 361 m³ 7CP: 387 m³ 8CS: 153 m³ 8CP: 159 m³ 9CS: 230 m³ 9CP: 247 m³ 10CS: 248 m³ 10CP: 264 m³ Total: 5.948 m³ |
|
Tank capacities |
Fuel oil: 363 m³ Ballast water: 2.439,1 m³ |
|
Anchor equipment |
3x Anchors weight each 2.640 kg Length: 467,50 m Diameter: 40 mm |
|
Crew size |
18 |
|
Manager |
Stolt Tankers BV |
|
Operator |
Stolt Tankers B.V. |
|
Registered owner |
Stolt Kingfisher BV |
|
Latest data adjustment |
19 November 2018 |
