Westerschelde 16 August 2018 |
|
Name |

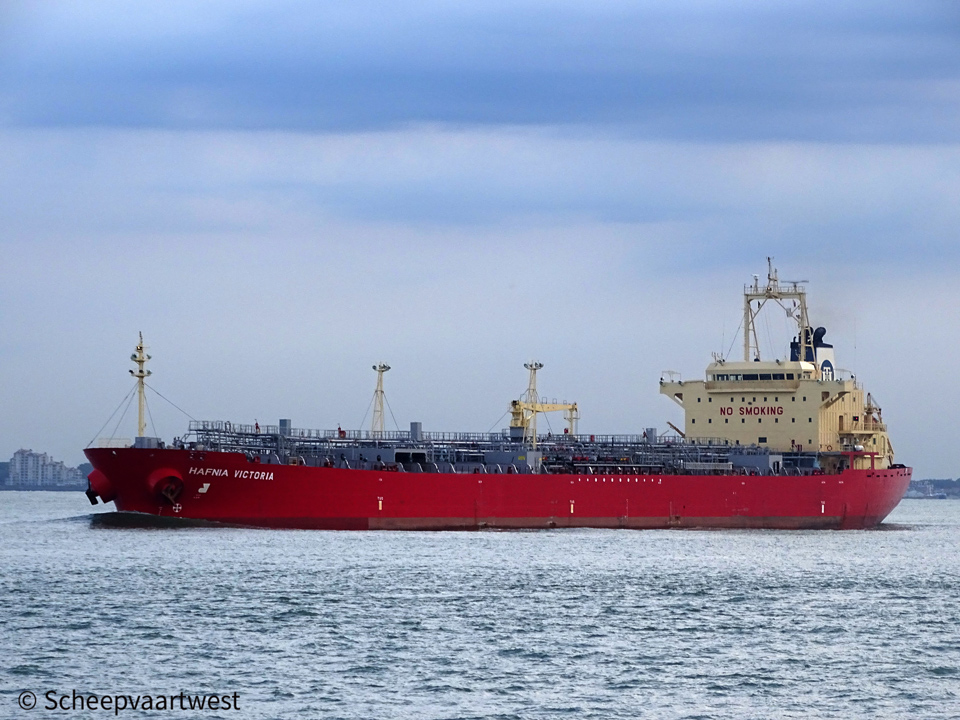

HAFNIA VICTORIA |
|
Previous names |
06/2007 - 06/2014 Mount Victoria |
|
Type |
Chemical and oil tanker |
|
IMO-number |
9360439 |
|
Call sign |
9V3232 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
06/2007 - 01/2015 Republic of Cyprus, Limassol |
|
GT |
22.521 t registered Suez: 23.599,84 t |
|
DWT |
Summer: 39.821 t Winter: 38.909 t |
|
NT |
11.314 t registered Panama: 18.768,44 t Suez: 20.698,37 t |
|
Displacement |
Summer: 48.128 t Winter: 47.216 t |
|
Length |
181,78 m overall 173,00 m Between perpendiculars |
|
Breadth |
27,42 m extreme |
|
Draught |
Summer: 11,93 m Winter: 11,72 m |
|
Keel to masthead |
46,25 m |
|
Air draft |
34,32 m Summer deadweight 38,04 m normal ballast 43,91 m lightship |
|
Freeboard |
Summer: 5.007 mm Winter: 5.210 mm |
|
Depth |
16,90 m moulded |
|
Speed |
14,5 knots laden - 12,0 knots economic 15,0 knots ballast - 12,5 knots economic |
|
Built |
2007 |
|
Keel laid |
20/11/2006 |
|
Launch date |
01/02/2007 |
|
Delivery date |
20/06/2007 |
|
Builder |
Saiki Heavy Industries Co.Ltd. |
|
Yard number |
1160 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 3 Oil tight: 12 |
|
Main engine |
1x Akasaka/Mitsubishi 6UEC 52LS- 6 cylinder 520 x 1.850 mm combustion engine 7.182 kW at 120,0 rpm Manufacturer: Akasaka Diesel Limited. ( Mitsubishi Heavy Ind., Ltd ) |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co., Ltd. Tamashima Works |
|
Boilers |
1x Auxiliary boiler (vertical oil fired) - 7,0 bar 1x Exhaust gas boiler - 7,0 bat Manufacturer: Osaka Boiler Mfg.Co.,Ltd. |
|
Generators |
3x Yanmar 6N18AL-EV main diesel generatorsets each 660 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
1x 884 bhp |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
84.436,94 m³ |
|
Capacity of each natural segregation 98% |
Seg#1: 5.740,65 m³ (1P 1S) |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
1.263,75 m³ |
|
Pumps |
2x Centrifugal ballast pumps each 600 m³/h 10x Centrifugal cargo pumps each 500 m³/h 2x Centrifugal cargo pumps each 500 m³/h 2x Centrifugal cargo pumps each 200 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 59,00 m Bow to centre manifold: 90,88 m Stern to centre manifold: 90,90 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.440 mm Distance manifold to ships side: 4.640 mm Top of rail to centre of manifold: 500 mm Distance main deck to centre of manifold: 1.900 mm Spill tank grating to centre of manifold: 950 mm |
|
Number of tanks |
Ballast: 17 Lubricating oil: 14 Diesel oil: 9 Fresh water: 8 Fuel oil: 7 Waste water :6 Sludge: 5 Chain: 2 |
|
Tank capacities 100% |
Diesel Oil: 189,28 m³ Freshwater: 335,55 m³ Fuel oil: 1.254,45 m³ Lube oil: 134,73 m³ Tank Ballast: 16.270,97 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t Manufacture: Mitsubishi Heavy Ind. Ltd. 1x Provision crane - SWL 2,5 t Manufacture: Mansei Industry Co.,Ltd. |
|
Manager |
Hafnia Handy Pool Management |
|
Technical operator |
Donnelly Tanker Management Ltd |
|
Commerical operator |
Hafnia Management A/S |
|
Registered owner |
Hafnia Tankers Shipholding Pte., Ltd. |
|
Latest data adjustment |
29 November 2018 |
