Westerschelde 08 March 2019 |
 |
 |
 |
||

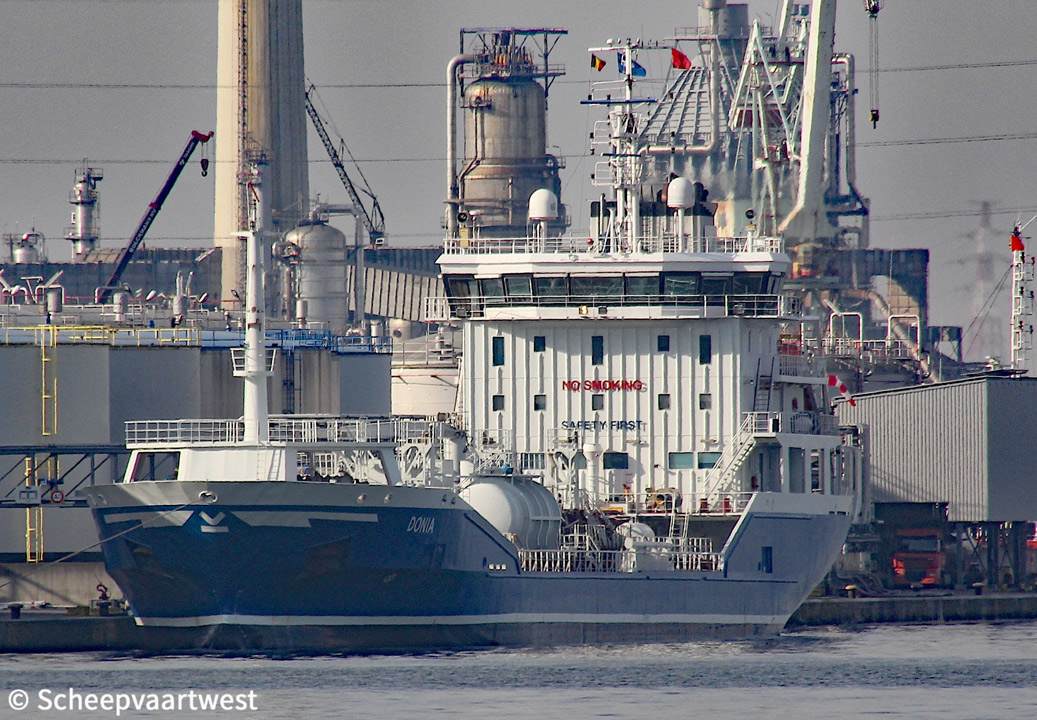

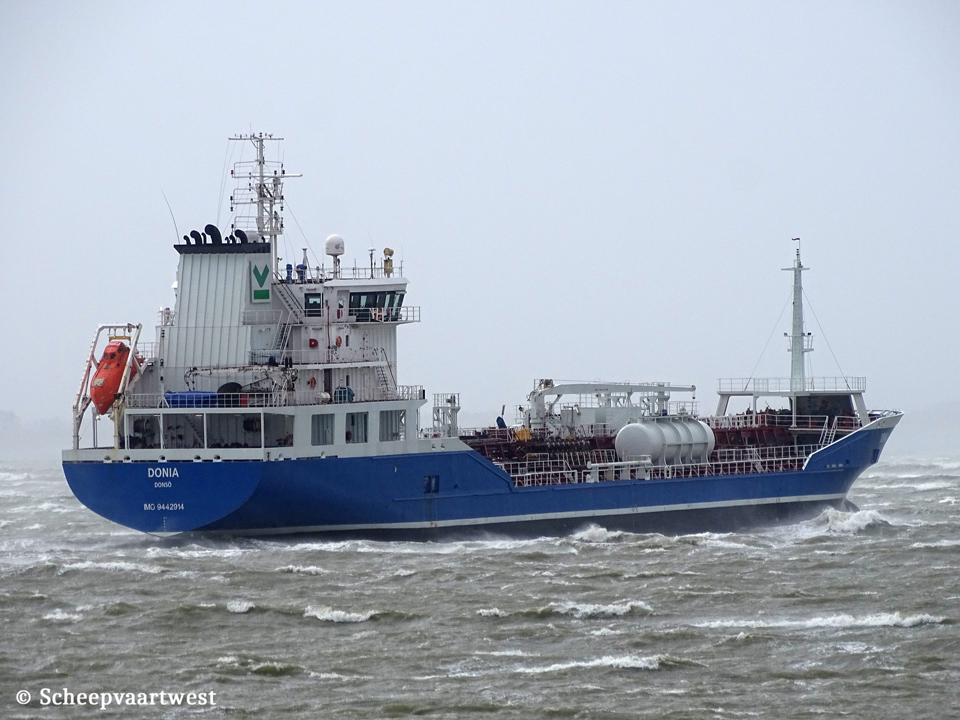

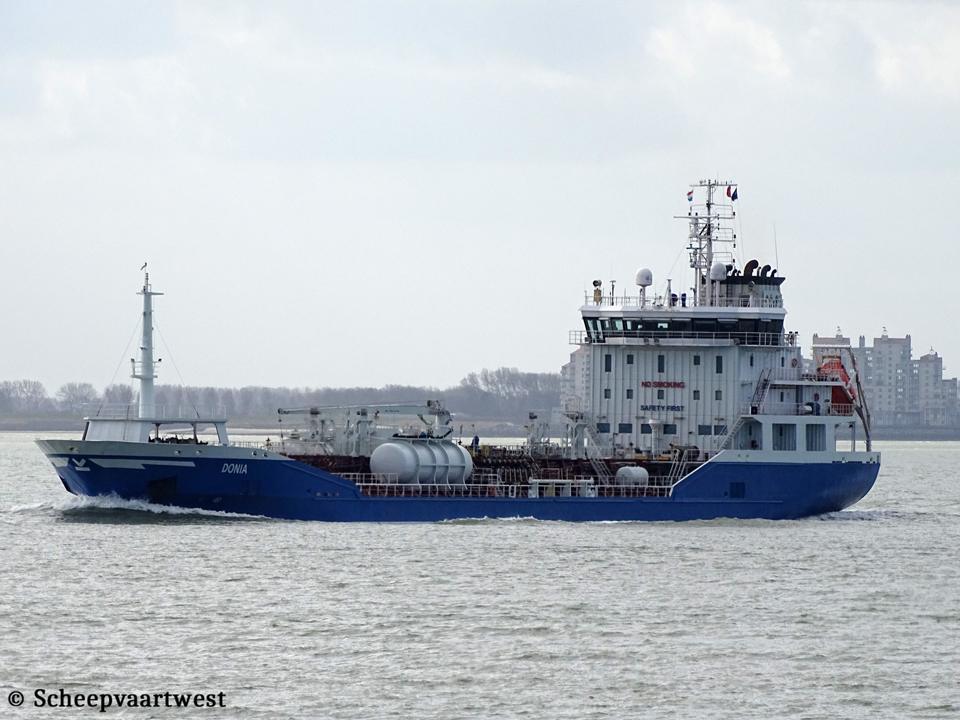

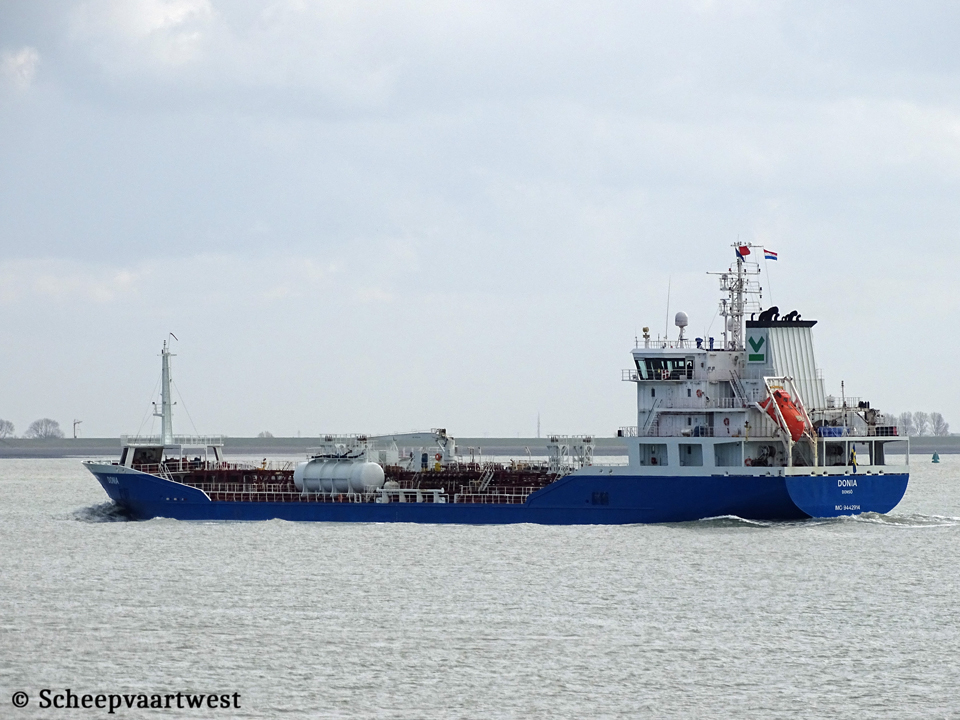

| Westerschelde 08/03/19 | Westerschelde 08/03/19 | Antwerpen 18/02/19 | ||
|
Name |
DONIA |
|
Previous names |
2008 - 2017 Besiktas Halland |
|
Type |
Tank for oil and chemicals |
|
IMO-number |
9442914 |
|
Call sign |
SGCJ |
|
Flag |
Sweden |
|
Port of registry |
Donsö |
|
Previous flags |
2008 - 2017 Malta, Valletta - Cal sign: 9HOO9 |
|
GT |
5.261 t |
|
DWT |
Summer: 7.701,34 t |
|
NT |
2.450 t |
|
Length |
122,66 m overall 115,31 m between perpendiculars |
|
Breadth |
17,20 m |
|
Draught |
Max: 6,86 m |
|
Keel to mast end |
35,44 m |
|
Freeboard |
1.957 mm |
|
Depth |
8,80 m |
|
Speed |
14,5 knots |
|
Built |
2008 |
|
Date of completion |
30/04/2008 |
|
Builder |
Karadeniz Gemi Insa San Ve Tic. A.S. (UNYE) Turkey |
|
Yard number |
05 |
|
Hull material |
Steel |
|
Hull type |
Double sides, double bottom |
|
Continuous deck |
1 |
|
Main engine |
1x MaK 8M32 - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.217 hp at 600 rpm |
|
Propellers |
1x Screw propeller controllable pitch - aft 4 blades, diameter 4.300 mm |
|
Boilers |
2x CHO Aalborg 57,00 m² - 13,0 bar 1x CHR Aalborg 47,20 m² - 10,0 bar 1x CHS Aalborg 18,00 m² - 10,5 bar |
|
Shaft generator |
1x 1.400 kVA - 1.120 kW |
|
Generators |
3x MAN Lindenberg V 12 main diesel generatorsets each 775 kVA - 620 kW - 842 hp at 1.800 rpm |
|
Emergency generator |
1x Diesel generatorset 187 kVA - 150 kW - 257 hp |
|
Bow thruster |
1x Schottel electric driven bow thrusters 450 kW |
|
Number of cargo tanks |
12 Wing tanks P/S 1-6 |
|
Total cap. of tanks 98% |
8.429,3 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
91,4 m³ each |
|
Segregations |
12 grades completely segregated by separate lines and pump |
|
Pumps |
12x Electric driven deep-well Svanhöj DL pumps, type 132d each 150 m³/h |
|
Loading rate |
600 m³/h each segregation |
|
Discharging rate |
1.200 m³/h |
|
Manifolds |
Manifold to deck: 1,80 m Manifold to bow: 59,05 m |
|
Tank capacities |
Fuel oil: 452 m³ Diesel oil: 48,2 m³ Ballast water: 3.637,3 m |
|
Lifting equipment |
1x Hose-handling crane with a rigid beam of 20 m - SWL 1,0 t |
|
Manager |
Kiltank Shipping AB Kilenvägen 12 SE-43082 Donsö Sweden |
|
Operator |
Sirius Shipping AB Hälleflundregatan 16 Se-426 58 Västra Frölunda Sweden |
|
Registered owner |
PR M/T Donia |
|
Latest data adjustment |
11 November 2022 |
