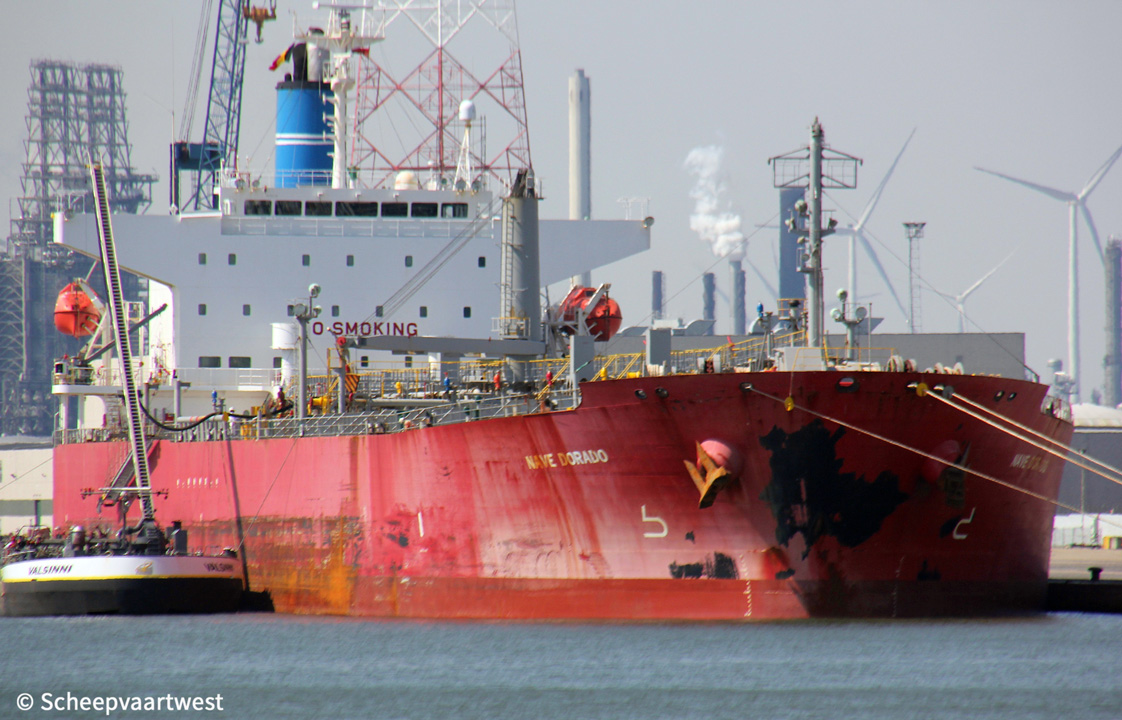

Nave Dorado 01

Antwerpen 19 April 2019



Name

NAVE DORADO

Previous names

2005 - 24/09/2013 Kuroshio Express

Type

Oil product tanker - Panamax

IMO-number

9325336

Call sign

3ECL5

Flag

Republic of Panama

Port of registry

Panama City

GT

28.799 t registered

Suez: 30.143,31 t

DWT

Summer: 47.999 t

Winter: 46.653 t

NT

12.962 t

Suez: 29.732,95 t

Panama: 23.913 t

Displacement

Summer: 57.326 t

Winter: 55.980 t

Length

179,99 m overall

Breadth

32,23 m moulded

Draught

Summer: 12,49 m

Winter: 12,23 m

Moulded L x B x D

172,00 x 32,23 x 19,05 m

Registered L x B x D

173.47 x 32,23 x 19,05 m

Keel to masthead

44,65 m

Air draft

Summer deadweight: 32,16 m

Normal ballast: 38,65 m

Lightship: 42,32 m

Freeboard

Summer: 6.593 mm

Winter: 6.850 mm

Depth

19,05 m moulded

Speed

Ballast: 15,7 knots

Laden: 15,1 knots

Built

2005

Keel laid

12/08/2004

Launch date

25/03/2005

Date of completion

23/08/2005

Builder

Iwagi Zosen Co., Ltd.
Kamijima
Japan

Yard number

231

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsui/MAN B&W 6S 50 MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.890 bhp at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 490 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary water tube boiler - 1,76 Mpa

Evaporation: 32,00 t/h

Manufacturer: Mitsubishi Heavy Ind., Ltd. (Marukin Sato Shipbuilding & Iron Products Co., Ltd.)

Generators

3x Daihatsu 5 DC-17 main diesel generatorsets each 480 kW

Number of tanks

16

Cargo tank capacity 98%

54.753,9 m³

Number of slop tanks

2

Slop tank capacity 98%

1.341,40 m³

Capacity of each natural segregation 98%

Seg#1: 12.671,15 m³ (1Wing, 5Wing & Slop S)
Seg#2: 14.130,10 m³ (2 Wing & 6 Wing)
Seg#3: 15.216,67 m³ (3 wing,7 Wing & Slop P)
Seg#4: 140.77,50 m³ (4Wing & 8 Wing)

Pumps

1x Centrifugal ballast pump 1.500 m³/h

4x Centrifugal cargo pumps each 1.250 m³/h

Manifolds

Distance bridge front to centre of manifold: 54,91 m

Bow to centre manifold: 92,37 m

Stern to centre manifold: 87,61 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.441 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 700 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.139,20 m³

Gas oil: 1.038 m³

Fresh water: 519 m³

Technical operator

Synergy Maritime Private Limited
4th floor, AKDR Tower, 3/381,Rajiv Gandhi Salai (OMR), Mettukuppam
Chennai 600097
India

Commercial operator

ST Shipping and Transport Pte Ltd.
1 Temasek Avenue #34-01 Millenia Tower Singapore
Republic of Singapore

Registered owner

Antipaxos Shipping Corporation
Trust Company Complex, Ajeltake Road
Ajeltake Island
Majuro,

Marshall Islands, MH96960

Disponent owner

ST Shipping and Transport Pte Ltd.
1 Temasek Avenue #34-01 Millenia Tower Singapore
Republic of Singapore

Previous names & owners

2005 - 24/09/2013 Kuroshio Express - Los Halillos Shipping SA / Shikoku Plaza Sangyo Kisen Ltd.

Latest data adjustment

30 April 2019
