Westerschelde 01 May 2019 |
 |
 |
 |
 |
 |
||||
| Westerschelde 01/05/19 | Westerschelde 05/02/20 | Westerschelde 05/02/20 | Westerschelde 30/03/19 | Westerschelde 01/08/20 | ||||
|
Name |

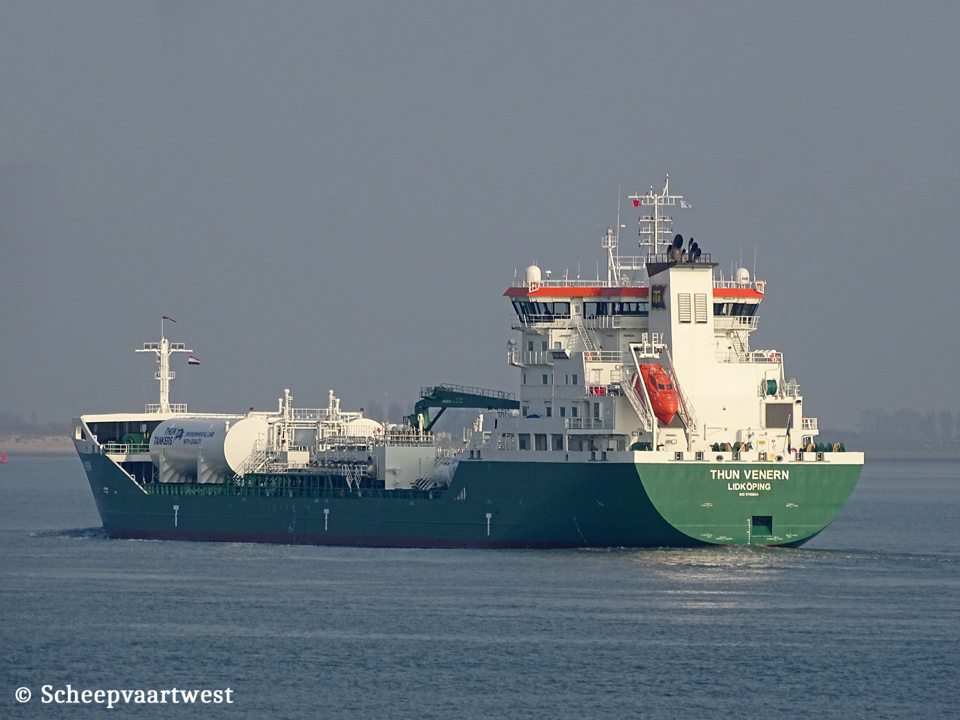

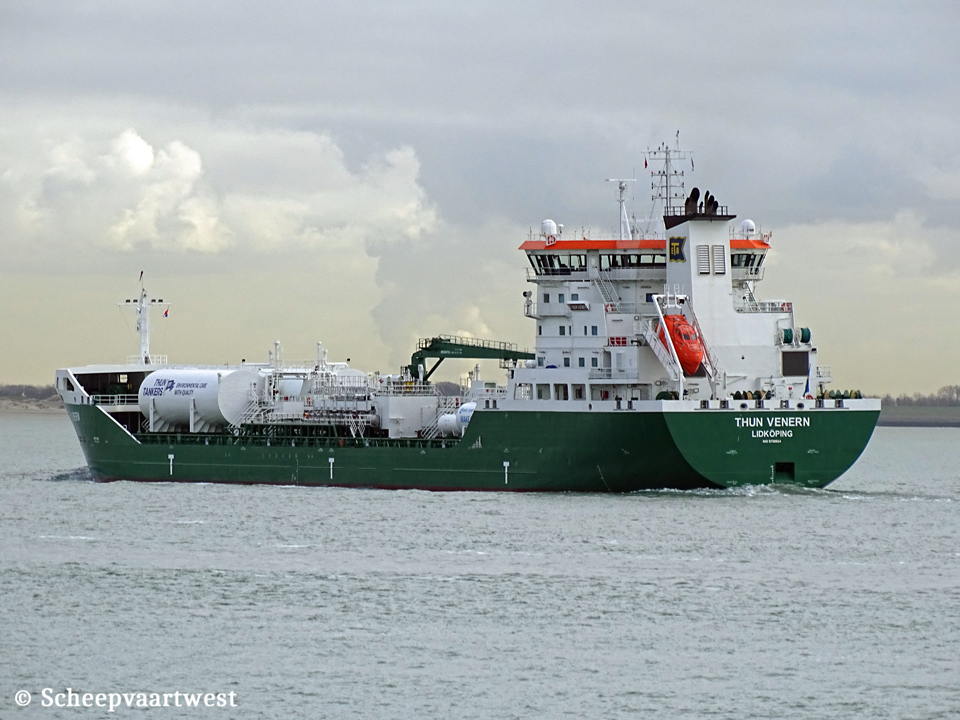

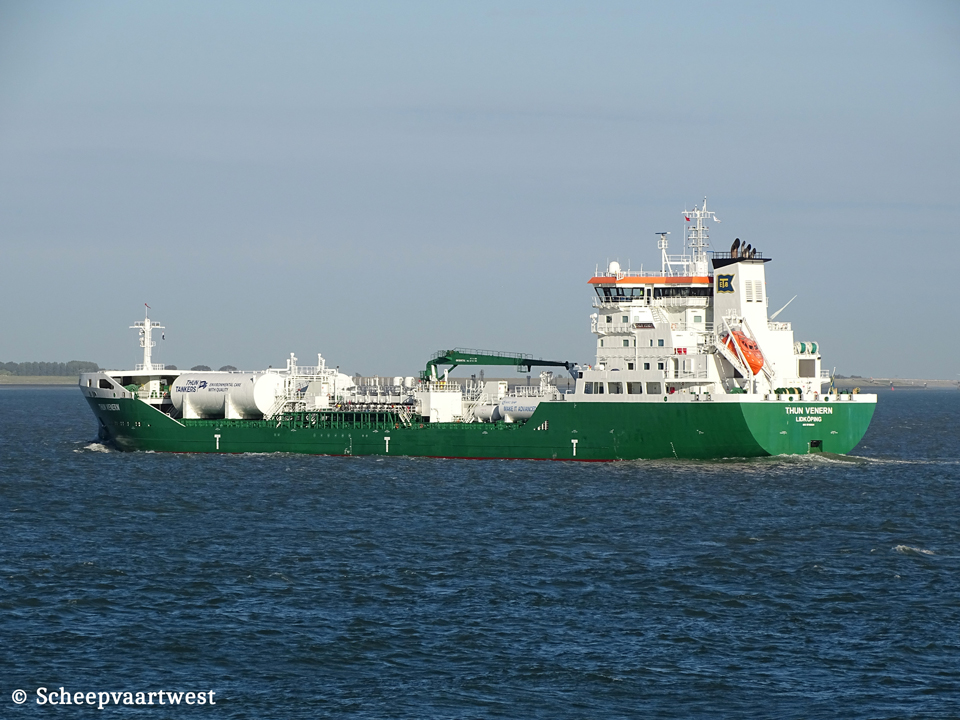

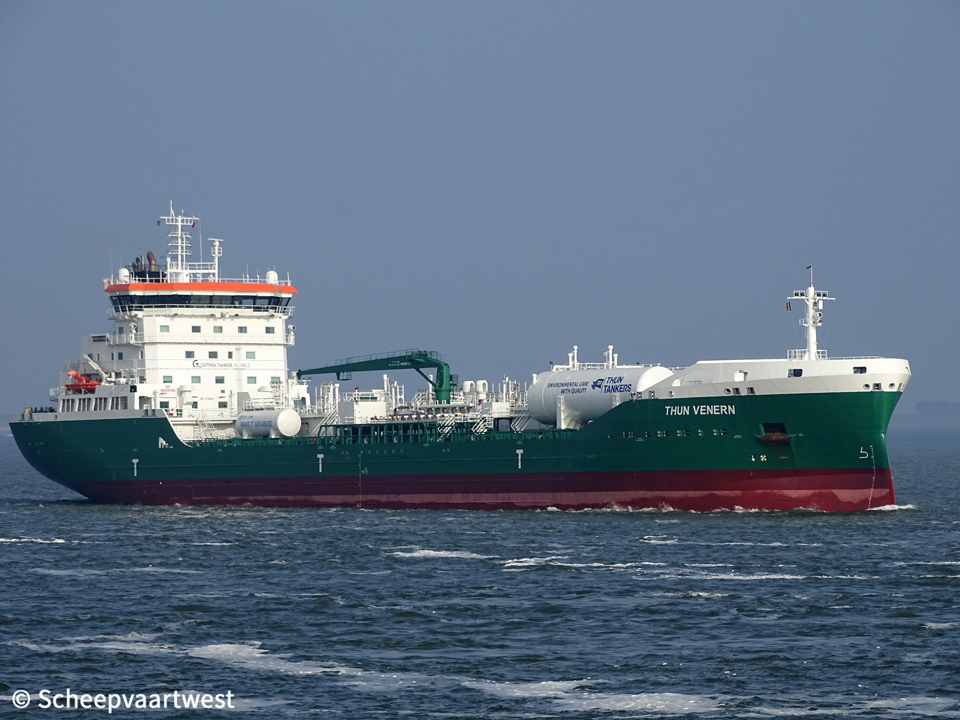

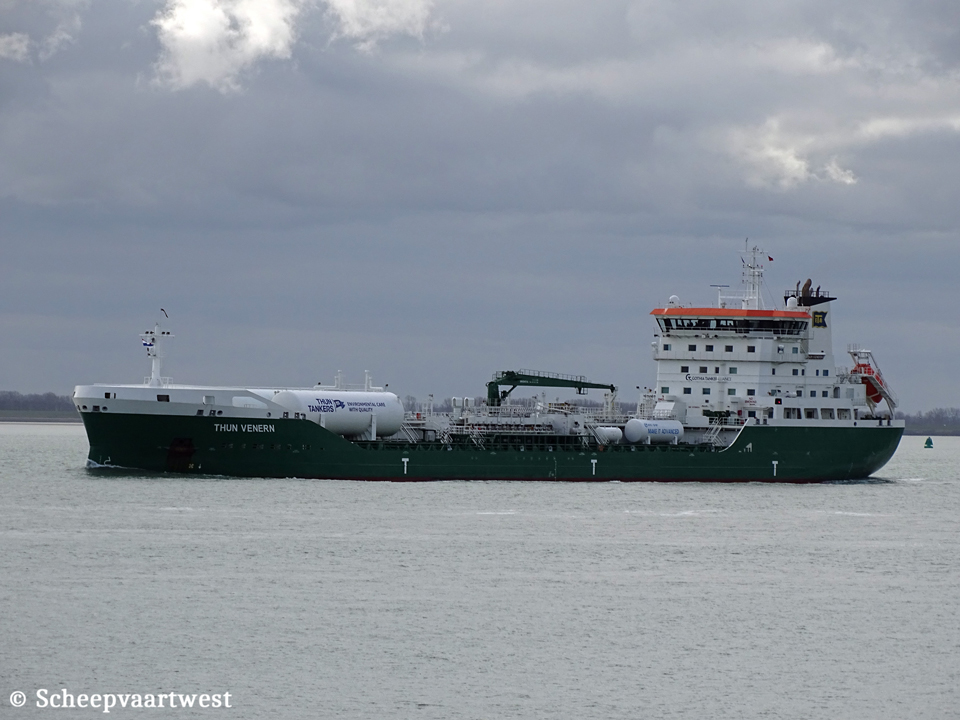

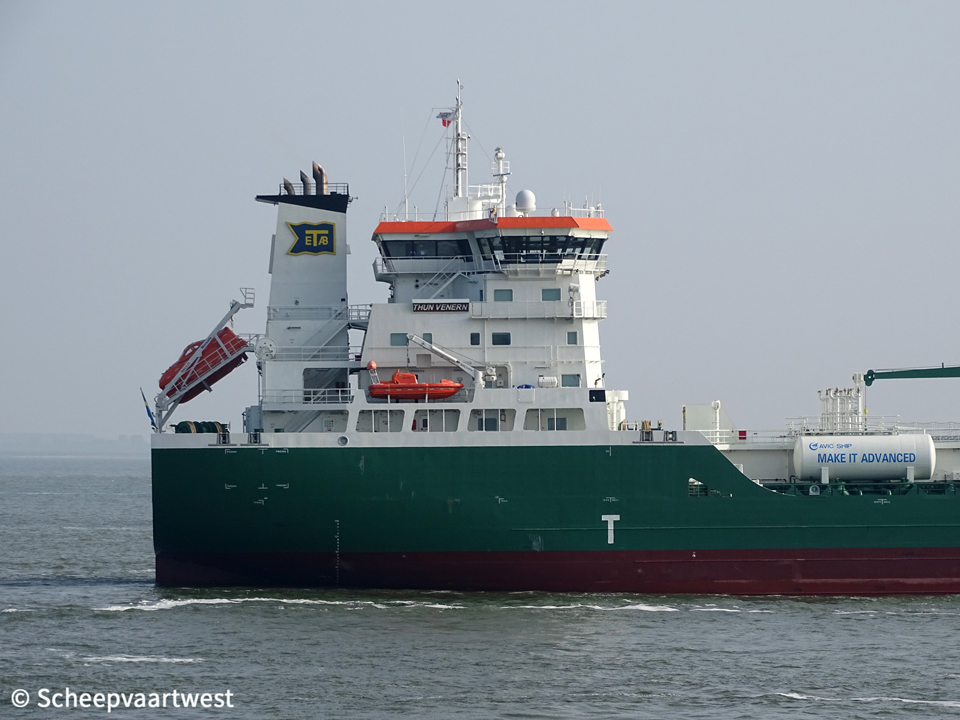

THUN VENERN |
|
Type |
Oil product/Chemical tanker |
|
Main products |
Chemicals |
|
IMO-number |
9739824 |
|
Call sign |
SGTE |
|
Flag |
Sweden |
|
Port of registry |
Lidköping |
|
GT |
12.770 t |
|
DWT |
17.998 t |
|
NT |
5.838 t |
|
Length |
149,90 m overall 146,64 m between perpendiculars |
|
Breadth |
22,80 m |
|
Draught |
Max: 9,36 m |
|
Freeboard |
2.752 mm |
|
Depth |
12,10 m |
|
Speed |
Max: 15,50 m Service: 13,0 knots |
|
Built |
2018 |
|
Date of completion |
27/09/2018 |
|
Builder |
Avic Dingheng Shipbuilding Co., Ltd. China |
|
Yard number |
AD0028 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L34DF - 4 stroke 9 cylinder 340 x 400 mm dual-fuel combustion engine 4.500 kW / 6.114 hp at 750 rpm Build: 20/12/2017 Builder: Wärtsilä Finland Oy, Vaasa - Finland |
|
Propellers |
1x Controllable pitch propeller- aft at 108,0 rpm |
|
Boilers |
1x CHM 235,00 m² - 10,0 bar 1x CHO 64,00 m² - 10,0 bar |
|
Shaft generator |
1x 2.250 kVA - 1.800 kW |
|
Generators |
1x Main combustion engine generatorset 856 kVA - 685 kW - 980 hp 1x Main combustion engine generatorset 2.000 kVA - 1.600 kW - 2.262 HP |
|
Emergency generator |
1x Combustion engine generatorset 250 kVA - 200 kW - 345 hp |
|
Bow thruster |
850 kW |
|
Number of cargo tanks |
12 |
|
Total capacity of tanks |
20.216,5 m³ |
|
Tank capacities |
Fuel: 674.9 m³ |
|
ISM & commercial manager |
Furetank Rederi AB Korsholmebacke 1 SE-430 82 Donso Sweden |
|
Registered owner |
Erik Thun AB Östra Hamnen 7 531 32 Lidköping Sweden |
|
Latest data adjustment |
07 January 2023 |
