Antwerpen 01 July 2019 |
|
| Westerschelde 03/07/19 |
|
Name |

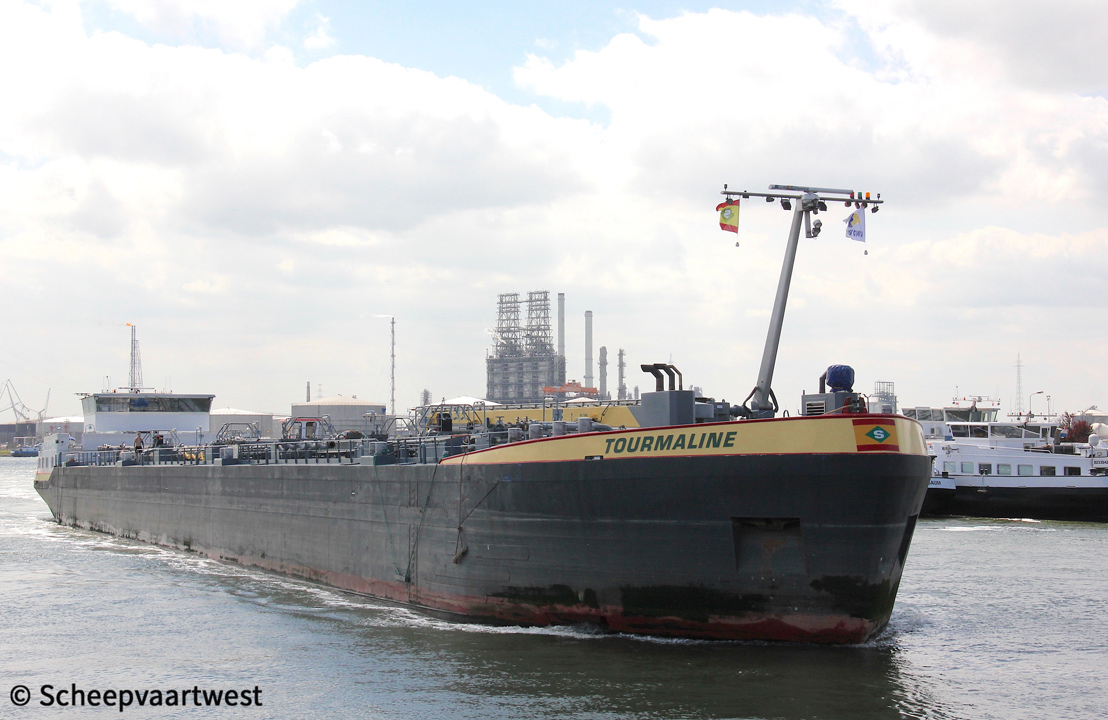

TOURMALINE |
|
Type |
Inland tanker |
|
ENI-number |
02333290 |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Remich |
|
GT |
2.290 t |
|
Tonnage |
4.224 t |
|
Length |
109,99 m overall 106,25 m between perpendiculars |
|
Breadth |
13,50 m |
|
Draught |
4,35 m |
|
Depth |
5,20 m |
|
Built |
2010 |
|
Date of completion |
04/11/2010 |
|
Builder casco |
Yaosheng Steelstructure Nantong China |
|
Builder completion |
TeamCo Shipyard BV Heusden The Netherlands |
|
Yard number |
164 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x ABC 6 MDZC - 4 stroke 6 cylinder combustion engine 1.326 kW / 1.802 hp at 1000 rpm Manufacturer: Anglo Belgian Corporation N.V., Gent - Belgium |
|
Gearbox |
1x Masson Marine type MM W18000 - reduction 3,407:1 |
|
Propellers |
1x Screw propeller solid 5 blades - diameter 1.850 mm |
|
Generators |
1x Diesel generatorset 81 kVA - 65 kW - 158 hp 1x Diesel generatorset 65 kVA - 52 kW - 101 hp 2x Diesel generatorsets each 405 kVA - 324 kW - 450 hp |
|
Bow thruster |
1x Scania - Verhaar Omega Jet type 31130-4k - 600 hp at 1.800 rpm |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
4.450 m³ |
|
Pumps |
6x Bornemann cargo pumps each 200 m³/h coupled with ABB electro motor each 84 kW |
|
Pump capacity |
1.000 m³/h |
|
Tank capacities |
Fuel: 74 m³ |
|
Owner |
Somers Lux Remich G.D. Luxembourg |
|
Previous names & owners |
2010 - 2016 Tourmaline - Petra Lasso Pena Tankreederei I SA, Luxembourg - G.D. Luxembourg |
|
Latest data adjustment |
15 January 2020 |
