Antwerpen 12 December 2019 |
|
Name |

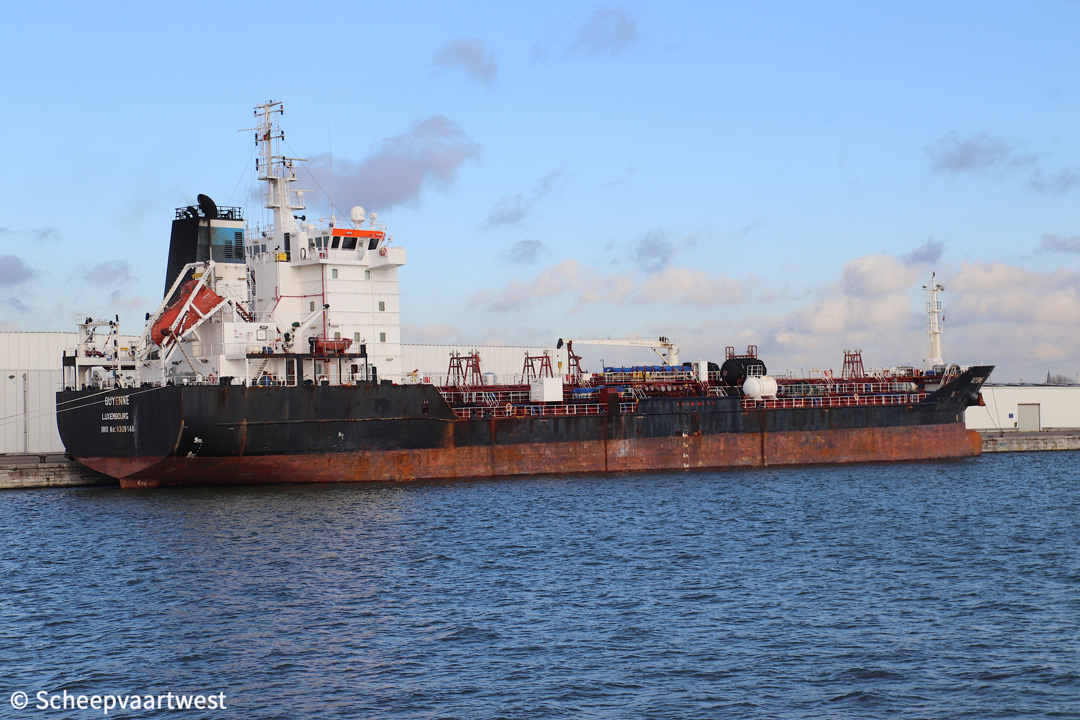

GUYENNE |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9309148 |
|
Call sign |
LXGI |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxembourg City |
|
Previous flags |
2010 -2014 France, Marseille - Call sign: FMFQ 2014 - 2017Belgium, Antwerpen - Call sign: ONHW |
|
GT |
6.717 t |
|
DWT |
Summer: 11.336 t Winter: 10.921 t |
|
NT |
3.277 t |
|
Lightship |
3.579 t |
|
Length |
119,85 m overall 112,60 m between perpendiculars |
|
Breadth |
18,80 m |
|
Draught |
Summer: 8,23 m Winter: 8,06 m |
|
Keel to mast end |
39,60 m |
|
Freeboard |
2.276 mm |
|
Depth |
10,50 m |
|
Speed |
Service: 13,5 knots Max: 15,1 knots |
|
Built |
2006 |
|
Date of completion |
22/03/2006 |
|
Builder casco |
RMK Marine Gemi Yapim San. Ve Deniz Tas. Islt. A.S. Turkey |
|
Builder completion |
Barreras (Astillero Hijos de J.) Vigo Spain |
|
Yard number |
1629 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK-Caterpillar 9M32 - 4 stroke 9 cylinder 320 x 180 mm combustion engine 4.320 kW / 5.870 hp at 600 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 130,0 rpm 4 blades |
|
Boilers |
1x CHO Gesab 122,80 m² / 10,0 bar 1x CHR Gesab 191,70 m² / 10,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V |
|
Shaft generator |
1x 950 kVA - 760 kW |
|
Generators |
3x Main diesel generatorsets each 1.345 kVA - 1.076 kW - 1.549 hp |
|
Emergency generator |
1x Diesel generatorset 269 kVA - 215 kW - 311 hp |
|
Bow thruster |
1x 500 kW |
|
Number of cargo tanks |
12 |
|
Total capacity of tanks |
11.434 m³ |
|
Natural segregations |
6 1P + 1S: 1.358 m³ 2P + 2S: 2.232 m³ 3P + 3S: 1.944 m³ 4P + 4S: 1.308 m³ 5P + 5S: 1.820 m³ 6P + 6S: 1.772 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
272 m³ |
|
Total cargo capacity 98% |
11.706 m³ |
|
Pumps |
12x Deepwell centrifugal cargo pumps eh 350 m³/h |
|
Tank capacities |
Fuel: 493 m³ gas oil: 120 m³ Fresh water: 133 m³ Lub oil: 25 m³ |
|
Operator |
ST Management SAS |
|
Registered owner |
Sea-Tankers Shipping SAS |
|
Latest data adjustment |
02 February 2020 |
