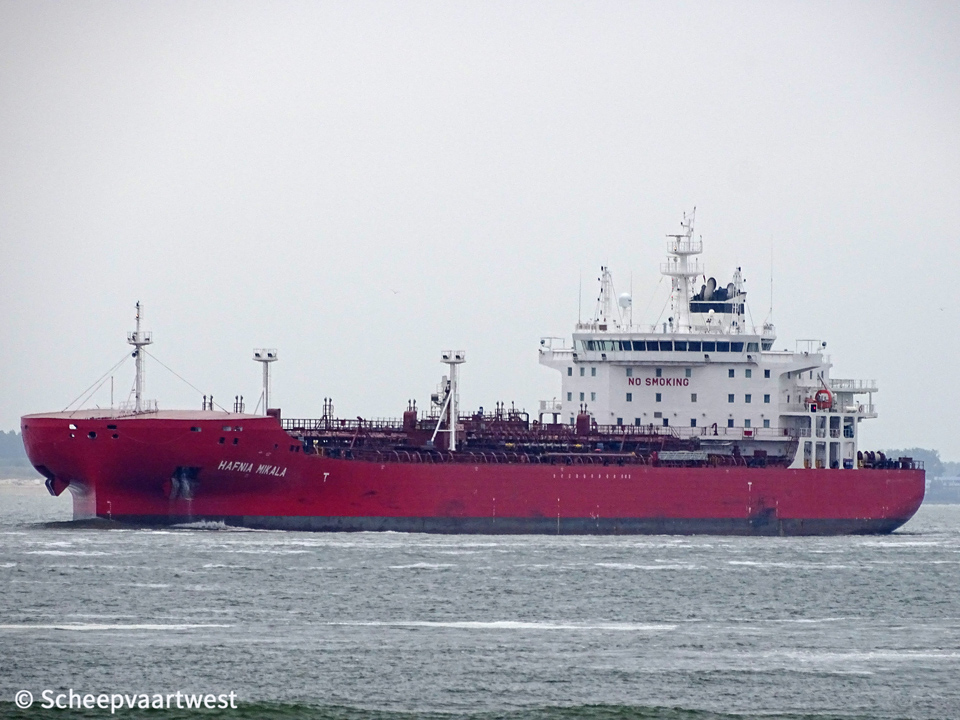

Westerschelde 19 May 2018 |
|
Name |
HAFNIA MIKALA |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9732709 |
|
Call sign |
9HA4395 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
29.658 t Suez: 30.415,32 t |
|
DWT |
Summer: 49.999 t Winter: 48.483 t |
|
NT |
14.407 t Suez: 26.140,56 t Panama: 30.064 t |
|
Displacement |
Summer: 60.945,1 t Winter: 59.429,1 t |
|
Length |
183,20 m overall 178,41 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
Summer: 12,84 m Winter: 12,57 m |
|
Keel to masthead |
45,28 m |
|
Air draft |
Summer deadweight: 32,44 m Normal ballast: 37,39 m Lightship: 42,31 m |
|
Freeboard |
Summer: 5.375 mm Winter: 5.642 t |
|
Depth |
18,20 m moulded |
|
Speed |
Ballast: Max: 15,5 knots - Economic: 13,0 knots Laden: Max: 15,1 knots - Economic: 12,0 knots |
|
Built |
2017 |
|
Keel laid |
10/12/2015 |
|
Launch date |
28/12/2016 |
|
Date of completion |
18/05/2017 |
|
Builder |
Guangzhou Shipyard International Company Limited Guangzhou China |
|
Yard number |
13130066 |
|
Hull material |
Steel |
|
Hull type |
Double bottom with hopper Double side |
|
Main engine |
1x MAN 6S50ME-B9.3 - 6 cylinder combustion engine 7.628 kW |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite Aalborg OC 1x Auxiliary boiler, oil/gas fired Aalborg OL Manufacturer: Alfa Laval Aalborg A/S |
|
Generators |
3x Anqing Daihatsu 6DK-20e main diesel generatorsets each 910 kW Manufacturer: Daihatsu Diesel Mfg. Co. Ltd Moriyama Division |
|
Emergency generator |
1x Cummins 6CTA-8.3-D(M) diesel generatorset |
|
Number of cargo tanks |
10 |
|
Cargo tank capacity 98% each natural segregation with double valve |
1W: 7.027,77 m³ 2W: 9.651,24 m³ 3W: 9.946,68 m³ 4W: 9.947,12 m³ 5W: 9.819,60 m³ Total: 46.392,41 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
6.977,1 m³ |
|
Pumps |
2x Centrifugal pumps each 800 m³/h 12x Marflex Deepwell cargo pumps each 550 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 61,60 m Bow to centre manifold 89,60 m Stern to centre manifold: 93,60 m Distance between cargo manifold centres: 2.010 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4,600 mm Top of rail to centre of manifold: 1.102 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Fuel oil: 4.491,8 m³ Diesel oil: 174,3 m³ Ballast: 21.303,9 m³ |
|
Anchor equipment |
Length: 638,20 m Diameter: 73 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t Midship |
|
Technical operator |
Thome Ship Management Pte. Ltd. 16, Raffles Quay# 43-01, Hong Leong Building Singapore 048581 republic of Singapore |
|
Commercial operator |
Hafnia Pools Pte. Ltd. Mapletree Business City 10 Pasir Panjang Road #18-01 Singapore 117438 Republic of Singapore |
|
Registered owner |
Hafnia Tankers Shipholding Alpha Pte Ltd. 10 Pasir Panjang Road, 18-01 Mapletree Business City 117438 Singapore Republic of Singapore |
|
Latest data adjustment |
15 January 2020 |
