Terneuzen, The Netherlands 16 August 2019 |
 |
 |
 |
||

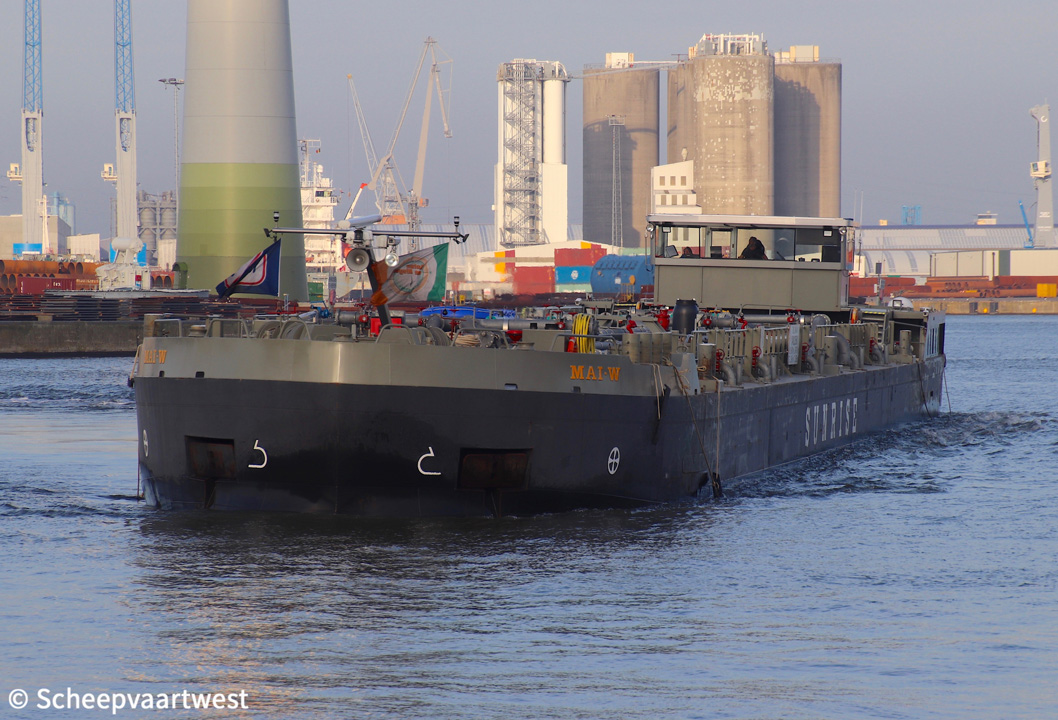

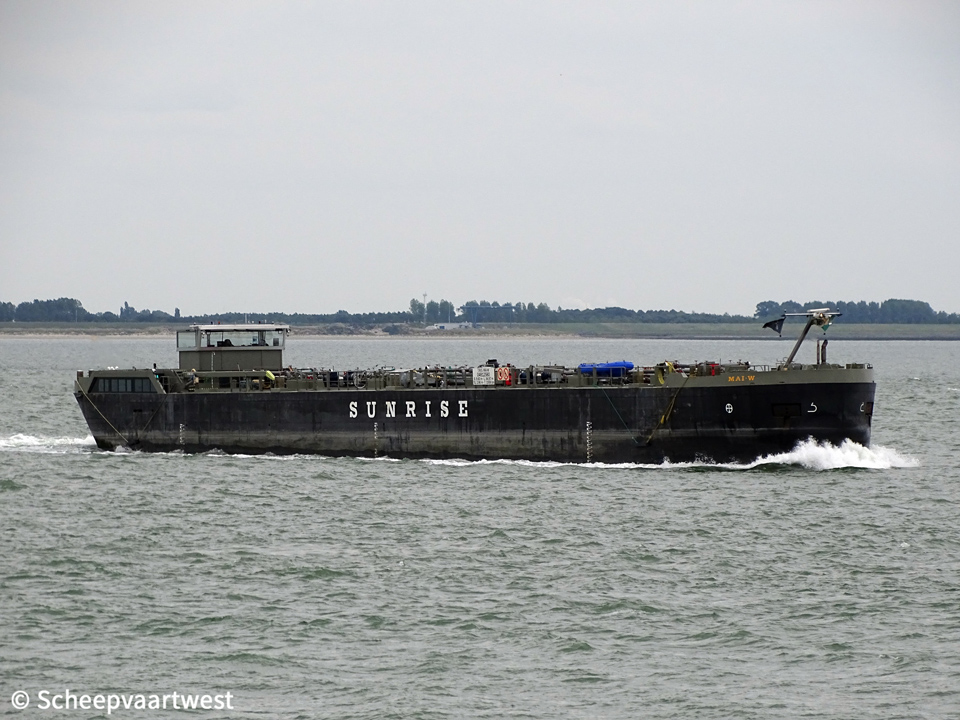

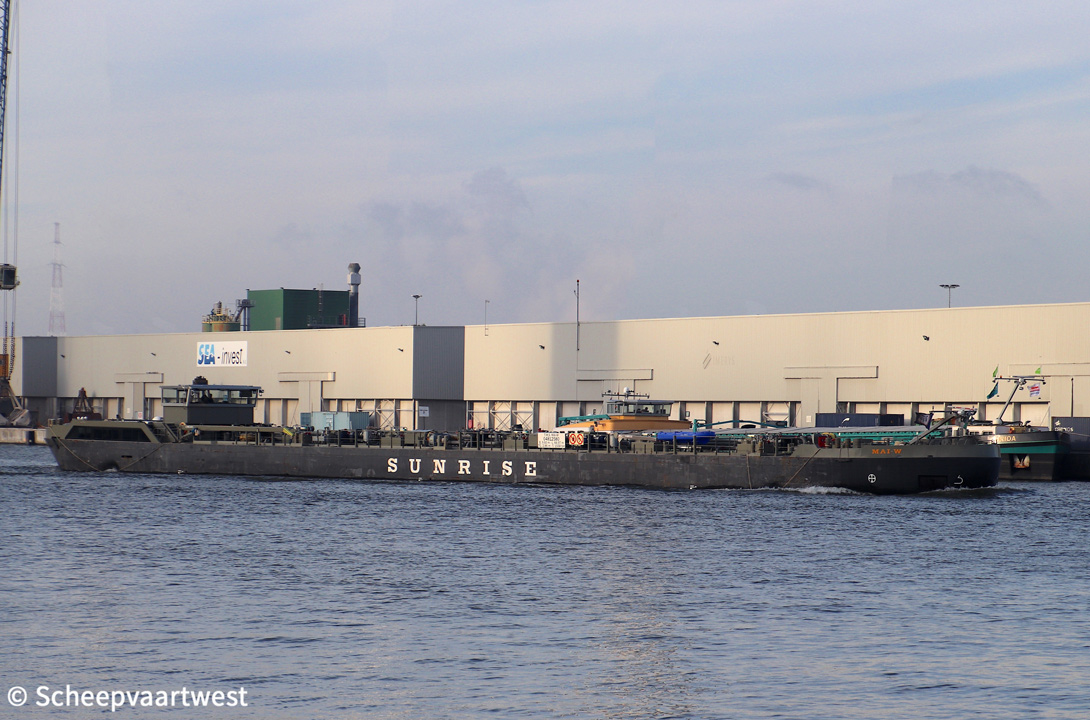

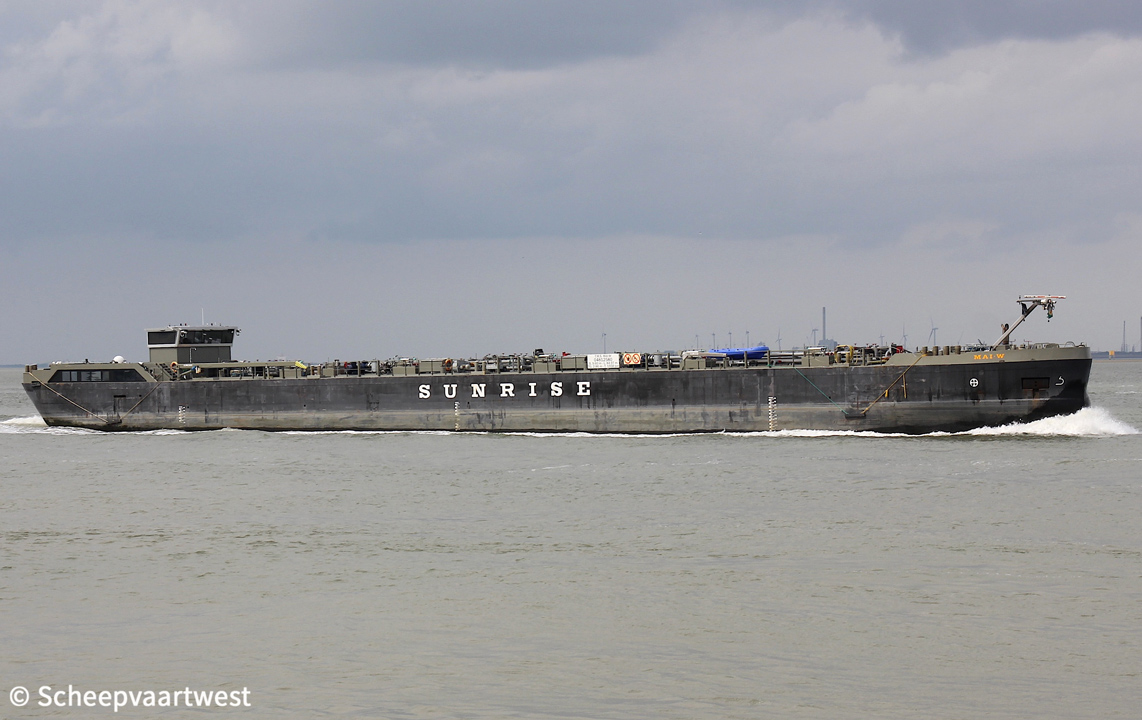

| Antwerpen 31/12/19 | Antwerpen 31/12/19 | Westerschelde 16/08/19 | ||
|
Name |
MAI W |
|
Type |
Inland tanker |
|
ENI-number |
04812580 |
|
Call sign |
PC 6187 |
|
Flag |
Germany |
|
Port of registry |
Dentingen |
|
Tonnage |
1.558 t |
|
Length |
84,97 m |
|
Breadth |
9,60 m |
|
Draught |
2,85 m |
|
Built |
2017 |
|
Builder |
Groningen Shipyard B.V. Waterhuizen 8 9609 PA Waterhuizen The Netherlands |
|
Yard number |
175 |
|
Hull material |
Steel |
|
Main engine |
2x Volvo Penta D13MH combustion engine each 500 hp |
|
Gearbox |
2x Reintjes WAF164 - reduction: 5,044:1 |
|
Propellers |
2x 4 blades propellers - diameter 1.400 mm with 2 Van der Giessen OPTIMA nozzles |
|
Generators |
1 Volvo D9MH diesel engine coupled with Stamford HCM434E generator 306 kVA 1x John Deere 4045HFG82 diesel engine coupled with Stamford UCM274D generator 86 kVA 1x John Deere 4045TFU70 diesel engine coupled wit Stamford UCM224F generator 63 kVA |
|
Bow thruster |
1x Volvo Penta - Verhaar Omega-Jet - 260 hp / 190 kW at 1.780 rpm |
|
Number of cargo tanks |
5 |
|
Cargo tank capacity 97% |
1.798 m³ |
|
Pumps |
2x Kampers type 2C182/74XHE cargo pumps |
|
Owner |
T Van Steen Dertingen Germany |
|
Latest data adjustment |
25 February 2020 |
