Antwerpen 28 September 2019 |
|

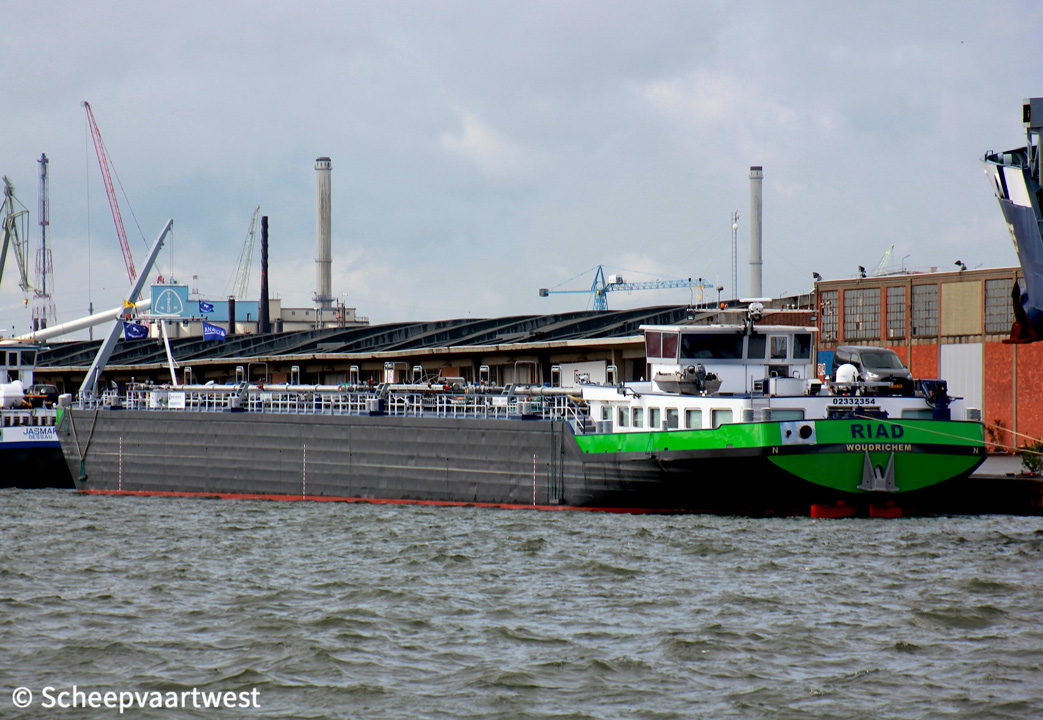

Name |
RIAD |
|
Type |
Inland tanker |
|
ENI-number |
02332354 |
|
Call sign |
PB4264 |
|
Flag |
The Netherlands |
|
Port of registry |
Woudrichem |
|
Tonnage |
2.792 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,31 m |
|
Depth |
4,70 m |
|
Built |
2009 |
|
Builder casco |
Kherson Shipyard Kherson Ukraine |
|
Builder completion |
Bijlsma Shipyard B.V. Lemmer The Netherlands |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA combustion engine 1.118 kW / 1.520 hp at 1.800 rpm |
|
Gearbox |
1x Masson marine type MM W7200 |
|
Propellers |
1x 5 blades propeller diameter 1.750 mm with nozzle Giessen Optima diameter 1.762 mm |
|
Generators |
1x Caterpillar C18 ACERT engine coupled with Marathon 572 RSL 4030 generator 525 kVA 1x Perkins 4.4 TW2GM engine coupled with Marathon 363 PSL 1607 generator 107 kVA 1x John Deere 4045 TFU 70engine coupled with Marathon 362 CSL 1604 generator 63 kVA |
|
Bow thruster |
1x Caterpillar - Verhaar Omega 31120-4k - 375 kW at 1.780 rpm |
|
Cargo tank capacity |
3.014 m³ |
|
Pumps |
2x Deepwell Pumps type MDPD-80 |
|
Owner |
W. Weima Woudrchem The Netherlands |
|
Renamed |
2020 Triade |
|
Latest data adjustment |
18 March 2020 |
