Antwerpen 28 September 2019 |
|
Name |

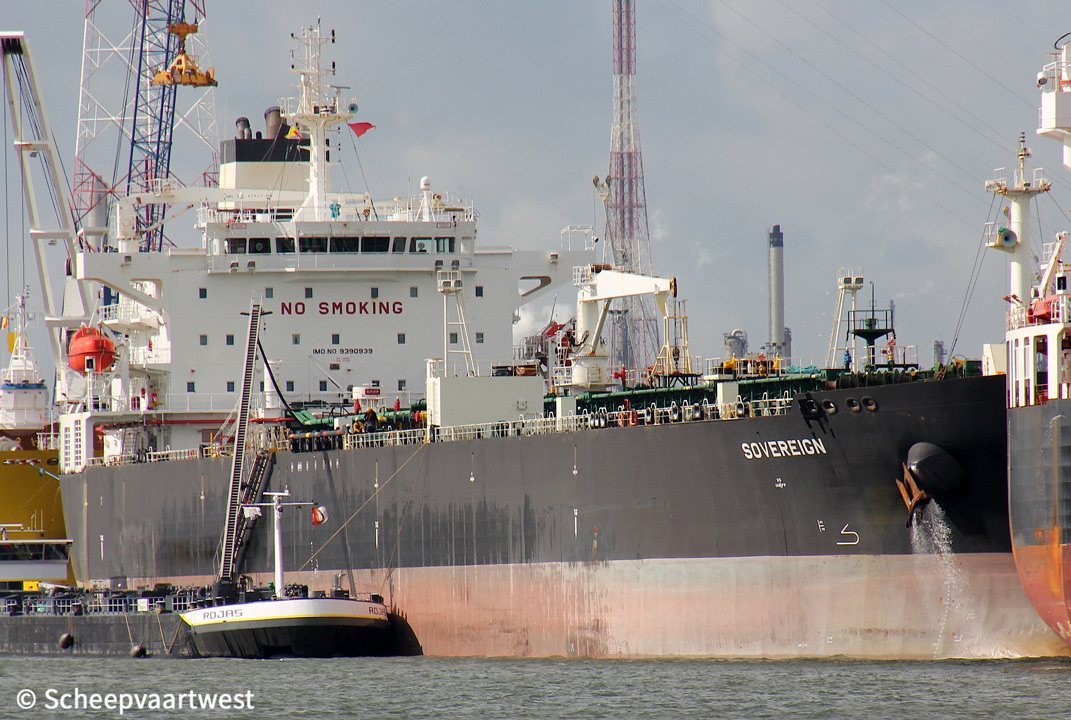

SOVEREIGN |
|
Type |
Crude and oil products carrier |
|
IMO-number |
9390939 |
|
Call sign |
A8MJ7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
42.331 t registered Suez: 43.366,95 t |
|
DWT |
Summer: 74.998 t |
|
NT |
21.943 t registered Panama: 34.966 t Suez: 38.664,85 t |
|
Displacement |
88.948 t |
|
Length |
228,00 m overall 219,00 m between perpendiculars |
|
Breadth |
32,24 m |
|
Draught |
Max: 14,43 m |
|
Freeboard |
6.500 mm |
|
Depth |
20,90 m moulded |
|
Speed |
Max: 15,3 knots |
|
Built |
2009 |
|
Keel laid |
13/03/2008 |
|
Launch date |
27/08/2008 |
|
Delivery date |
22/01/2009 |
|
Builder |
Sungdong S.B. & Marine Eng'g Co., Ltd. 940 Gongdan-Ro Gwangdo-Myeon Tongyoeng-Si,Gyung South Korea |
|
Yard number |
S3032 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Doosan/MAN-B&W 6S60MC - 2 stroke 6 cylinder 600 x 2.292 mm combustion engine 12.240 kW at 105,0 rpm Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Fixed propeller |
|
Boilers |
2x Auxiliary boiler - 20,0 bar each Manufacturer: Aalborg Ind. Ltd. 1x Exhaust gas boiler - 11,0 bar Manufacturer: KangRim Industries Co., Ltd. |
|
Generators |
3x Yanmar 6N21AL-DV - 6 cylinder 210 x 290 mm diesel engines each 745 kW at 900 rpm coupled with generators Taiyo FE 547B-8 680 kW each Manufacturer: Yanmar Co., Ltd. / Taiyo Electric Co., Ltd. |
|
Number of cargo tanks |
13 |
|
Cargo tank capacity |
82.450,90 m³ |
|
Number of slop tanks |
2 |
|
Tank capacities |
Ballast: 28.916,50 m³ Lube oil: 147,00 m³ Diesel oil: 148,60 m³ Fresh water: 364,10 m³ Fuel oil: 2.322,80 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 15,0 t 2x Provision crane - SWL 4,0 t each 1x Engine room overhead crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Operator |
Dynacom Tankers Management Ltd. Glifada 166 75 Greece |
|
Registered owner |
Xiang T96 Hk International Ship Lease Co., Limited |
|
Latest data adjustment |
18 March 2020 |
