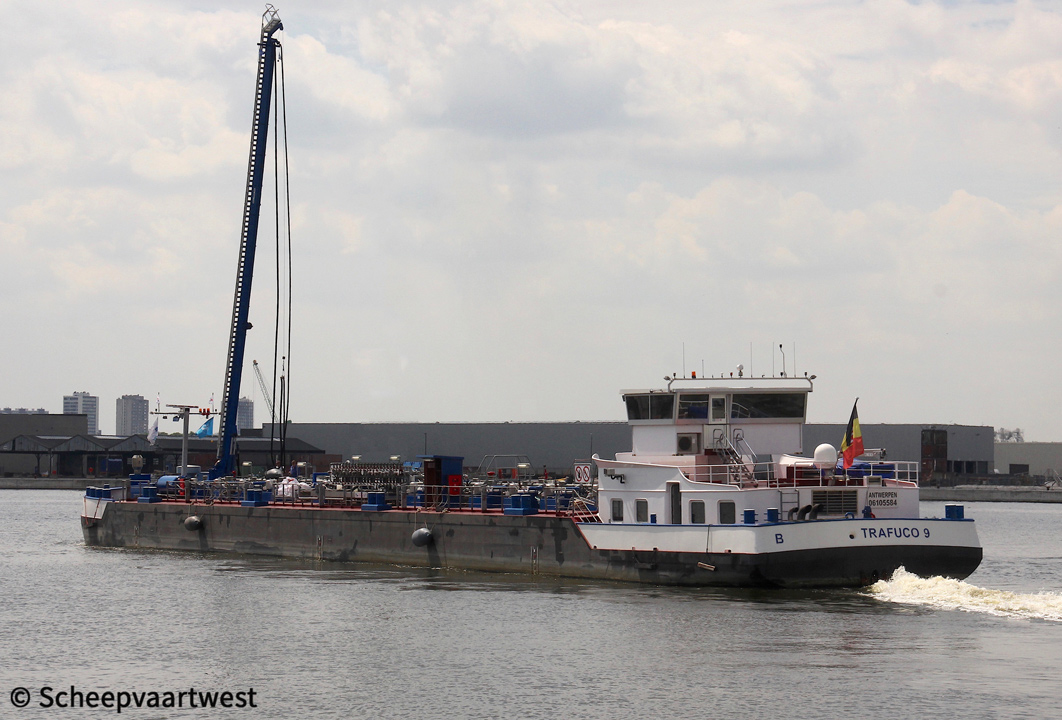

Trafuco 9 01

Antwerpen 09 July 2019



Name

TRAFUCO 9

Type

Inland tanker

ENI-number

06105584

Call sign

OT5392

Flag

Belgium

Port of registry

Antwerpen

GT

983 t

Tonnage

1.500 t

Length

73,00 m overall

Breadth

9,60 m

Draught

3,40 m

Depth

4,68 m

Built

2017

Date of completion

23/10/2017

Builder casco

Kladovo Shipyard

Kladovo

Serbia

Builder completion

De Groot Scheepstechniek BV

Dordrecht

The Netherlands

Yard number

114

Hull material

Steel

Hull type

Double hull

Watertight compartments

16

Continuous decks

1

Main engine

1x Mitsubishi S12A2-Z3MPTAW-3 - 4 stroke 12 cylinder 150 x 160 mm combustion engine 701 kW / 953 hp at 1.940 rpm

Build: 01/12/2016

Builder: Mitsubishi Heavy Industries Engine & Turbocharger, Sagmihara - Japan

Gearbox

1x Masson Marine W3450 - reduction 5,476:1

Propellers

1x Screw propeller solid - aft at 354 rpm

Boilers

1x CHO Heatmaster 23,50 m² - 10,0 bar

Generators

1x Diesel generatorset 93 kVA - 74 kW - 129 hp

1x Diesel generatorset 470 kVA - 376 kW - 476 hp

Pumps

2x Kampers type 2C126 cargo pumps each 80 m³/h

Tank capacities

Fuel: 28 m³

Operator

Trafuco NV

Molenberglei 6

2627 Schelle

Belgium

Registered owner

Beltra-B N.V.

Molenberglei 6

2627 Schelle

Belgium

Latest data adjustment

26 March 2020
