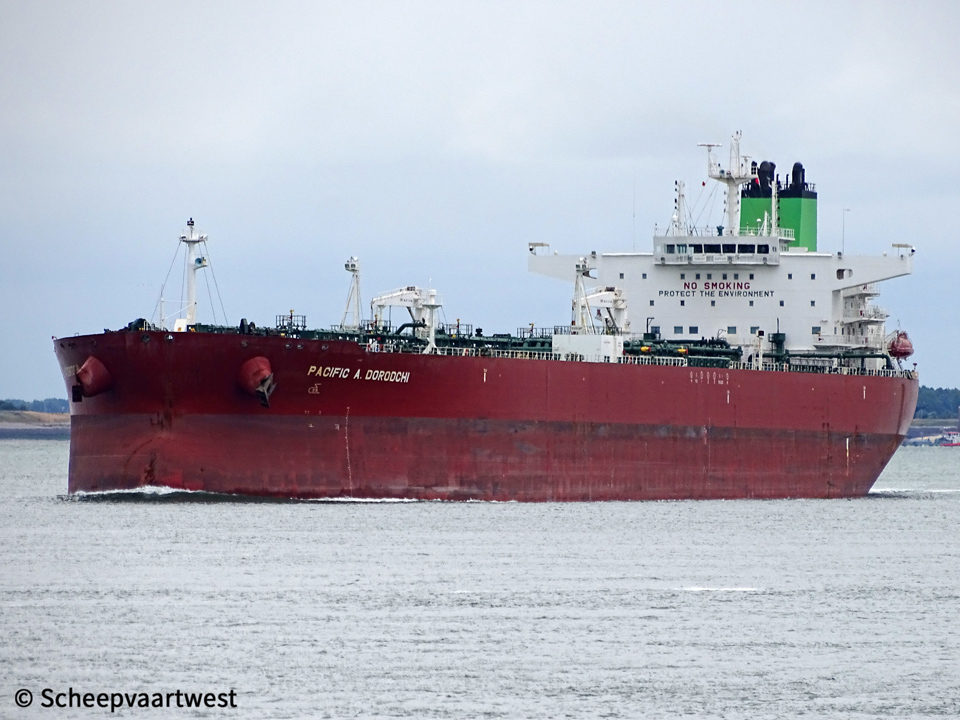

Pacific A Dorodchi 02

Westerschelde 15 July 2019

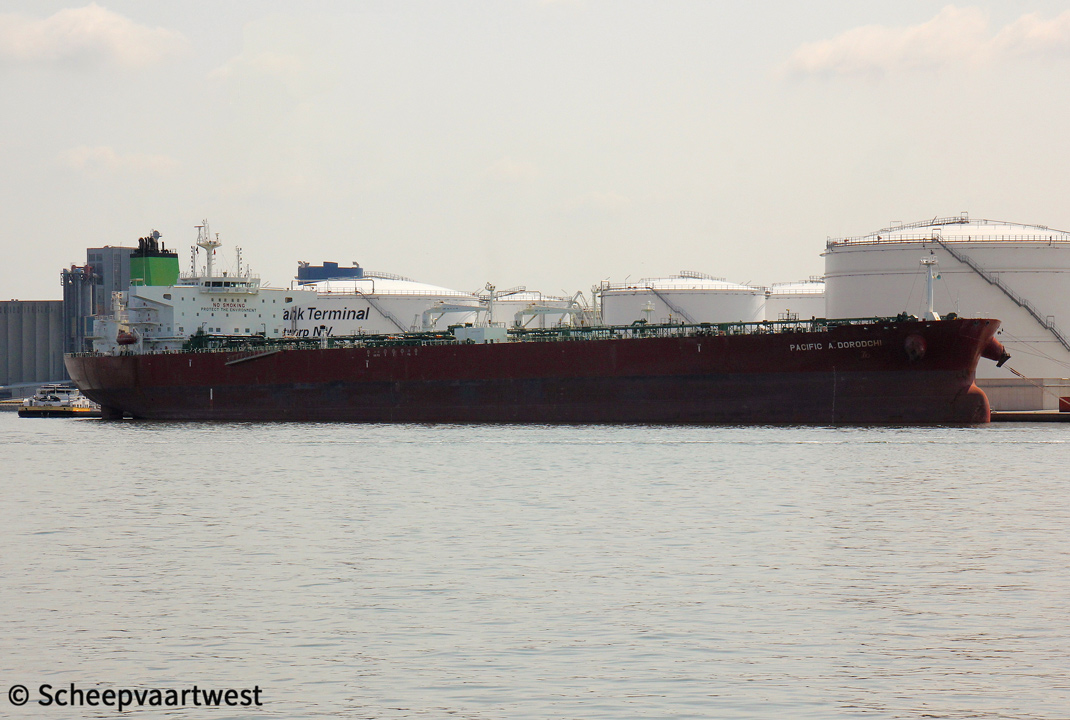

Pacific A Dorodchi 01
Antwerpen 17/07/19


Name

PACIFIC A DORODCHI

Type

Crude oil tanker - Aframax

IMO-number

9732266

Call sign

V7HY6

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

Republic of Panama, Panama City

GT

62.397 t registered

Suez: 63.806,22 t

DWT

Summer: 109.999 t

NT

33.386 t registered

Suez: 58.233,25 t

Panama: 51.268 t

Displacement

119.362,1 t

Length

249,90 m overall

242,00 m between perpendiculars

Breadth

44,00 m moulded

Draught

Max: 14,64 m

Reg. dimensions L x B x D

242,98 x 44,00 x 21,20 m

Rule Dimensions L x B x D

239,05 x 44,00 x 21,20 m

Freeboard

6.594 mm

Depth

21,20 m moulded

Speed

14,0 knots

Built

2016

Keel laid

16/11/2015

Launch date

01/05/2016

Delivery date

12/09/2016

Builder

Daehan Shipbuilding Co., Ltd.

498, Chosunso-Gil Hwawon-Myeon

Haenam

South Korea

Yard number

H5007

Hull material

Steel

Hull type

Double hull

Main engine

1x HHI 6G60ME-C9.5 - 2 stroke6 cylinder 600 x 2.790 mm combustion engine 11.150 kW at 81,7 rpm

Build: 03/2016

Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea

Propellers

1

Manufacturer: HHI Engine & Machinery Div.

Boilers

2x Auxiliary water tube boiler - 17,6 bar

Heating surface: 289 m³

1x Composite boiler - 8,0 bar

Build: 02/2016

Manufacturer: Kangrim Heavy Industries Co., Ltd., Changwon

South Korea

Generators

3x HHI type 5H21/32 - 5 cylinder 210 x 320 mm combustion engines each 960 kW at 900 rpm connected with 3 type HFC7 506-08P generators each 900 kW / 1.125 kVA / 450 Volt

Manufacturer: HHI Engine & Machinery Div. / HHI Electro Electric System

Cargo tank capacity

129.897,1 m³

Tank capacities

Fuel oil: 2.090,2 m³

Lube oil: 237,0 m³

Fresh water: 433,8 m³

Diesel oil: 689,6 m³

Ballast: 41.391,9 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

Manufacturer: Oriental Precision Machinery Co., Ltd.

1x Hose handling crane port - SWL 15,0 t

1x Hose handling crane starboard - SWL 15,0 t

1x Provision crane port - SWL 4,0 t

1x Provision crane starboard - SWL 2,0 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Crew

28

Manager

Fleet Management Limited

Technical manager

Sinokor Maritime Co.,Ltd.

Registered owner

Compass Shipping 38 Corporation Limited

Latest data adjustment

27 June 2020
